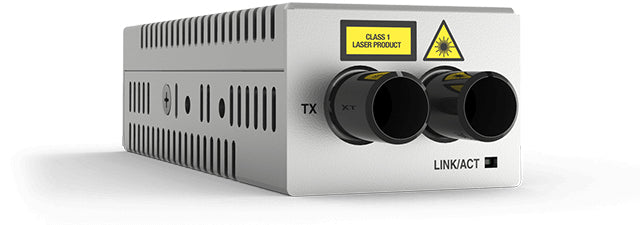

• Allied Telesis AT-DMC1000/ST-90 network media converter 1000 Mbit/s 850 nm Multi-mode Gray
1 1

Allied Telesis AT-DMC1000/ST-90 network media converter 1000 Mbit/s 850 nm Multi-mode Gray

Allied Telesis AT-DMC1000/ST-90 network media converter 1000 Mbit/s 850 nm Multi-mode Gray

AT-DMC1000/ST-90

$342.21 USD
$342.21 USD
Sale Sold out

MSRP: $548.00

Allied Telesis AT-DMC1000/ST-90. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 1000Base-T, Converter output interface: 1000Base-SX. Maximum transfer distance: 21653.5" (550 m), Wavelength: 850 nm, Fiber mode structure: Multi-mode. Product color: Gray. Fiber optic connector: ST, Connectivity technology: Wired. Output voltage: 5 V
View full details
    • Details: Allied Telesis AT-DMC1000/ST-90. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 1000Base-T, Converter output interface: 1000Base-SX. Maximum transfer distance: 21653.5" (550 m), Wavelength: 850 nm, Fiber mode structure: Multi-mode. Product color: Gray. Fiber optic connector: ST, Connectivity technology: Wired. Output voltage: 5 V
    • Certification: FCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI
    • Maximum data transfer rate: 1000 Mbit/s
    • Packet forwarding rate (1 Gbps): 1488000 pps
    • Packet forwarding rate (100 Mbps): 148800 pps
    • Packet forwarding rate (10 Mbps): 14880 pps
    • Internal: No
    • LED indicators: Yes
    • Safety: UL60950-1, EN60950-1
    • Product color: Gray
    • Data transfer rate: 1000 Mbit/s
    • Networking standards: IEEE 802.1Q
    • Ethernet interface type: Gigabit Ethernet
    • Ethernet LAN data rates: 10,100,1000 Mbit/s
    • Rate limiting: Yes
    • VLAN support: Yes
    • Converter input interface: 1000Base-T
    • Converter output interface: 1000Base-SX
    • Auto MDI/MDI-X: Yes
    • Duplex system: Full, Half
    • Auto-negotiation: Yes
    • Link Loss Carry Forward (LLCF) supported: Yes
    • Link Loss Return (LLR) supported: Yes
    • Cable types supported: Fiber
    • Operating temperature (T-T): 0 - 40 °C
    • Storage temperature (T-T): -15 - 65 °C
    • Operating relative humidity (H-H): 5 - 95%
    • Storage relative humidity (H-H): 5 - 95%
    • Operating altitude: 0 - 120000" (0 - 3048 m)
    • Connectivity technology: Wired
    • AC adapter included: Yes
    • Fiber optic connector: ST
    • Maximum transfer distance: 21653.5" (550 m)
    • Wavelength: 850 nm
    • Tx power (min): -9.5 dBmW
    • Tx power (max): -4 dBmW
    • Rx power (min): -17 dBmW
    • Fiber mode structure: Multi-mode
    • Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm
    • Fiber ports quantity: 1
    • Ethernet LAN (RJ-45) ports: 1
    • DC-in jack: Yes
    • Output voltage: 5 V
    • Compliance certificates: RoHS
    • Weight: 3.99 oz (113 g)
    • Width: 1.25" (31.8 mm)
    • Height: 0.85" (21.6 mm)
    • Depth: 3.6" (91.4 mm)
