• Allied Telesis AT-FS750/20-10 network switch Managed Fast Ethernet (10/100) 1U Gray
1 1

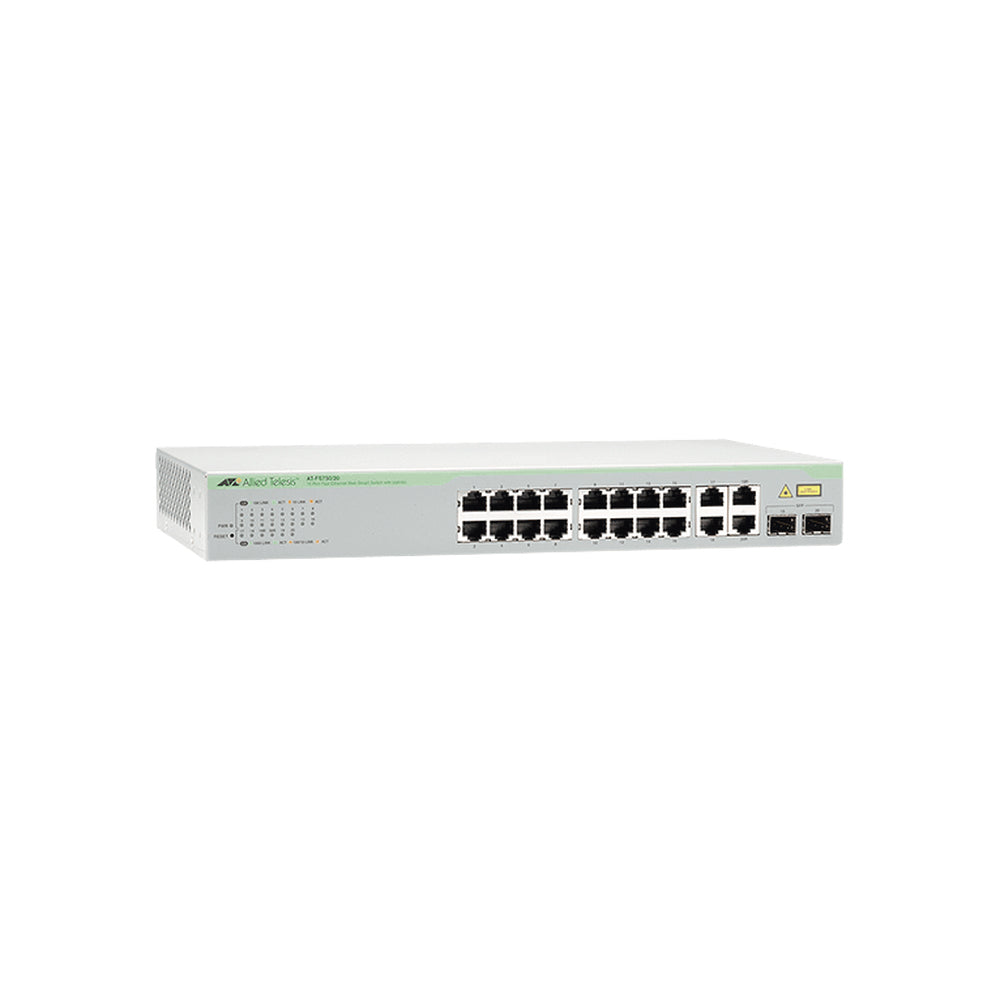

Allied Telesis AT-FS750/20-10 network switch Managed Fast Ethernet (10/100) 1U Gray

Allied Telesis AT-FS750/20-10 network switch Managed Fast Ethernet (10/100) 1U Gray

AT-FS750/20-10

$209.43 USD
$209.43 USD
Sale Sold out

MSRP: $235.00

Allied Telesis AT-FS750/20-10. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 20. MAC address table: 8000 entries, Switching capacity: 11.2 Gbit/s. Networking standards: IEEE 802.11d, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE.... Rack mounting, Form factor: 1U
View full details
    • Details: Allied Telesis AT-FS750/20-10. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 20. MAC address table: 8000 entries, Switching capacity: 11.2 Gbit/s. Networking standards: IEEE 802.11d, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE.... Rack mounting, Form factor: 1U
    • MAC address table: 8000 entries
    • Jumbo frames support: Yes
    • Switching capacity: 11.2 Gbit/s
    • Number of queues: 4
    • Packet forwarding rate (1 Gbps): 1488000 pps
    • Packet forwarding rate (100 Mbps): 148800 pps
    • Packet forwarding rate (10 Mbps): 14880 pps
    • Form factor: 1U
    • Rack mounting: Yes
    • Product color: Gray
    • Switch type: Managed
    • Web-based management: Yes
    • System event log: Yes
    • MIB support: RFC 1213 MIB-II, RFC 1643 Ethernet MIB, RFC 1493 Bridge MIB, RFC 2131 DHCP client, Private Enterprise MIB
    • Multicast support: Yes
    • Number of multicast groups filtered: 256
    • Networking standards: IEEE 802.11d, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    • Port mirroring: Yes
    • Flow control support: Yes
    • Link aggregation: Yes
    • Broadcast storm control: Yes
    • Quality of Service (QoS) support: Yes
    • 10G support: No
    • Rate limiting: Yes
    • Spanning tree protocol: Yes
    • Head-of-line (HOL) blocking: Yes
    • Virtual LAN features: Port-based VLAN, Tagged VLAN
    • Operating temperature (T-T): 0 - 40 °C
    • Management protocols: FTP, HTTP, SNMPv1/v2c/v3, SNTP
    • Cables included: AC
    • Basic switching RJ-45 Ethernet ports quantity: 20
    • Combo SFP ports quantity: 2
    • Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
    • Gigabit Ethernet (copper) ports quantity: 2
    • Fast Ethernet (copper) ports quantity: 16
    • AC input voltage: 100 - 240 V
    • AC input frequency: 50 - 60 Hz
    • Power consumption (max): 7.6 W
    • Power over Ethernet (PoE): No
    • DHCP features: DHCP client
    • MAC address filtering: Yes
    • IGMP snooping: Yes
    • Access Control List (ACL): Yes
    • Authentication: MAC-based authentication
    • Weight: 4.85 lbs (2.2 kg)
    • Width: 13" (330 mm)
    • Height: 1.73" (44 mm)
    • Depth: 7.09" (180 mm)
