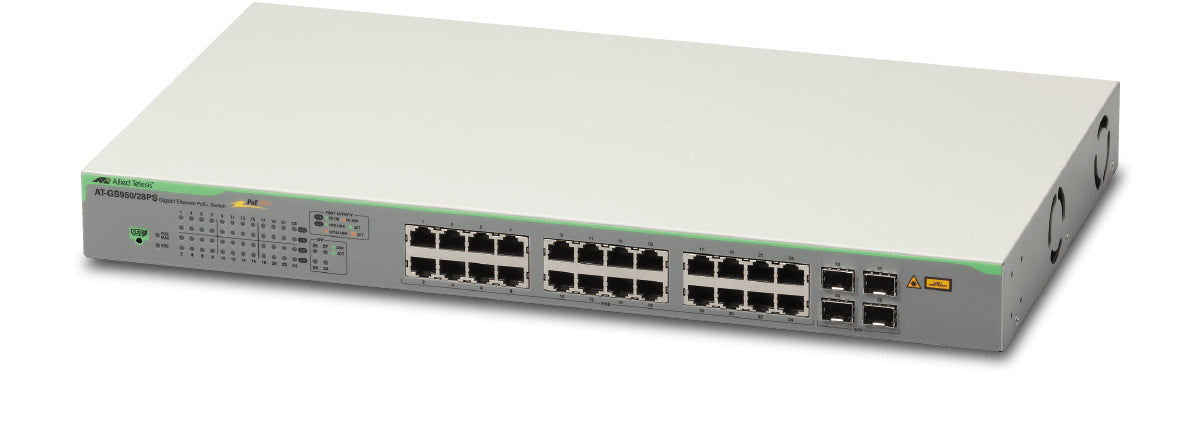

• Allied Telesis AT-GS950/28PS-10 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Gray
1 1

Allied Telesis AT-GS950/28PS-10 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Gray

Allied Telesis AT-GS950/28PS-10 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Gray

AT-GS950-28PS-V2-10

$766.92 USD
$766.92 USD
Sale Sold out

MSRP: $913.00

Allied Telesis AT-GS950/28PS-10. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
View full details
    • Details: Allied Telesis AT-GS950/28PS-10. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
    • Certification: UL60950-1 2nd edition (UL)
    • FCC/EN55022/CISPR 22 Class A
    • VCCI Class A
    • C-Tick
    • EN60950 (TUV)
    • EN55024
    • CE Mark
    • CSA / CUL
    • MAC address table: 8000 entries
    • Jumbo frames support: Yes
    • Packet buffer memory: 1 MB
    • Switching capacity: 56 Gbit/s
    • Number of queues: 4
    • Packet forwarding rate (1 Gbps): 1488000 pps
    • Packet forwarding rate (100 Mbps): 148800 pps
    • Packet forwarding rate (10 Mbps): 14880 pps
    • Forwarding rate: 41.65 Mpps
    • Jumbo frames: 10000
    • Form factor: 1U
    • LED indicators: Yes
    • Rack mounting: Yes
    • Product color: Gray
    • Switch type: Managed
    • Web-based management: Yes
    • System event log: Yes
    • MIB support: RFC 1213 MIB-II,RFC 1643 Ethernet MIB,RFC 1493 Bridge MIB,RFC 2131 DHCP client,Private Enterprise MIB (Allied Telesis provides the spec)
    • Multicast support: Yes
    • Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3x, IEEE 802.3z
    • Port mirroring: Yes
    • Flow control support: Yes
    • Link aggregation: Yes
    • Broadcast storm control: Yes
    • Quality of Service (QoS) support: Yes
    • Security algorithms: SNMP, SSL/TLS
    • 10G support: No
    • Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
    • Rate limiting: Yes
    • VLAN support: Yes
    • Spanning tree protocol: Yes
    • Head-of-line (HOL) blocking: Yes
    • Virtual LAN features: Tagged VLAN, Protocol-based VLAN, Port-based VLAN
    • Number of VLANs: 256
    • IP routing: Yes
    • Operating temperature (T-T): 0 - 45 °C
    • Storage temperature (T-T): -25 - 70 °C
    • Operating relative humidity (H-H): 5 - 90%
    • Storage relative humidity (H-H): 5 - 95%
    • Heat dissipation: 324.153 BTU/h
    • Quick start guide: Yes
    • Cables included: AC
    • Manual: Yes
    • Mounting brackets included: Yes
    • Rubber feet: Yes
    • Included power plug types: US
    • Internal memory: 64 MB
    • Flash memory: 16 MB
    • Fiber optic connector: SFP
    • Memory type: DRAM
    • Firmware upgradeable: Yes
    • Basic switching RJ-45 Ethernet ports quantity: 24
    • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
    • Gigabit Ethernet (copper) ports quantity: 24
    • SFP module slots quantity: 4
    • AC input voltage: 100 - 240 V
    • AC input frequency: 50 - 60 Hz
    • Power consumption (max): 238 W
    • Power source: DC/PoE
    • Power over Ethernet (PoE): Yes
    • Power over Ethernet (PoE) ports quantity: 24
    • Total Power over Ethernet (PoE) budget: 185 W
    • DHCP features: DHCP client
    • MAC address filtering: Yes
    • IGMP snooping: Yes
    • Access Control List (ACL): Yes
    • Access Control List (ACL) rules: 240
    • SSH/SSL support: Yes
    • Weight: 8.16 lbs (3.7 kg)
    • Width: 17.3" (440 mm)
    • Height: 1.73" (44 mm)
    • Depth: 9.84" (250 mm)
