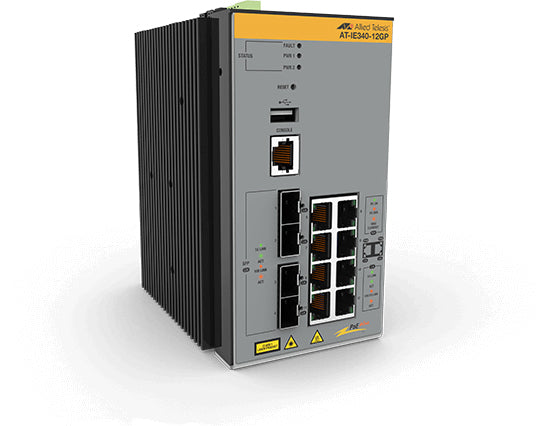

• Allied Telesis AT-IE340-12GP-80 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Gray
1 1

Allied Telesis AT-IE340-12GP-80 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Gray

Allied Telesis AT-IE340-12GP-80 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Gray

990-006296-80

$1,618.08 USD
$1,618.08 USD
Sale Sold out

MSRP: $1,716.00

Allied Telesis AT-IE340-12GP-80. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, USB 2.0 ports quantity: 1, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 1588, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE.... DC input voltage: 18 - 57 V. Power over Ethernet (PoE). Wall mountable
View full details
    • Details: Allied Telesis AT-IE340-12GP-80. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, USB 2.0 ports quantity: 1, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 1588, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE.... DC input voltage: 18 - 57 V. Power over Ethernet (PoE). Wall mountable
    • Video/mp4: https://www.youtube.com/embed/TrOnTmFb4Hg
    • Certification: CE, FCC, ICES, RCM, TEC8, UL, VCCI
    • RoHS, China-RoHS, WEEE
    • MAC address table: 16000 entries
    • Jumbo frames support: Yes
    • Packet buffer memory: 1.5 MB
    • Switching capacity: 24 Gbit/s
    • Number of queues: 8
    • Forwarding rate: 17.8 Mpps
    • Jumbo frames: 9000
    • Stackable: No
    • LED indicators: Yes
    • Rack mounting: No
    • Electromagnetic compatibility: EN 55024, EN 61000-6-2
    • Wall mountable: Yes
    • Product color: Gray
    • Housing material: Aluminum, Metal
    • DIN rail mounting: Yes
    • International Protection (IP) code: IP30
    • Harmonized System (HS) code: 85176990
    • Switch type: Managed
    • Web-based management: Yes
    • System event log: Yes
    • Switch layer: L3
    • Traffic classification: Yes
    • ARP inspection: Yes
    • Configuring Location Settings (CLI): Yes
    • Traffic shaping: Yes
    • Multicast support: Yes
    • Networking standards: IEEE 1588, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    • Port mirroring: Yes
    • Flow control support: Yes
    • Link aggregation: Yes
    • Broadcast storm control: Yes
    • Full duplex: Yes
    • Quality of Service (QoS) support: Yes
    • 10G support: No
    • VLAN support: Yes
    • Spanning tree protocol: Yes
    • Virtual LAN features: Private VLAN, Tagged VLAN
    • Number of VLANs: 4094
    • Policy-based routing: Yes
    • Operating temperature (T-T): -40 - 75 °C
    • Storage temperature (T-T): -40 - 85 °C
    • Operating relative humidity (H-H): 5 - 95%
    • Storage relative humidity (H-H): 5 - 90%
    • Operating altitude: 0 - 118110.2" (0 - 3000 m)
    • Heat dissipation: 105.8 BTU/h
    • Internal memory: 512 MB
    • Flash memory: 128 MB
    • Memory type: DDR-SDRAM
    • Export Control Classification Number (ECCN): 5A992C
    • Fanless: Yes
    • Basic switching RJ-45 Ethernet ports quantity: 8
    • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
    • Console port: RJ-45
    • USB 2.0 ports quantity: 1
    • SFP module slots quantity: 4
    • Power consumption (max): 271 W
    • Power supply included: No
    • Redundant power supply (RPS) support: Yes
    • DC input voltage: 18 - 57 V
    • Power over Ethernet (PoE): Yes
    • Power over Ethernet plus (PoE+) ports quantity: 8
    • Total Power over Ethernet (PoE) budget: 240 W
    • Power over Ethernet (PoE) power per port: 30 W
    • Routing protocols: BGP, OSPF, RIP
    • DHCP features: DHCP relay, DHCP server, DHCP snooping, DHCPv6 relay, DHCPv6 server
    • MAC address filtering: Yes
    • IGMP snooping: Yes
    • Access Control List (ACL): Yes
    • Authentication: Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
    • Password protection: Yes
    • BPDU filtering/protection: Yes
    • Weight: 5.16 lbs (2.34 kg)
    • Width: 3.58" (91 mm)
    • Height: 6.02" (153 mm)
    • Depth: 5.47" (139 mm)
