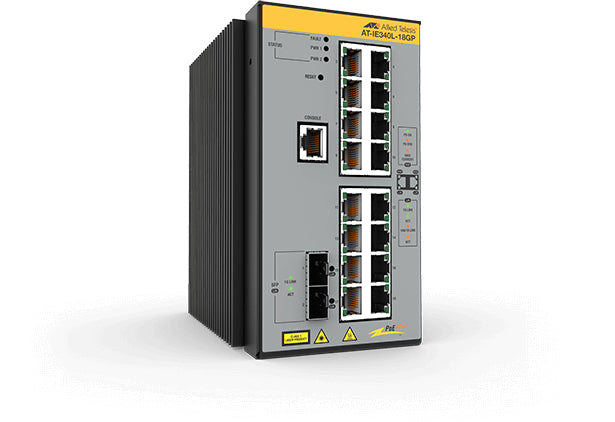

• Allied Telesis AT-IE340L-18GP-80 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Gray
1 1

Allied Telesis AT-IE340L-18GP-80 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Gray

Allied Telesis AT-IE340L-18GP-80 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Gray

990-007006-80

$2,483.65 USD
$2,483.65 USD
Sale Sold out

MSRP: $2,746.00

Allied Telesis AT-IE340L-18GP-80. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16, USB 2.0 ports quantity: 1, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.1x. Power over Ethernet (PoE). Wall mountable
View full details
    • Details: Allied Telesis AT-IE340L-18GP-80. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16, USB 2.0 ports quantity: 1, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.1x. Power over Ethernet (PoE). Wall mountable
    • Video/mp4: https://www.youtube.com/embed/TrOnTmFb4Hg
    • Info: 36Gbps switch fabric and 26.7Mpps forwarding packet rate|16K MAC addresses|4K VLANs|9KB jumbo frame size|8 QoS priority queues|511 (Layer 2), 256 (Layer 3) Multicast groups|IEEE 802.3at PoE+ sourcing (30W)|Alarm input and output ports|240W PoE+ power budget
    • Certification: EN 50022, EN 60715
    • CE, FCC, ICES, RCM, TEC, UL, VCCI
    • RoHS, China-RoHS, WEEE
    • MAC address table: 16000 entries
    • Jumbo frames support: Yes
    • Packet buffer memory: 1.5 MB
    • Switching capacity: 36 Gbit/s
    • Number of queues: 8
    • Forwarding rate: 26.7 Mpps
    • Jumbo frames: 9000
    • Latency (1 Gbps): 3.4 µs
    • Latency (10-100 Mbps): 7.8 µs
    • Stackable: No
    • LED indicators: Yes
    • Rack mounting: No
    • Electromagnetic compatibility: AS/NZS CISPR 32 A, CISPR 32 A, EN 55032 A, EN 61000-6-4 A, FCC 47 CFR 15 B A, ICES 003 6 A, VCCI A
    • Wall mountable: Yes
    • Product color: Gray
    • Housing material: Aluminum, Metal
    • DIN rail mounting: Yes
    • International Protection (IP) code: IP30
    • Harmonized System (HS) code: 8517.62.0050
    • Switch type: Managed
    • Web-based management: Yes
    • System event log: Yes
    • Switch layer: L3
    • ARP inspection: Yes
    • Configuring Location Settings (CLI): Yes
    • Multicast support: Yes
    • Networking standards: IEEE 802.1x
    • Quality of Service (QoS) support: Yes
    • 10G support: No
    • VLAN support: Yes
    • Spanning tree protocol: Yes
    • Virtual LAN features: Private VLAN
    • Number of VLANs: 4094
    • Operating temperature (T-T): -40 - 65 °C
    • Storage temperature (T-T): -40 - 85 °C
    • Operating relative humidity (H-H): 5 - 95%
    • Storage relative humidity (H-H): 5 - 90%
    • Operating altitude: 0 - 118110.2" (0 - 3000 m)
    • Heat dissipation: 105.8 BTU/h
    • Internal memory: 512 MB
    • Flash memory: 128 MB
    • Memory type: DDR-SDRAM
    • Export Control Classification Number (ECCN): 5A992C
    • Basic switching RJ-45 Ethernet ports quantity: 16
    • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
    • Console port: RJ-45
    • USB 2.0 ports quantity: 1
    • SFP module slots quantity: 2
    • Power consumption (max): 271 W
    • Power supply included: No
    • Power over Ethernet (PoE): Yes
    • Power over Ethernet plus (PoE+) ports quantity: 16
    • Total Power over Ethernet (PoE) budget: 240 W
    • Power over Ethernet (PoE) power per port: 15 W
    • Routing protocols: BGP, OSPF, RIP
    • DHCP features: DHCP relay, DHCP server, DHCP snooping, DHCPv6 relay, DHCPv6 server
    • MAC address filtering: Yes
    • IGMP snooping: Yes
    • Access Control List (ACL): Yes
    • Authentication: Guest VLAN
    • Password protection: Yes
    • BPDU filtering/protection: Yes
    • Weight: 5.16 lbs (2.34 kg)
    • Width: 3.58" (91 mm)
    • Height: 6.02" (153 mm)
    • Depth: 5.47" (139 mm)
