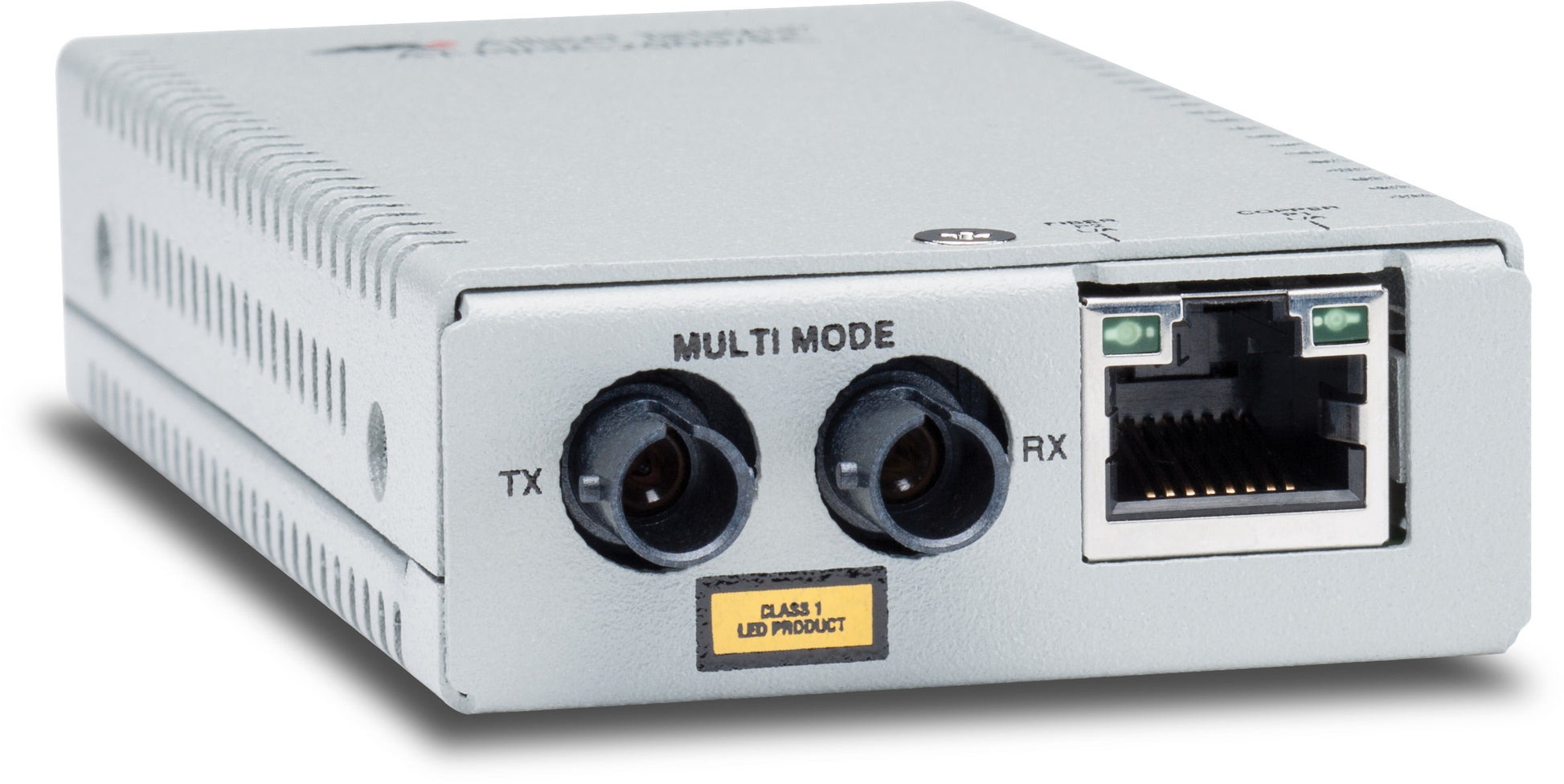

• Allied Telesis AT-MMC2000/ST-960 network media converter 1000 Mbit/s 850 nm Multi-mode Gray
1 1

Allied Telesis AT-MMC2000/ST-960 network media converter 1000 Mbit/s 850 nm Multi-mode Gray

Allied Telesis AT-MMC2000/ST-960 network media converter 1000 Mbit/s 850 nm Multi-mode Gray

990-006977-960

$335.00 USD
$335.00 USD
Sale Sold out

MSRP: $536.00

Allied Telesis AT-MMC2000/ST-960. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T, 100Base-TX, 1000Base-T, Converter output interface: 1000Base-SX. Maximum transfer distance: 19685" (500 m), Wavelength: 850 nm, Fiber mode structure: Multi-mode. LED indicators: LAN, Power, System, Product color: Gray. Fiber optic connector: ST, Connectivity technology: Wired. Input voltage: 12 V, Input current: 0.14 A, Output voltage: 0.14 V
View full details
    • Details: Allied Telesis AT-MMC2000/ST-960. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T, 100Base-TX, 1000Base-T, Converter output interface: 1000Base-SX. Maximum transfer distance: 19685" (500 m), Wavelength: 850 nm, Fiber mode structure: Multi-mode. LED indicators: LAN, Power, System, Product color: Gray. Fiber optic connector: ST, Connectivity technology: Wired. Input voltage: 12 V, Input current: 0.14 A, Output voltage: 0.14 V
    • Video/mp4: https://www.youtube.com/embed/clecqfIUuR4
    • Info: Convert speed as well as media type|2K MAC address tables|Store-and-forward switching mode|Transparent to IEEE 802.1Q packets|Auto Negotiation and Auto MDI/MDIX on copper port|IEEE support on copper|Far End Fault on Fiber|10K byte Jumbo packets|Link/Activity LED per port|Smart MissingLink|Fixed SC/ST/LC or SFP (100MB or 1000MB) optics|12VDC power supply|Wall-mountable using MMCWLMT|Locking power supply jack to prevent accidental power disconnects|Available in Trade Agreement Act (TAA) models
    • Certification: CE, EN55024, EN61000-3-2, EN61000-3-3
    • Maximum data transfer rate: 1000 Mbit/s
    • Jumbo frames support: Yes
    • Jumbo frames: 10000
    • Internal: No
    • LED indicators: LAN, Power, System
    • Safety: FCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI
    • Product color: Gray
    • Harmonized System (HS) code: 85176990
    • Networking standards: IEEE 802.1Q
    • Fiber ethernet cabling technology: 1000BASE?SX
    • Ethernet interface type: Gigabit Ethernet
    • Ethernet LAN data rates: 10,100,1000 Mbit/s
    • VLAN support: Yes
    • Converter input interface: 10Base-T, 100Base-TX, 1000Base-T
    • Converter output interface: 1000Base-SX
    • Auto MDI/MDI-X: Yes
    • Duplex system: Full
    • Store-and-forward: Yes
    • Operating temperature (T-T): 0 - 50 °C
    • Storage temperature (T-T): -30 - 70 °C
    • Operating relative humidity (H-H): 5 - 95%
    • Storage relative humidity (H-H): 5 - 95%
    • Operating altitude: 0 - 120000" (0 - 3048 m)
    • Connectivity technology: Wired
    • User guide: Yes
    • Manual: Yes
    • Quick installation guide: Yes
    • Fiber optic connector: ST
    • Maximum transfer distance: 19685" (500 m)
    • Wavelength: 850 nm
    • Tx power (min): -9.5 dBmW
    • Tx power (max): 4 dBmW
    • Rx power (max): -3 dBmW
    • Rx power (min): -17 dBmW
    • Fiber mode structure: Multi-mode
    • Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm
    • Fiber ports quantity: 2
    • Ethernet LAN (RJ-45) ports: 1
    • DC-in jack: Yes
    • Power consumption (typical): 1.7 W
    • Output voltage: 0.14 V
    • Input voltage: 12 V
    • Input current: 0.14 A
    • Power over Ethernet (PoE): Yes
    • Weight: 6 oz (170 g)
    • Width: 21.6" (549 mm)
    • Height: 0.858" (21.8 mm)
    • Depth: 4" (101.6 mm)
