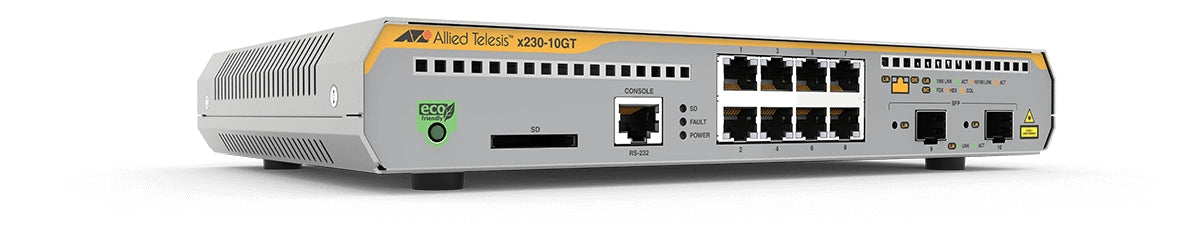

• Allied Telesis AT-X230-10GT-10 network switch Managed L3 Gigabit Ethernet (10/100/1000) Gray
1 1

Allied Telesis AT-X230-10GT-10 network switch Managed L3 Gigabit Ethernet (10/100/1000) Gray

Allied Telesis AT-X230-10GT-10 network switch Managed L3 Gigabit Ethernet (10/100/1000) Gray

AT-X230-10GT-10

$694.38 USD
$694.38 USD
Sale Sold out

MSRP: $747.00

Allied Telesis AT-X230-10GT-10. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power connector: DC-in jack. Rack mounting
View full details
    • Details: Allied Telesis AT-X230-10GT-10. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power connector: DC-in jack. Rack mounting
    • MAC address table: 16000 entries
    • Switching capacity: 20 Gbit/s
    • Throughput: 14.9 Mpps
    • Stackable: Yes
    • LED indicators: Yes
    • Safety: UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1
    • Rack mounting: Yes
    • Product color: Gray
    • Switch type: Managed
    • Web-based management: Yes
    • System event log: Yes
    • MIB support: Y
    • Switch layer: L3
    • ARP inspection: Yes
    • Multicast support: Yes
    • Networking standards: IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    • Port mirroring: Yes
    • Flow control support: Yes
    • Link aggregation: Yes
    • Full duplex: Yes
    • Quality of Service (QoS) support: Yes
    • Security algorithms: 802.1x RADIUS
    • 10G support: No
    • Operating temperature (T-T): 0 - 50 °C
    • Storage temperature (T-T): -25 - 70 °C
    • Operating relative humidity (H-H): 5 - 90%
    • Storage relative humidity (H-H): 5 - 95%
    • Operating altitude: 0 - 120000" (0 - 3048 m)
    • Heat dissipation: 55 BTU/h
    • Package width: 16.9" (430 mm)
    • Package height: 5.91" (150 mm)
    • Package depth: 14.2" (360 mm)
    • Package weight: 6.28 lbs (2.85 kg)
    • Flash memory: 256 MB
    • Basic switching RJ-45 Ethernet ports quantity: 8
    • Combo SFP ports quantity: 2
    • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
    • Power connector: DC-in jack
    • Power consumption (typical): 16 W
    • AC input voltage: 90 - 260 V
    • AC input frequency: 47/63 Hz
    • Power over Ethernet (PoE): No
    • DHCP features: DHCP server, DHCP client
    • IGMP snooping: Yes
    • Access Control List (ACL): Yes
    • Weight: 3.31 lbs (1.5 kg)
    • Width: 10.4" (265 mm)
    • Height: 1.67" (42.5 mm)
    • Depth: 7.09" (180 mm)
