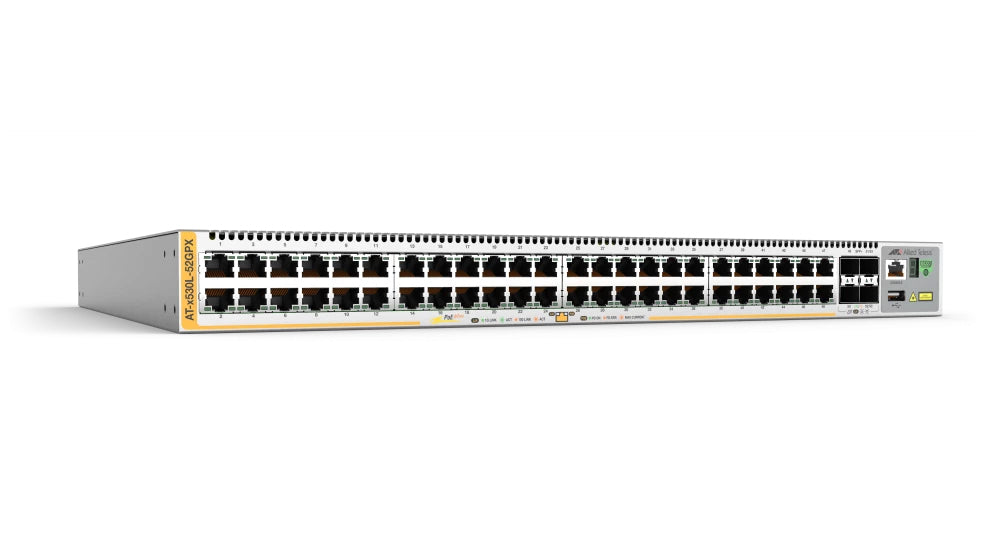

• Allied Telesis AT-X530L-52GPX-90 network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Gray
1 1

Allied Telesis AT-X530L-52GPX-90 network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Gray

Allied Telesis AT-X530L-52GPX-90 network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Gray

AT-X530L-52GPX-90

$6,075.01 USD
$6,075.01 USD
Sale Sold out

MSRP: $6,645.00

Allied Telesis AT-X530L-52GPX-90. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE.... Power over Ethernet (PoE). Rack mounting
View full details
    • Details: Allied Telesis AT-X530L-52GPX-90. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE.... Power over Ethernet (PoE). Rack mounting
    • Info: AlliedWare Plus™ Enterprise-class operating system|VCStack™ up to 8 units locally or over distance to support resilient networking|Ethernet Protection Switched Ring (EPSRing™) and G.8032 ERPS supports high-speed resilient ring-based networks|Power over Ethernet Plus (PoE+) supplies up to 30 Watts to connect and power endpoints such as PTZ security cameras, POS terminals, and wireless access points|Continuous PoE ensures endpoint uptime, even during a switch firmware upgrade|Dual fixed power supplies provide a PoE+ power budget of 740 Watts
    • MAC address table: 16000 entries
    • Packet buffer memory: 3 MB
    • Switching capacity: 176 Gbit/s
    • Forwarding rate: 130.9 Mpps
    • Stackable: Yes
    • Rack mounting: Yes
    • Product color: Gray
    • Switch type: Managed
    • Switch layer: L3
    • Networking standards: IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    • 10G support: Yes
    • VLAN support: Yes
    • Number of VLANs: 4094
    • Operating temperature (T-T): 0 - 50 °C
    • Storage temperature (T-T): -25 - 70 °C
    • Operating relative humidity (H-H): 5 - 90%
    • Storage relative humidity (H-H): 5 - 95%
    • Operating altitude: 0 - 120000" (0 - 3048 m)
    • Heat dissipation: 324 BTU/h
    • Package width: 22.7" (577 mm)
    • Package height: 6.02" (153 mm)
    • Package depth: 21.6" (548 mm)
    • Package weight: 19.6 lbs (8.9 kg)
    • Internal memory: 16000 MB
    • Flash memory: 256 MB
    • Fiber optic connector: SFP+
    • Noise level: 42 dB
    • Memory type: DDR3-SDRAM
    • Basic switching RJ-45 Ethernet ports quantity: 48
    • Fiber ports quantity: 4
    • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
    • AC input voltage: 90 - 264 V
    • AC input frequency: 50/60 Hz
    • Power consumption (max): 950 W
    • Number of power supply units: 2
    • Power source: AC/PoE
    • Power supply included: Yes
    • Power over Ethernet (PoE): Yes
    • Power over Ethernet (PoE) ports quantity: 48
    • Total Power over Ethernet (PoE) budget: 740 W
    • Weight: 14.8 lbs (6.7 kg)
    • Width: 17.4" (441 mm)
    • Height: 1.73" (44 mm)
    • Depth: 16.6" (421 mm)
