• Allied Telesis AT-x950-28XSQ-B05 Managed L3 Gray
1 1

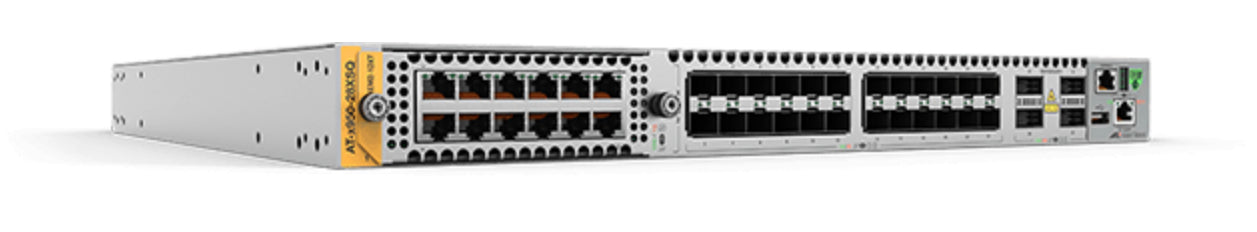

Allied Telesis AT-x950-28XSQ-B05 Managed L3 Gray

Allied Telesis AT-x950-28XSQ-B05 Managed L3 Gray

990-006194-B05

$28,364.25 USD
$28,364.25 USD
Sale Sold out

MSRP: $26,452.00

Allied Telesis AT-x950-28XSQ-B05. Switch type: Managed Switch layer: L3. USB 2.0 ports quantity: 1. MAC address table: 96000 entries Switching capacity: 1920 Gbit/s. Networking standards: IEEE 802.1AX IEEE 802.1D IEEE 802.1Q IEEE 802.1ad IEEE 802.1p IEEE 802.1s IEEE 802.1v IEEE.... Rack mounting
View full details
    • Details: Allied Telesis AT-x950-28XSQ-B05. Switch type: Managed, Switch layer: L3. USB 2.0 ports quantity: 1. MAC address table: 96000 entries, Switching capacity: 1920 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE.... Rack mounting
    • Video/mp4: https://www.youtube.com/watch?v=dk5Col6Ym0E
    • Info: 24 x 1/10G SFP+ ports, 4 x 40G/100G uplink ports, and 1 x expansion bay|Large switching and routing tables support multiple services and connected devices|VCStack up to 8 units locally or over distance for a resilient network core|Autonomous Management Framework (AMF) for network automation|SDN for network intelligence with OpenFlow v 1.3
    • Certification: EN55024, EN61000-3-2
    • UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950
    • UL, cUL, TUV
    • RoHS
    • MAC address table: 96000 entries
    • Jumbo frames support: Yes
    • Packet buffer memory: 16 MB
    • Switching capacity: 1920 Gbit/s
    • Forwarding rate: 1190 Mpps
    • Jumbo frames: 10000
    • Latency (10 Gbps): 0.8 µs
    • Stackable: Yes
    • LED indicators: Yes
    • Rack mounting: Yes
    • Electromagnetic compatibility: EN55032 A, FCC A, VCCI A
    • Product color: Gray
    • Harmonized System (HS) code: 85176990
    • Switch type: Managed
    • Web-based management: Yes
    • System event log: Yes
    • Switch layer: L3
    • Configuring Location Settings (CLI): Yes
    • Multicast support: Yes
    • Multicast MAC address table: 8000 entries
    • Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ac, IEEE 802.3ad
    • Port mirroring: Yes
    • Link aggregation: Yes
    • Quality of Service (QoS) support: Yes
    • Security algorithms: EAP, HTTPS, MD5, PEAP, SSH, SSH-2, SSL/TLS, TTLS
    • 10G support: Yes
    • VLAN support: Yes
    • Spanning tree protocol: Yes
    • Virtual LAN features: Private VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN
    • Number of VLANs: 4000
    • IP routing: Yes
    • Policy-based routing: Yes
    • Routing entries: 64
    • Operating temperature (T-T): 0 - 50 °C
    • Storage temperature (T-T): -25 - 70 °C
    • Operating relative humidity (H-H): 5 - 90%
    • Storage relative humidity (H-H): 5 - 95%
    • Operating altitude: 0 - 120078.7" (0 - 3050 m)
    • Heat dissipation: 789 BTU/h
    • Package weight: 20.3 lbs (9.2 kg)
    • Internal memory: 4096 MB
    • Flash memory: 4000 MB
    • Noise level: 63.4 dB
    • Memory type: DDR-SDRAM
    • Basic switching RJ-45 Ethernet ports type: No
    • USB 2.0 ports quantity: 1
    • SFP+ module slots quantity: 24
    • QSFP+ module slots quantity: 4
    • AC input voltage: 100 - 240 V
    • AC input frequency: 47/63 Hz
    • Power consumption (max): 231.2 W
    • Power over Ethernet (PoE): No
    • Routing protocols: BGP, OSPF, RIP, RIP-2
    • DHCP features: DHCP client, DHCP relay, DHCP server, DHCPv6 client, DHCPv6 relay, DHCPv6 server
    • MAC address filtering: Yes
    • IGMP snooping: Yes
    • Access Control List (ACL): Yes
    • Authentication: MAC-based authentication, Web-based authentication
    • Loop protection: Yes
    • BPDU filtering/protection: Yes
    • Weight: 15.9 lbs (7.2 kg)
    • Width: 17.3" (440 mm)
    • Height: 1.73" (44 mm)
    • Depth: 19" (482 mm)
