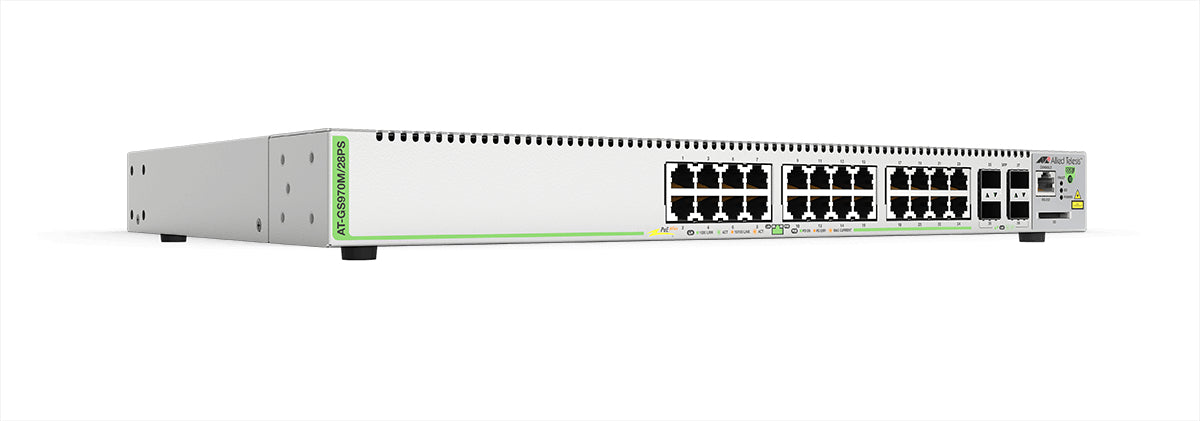

Allied Telesis GS970M/28PS Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Gray
Allied Telesis GS970M/28PS Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Gray
SKU: ATGS970M28PS10
Regular price
$1,075.18 USD
Regular price
Sale price
$1,075.18 USD
MSRP: $1,438.00
Allied Telesis GS970M/28PS. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 28, Installed SFP modules quantity: 4, Console port: RS-232. Full duplex. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE.... Power over Ethernet (PoE)
Quantity
Couldn't load pickup availability
- Details: Allied Telesis GS970M/28PS. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 28, Installed SFP modules quantity: 4, Console port: RS-232. Full duplex. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE.... Power over Ethernet (PoE)
- MAC address table: 16000 entries
- Jumbo frames support: Yes
- Packet buffer memory: 1.5 MB
- Switching capacity: 56 Gbit/s
- Forwarding rate: 41.7 Mpps
- Jumbo frames: 10000
- Latency (1 Gbps): 4.3 µs
- LED indicators: Yes
- Safety: EN60950-1 (TUV), UL 60950- 1(cULus), EN60825-1
- Electromagnetic compatibility: EN55024
- Product color: Gray
- Country of origin: China
- Switch type: Managed
- Web-based management: Yes
- Switch layer: L3
- Traffic classification: Yes
- ARP inspection: Yes
- Multicast support: Yes
- Networking standards: IEEE 802.1AX, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Port mirroring: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Full duplex: Yes
- Quality of Service (QoS) support: Yes
- Security algorithms: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, 802.1x RADIUS, DES, MD5, PEAP, RSA, SHA-1, SHA-2, SHA-256, SSL/TLS, TTLS
- Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
- VLAN support: Yes
- Virtual LAN features: Private VLAN, Tagged VLAN, Port-based VLAN
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -25 - 70 °C
- Operating relative humidity (H-H): 5 - 90%
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 118110.2" (0 - 3000 m)
- Heat dissipation: 303 BTU/h
- Non-operating altitude: 0 - 157480.3" (0 - 4000 m)
- Management protocols: SNMP
- Package width: 20.9" (530 mm)
- Package height: 5.91" (150 mm)
- Package depth: 16.9" (430 mm)
- Package weight: 14 lbs (6.35 kg)
- Internal memory: 256 MB
- Flash memory: 64 MB
- Noise level: 33 dB
- Memory type: DDR-SDRAM
- Basic switching RJ-45 Ethernet ports quantity: 28
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 24
- Console port: RS-232
- Installed SFP modules quantity: 4
- Power consumption (typical): 37 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 520 W
- Input current: 2.4 A
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 24
- Total Power over Ethernet (PoE) budget: 370 W
- Power over Ethernet (PoE) power per port: 24 W
- DHCP features: DHCP snooping, DHCP client
- MAC address filtering: Yes
- IGMP snooping: Yes
- Access Control List (ACL): Yes
- Authentication: Guest VLAN, MAC-based authentication, Web-based authentication
- Password protection: Yes
- Loop protection: Yes
- SSH/SSL support: Yes
- BPDU filtering/protection: Yes
- Weight: 10.4 lbs (4.7 kg)
- Width: 17.3" (440 mm)
- Height: 1.73" (44 mm)
- Depth: 11.4" (290 mm)
