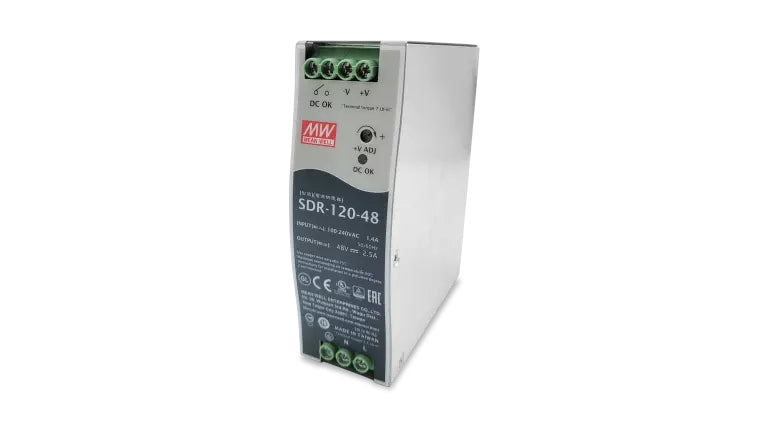

Allied Telesis SDR120-48 voltage transformer 48 V

Allied Telesis SDR120-48 voltage transformer 48 V

AT-SDR120-48

$211.00 USD
$211.00 USD
Sale Sold out

MSRP: $211.00

Allied Telesis SDR120-48. Width: 1.57" (40 mm), Depth: 4.93" (125.2 mm), Height: 4.47" (113.5 mm)
View full details
    • Details: Allied Telesis SDR120-48. Width: 1.57" (40 mm), Depth: 4.93" (125.2 mm), Height: 4.47" (113.5 mm)
    • Info: 150% peak Load Efficiency|Stable output power with 150% peak current capability|Wide input voltage range|Protections: peak-current, over-curren and over-temperature|Extended operating temperature range|Metal case
    • Product color: Blue, Gray
    • Housing material: Metal
    • Power protection features: Over voltage, Overheating, Overload
    • International Protection (IP) code: IP20
    • Efficiency: 90.5%
    • Operating temperature (T-T): -25 - 70 °C
    • Storage temperature (T-T): -40 - 85 °C
    • Operating relative humidity (H-H): 20 - 95%
    • Storage relative humidity (H-H): 10 - 95%
    • Mounting type: DIN rail
    • Output power: 120 W
    • AC input voltage: 88 - 264 V
    • AC input frequency: 47 - 63 Hz
    • Output voltage: 48 V
    • DC voltage range: 124 - 370 V
    • Peak power: 180 W
    • Material: Metal
    • AC voltage range: 48 - 55 V
    • Width: 1.57" (40 mm)
    • Height: 4.47" (113.5 mm)
    • Depth: 4.93" (125.2 mm)
