• Allied Telesis x320-10GH Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Gray
1 1

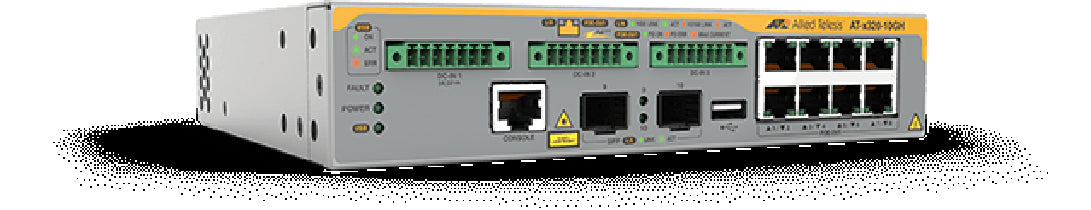

Allied Telesis x320-10GH Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Gray

Allied Telesis x320-10GH Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Gray

AT-X320-10GH

$1,780.00 USD
$1,780.00 USD
Sale Sold out

MSRP: $1,945.00

Allied Telesis x320-10GH. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
View full details
    • Details: Allied Telesis x320-10GH. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
    • Info: AlliedWare Plus Enterprise-class operating system|Allied Telesis Autonomous Management Framework (AMF)|Up to 90 Watts of PoE++ per port|EPSRing and G.8032 for resilient rings|Active Fiber Monitoring|Static and dynamic routing|Fanless design for silent operation|Flexible deployment
    • Certification: EN55024, EN61000-3
    • UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1
    • UL, cUL
    • RoHS
    • MAC address table: 16000 entries
    • Jumbo frames support: Yes
    • Packet buffer memory: 1.5 MB
    • Switching capacity: 24 Gbit/s
    • Number of queues: 8
    • Forwarding rate: 14.9 Mpps
    • Jumbo frames: 10000
    • Latency (1 Gbps): 3 µs
    • Latency (10-100 Mbps): 5.4 µs
    • Form factor: 1U
    • Rack mounting: Yes
    • Electromagnetic compatibility: EN55032 A, FCC A, VCCI A, ICES-003 A
    • Product color: Gray
    • Switch type: Managed
    • Web-based management: Yes
    • Switch layer: L3
    • Configuring Location Settings (CLI): Yes
    • Multicast support: Yes
    • Multicast MAC address table: 2000 entries
    • Networking standards: IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    • Port mirroring: Yes
    • Full duplex: Yes
    • Quality of Service (QoS) support: Yes
    • Security algorithms: 3DES, AES, DES, MD5, SHA-1, SHA-2, SHA-256
    • 10G support: No
    • VLAN support: Yes
    • Virtual LAN features: Private VLAN
    • Number of VLANs: 4094
    • Policy-based routing: Yes
    • Operating temperature (T-T): -10 - 55 °C
    • Storage temperature (T-T): -25 - 70 °C
    • Operating relative humidity (H-H): 5 - 90%
    • Storage relative humidity (H-H): 5 - 95%
    • Operating altitude: 0 - 118110.2" (0 - 3000 m)
    • Package width: 16.4" (417 mm)
    • Package height: 5.94" (151 mm)
    • Package depth: 13.2" (336 mm)
    • Package weight: 5.95 lbs (2.7 kg)
    • Internal memory: 512 MB
    • Flash memory: 128 MB
    • Memory type: DDR3-SDRAM
    • Basic switching RJ-45 Ethernet ports quantity: 8
    • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
    • SFP module slots quantity: 2
    • AC input voltage: 100 - 240 V
    • AC input frequency: 47/63 Hz
    • Power over Ethernet (PoE): Yes
    • Power over Ethernet (PoE) ports quantity: 8
    • Routing protocols: OSPF, RIP
    • DHCP features: DHCP snooping, DHCPv6 client, DHCPv6 relay
    • MAC address filtering: Yes
    • Access Control List (ACL): Yes
    • Authentication: Guest VLAN
    • Password protection: Yes
    • Loop protection: Yes
    • BPDU filtering/protection: Yes
    • Authentication type: AAA
    • Weight: 3.53 lbs (1.6 kg)
    • Width: 8.27" (210 mm)
    • Height: 1.67" (42.5 mm)
    • Depth: 7.09" (180 mm)
