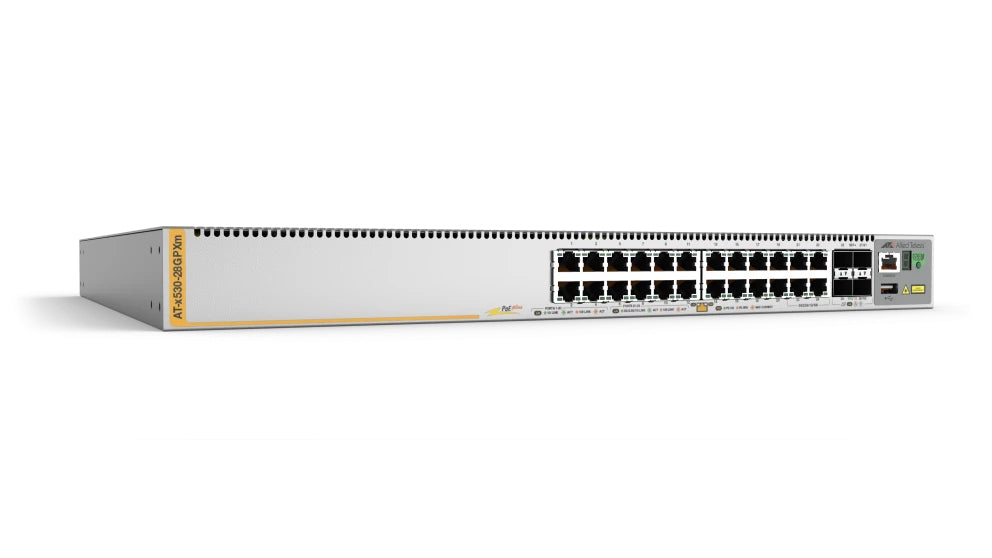

• Allied Telesis X530-28GPXM Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver
1 1

Allied Telesis X530-28GPXM Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver

Allied Telesis X530-28GPXM Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver

AT-X530-28GPXM-10

$4,428.66 USD
$4,428.66 USD
Sale Sold out

MSRP: $4,888.00

Allied Telesis X530-28GPXM. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1. MAC address table: 16000 entries, Switching capacity: 160 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u,.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
View full details
    • Details: Allied Telesis X530-28GPXM. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1. MAC address table: 16000 entries, Switching capacity: 160 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u,.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
    • Info: Deployable as an AMF Plus master or as an AMF Plus member switch|Flexible Multi-Gigabit connectivity options at 1G, 2.5G, 5G and 10G|EPSRing™ and G.8032 ERPS for fast-failover resilient ring networks|30W, 60W, or 90W PoE per port (depending on model – see specifications tab)|PoE power budget of up to 1480W (depending on model – see specifications tab)|Continuous PoE maximizes endpoint connectivity|Active Fiber Monitoring™ (AFM) for secure fiber networks|FIPS 140-2 certified
    • Certification: UL, cUL, UL60950-1, CAN/CSA-C22.2 No.
    • 60950-1-03, EN60950-1, EN60825-1, AS/NZS
    • 60950.1
    • MAC address table: 16000 entries
    • Jumbo frames support: Yes
    • Packet buffer memory: 1.5 MB
    • Switching capacity: 160 Gbit/s
    • Number of queues: 8
    • Forwarding rate: 119 Mpps
    • Jumbo frames: 10000
    • Latency (1 Gbps): 4.05 µs
    • Latency (10-100 Mbps): 7.38 µs
    • Latency (10 Gbps): 1.63 µs
    • Stackable: Yes
    • Form factor: 1U
    • Rack mounting: Yes
    • Electromagnetic compatibility: EN55032 class A, FCC class A, VCCI class A, ICES-003 class A
    • Product color: Silver
    • Switch type: Managed
    • Web-based management: Yes
    • Switch layer: L3
    • Traffic classification: Yes
    • Configuring Location Settings (CLI): Yes
    • Multicast support: Yes
    • Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    • Port mirroring: Yes
    • Flow control support: Yes
    • Link aggregation: Yes
    • Fiber ethernet cabling technology: 100BASE-X, 1000BASE-X
    • Quality of Service (QoS) support: Yes
    • Security algorithms: 802.1x RADIUS, SSH, SSH-2, SSL/TLS
    • 10G support: Yes
    • Copper ethernet cabling technology: 10GBASE-T
    • VLAN support: Yes
    • Spanning tree protocol: Yes
    • Virtual LAN features: VLAN Identifier ( VLAN ID)
    • Cable types supported: Cat5e, Cat6, Cat6a
    • Policy-based routing: Yes
    • Auto-sensing: Yes
    • Operating temperature (T-T): 0 - 50 °C
    • Storage temperature (T-T): -25 - 70 °C
    • Operating relative humidity (H-H): 5 - 90%
    • Storage relative humidity (H-H): 5 - 95%
    • Operating altitude: 0 - 120000" (0 - 3048 m)
    • Package width: 22.2" (563 mm)
    • Package height: 5.04" (128 mm)
    • Package depth: 21" (534 mm)
    • Package weight: 18.3 lbs (8.3 kg)
    • Internal memory: 1000 MB
    • Flash memory: 256 MB
    • Wavelength: 850 nm
    • Noise level: 44 dB
    • Memory type: DDR3-SDRAM
    • Physical stacking (units): 4
    • Basic switching RJ-45 Ethernet ports quantity: 24
    • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
    • Gigabit Ethernet (copper) ports quantity: 20
    • Power connector: AC-in jack
    • Fast Ethernet (copper) ports quantity: 4
    • USB 2.0 ports quantity: 1
    • SFP+ module slots quantity: 4
    • Power consumption (max): 900 W
    • Power over Ethernet (PoE): Yes
    • Power over Ethernet (PoE) ports quantity: 24
    • Power over Ethernet plus (PoE+) ports quantity: 24
    • Total Power over Ethernet (PoE) budget: 740 W
    • DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 relay
    • MAC address filtering: Yes
    • IGMP snooping: Yes
    • Access Control List (ACL): Yes
    • Authentication: MAC-based authentication, Port-based authentication, Web-based authentication
    • Password protection: Yes
    • Loop protection: Yes
    • BPDU filtering/protection: Yes
    • Authentication type: IEEE 802.1x
    • Weight: 13.9 lbs (6.3 kg)
    • Width: 17.4" (441 mm)
    • Height: 1.73" (44 mm)
    • Depth: 16.6" (421 mm)
