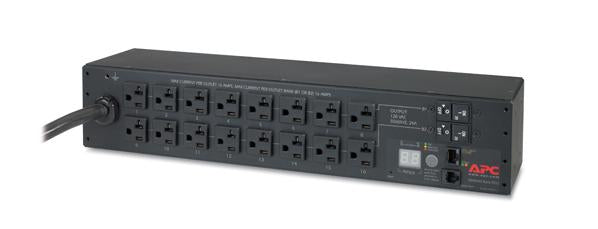

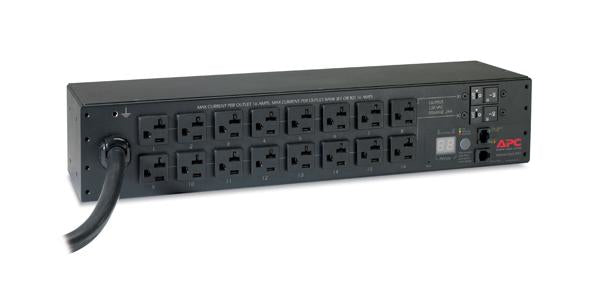

APC AP7802B power distribution unit (PDU) 16 AC outlet(s) 2U Black

APC AP7802B power distribution unit (PDU) 16 AC outlet(s) 2U Black

AP7802B

$1,250.22 USD
$1,250.22 USD
Sale Sold out

MSRP: $1,835.00

APC AP7802B. PDU types: Metered, Rack capacity: 2U, Product color: Black. AC outlets quantity: 16 AC outlet(s), AC outlet types: NEMA 5–20R, Input connection type: NEMA L5-30P. LED indicators: Alarm, Cable length: 144.1" (3.66 m). Monitoring: Current. Nominal input voltage: 100 - 120 V, Maximum current: 30 A, AC input frequency: 50 - 60 Hz
View full details
    • Details: APC AP7802B. PDU types: Metered, Rack capacity: 2U, Product color: Black. AC outlets quantity: 16 AC outlet(s), AC outlet types: NEMA 5–20R, Input connection type: NEMA L5-30P. LED indicators: Alarm, Cable length: 144.1" (3.66 m). Monitoring: Current. Nominal input voltage: 100 - 120 V, Maximum current: 30 A, AC input frequency: 50 - 60 Hz
    • PDF: http://objects.icecat.biz/objects/mmo_35660724_1491910598_9839_18430.pdf|http://objects.icecat.biz/objects/mmo_35660724_1491910769_1201_18421.pdf|http://www.apc.com/shop/an/en/products/Rack-PDU-Metered-2U-30A-120V-16-5-20/P-AP7802B|http://objects.icecat.biz/objects/mmo_35660724_1491910840_8412_18936.pdf
    • Certification: cUL Listed, CSA, FCC Part 15 Class A, ICES-003, UL 60950, UL Listed
    • LED indicators: Alarm
    • PDU types: Metered
    • Product color: Black
    • Cable length: 144.1" (3.66 m)
    • Power protection features: Overload
    • Maximum current: 30 A
    • Monitoring: Current
    • Operating temperature (T-T): -5 - 45 °C
    • Storage temperature (T-T): -25 - 65 °C
    • Operating relative humidity (H-H): 5 - 95%
    • Storage relative humidity (H-H): 5 - 95%
    • Operating altitude: 0 - 118110.2" (0 - 3000 m)
    • Nominal output voltage: 120 V
    • Nominal input voltage: 100 - 120 V
    • Input connection type: NEMA L5-30P
    • Package width: 20" (508 mm)
    • Package height: 5.51" (140 mm)
    • Package depth: 14.5" (368 mm)
    • Package weight: 9.79 lbs (4.44 kg)
    • AC outlet types: NEMA 5–20R
    • AC outlets quantity: 16 AC outlet(s)
    • AC input frequency: 50 - 60 Hz
    • Maximum total current draw per phase: 24 A
    • Load capacity: 2880 VA
    • Maximum power: 14400 W
    • Compliance certificates: RoHS
    • Rack capacity: 2U
    • Weight: 7.41 lbs (3.36 kg)
    • Width: 17.5" (444 mm)
    • Height: 3.46" (88 mm)
    • Depth: 4.41" (112 mm)
