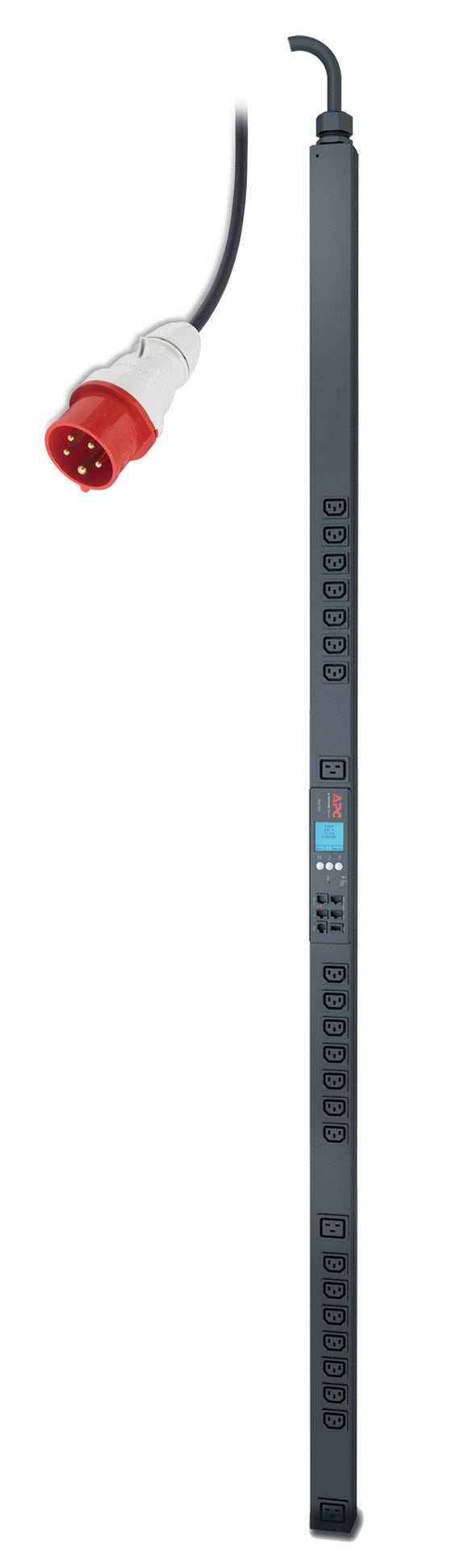

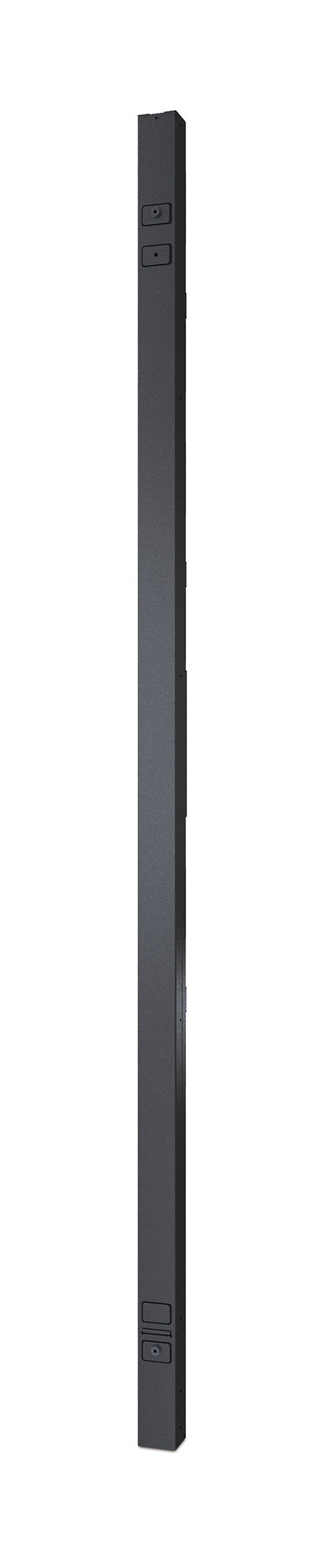

APC AP8481 power distribution unit (PDU) 24 AC outlet(s) 0U Black

APC AP8481 power distribution unit (PDU) 24 AC outlet(s) 0U Black

AP8481

$2,850.35 USD
$2,850.35 USD
Sale Sold out

MSRP: $4,180.00

APC AP8481. PDU types: Metered, Metered-by-outlet, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC309. Cable length: 72" (1.83 m). Monitoring: Current, Power, Voltage, Management platform: Web, SNMP, Telnet. Nominal input voltage: 400 V, AC input frequency: 50 - 60 Hz, Nominal output voltage: 230 V
View full details
    • Details: APC AP8481. PDU types: Metered, Metered-by-outlet, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC309. Cable length: 72" (1.83 m). Monitoring: Current, Power, Voltage, Management platform: Web, SNMP, Telnet. Nominal input voltage: 400 V, AC input frequency: 50 - 60 Hz, Nominal output voltage: 230 V
    • Certification: EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, UL, VDE,\r
    • REACH
    • LED indicators: Yes
    • PDU types: Metered, Metered-by-outlet
    • Mounting: Vertical
    • Product color: Black
    • Cable length: 72" (1.83 m)
    • Monitoring: Current, Power, Voltage
    • Operating temperature (T-T): -5 - 45 °C
    • Storage temperature (T-T): -25 - 65 °C
    • Operating relative humidity (H-H): 5 - 95%
    • Storage relative humidity (H-H): 5 - 95%
    • Operating altitude: 0 - 590551.2" (0 - 15000 m)
    • Nominal output voltage: 230 V
    • Nominal input voltage: 400 V
    • Output connections: 21 x C13 & 3 x C19
    • Input connection type: IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E
    • Management platform: Web, SNMP, Telnet
    • Package width: 6.42" (163 mm)
    • Package height: 80.2" (2037 mm)
    • Package depth: 4.61" (117 mm)
    • Package weight: 23.1 lbs (10.5 kg)
    • AC outlet types: C13 coupler, C19 coupler
    • Power plug: IEC309
    • AC outlets quantity: 24 AC outlet(s)
    • AC input frequency: 50 - 60 Hz
    • Maximum input current per phase: 16 A
    • Maximum total current draw per phase: 16 A
    • Load capacity: 11040 VA
    • Maximum power: 11040 W
    • Compliance certificates: RoHS
    • Rack capacity: 0U
    • Total carbon footprint (kg of CO2e): 7251.82
    • Weight: 18.1 lbs (8.21 kg)
    • Width: 2.2" (56 mm)
    • Height: 72" (1829 mm)
    • Depth: 2.01" (51 mm)
