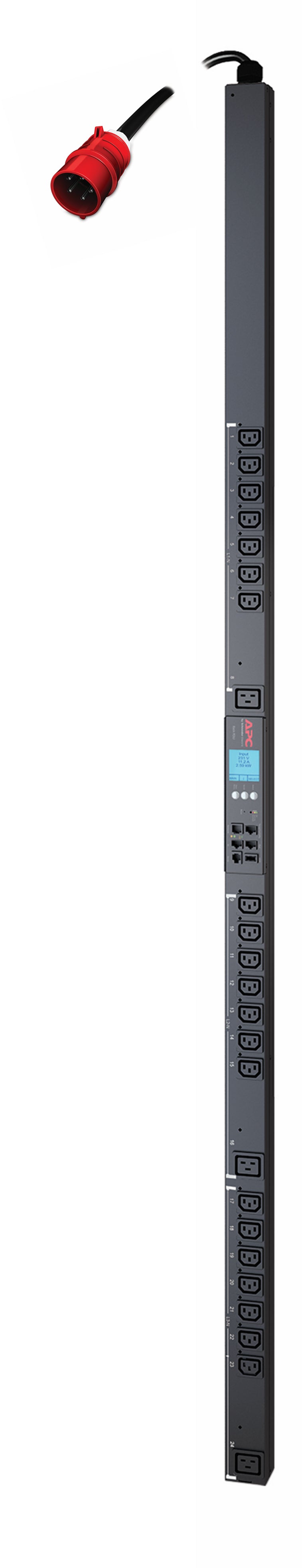

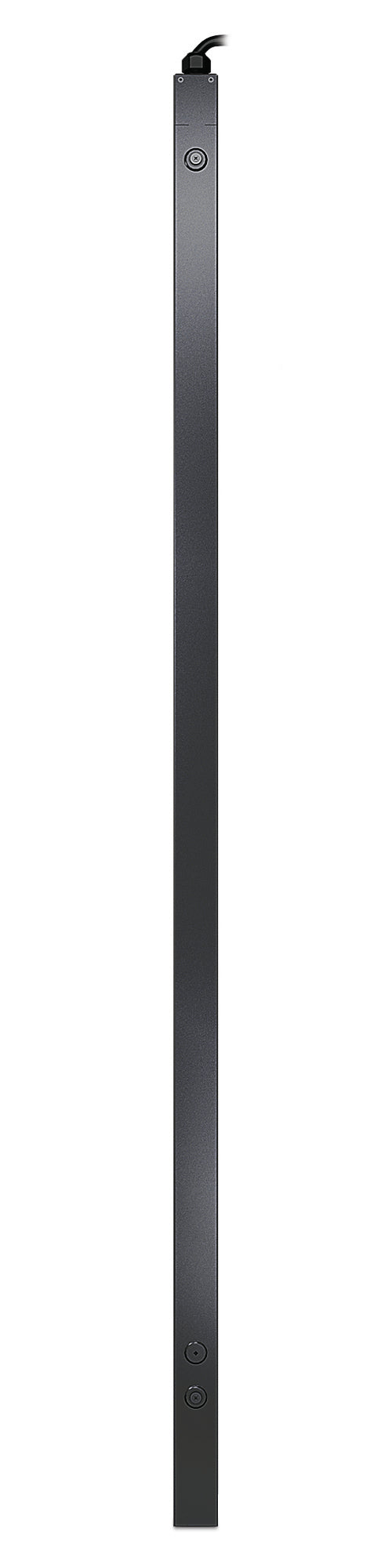

APC AP8681 power distribution unit (PDU) 24 AC outlet(s) 0U Black

APC AP8681 power distribution unit (PDU) 24 AC outlet(s) 0U Black

AP8681

$3,184.89 USD
$3,184.89 USD
Sale Sold out

MSRP: $4,670.00

APC AP8681. PDU types: Metered, Metered-by-outlet, Switched, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler. Cable length: 72" (1.83 m). Monitoring: Current, Power, Voltage, Outlet control: Lock-out, Recycle, Turn off, Turn on. Nominal input voltage: 400 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz
View full details
    • Details: APC AP8681. PDU types: Metered, Metered-by-outlet, Switched, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler. Cable length: 72" (1.83 m). Monitoring: Current, Power, Voltage, Outlet control: Lock-out, Recycle, Turn off, Turn on. Nominal input voltage: 400 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz
    • PDF: http://objects.icecat.biz/objects/mmo_16774485_1592978879_9978_28651.pdf
    • Other Multimedia: http://objects.icecat.biz/objects/mmo_16774485_1592978804_572_14822.pdf
    • Certification: EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, UL, VDE
    • PDU types: Metered, Metered-by-outlet, Switched
    • Mounting: Vertical
    • Product color: Black
    • Cable length: 72" (1.83 m)
    • Maximum current: 16 A

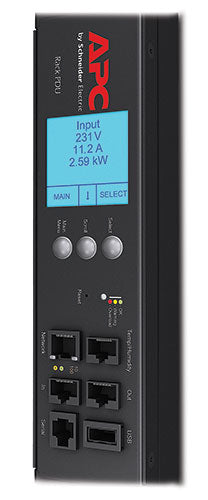

    • Monitoring: Current, Power, Voltage
    • Outlet control: Lock-out, Recycle, Turn off, Turn on
    • Operating temperature (T-T): -5 - 45 °C
    • Operating relative humidity (H-H): 5 - 95%
    • Storage relative humidity (H-H): 5 - 95%
    • Operating altitude: 0 - 118110.2" (0 - 3000 m)
    • Non-operating altitude: 0 - 590551.2" (0 - 15000 m)
    • Nominal output voltage: 230 V
    • Nominal input voltage: 400 V
    • Package width: 6.38" (162 mm)
    • Package height: 80.2" (2038 mm)
    • Package depth: 4.61" (117 mm)
    • Package weight: 23.1 lbs (10.5 kg)
    • AC outlet types: C13 coupler, C19 coupler
    • AC outlets quantity: 24 AC outlet(s)
    • AC input frequency: 50 - 60 Hz
    • Maximum input current per phase: 16 A
    • Maximum total current draw per phase: 16 A
    • Load capacity: 11040 VA
    • Maximum power: 11040 W
    • Compliance certificates: RoHS
    • Rack capacity: 0U
    • Total carbon footprint (kg of CO2e): 10364.02
    • Weight: 18.1 lbs (8.23 kg)
    • Width: 2.2" (56 mm)
    • Height: 72" (1829 mm)
    • Depth: 2.01" (51 mm)
