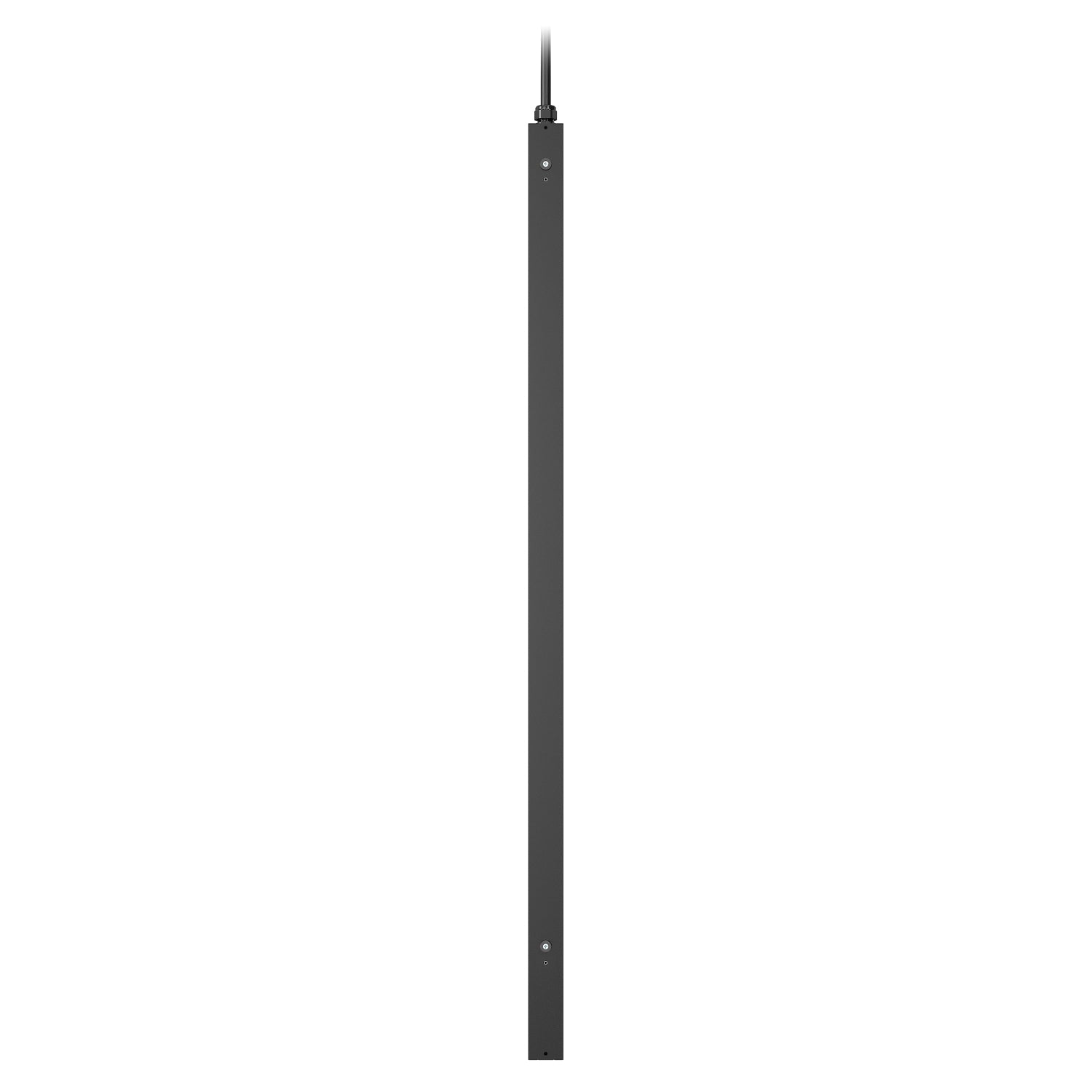

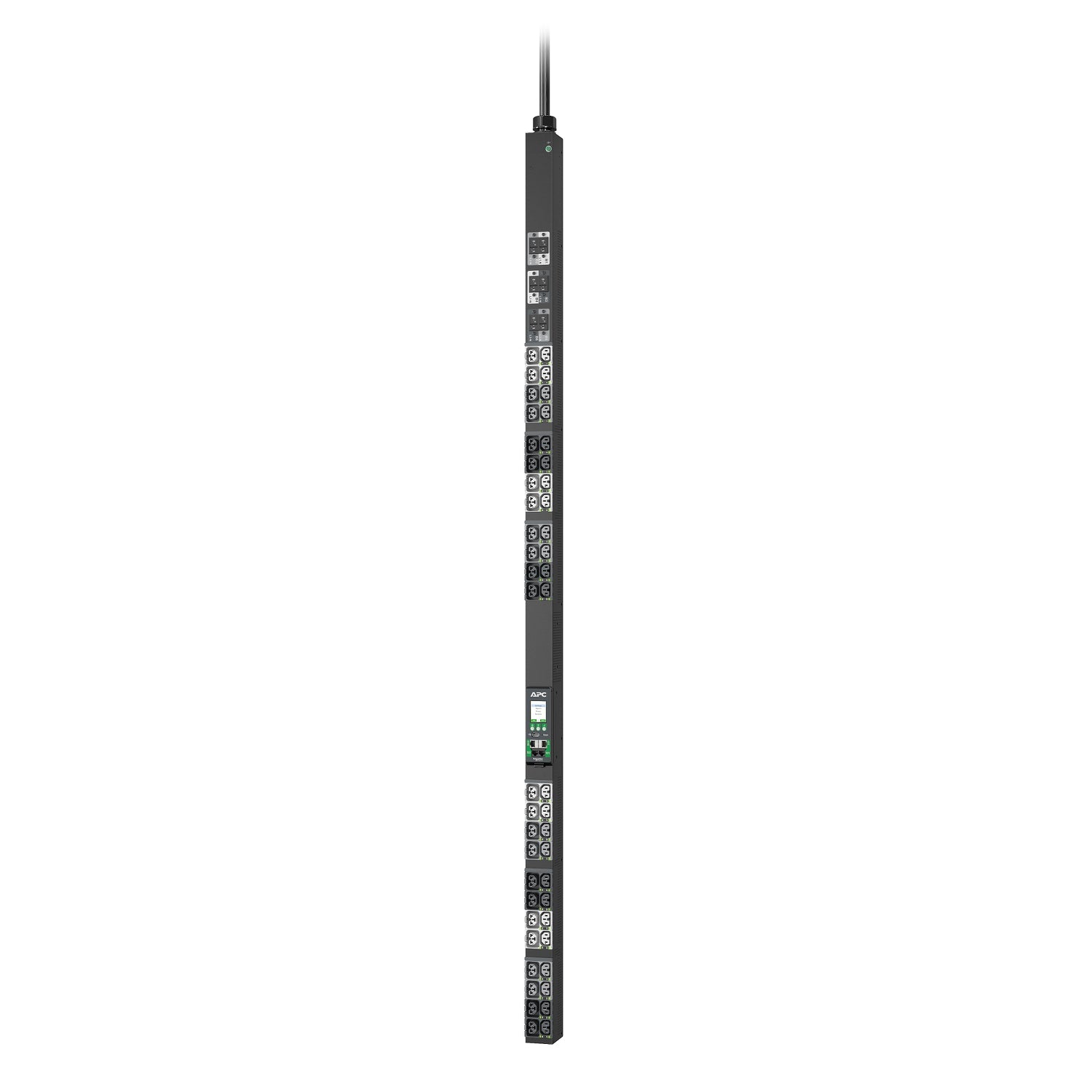

APC APDU10350SM power distribution unit (PDU) 48 AC outlet(s) 0U Black
APC APDU10350SM power distribution unit (PDU) 48 AC outlet(s) 0U Black
SKU: APDU10350SM
Regular price
$4,654.62 USD
Regular price
Sale price
$4,654.62 USD
MSRP: $6,825.00
APC APDU10350SM. PDU types: Metered, Metered-by-outlet, Switched, Rack capacity: 0U, Type: Three-phase. AC outlets quantity: 48 AC outlet(s), AC outlet types: C13 coupler, C15 coupler, C19 coupler, C21 coupler, Power plug: IEC 60309. Nominal input voltage: 400 V, Maximum current: 32 A, AC input frequency: 50 - 60 Hz. Certification: CE, CSA C22.2 No 62368-1, EN 62368-1, FCC part 15 subpart B, UKCA, UL 62368-1. Width: 2.2" (56 mm), Depth: 2.95" (75 mm), Height: 70.1" (1780 mm)
Quantity
Couldn't load pickup availability
- Details: APC APDU10350SM. PDU types: Metered, Metered-by-outlet, Switched, Rack capacity: 0U, Type: Three-phase. AC outlets quantity: 48 AC outlet(s), AC outlet types: C13 coupler, C15 coupler, C19 coupler, C21 coupler, Power plug: IEC 60309. Nominal input voltage: 400 V, Maximum current: 32 A, AC input frequency: 50 - 60 Hz. Certification: CE, CSA C22.2 No 62368-1, EN 62368-1, FCC part 15 subpart B, UKCA, UL 62368-1. Width: 2.2" (56 mm), Depth: 2.95" (75 mm), Height: 70.1" (1780 mm)
- PDF: http://objects.icecat.biz/objects/mmo_96984874_1650022836_0858_10903.pdf|http://objects.icecat.biz/objects/mmo_96984874_1650022905_4215_5145.pdf|http://objects.icecat.biz/objects/mmo_96984874_1650022965_6808_24993.pdf|http://objects.icecat.biz/objects/mmo_96984874_1650023013_9915_5144.pdf|http://objects.icecat.biz/objects/mmo_96984874_1650023059_9294_25003.pdf|http://objects.icecat.biz/objects/mmo_96984874_1650023132_6247_10903.pdf

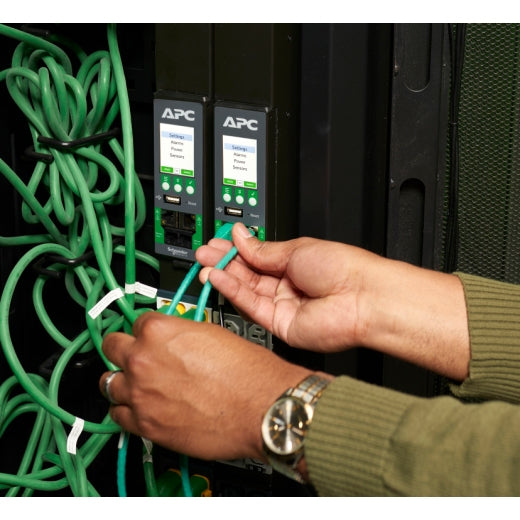

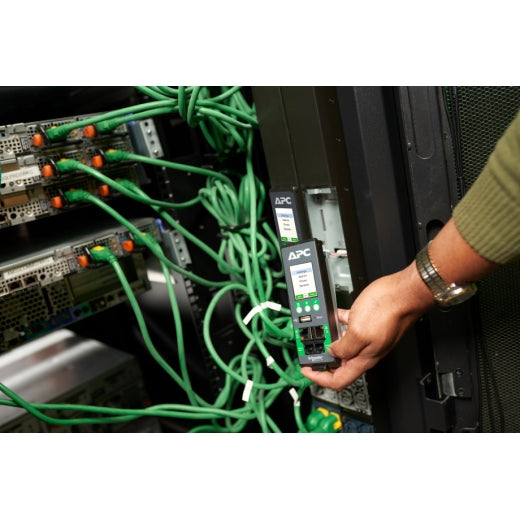

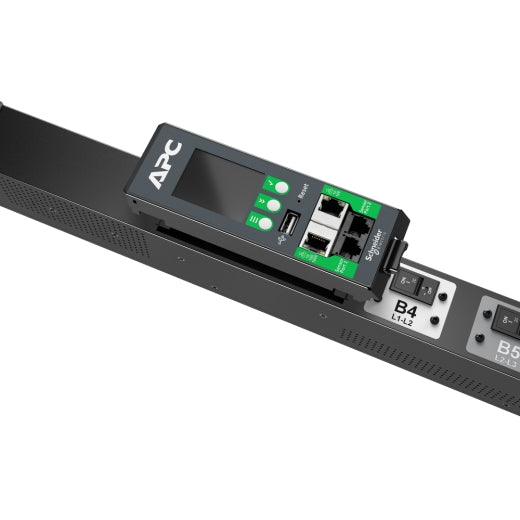

- Info: Maximum Outlet Density All models include 40, 42, or 48 outlets|Space Saving|High Power Capacity Models now available to provide up to 34.6kW|APC Locking Power Cord Compatible Optional AP8700 power cords will fit into any standard IEC receptacle or power inlet|Circuit Breaker Monitoring|Alternating Phase|60ºC (140ºF) Operating Temperature|Rack PDUs cascaded together via the two ethernet ports on each PDU allow Network Management Cards (NMC) to continue functioning in the event of an AC power loss to a given PDU|Hydraulic Magnetic Circuit Breakers|Live Swap Network Management Card|Environmental Sensor Support|Color LCD Display|Dual Network Ports
- Certification: CE, CSA C22.2 No 62368-1, EN 62368-1, FCC part 15 subpart B, UKCA, UL 62368-1
- PDU types: Metered, Metered-by-outlet, Switched
- Mounting: Vertical
- On/off switch: No

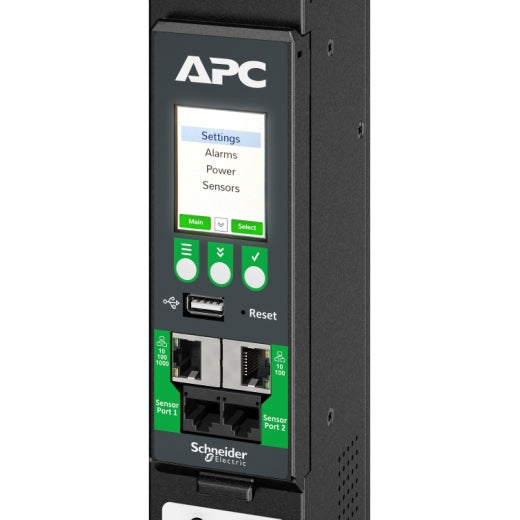

- Display: LCD
- Product color: Black
- Type: Three-phase
- Maximum current: 32 A
- Operating temperature (T-T): -5 - 60 °C
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 600000" (0 - 15240 m)
- Nominal output voltage: 230 V
- Nominal input voltage: 400 V
- Package width: 10.3" (262 mm)
- Package height: 78" (1980 mm)
- Package depth: 5.2" (132 mm)
- Package weight: 27.8 lbs (12.6 kg)

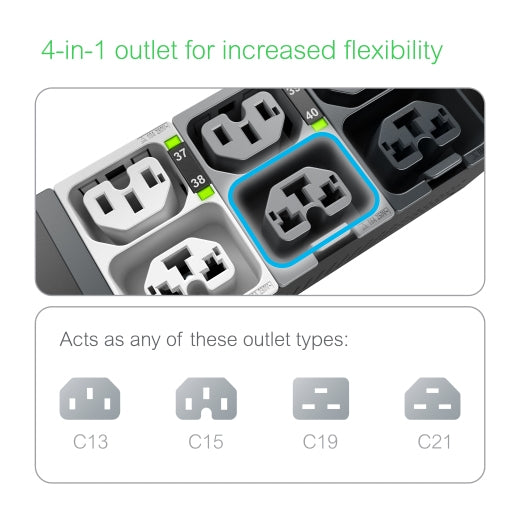

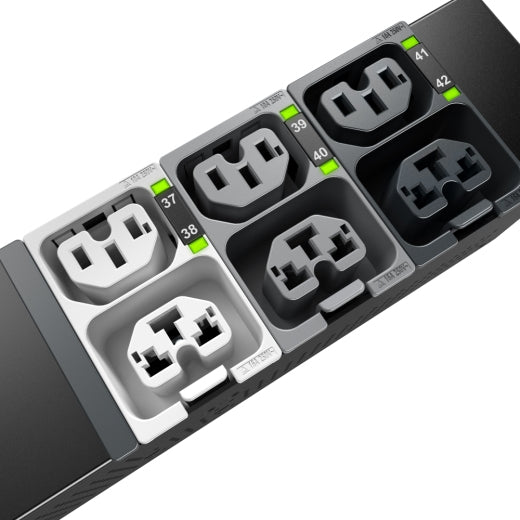

- AC outlet types: C13 coupler, C15 coupler, C19 coupler, C21 coupler

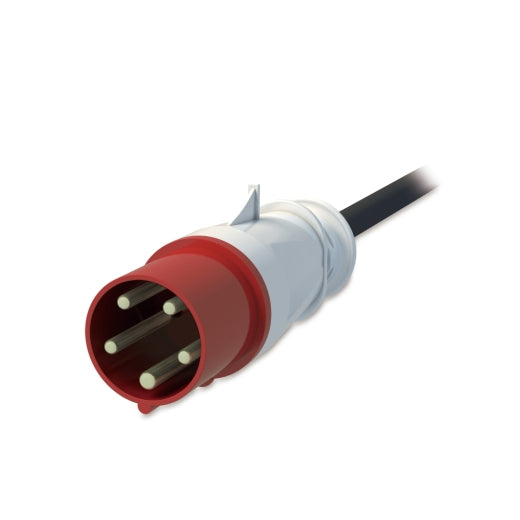

- Power plug: IEC 60309
- AC outlets quantity: 48 AC outlet(s)
- AC input frequency: 50 - 60 Hz
- Output voltage: 230 V
- Load capacity: 22100 VA
- Rack capacity: 0U
- Total carbon footprint (kg of CO2e): 16737.93
- Weight: 21.2 lbs (9.6 kg)
- Width: 2.2" (56 mm)
- Height: 70.1" (1780 mm)
- Depth: 2.95" (75 mm)
