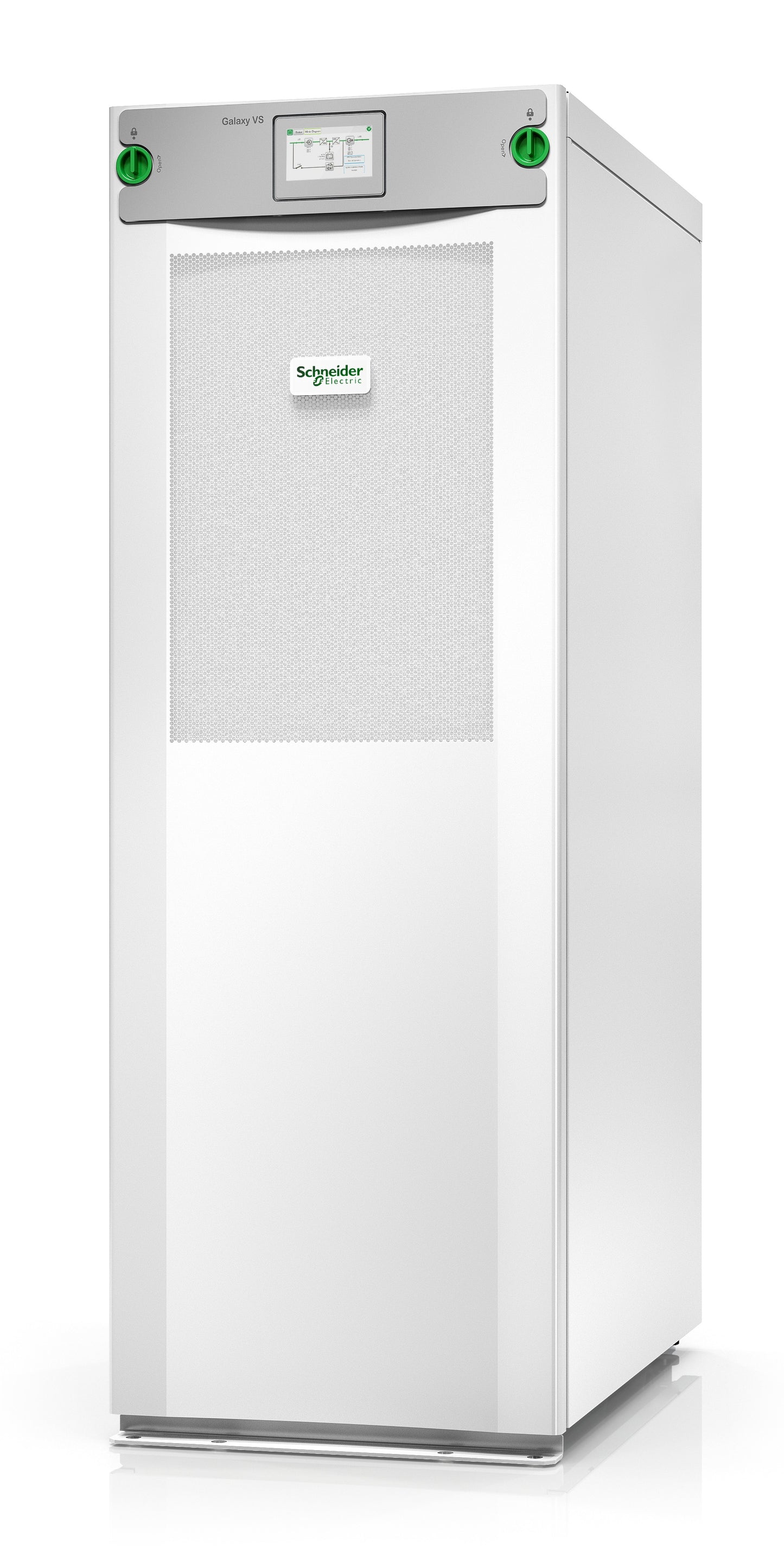

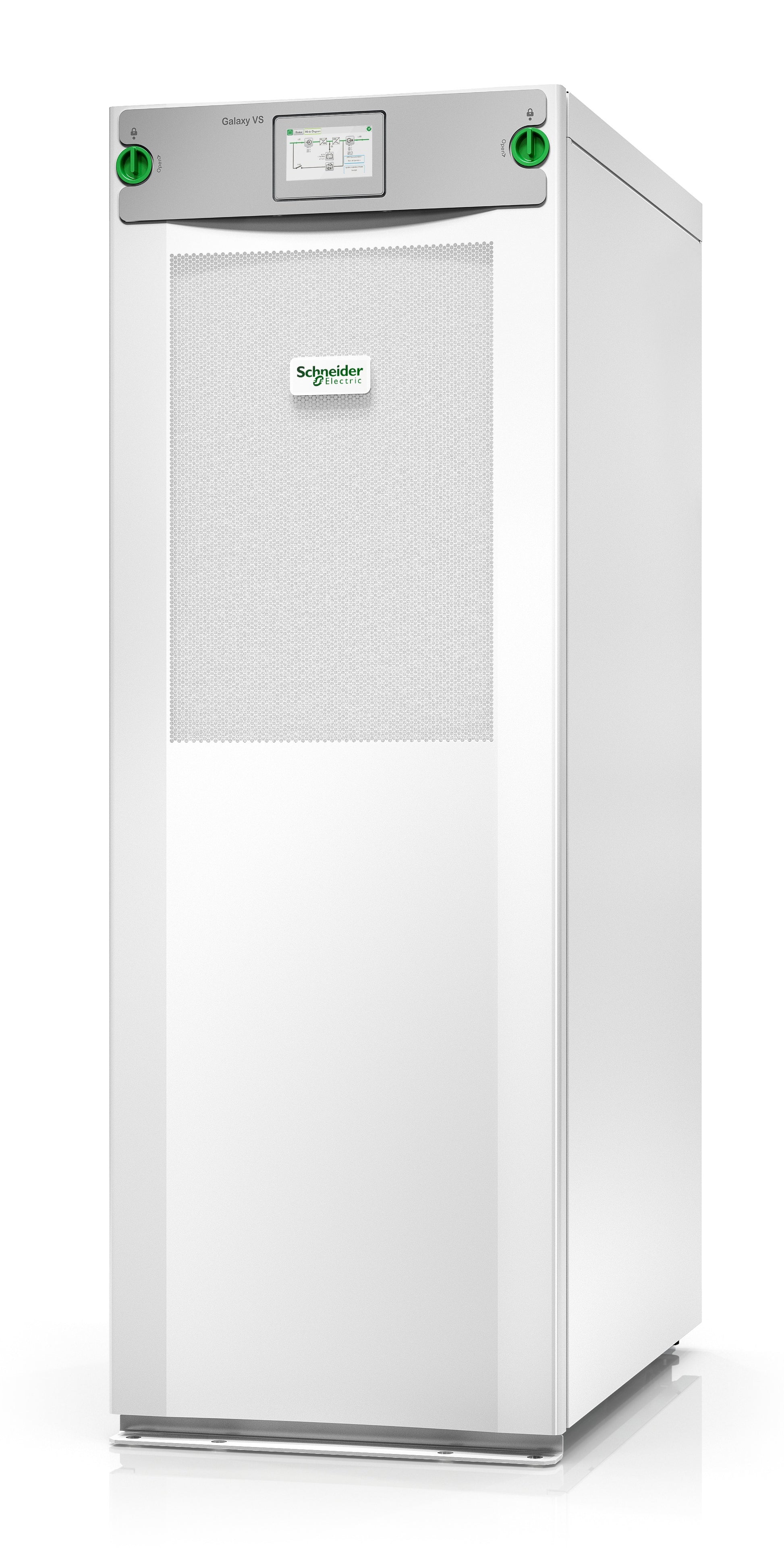

APC Galaxy VS uninterruptible power supply (UPS) Double-conversion (Online) 80 kVA 80000 W
APC Galaxy VS uninterruptible power supply (UPS) Double-conversion (Online) 80 kVA 80000 W
SKU: GVSUPS80KHS
Regular price
$41,581.96 USD
Regular price
Sale price
$41,581.96 USD
MSRP: $53,950.00
APC Galaxy VS. UPS topology: Double-conversion (Online) Output power capacity: 80 kVA Output power: 80000 W. Form factor: Tower Product color: White. Compliance certificates: RoHS Certification: CSA C22.2 NO. 107.3 EN/IEC 62040-1 EN/IEC 62040-2 EN/IEC 62040-3 FCC Part 15 Class A IEC.... Width: 20.5" (521 mm) Depth: 33.3" (847 mm) Height: 58.5" (1485 mm). Package width: 25.2" (640 mm) Package depth: 39" (990 mm) Package height: 66.1" (1680 mm)
Quantity
Couldn't load pickup availability
- Details: APC Galaxy VS. UPS topology: Double-conversion (Online), Output power capacity: 80 kVA, Output power: 80000 W. Form factor: Tower, Product color: White. Compliance certificates: RoHS, Certification: CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, FCC Part 15 Class A, IEC.... Width: 20.5" (521 mm), Depth: 33.3" (847 mm), Height: 58.5" (1485 mm). Package width: 25.2" (640 mm), Package depth: 39" (990 mm), Package height: 66.1" (1680 mm)
- Info: Highly efficient, easy-to-deploy 80kW, 400V 3-phase uninterruptible power supply (UPS) that brings best-in-class power protection to edge, small and medium data|Includes: Dust filter, Installation guide, Integrated network management, Power modules ship installed, Start-Up Service, Top and bottom cable entry
- Certification: CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, FCC Part 15 Class A, IEC 60721-4-2 Level 2M2, UL 1778 5th edition
- Form factor: Tower
- LED indicators: Yes
- Product color: White
- Input operation voltage (min): 340 V
- Input operation voltage (max): 460 V
- Input frequency: 40/70 Hz
- Output operation voltage (max): 415 V
- Maximum current: 148 A
- Efficiency: 97%
- UPS topology: Double-conversion (Online)
- Output power capacity: 80 kVA
- Waveform: Sine
- Output operation voltage (min): 380 V
- Output frequency: 50/60 Hz
- Number of input phases: 3
- Number of output phases: 3
- Input power factor: 0.99
- Crest factor: 2.5:1
- Output voltage Total Harmonic Distortion (THD): 3%
- Harmonized System (HS) code: 85078000
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -25 - 55 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 10 - 80%
- Operating altitude: 0 - 38752" (0 - 984.3 m)
- Non-operating altitude: 0 - 590551.2" (0 - 15000 m)
- Nominal output voltage: 400 V
- Nominal input voltage: 400 V
- Input connection type: 3-wire (3PH + G), 5-wire (3PH + N + G)
- Package width: 25.2" (640 mm)
- Package height: 66.1" (1680 mm)
- Package depth: 39" (990 mm)
- Package weight: 606.3 lbs (275 kg)
- Noise level: 65 dB
- Output power: 80000 W
- Compliance certificates: RoHS
- Weight: 551.2 lbs (250 kg)
- Width: 20.5" (521 mm)
- Height: 58.5" (1485 mm)
- Depth: 33.3" (847 mm)
