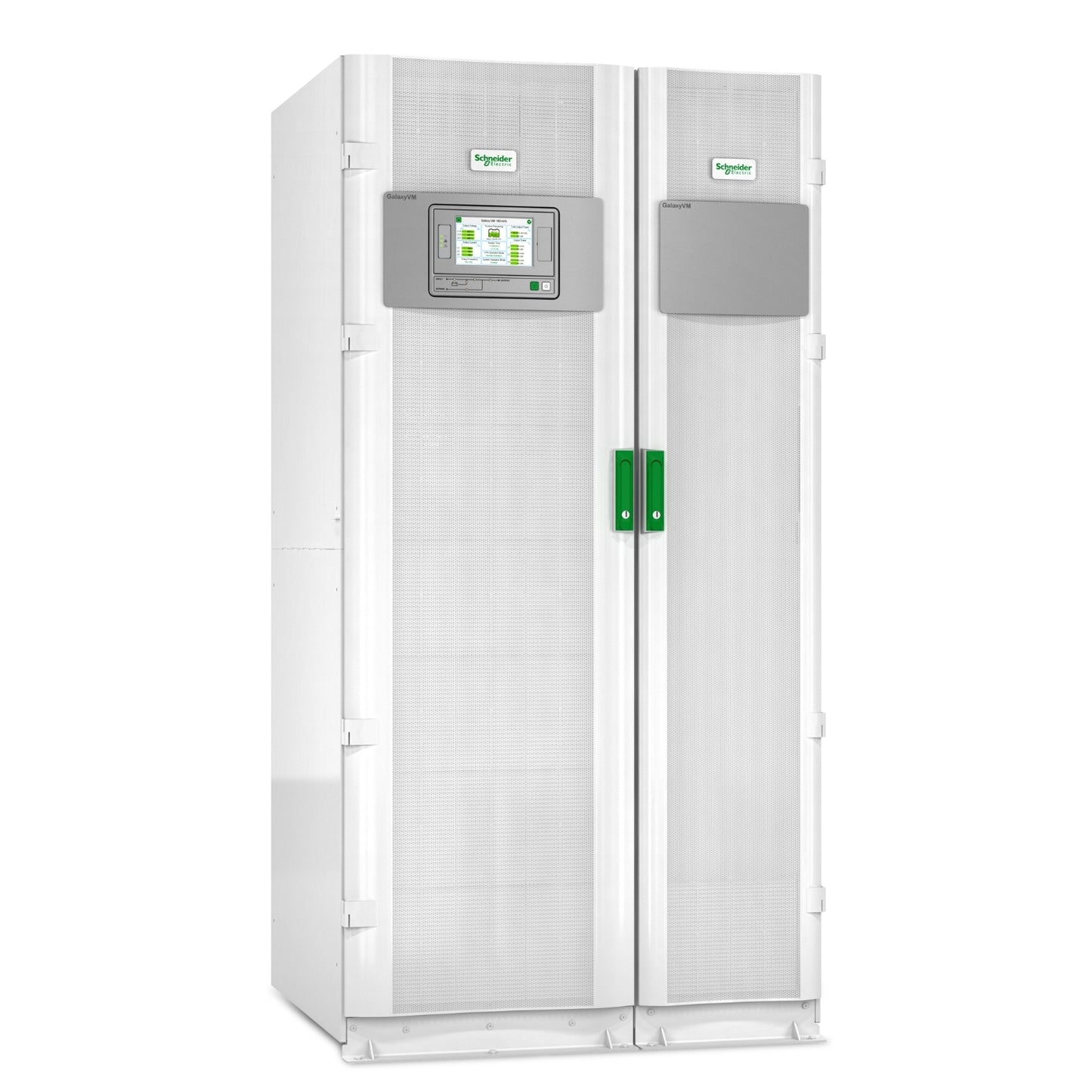

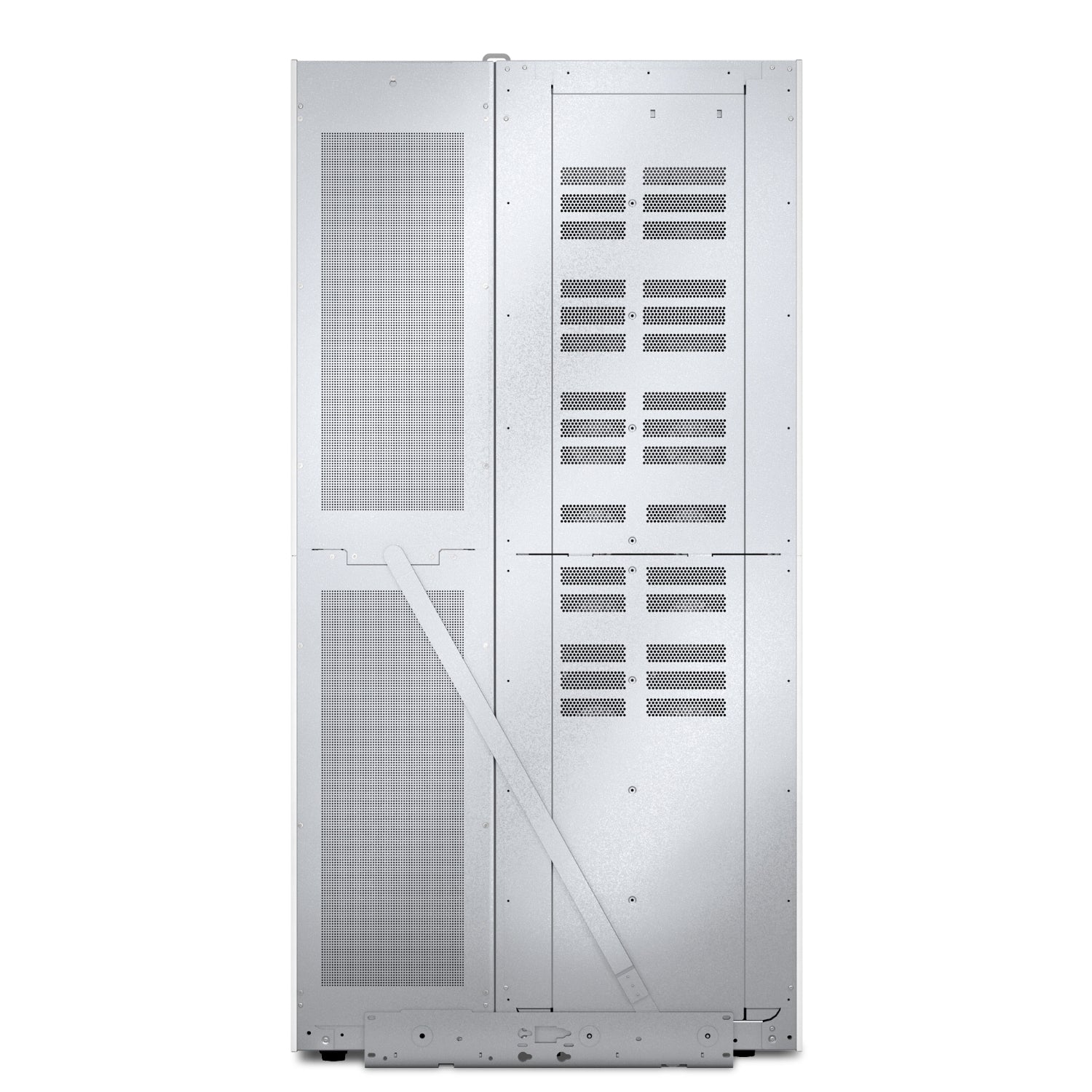

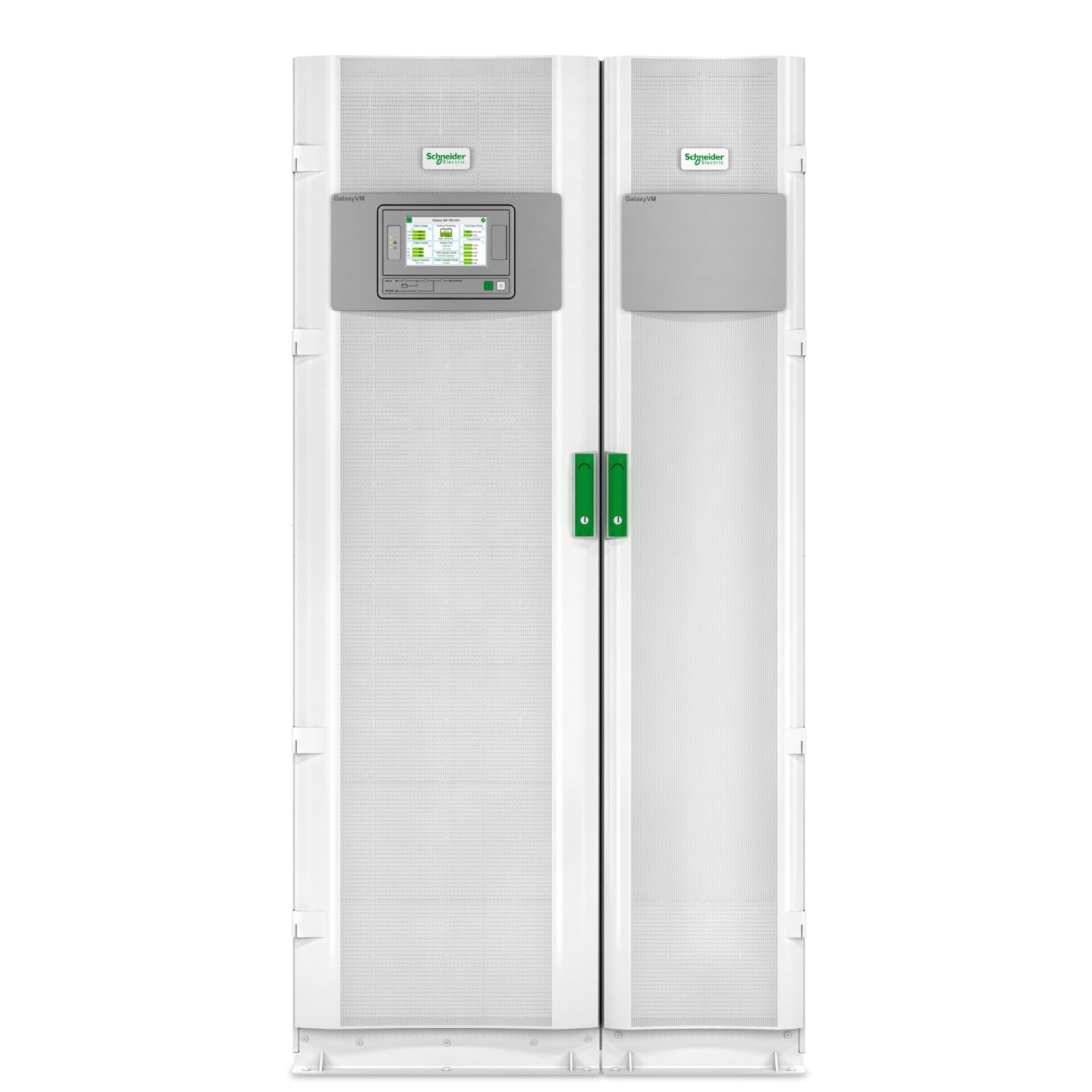

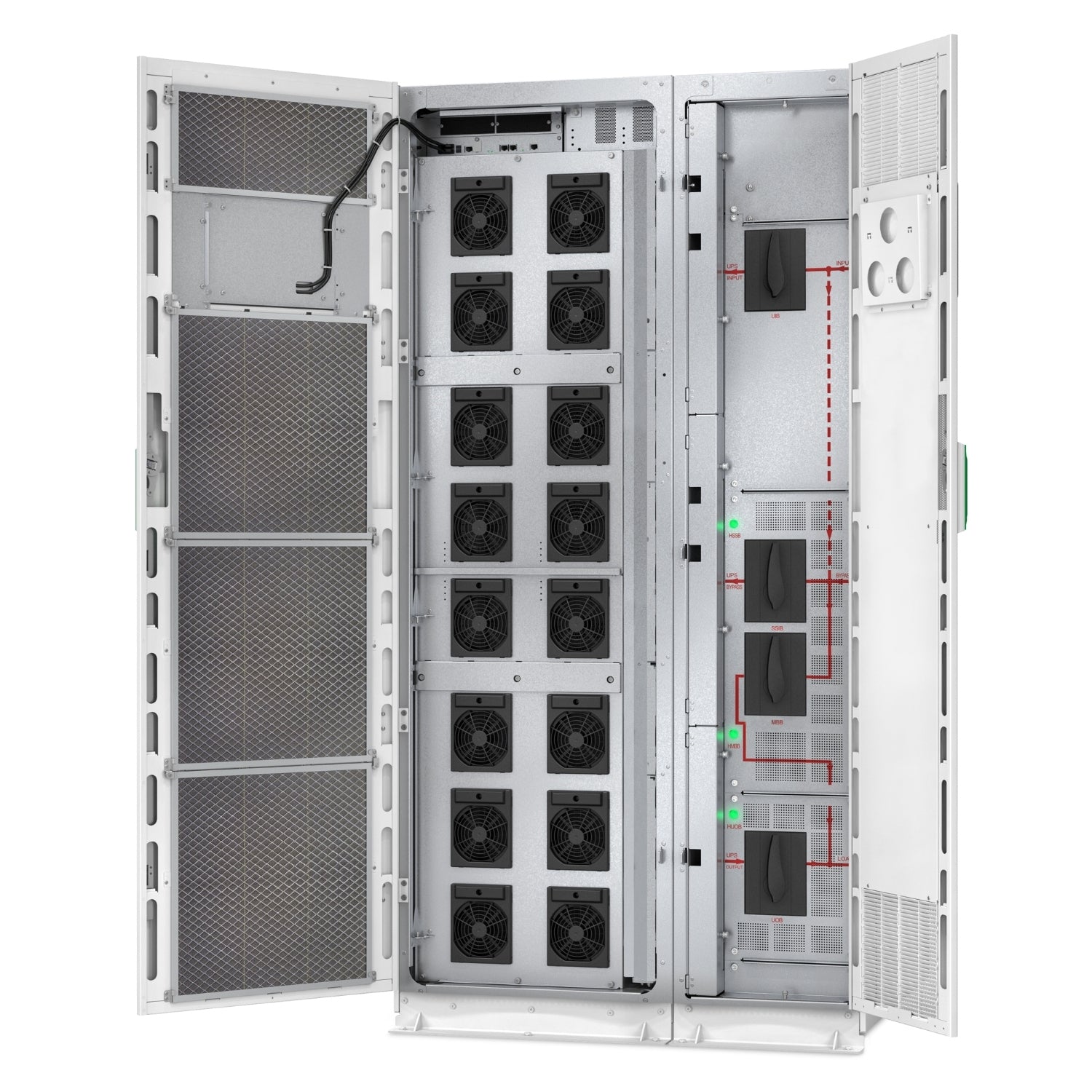

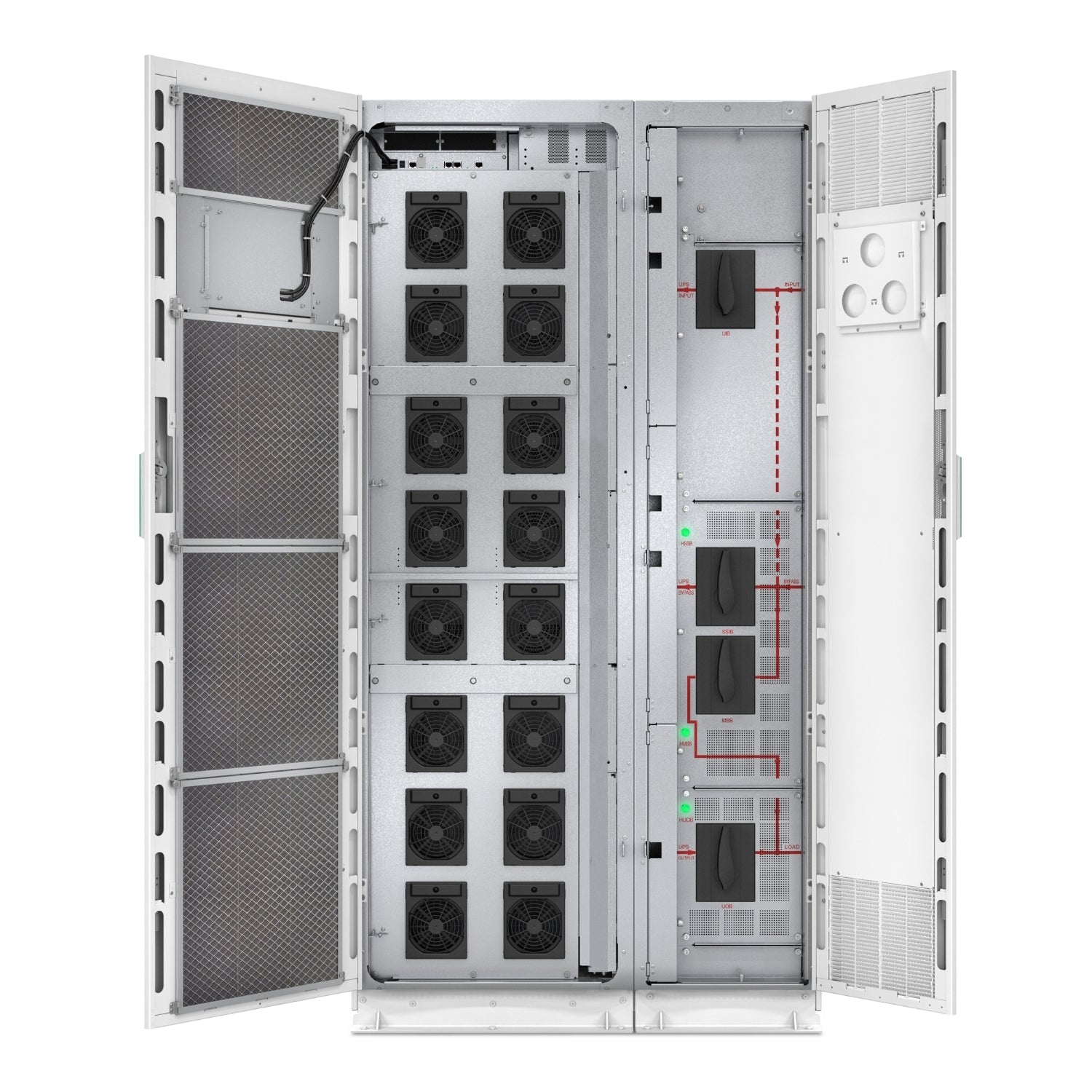

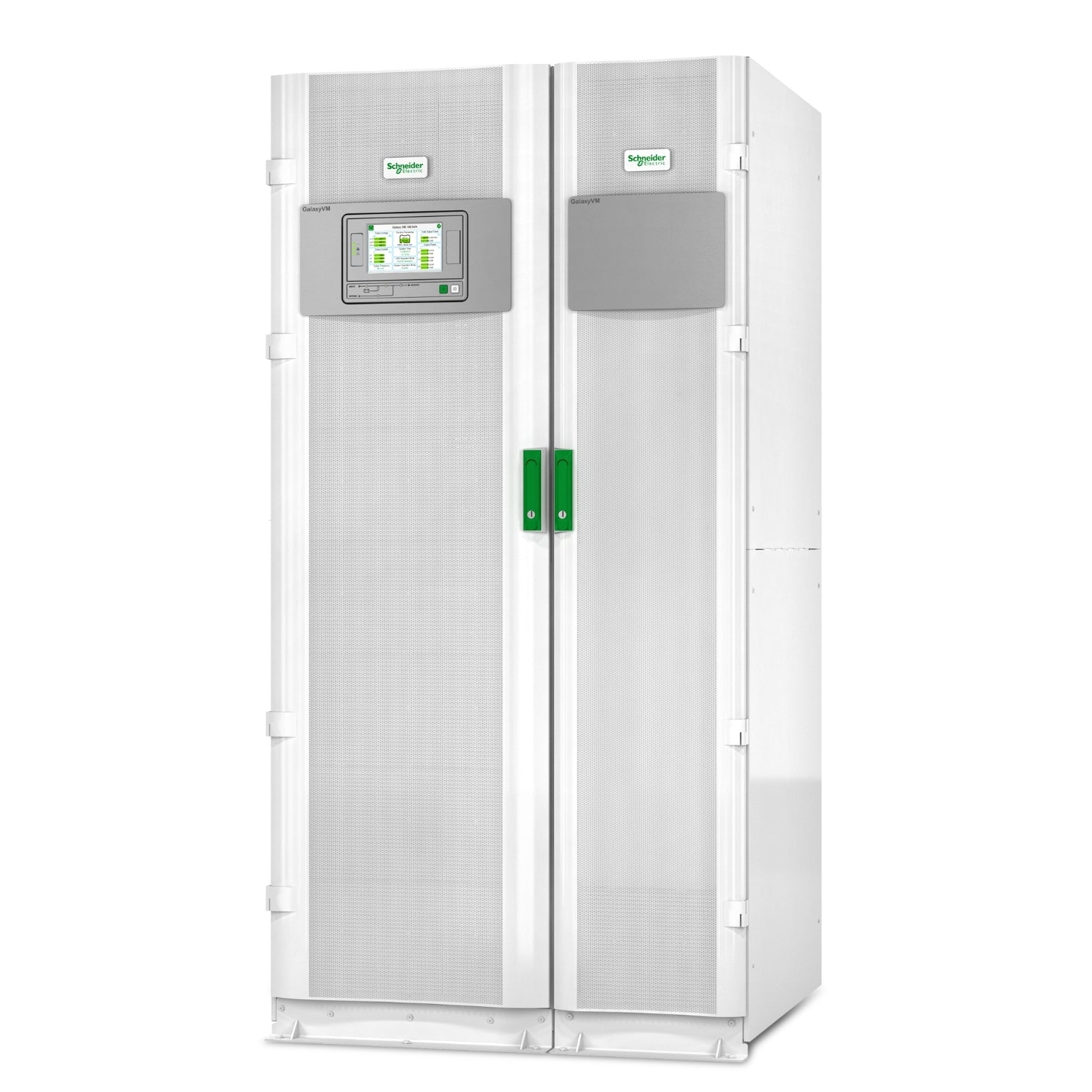

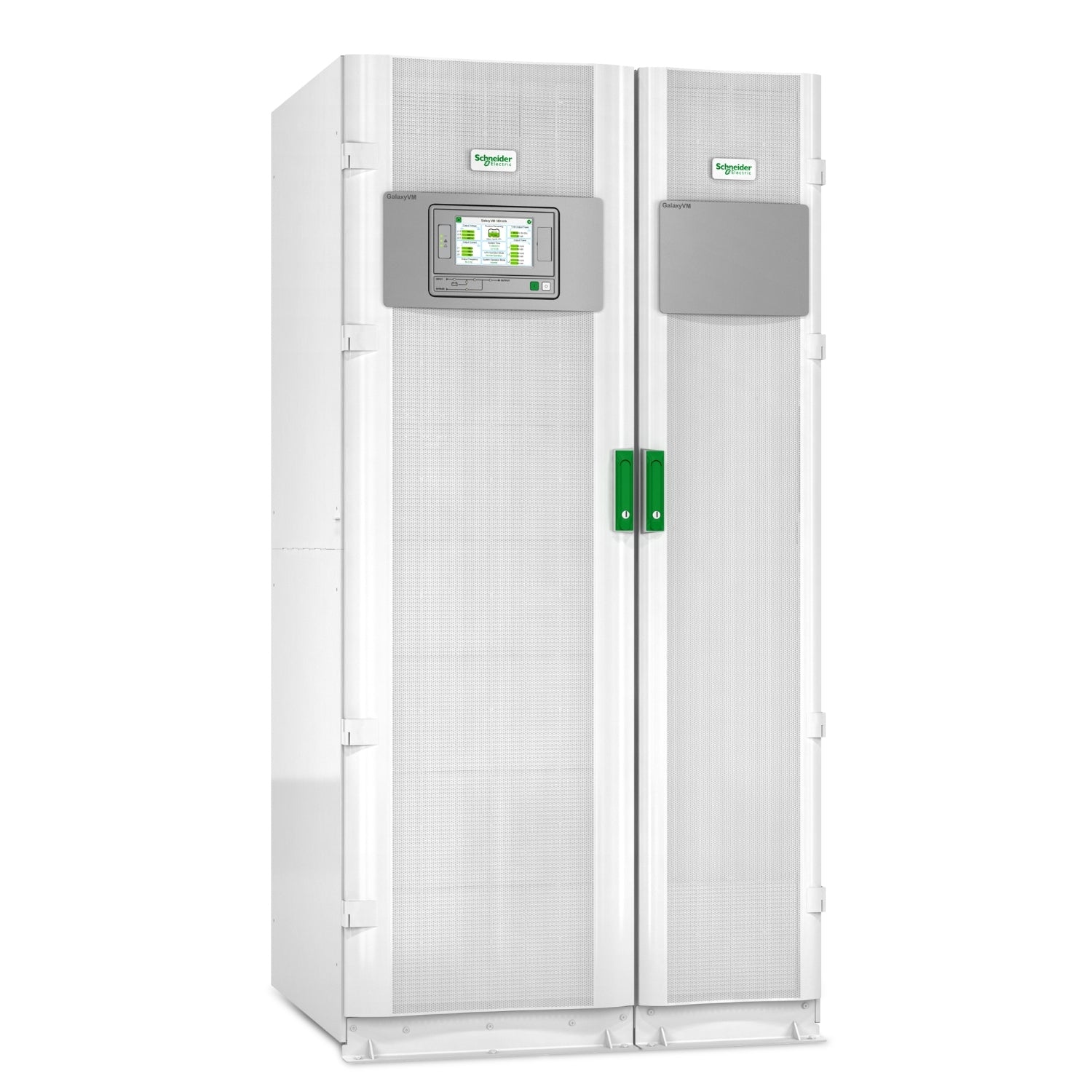

APC GVMSB200KHS uninterruptible power supply (UPS) Double-conversion (Online) 200 kVA 180000 W

APC GVMSB200KHS uninterruptible power supply (UPS) Double-conversion (Online) 200 kVA 180000 W

SKU: GVMSB200KHS

Regular price $45,063.09 USD
Regular price Sale price $45,063.09 USD
Sale Sold out

MSRP: $66,110.00

APC GVMSB200KHS. UPS topology: Double-conversion (Online), Output power capacity: 200 kVA, Output power: 180000 W. AC outlet types: Hard Wire 3-wire (3PH + G), Serial interface type: RS-485. Form factor: Tower, Product color: White, Housing material: Steel. Certification: C-tick, CE, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, IBC 2012 and CBC2013 to Sds=2.02g ,.... Sustainability certificates: ENERGY STAR

Quantity
View full details
    • Details: APC GVMSB200KHS. UPS topology: Double-conversion (Online), Output power capacity: 200 kVA, Output power: 180000 W. AC outlet types: Hard Wire 3-wire (3PH + G), Serial interface type: RS-485. Form factor: Tower, Product color: White, Housing material: Steel. Certification: C-tick, CE, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, IBC 2012 and CBC2013 to Sds=2.02g ,.... Sustainability certificates: ENERGY STAR
    • Certification: C-tick, CE, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, IBC 2012 and CBC2013 to Sds=2.02g , ISTA 2B, OSHPD, RCM, UL 1778
    • Form factor: Tower
    • LED indicators: Yes
    • Display type: LCD
    • Product color: White
    • Housing material: Steel
    • Power protection features: Overload
    • International Protection (IP) code: IP20
    • Input operation voltage (min): 250 V
    • Input operation voltage (max): 600 V
    • Input frequency: 40/70 Hz
    • Output operation voltage (max): 415 V
    • Maximum current: 328 A
    • UPS topology: Double-conversion (Online)
    • Output power capacity: 200 kVA
    • Waveform: Sine
    • Output operation voltage (min): 380 V
    • Output frequency: 50/60 Hz
    • Audible alarm(s): Yes
    • Emergency Power Off (EPO): Yes
    • Number of input phases: 3
    • Number of output phases: 3
    • Input power factor: 1
    • Input current Total Harmonic Distortion (THD): 3%
    • Output voltage Total Harmonic Distortion (THD): 3%
    • ECO mode: Yes
    • Harmonized System (HS) code: 85078000
    • Operating temperature (T-T): 0 - 40 °C
    • Storage temperature (T-T): -25 - 55 °C
    • Operating relative humidity (H-H): 0 - 95%
    • Storage relative humidity (H-H): 0 - 95%
    • Operating altitude: 0 - 39370.1" (0 - 1000 m)
    • Non-operating altitude: 0 - 581220.5" (0 - 14763 m)
    • Quick installation guide: Yes
    • Package width: 58.7" (1490 mm)
    • Package height: 84.9" (2156 mm)
    • Package depth: 41.7" (1060 mm)
    • Package weight: 1697.6 lbs (770 kg)
    • Noise level: 65 dB
    • AC outlet types: Hard Wire 3-wire (3PH + G)
    • Serial interface: Yes
    • Serial interface type: RS-485
    • SmartSlot: Yes
    • Output power: 180000 W
    • Sustainability certificates: ENERGY STAR
    • Weight: 1596.1 lbs (724 kg)
    • Width: 41.4" (1052 mm)
    • Height: 77.6" (1970 mm)
    • Depth: 33.6" (854 mm)
