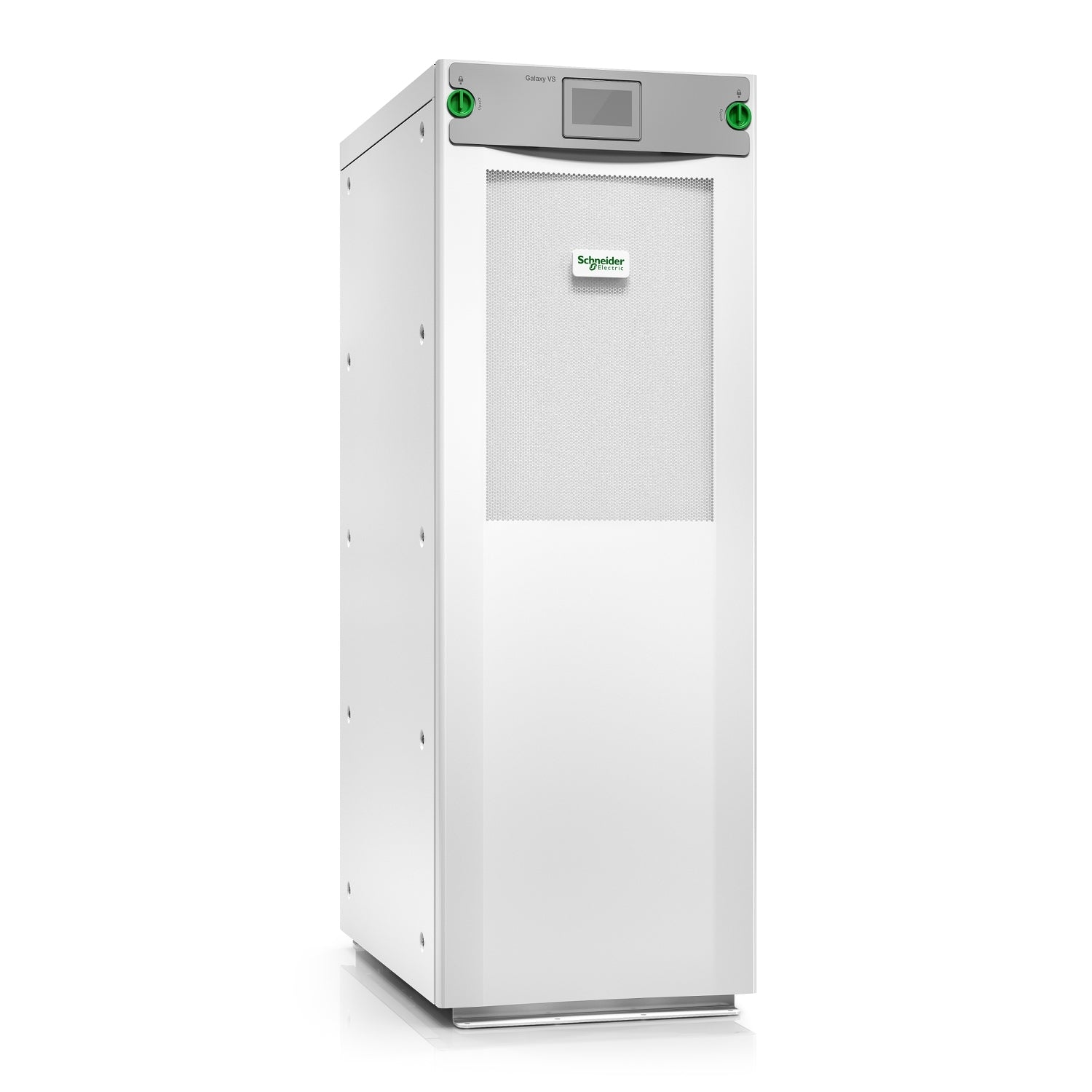

APC GVSUPS50KB4HS uninterruptible power supply (UPS) Double-conversion (Online) 50 kVA 50000 W
APC GVSUPS50KB4HS uninterruptible power supply (UPS) Double-conversion (Online) 50 kVA 50000 W
SKU: GVSUPS50KB4HS
Regular price
$35,412.46 USD
Regular price
Sale price
$35,412.46 USD
MSRP: $52,530.00
APC GVSUPS50KB4HS. UPS topology: Double-conversion (Online), Output power capacity: 50 kVA, Output power: 50000 W. AC outlet types: Hard Wire 3-wire (3PH + G), Hard Wire 5-wire (3PH + N + G). Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 480 V. Form factor: Tower, Product color: White, Display type: LCD. Certification: CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 60721-4-2 Level 2M2, UL...
Quantity
Couldn't load pickup availability
- Details: APC GVSUPS50KB4HS. UPS topology: Double-conversion (Online), Output power capacity: 50 kVA, Output power: 50000 W. AC outlet types: Hard Wire 3-wire (3PH + G), Hard Wire 5-wire (3PH + N + G). Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 480 V. Form factor: Tower, Product color: White, Display type: LCD. Certification: CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 60721-4-2 Level 2M2, UL...
- Battery technology: Sealed Lead Acid (VRLA)
- Certification: CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 60721-4-2 Level 2M2, UL 1778 5th edition
- Form factor: Tower
- Display type: LCD
- Product color: White
- Power protection features: Overload, Short circuit
- International Protection (IP) code: IP20
- Input operation voltage (min): 340 V
- Input operation voltage (max): 460 V
- Input frequency: 40/70 Hz
- Output operation voltage (max): 415 V
- Maximum current: 90 A
- UPS topology: Double-conversion (Online)
- Output power capacity: 50 kVA
- Waveform: Sine
- Output operation voltage (min): 380 V
- Output frequency: 50/60 Hz
- Audible alarm(s): Yes
- Battery voltage: 480 V
- Number of input phases: 3
- Number of output phases: 3
- Input power factor: 0.99
- Crest factor: 2.5:1
- ECO mode: Yes
- Harmonized System (HS) code: 85078000
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -15 - 40 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 39370.1" (0 - 1000 m)
- Non-operating altitude: 0 - 118110.2" (0 - 3000 m)
- Quick installation guide: Yes
- Package width: 25.2" (640 mm)
- Package height: 66.1" (1680 mm)
- Package depth: 39" (990 mm)
- Package weight: 1080.3 lbs (490 kg)
- Noise level: 61 dB
- AC outlet types: Hard Wire 3-wire (3PH + G), Hard Wire 5-wire (3PH + N + G)
- SmartSlot: Yes
- Output power: 50000 W
- Weight: 1014.1 lbs (460 kg)
- Width: 20.5" (521 mm)
- Height: 58.5" (1485 mm)
- Depth: 33.3" (847 mm)
