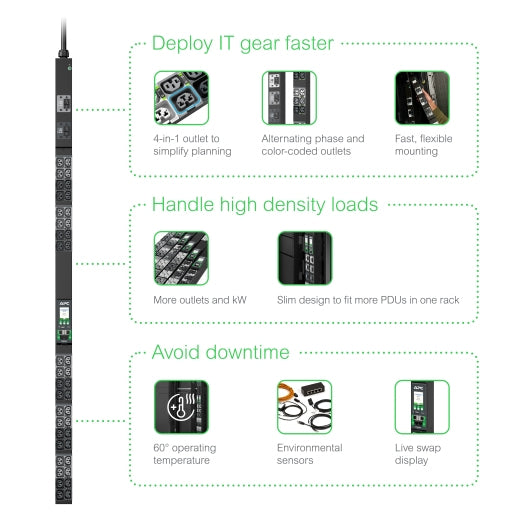

APC NetShelter Rack PDU Advanced power distribution unit (PDU) 40 AC outlet(s) 0U Black
APC NetShelter Rack PDU Advanced power distribution unit (PDU) 40 AC outlet(s) 0U Black
SKU: APDU10151SW
MSRP: $3,970.00
APC NetShelter Rack PDU Advanced. PDU types: Switched, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 40 AC outlet(s), AC outlet types: C13 coupler, C15 coupler, C19 coupler, C21 coupler, Power plug: NEMA L6-30P. LED indicators: Activity, Network, Power, Cable length: 118.1" (3 m), Security algorithms: 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SNMP, SNMPv2, SNMPv3. Monitoring: Current, Humidity, Power, Temperature, Voltage, Outlet control: Lock-out, Recycle, Turn off, Turn on, Firmware upgradeable via: Network, USB. Nominal input voltage: 200-240 V, Maximum current: 30 A, AC input frequency: 50 - 60 Hz
Couldn't load pickup availability
- Details: APC NetShelter Rack PDU Advanced. PDU types: Switched, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 40 AC outlet(s), AC outlet types: C13 coupler, C15 coupler, C19 coupler, C21 coupler, Power plug: NEMA L6-30P. LED indicators: Activity, Network, Power, Cable length: 118.1" (3 m), Security algorithms: 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SNMP, SNMPv2, SNMPv3. Monitoring: Current, Humidity, Power, Temperature, Voltage, Outlet control: Lock-out, Recycle, Turn off, Turn on, Firmware upgradeable via: Network, USB. Nominal input voltage: 200-240 V, Maximum current: 30 A, AC input frequency: 50 - 60 Hz
- Info: Switched, 5.0kW, 1PH|208V, 30A, L6-30P|40 Outlet|Power metering via remote access|High Density|Availability|Agility|Manageability
- Form factor: Rackmount
- LED indicators: Activity, Network, Power
- PDU types: Switched
- Mounting: Vertical
- On/off switch: Yes

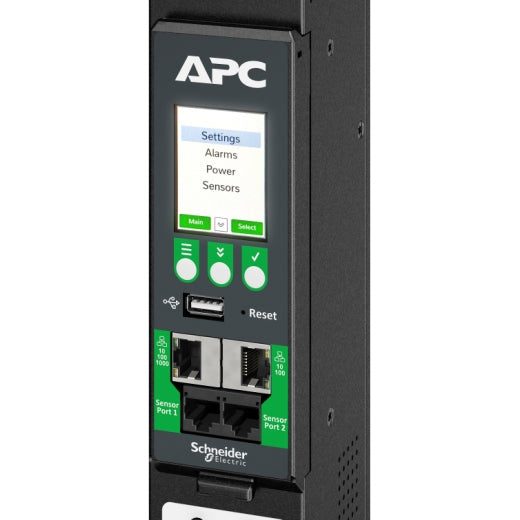

- Display: LCD
- Product color: Black
- Cable length: 118.1" (3 m)
- Type: Single-phase
- Power protection features: Overload
- Reset button: Yes
- Compatible products: Compatible with most NetShelter SX
- enclosures and third-party racks
- Maximum current: 30 A
- Surge protection: Yes
- Daisy chain: Yes

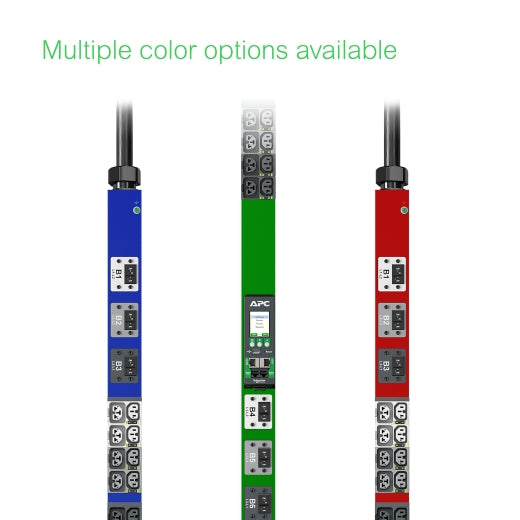

- Color-coded outlets: Yes
- Monitoring: Current, Humidity, Power, Temperature, Voltage
- Outlet control: Lock-out, Recycle, Turn off, Turn on
- Firmware upgradeable via: Network, USB
- Security algorithms: 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SNMP, SNMPv2, SNMPv3
- Operating temperature (T-T): 23 - 140 °F
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 120000" (0 - 3048 m)
- Non-operating altitude: 0 - 600000" (0 - 15240 m)
- Nominal output voltage: 208 V
- Nominal input voltage: 200-240 V
- Package width: 8.19" (208 mm)
- Package height: 67.7" (1720 mm)
- Package depth: 4.57" (116 mm)
- Package weight: 21.4 lbs (9.7 kg)
- Firmware upgradeable: Yes
- Ethernet LAN (RJ-45) ports: 2

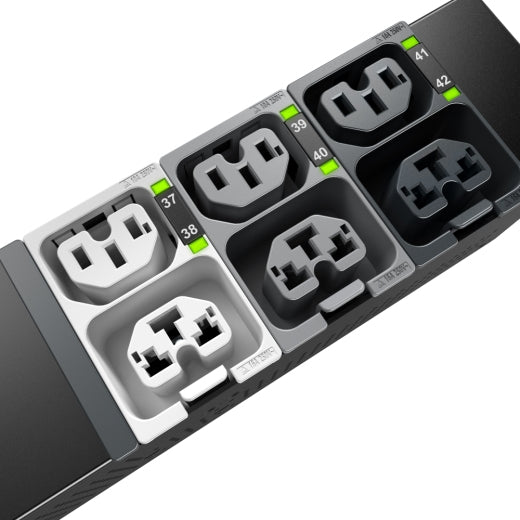

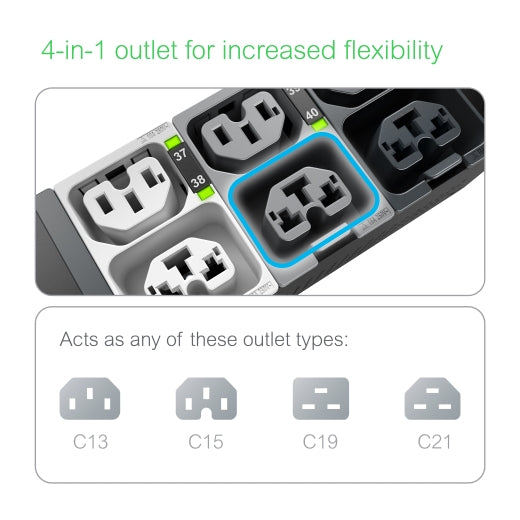

- AC outlet types: C13 coupler, C15 coupler, C19 coupler, C21 coupler

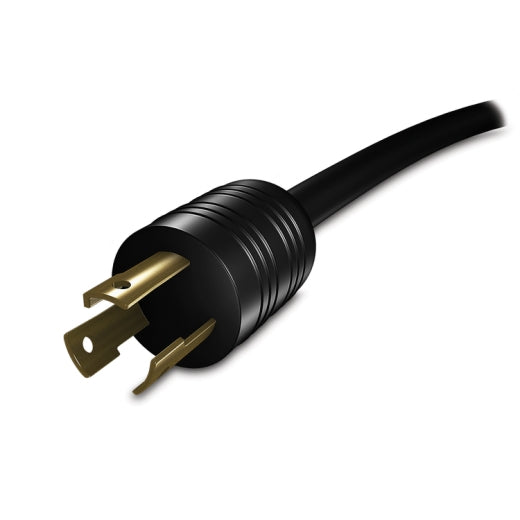

- Power plug: NEMA L6-30P
- AC outlets quantity: 40 AC outlet(s)
- USB ports quantity: 1
- AC input frequency: 50 - 60 Hz
- Maximum total current draw per phase: 24 A
- Load capacity: 4992 VA
- Maximum power: 5000 W
- Number of phases: 1
- Password protection: Yes
- Compliance certificates: RoHS
- Rack capacity: 0U
- Weight: 17 lbs (7.7 kg)
- Width: 2.2" (56 mm)
- Height: 58.7" (1490 mm)
- Depth: 2.95" (75 mm)
- Regulatory Approvals: CSA C22.2 No 62368-1, FCC part 15 subpart B, UL 62368-1
