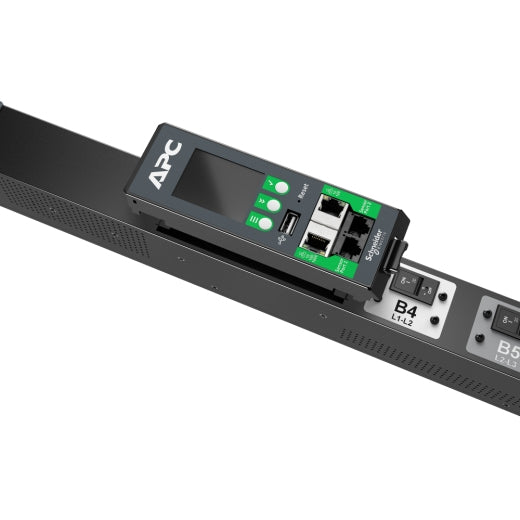

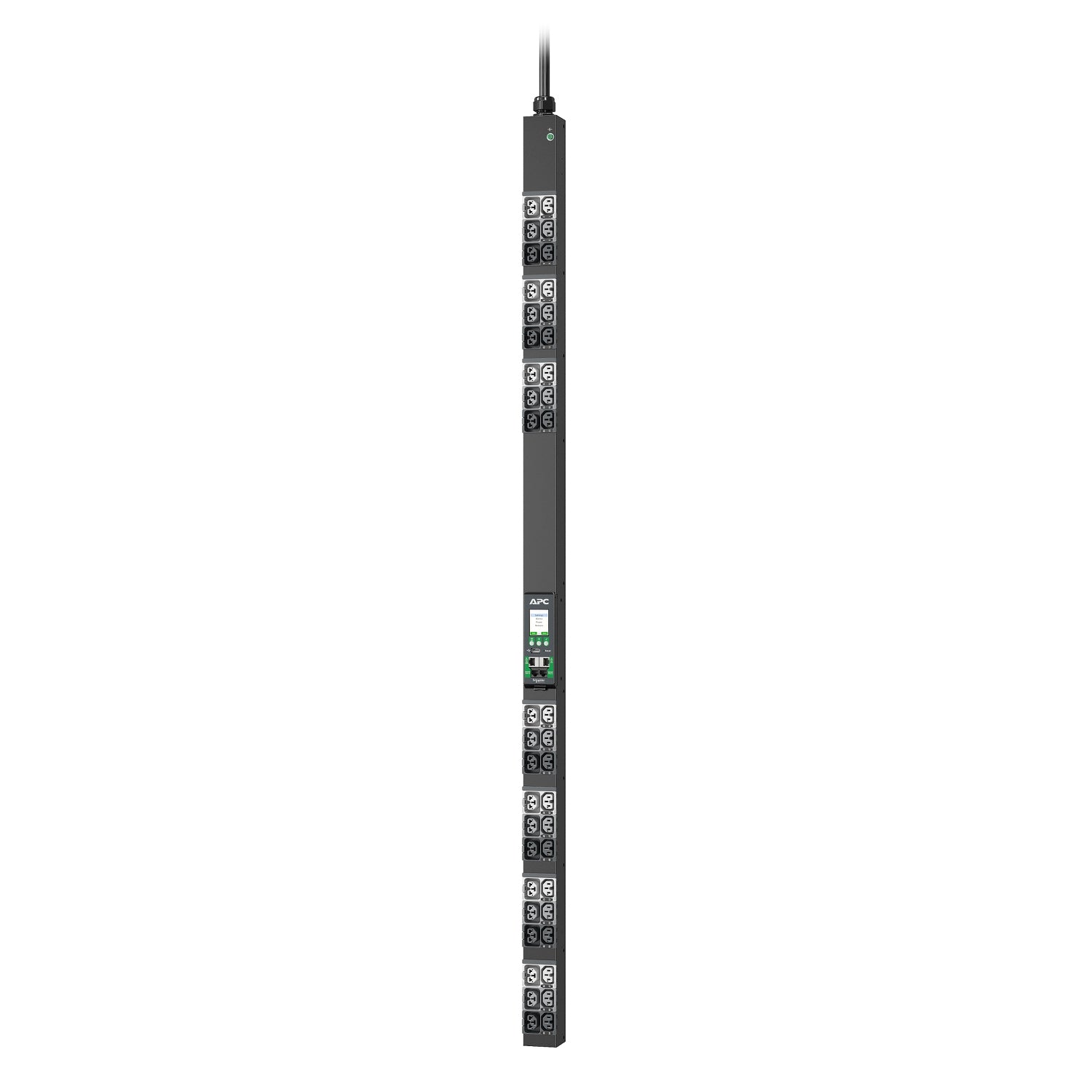

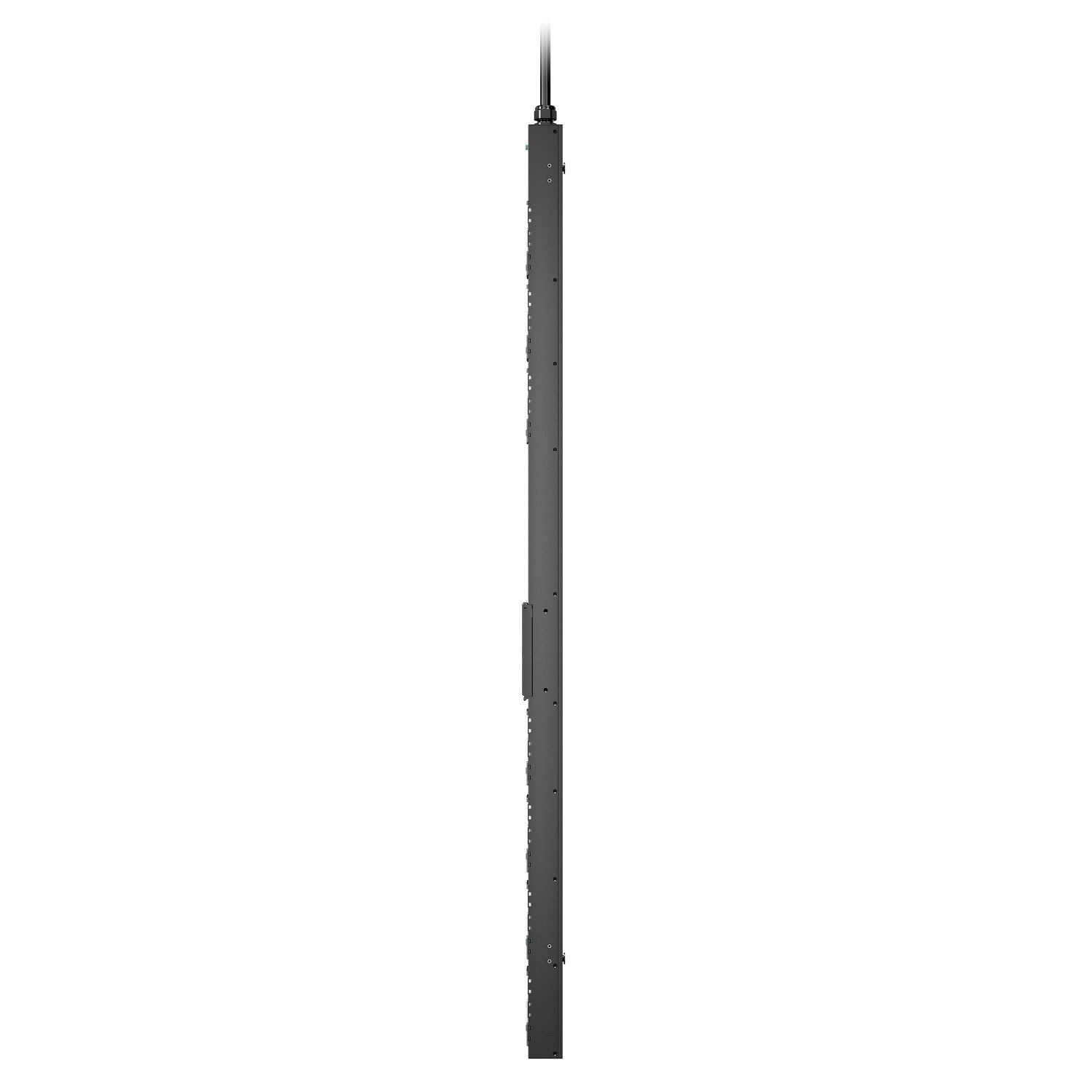

APC NetShelter Rack PDU Advanced power distribution unit (PDU) 42 AC outlet(s) 0U Black
APC NetShelter Rack PDU Advanced power distribution unit (PDU) 42 AC outlet(s) 0U Black
SKU: APDU10250ME
Regular price
$1,690.26 USD
Regular price
Sale price
$1,690.26 USD
MSRP: $2,480.00
APC NetShelter Rack PDU Advanced. PDU types: Metered, Rack capacity: 0U, Type: Three-phase. AC outlets quantity: 42 AC outlet(s), AC outlet types: C13 coupler, C15 coupler, C19 coupler, C21 coupler, Power plug: IEC 60309. LED indicators: Activity, Network, Power, Cable length: 70.9" (1.8 m), Security algorithms: 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SNMP, SNMPv2, SNMPv3. Monitoring: Current, Humidity, Power, Temperature, Voltage, Outlet control: Lock-out, Recycle, Turn on, Firmware upgradeable via: Network, USB. Nominal input voltage: 400 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz
Quantity
Couldn't load pickup availability
- Details: APC NetShelter Rack PDU Advanced. PDU types: Metered, Rack capacity: 0U, Type: Three-phase. AC outlets quantity: 42 AC outlet(s), AC outlet types: C13 coupler, C15 coupler, C19 coupler, C21 coupler, Power plug: IEC 60309. LED indicators: Activity, Network, Power, Cable length: 70.9" (1.8 m), Security algorithms: 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SNMP, SNMPv2, SNMPv3. Monitoring: Current, Humidity, Power, Temperature, Voltage, Outlet control: Lock-out, Recycle, Turn on, Firmware upgradeable via: Network, USB. Nominal input voltage: 400 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz
- PDF: http://objects.icecat.biz/objects/mmo_96984853_1650126989_7573_6565.pdf|http://objects.icecat.biz/objects/mmo_96984853_1650127027_7119_8898.pdf|http://objects.icecat.biz/objects/mmo_96984853_1650127047_4401_25618.pdf|http://objects.icecat.biz/objects/mmo_96984853_1650127073_2755_25638.pdf|http://objects.icecat.biz/objects/mmo_96984853_1650127098_0152_8823.pdf

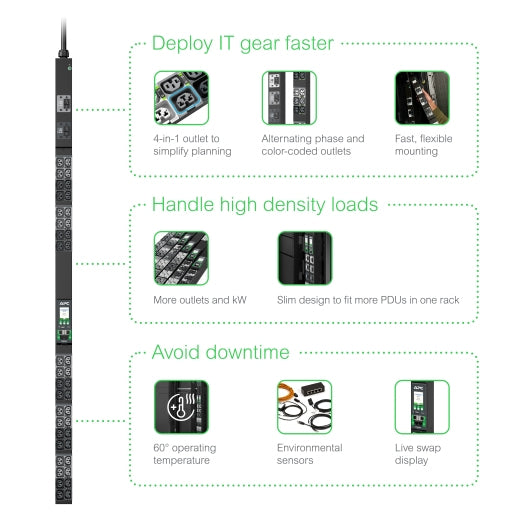

- Info: Metered, 11.5kW, 3PH|415V, 20A, 520P6|42 Outlet|Power metering via remote access|High Density|Availability|Agility|Manageability
- Form factor: Rackmount
- LED indicators: Activity, Network, Power
- PDU types: Metered
- Mounting: Vertical
- On/off switch: Yes

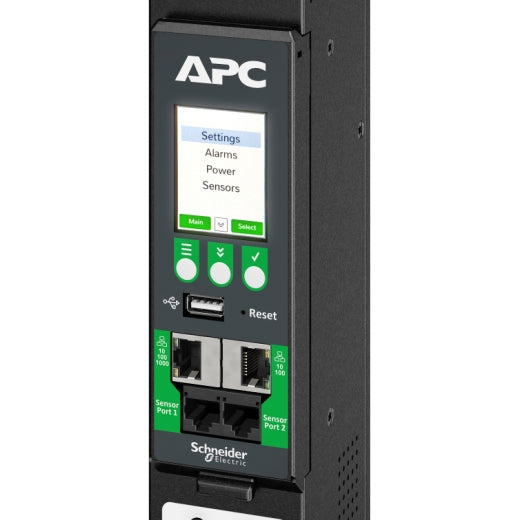

- Display: LCD
- Product color: Black
- Cable length: 70.9" (1.8 m)
- Type: Three-phase
- Power protection features: Overload
- Reset button: Yes
- Compatible products: Compatible with most NetShelter SX
- enclosures and third-party racks
- Maximum current: 16 A
- Surge protection: Yes
- Daisy chain: Yes

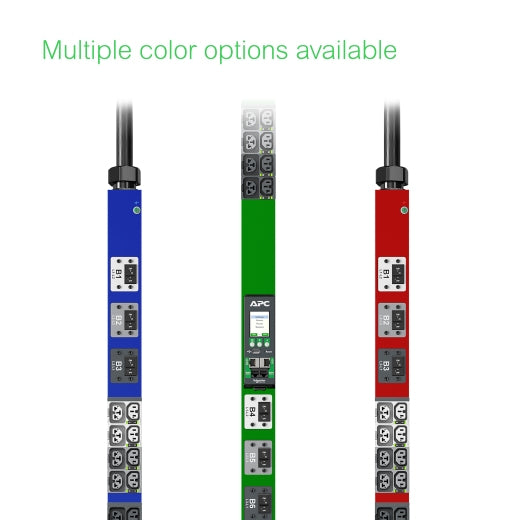

- Color-coded outlets: Yes
- Monitoring: Current, Humidity, Power, Temperature, Voltage
- Outlet control: Lock-out, Recycle, Turn on
- Firmware upgradeable via: Network, USB
- Security algorithms: 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SNMP, SNMPv2, SNMPv3
- Operating temperature (T-T): 23 - 140 °F
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 120000" (0 - 3048 m)
- Non-operating altitude: 0 - 600000" (0 - 15240 m)
- Nominal output voltage: 230 V
- Nominal input voltage: 400 V
- Package width: 8.19" (208 mm)
- Package height: 67.7" (1720 mm)
- Package depth: 4.57" (116 mm)
- Package weight: 17 lbs (7.7 kg)
- Firmware upgradeable: Yes
- Ethernet LAN (RJ-45) ports: 2

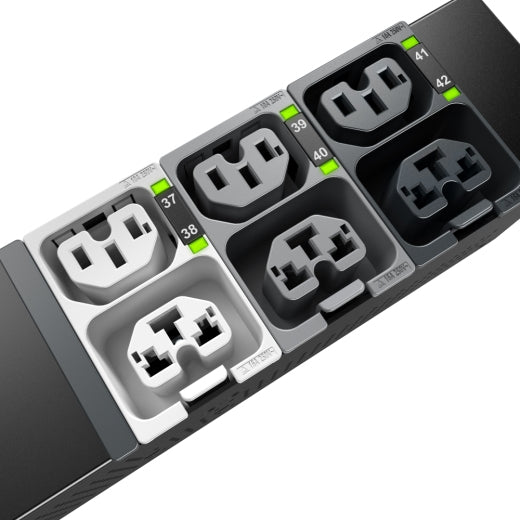

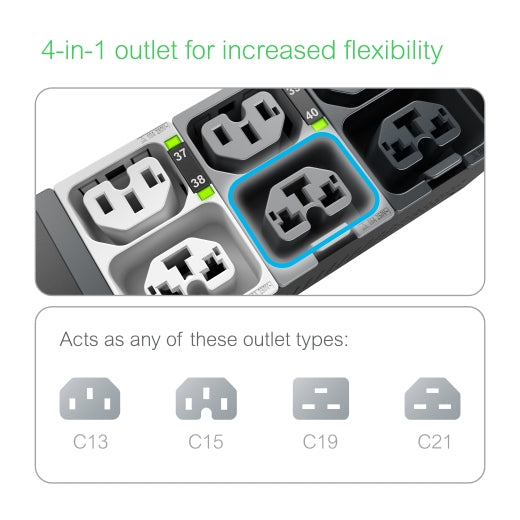

- AC outlet types: C13 coupler, C15 coupler, C19 coupler, C21 coupler

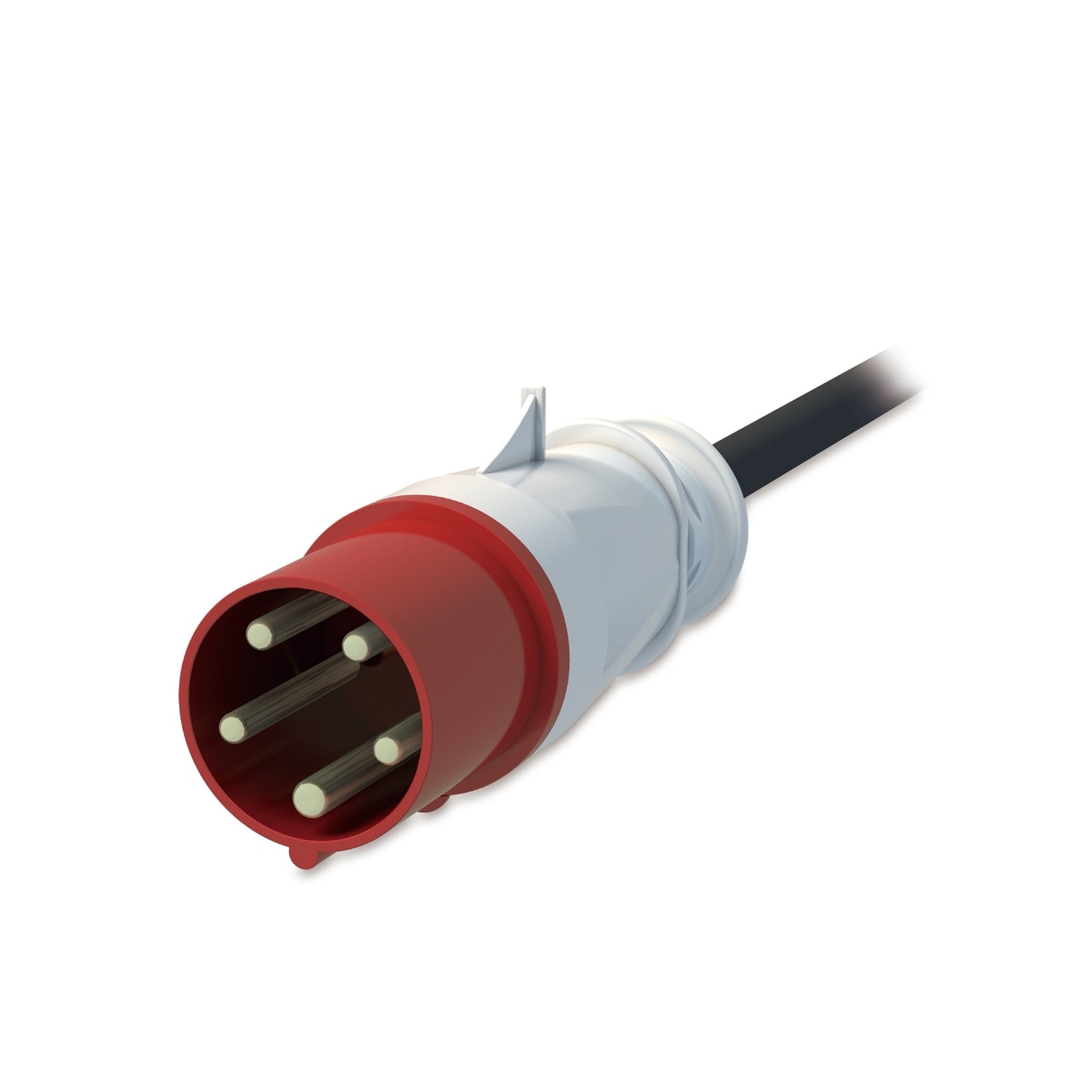

- Power plug: IEC 60309
- AC outlets quantity: 42 AC outlet(s)
- USB ports quantity: 1
- AC input frequency: 50 - 60 Hz
- Output voltage: 230 V
- Maximum total current draw per phase: 16 A
- Load capacity: 11500 VA
- Maximum power: 11040 W
- Number of phases: 3
- Password protection: Yes
- Compliance certificates: RoHS
- Rack capacity: 0U
- Total carbon footprint (kg of CO2e): 8717.32
- Weight: 12.6 lbs (5.7 kg)
- Width: 2.2" (56 mm)
- Height: 58.7" (1490 mm)
- Depth: 2.17" (55 mm)
- Regulatory Approvals: CE, CSA C22.2 No 62368-1, EN 62368-1, FCC part 15 subpart B, UKCA, UL 62368-1
