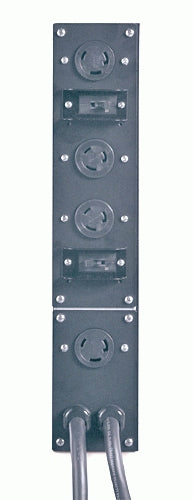

APC Service Bypass Panel- 200/208/240V power distribution unit (PDU) Black

APC Service Bypass Panel- 200/208/240V power distribution unit (PDU) Black

SBP6KRMT2U

$1,450.71 USD
$1,450.71 USD
Sale Sold out

MSRP: $2,120.00

APC Service Bypass Panel- 200/208/240V. Product color: Black. Input connection type: Hard Wire 3-wire (2PH + G), NEMA L6-30P, Output connections: 2x NEMA L6-20R 1x NEMA L6-30R. Cable length: 120.1" (3.05 m). Load capacity: 6000 VA, Maximum input current per phase: 30 A, Maximum total current draw per phase: 30 A. Certification: CSA,EN 60950,GOST,IEC 60950,IEC 60950,UL 1778
View full details
    • Details: APC Service Bypass Panel- 200/208/240V. Product color: Black. Input connection type: Hard Wire 3-wire (2PH + G), NEMA L6-30P, Output connections: 2x NEMA L6-20R 1x NEMA L6-30R. Cable length: 120.1" (3.05 m). Load capacity: 6000 VA, Maximum input current per phase: 30 A, Maximum total current draw per phase: 30 A. Certification: CSA,EN 60950,GOST,IEC 60950,IEC 60950,UL 1778
    • Certification: CSA,EN 60950,GOST,IEC 60950,IEC 60950,UL 1778
    • Product color: Black
    • Cable length: 120.1" (3.05 m)
    • Operating temperature (T-T): -20 - 50 °C
    • Storage temperature (T-T): -25 - 65 °C
    • Operating relative humidity (H-H): 0 - 95%
    • Storage relative humidity (H-H): 0 - 95%
    • Output connections: 2x NEMA L6-20R
    • 1x NEMA L6-30R
    • Input connection type: Hard Wire 3-wire (2PH + G), NEMA L6-30P
    • Package width: 24" (610 mm)
    • Package height: 7.99" (203 mm)
    • Package depth: 39" (991 mm)
    • Package weight: 54 lbs (24.5 kg)
    • Maximum input current per phase: 30 A
    • Maximum total current draw per phase: 30 A
    • Load capacity: 6000 VA
    • Weight: 30 lbs (13.6 kg)
    • Width: 17" (432 mm)
    • Height: 3.5" (89 mm)
    • Depth: 25.6" (650 mm)
