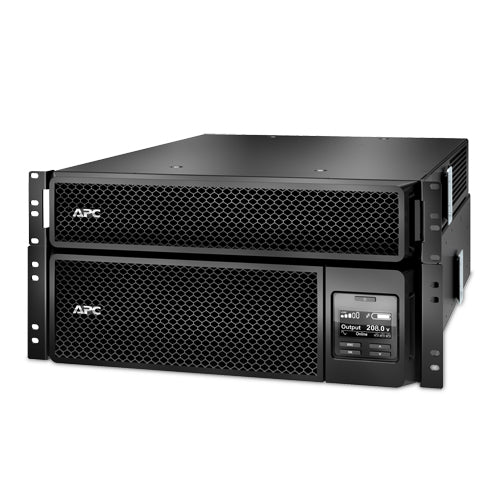

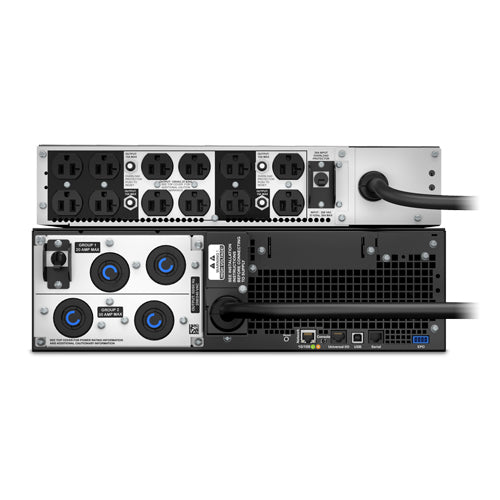

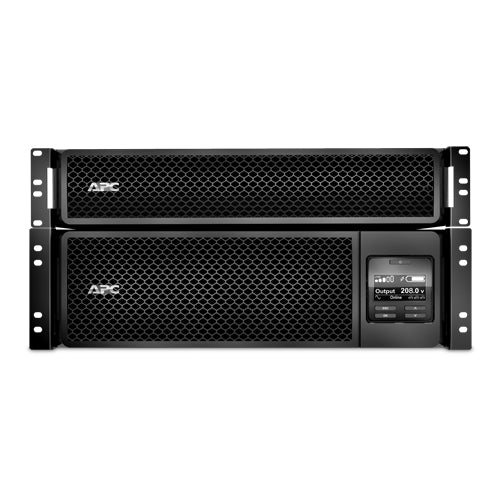

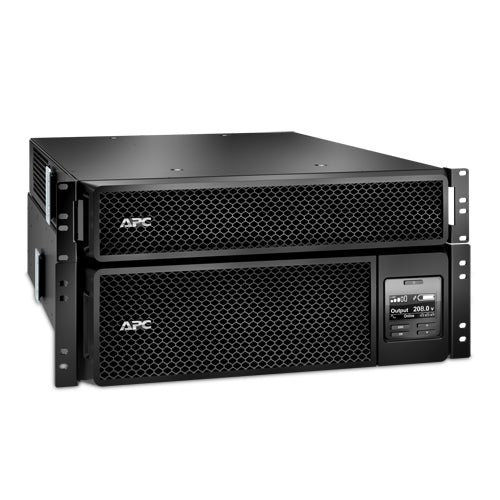

APC Smart-UPS SRT 5000VA 208V - 120V Step-Down Transformer uninterruptible power supply (UPS) Double-conversion (Online) 5 kVA 4.25 W 15 AC outlet(s)
APC Smart-UPS SRT 5000VA 208V - 120V Step-Down Transformer uninterruptible power supply (UPS) Double-conversion (Online) 5 kVA 4.25 W 15 AC outlet(s)
SKU: SRT5KRMXLT-5KTF
Regular price
$8,561.40 USD
Regular price
Sale price
$8,561.40 USD
MSRP: $12,505.00
APC Smart-UPS SRT 5000VA 208V - 120V Step-Down Transformer. UPS topology: Double-conversion (Online), Output power capacity: 5 kVA, Output power: 4.25 W. AC outlet types: NEMA L5-20R, NEMA L6-20R, NEMA L6-30R, Power plug: NEMA L6-30P, AC outlets quantity: 15 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 840 Ah, Typical backup time at full load: 5 min. Form factor: Rackmount/Tower, Product color: Black, Housing material: Steel. Compliance certificates: RoHS
Quantity
Couldn't load pickup availability
- Details: APC Smart-UPS SRT 5000VA 208V - 120V Step-Down Transformer. UPS topology: Double-conversion (Online), Output power capacity: 5 kVA, Output power: 4.25 W. AC outlet types: NEMA L5-20R, NEMA L6-20R, NEMA L6-30R, Power plug: NEMA L6-30P, AC outlets quantity: 15 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 840 Ah, Typical backup time at full load: 5 min. Form factor: Rackmount/Tower, Product color: Black, Housing material: Steel. Compliance certificates: RoHS
- PDF: http://objects.icecat.biz/objects/mmo_29748864_1466081233_8742_6551.pdf|http://objects.icecat.biz/objects/mmo_29748864_1466081251_0473_6660.pdf
- Battery technology: Sealed Lead Acid (VRLA)
- Battery recharge time: 1.5 h
- Typical backup time at full load: 5 min
- Typical backup time at half load: 14 min
- Hot-swap battery: Yes
- Automatic battery test: Yes
- Cold start: Yes
- Form factor: Rackmount/Tower
- LED indicators: Battery replacement
- Display type: LCD
- Product color: Black
- Cable length: 120.1" (3.05 m)
- Housing material: Steel
- Power protection features: Overload
- International Protection (IP) code: IP20
- Input operation voltage (min): 100 V
- Input operation voltage (max): 275 V
- Input frequency: 40 - 70 Hz
- Output operation voltage (max): 208 V
- Efficiency: 93.4%
- UPS topology: Double-conversion (Online)
- Output power capacity: 5 kVA
- Waveform: Sine
- Output operation voltage (min): 120 V
- Output frequency: 50/60 Hz
- Automatic Voltage Regulation (AVR): Yes
- Surge energy rating: 480 J
- Audible alarm(s): Yes
- Surge protection: Yes
- Auto-restart: Yes
- Emergency Power Off (EPO): Yes
- Battery capacity: 840 Ah
- Output voltage Total Harmonic Distortion (THD): 2%
- Quantity per pallet: 3 pc(s)
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 118110.2" (0 - 3000 m)
- Cables included: USB cable
- Quick installation guide: Yes
- Rack mount kit: Yes
- Package width: 24.5" (622 mm)
- Package height: 23" (584 mm)
- Package depth: 37.8" (960 mm)
- Package weight: 259.9 lbs (117.9 kg)
- Resource CD: Yes
- Bracket: Yes
- Noise level: 55 dB
- Ethernet LAN (RJ-45) ports: 3
- USB 2.0 ports quantity: 1
- AC outlet types: NEMA L5-20R, NEMA L6-20R, NEMA L6-30R
- Power plug: NEMA L6-30P
- AC outlets quantity: 15 AC outlet(s)
- Output power: 4.25 W
- Sustainability certificates: ENERGY STAR
- Compliance certificates: RoHS
- Rack capacity: 5U
- Weight: 218 lbs (98.9 kg)
- Width: 17" (432 mm)
- Height: 8.58" (218 mm)
- Depth: 28.3" (719 mm)
