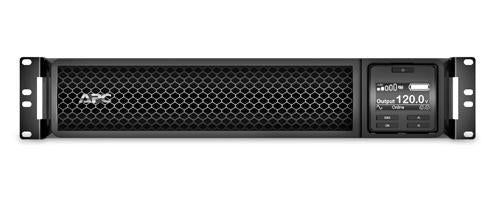

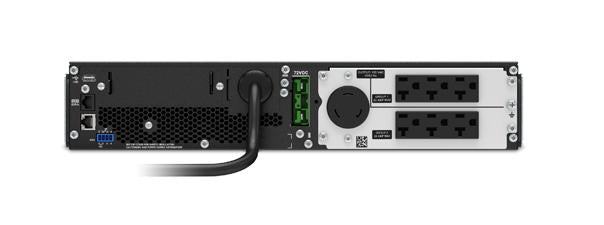

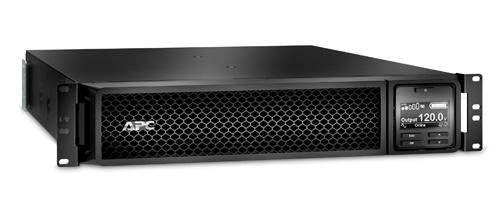

APC SRT2200RMXLA uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA 1800 W
APC SRT2200RMXLA uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA 1800 W
SKU: SRT2200RMXLA
Regular price
$2,404.98 USD
Regular price
Sale price
$2,404.98 USD
MSRP: $3,525.00
APC SRT2200RMXLA. UPS topology: Double-conversion (Online), Output power capacity: 2.2 kVA, Output power: 1800 W. AC outlet types: NEMA 5–20R, NEMA L5-20R, Power plug: NEMA 5-20P, Serial interface type: RJ-45. Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 306 Ah, Typical backup time at full load: 3.3 min. Form factor: Rackmount/Tower, Product color: Black, Rack capacity: 2U. Compliance certificates: RoHS, Certification: CSA C22.2 No.107.3-05, FCC Part 15 Class A, OSHPD, UL 1778
Quantity
Couldn't load pickup availability
- Details: APC SRT2200RMXLA. UPS topology: Double-conversion (Online), Output power capacity: 2.2 kVA, Output power: 1800 W. AC outlet types: NEMA 5–20R, NEMA L5-20R, Power plug: NEMA 5-20P, Serial interface type: RJ-45. Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 306 Ah, Typical backup time at full load: 3.3 min. Form factor: Rackmount/Tower, Product color: Black, Rack capacity: 2U. Compliance certificates: RoHS, Certification: CSA C22.2 No.107.3-05, FCC Part 15 Class A, OSHPD, UL 1778
- PDF: http://objects.icecat.biz/objects/mmo_33230585_1491987277_4583_4719.pdf|http://objects.icecat.biz/objects/mmo_33230585_1491987314_3717_18431.pdf|http://objects.icecat.biz/objects/mmo_33230585_1491987339_9678_19087.pdf
- Battery technology: Sealed Lead Acid (VRLA)
- Battery life (max): 5 year(s)
- Typical backup time at full load: 3.3 min
- Typical backup time at half load: 10.3 min
- Hot-swap battery: Yes
- Automatic battery test: Yes
- Cold start: Yes
- Replacement battery cartridge: APCRBC141
- Certification: CSA C22.2 No.107.3-05, FCC Part 15 Class A, OSHPD, UL 1778
- Form factor: Rackmount/Tower
- LED indicators: Alarm, Status
- Display type: LCD
- Product color: Black
- Cable length: 72" (1.83 m)
- International Protection (IP) code: IP20
- Input operation voltage (min): 108 V
- Input operation voltage (max): 150 V
- Input frequency: 40/70 Hz
- Output operation voltage (max): 120 V
- UPS topology: Double-conversion (Online)
- Output power capacity: 2.2 kVA
- Waveform: Sine
- Output operation voltage (min): 120 V
- Output frequency: 50/60 Hz
- Surge energy rating: 340 J
- Audible alarm(s): Yes
- Surge protection: Yes
- Auto-restart: Yes
- Emergency Power Off (EPO): Yes
- Battery capacity: 306 Ah
- Crest factor: 3:1
- Output voltage Total Harmonic Distortion (THD): 2%
- Harmonized System (HS) code: 85078000
- Quantity per pallet: 12 pc(s)
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 50 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 118110.2" (0 - 3000 m)
- Cables included: USB cable
- Quick installation guide: Yes
- Package width: 23.6" (599 mm)
- Package height: 9.69" (246 mm)
- Package depth: 31.9" (810 mm)
- Package weight: 75 lbs (34 kg)
- Software CD: Yes
- Resource CD: Yes
- Screws included: Yes
- Warranty card: Yes
- Bracket: Yes
- Noise level: 55 dB
- Ethernet LAN (RJ-45) ports: 1
- AC outlet types: NEMA 5–20R, NEMA L5-20R
- Power plug: NEMA 5-20P
- USB port: Yes
- Serial interface: Yes
- Serial interface type: RJ-45
- SmartSlot: Yes
- Serial ports quantity: 1
- Output power: 1800 W
- Sustainability certificates: ENERGY STAR
- Compliance certificates: RoHS
- Rack capacity: 2U
- Weight: 54.9 lbs (24.9 kg)
- Width: 17" (432 mm)
- Height: 3.35" (85 mm)
- Depth: 23" (584 mm)
