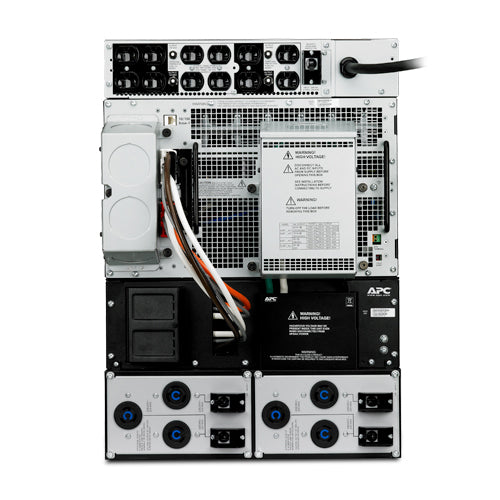

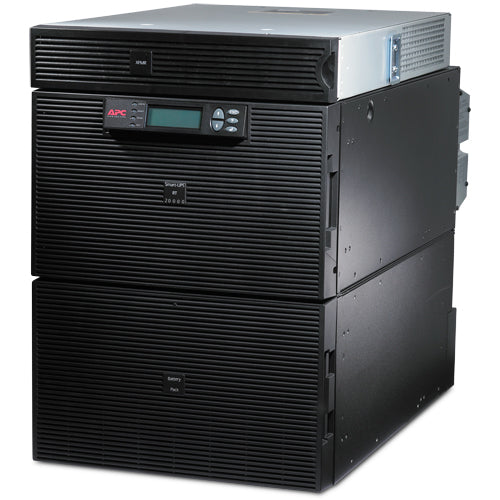

APC SURT20KRMXLT-TF5 uninterruptible power supply (UPS) 20 kVA 18 AC outlet(s)

APC SURT20KRMXLT-TF5 uninterruptible power supply (UPS) 20 kVA 18 AC outlet(s)

SURT20KRMXLT-TF5

$25,132.88 USD
$25,132.88 USD
Sale Sold out

MSRP: $36,690.00

APC SURT20KRMXLT-TF5. Output power capacity: 20 kVA, Input operation voltage (min): 160 V, Input operation voltage (max): 280 V. AC outlet types: NEMA 5–20R, NEMA L6-20R, NEMA L6-30R, AC outlets quantity: 18 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery recharge time: 2.50 h. Form factor: Rackmount/Tower, Product color: Black, Rack capacity: 14U. Certification: UL 1778
View full details
    • Details: APC SURT20KRMXLT-TF5. Output power capacity: 20 kVA, Input operation voltage (min): 160 V, Input operation voltage (max): 280 V. AC outlet types: NEMA 5–20R, NEMA L6-20R, NEMA L6-30R, AC outlets quantity: 18 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery recharge time: 2.50 h. Form factor: Rackmount/Tower, Product color: Black, Rack capacity: 14U. Certification: UL 1778
    • Battery technology: Sealed Lead Acid (VRLA)
    • Battery recharge time: 2.50 h
    • Cold start: Yes
    • Number of battery cells: 4
    • Certification: UL 1778
    • Form factor: Rackmount/Tower
    • LED indicators: Yes
    • Display type: LCD
    • Product color: Black
    • Power protection features: Overload
    • Input operation voltage (min): 160 V
    • Input operation voltage (max): 280 V
    • Input frequency: 50/60 Hz
    • Output operation voltage (max): 208 V
    • Maximum current: 105 A
    • Efficiency: 94%
    • Output power capacity: 20 kVA
    • Output operation voltage (min): 120 V
    • Audible alarm(s): Yes
    • Emergency Power Off (EPO): Yes
    • Crest factor: 3:1
    • Input current Total Harmonic Distortion (THD): 5%
    • Output voltage Total Harmonic Distortion (THD): 5%
    • EMI/RFI noise filtering: 59 dB
    • Overload protection: Yes
    • Operating temperature (T-T): 32 - 104 °F
    • Storage temperature (T-T): -15 - 45 °C
    • Operating relative humidity (H-H): 0 - 95%
    • Storage relative humidity (H-H): 0 - 95%
    • Operating altitude: 0 - 118110.2" (0 - 3000 m)
    • Non-operating altitude: 0 - 590551.2" (0 - 15000 m)
    • Dimensions (WxDxH): 17 x 30.4 x 24.5" (432 x 773 x 622 mm)
    • Interface: DB-9 RS-232, RJ-45, Smart-Slot
    • Networking features: 10/100 Base-T
    • Nominal output voltage: 120-208 V
    • Nominal input voltage: 208 V
    • Package dimensions (WxDxH): 24 x 39.5 x 49" (610 x 1003 x 1244 mm)
    • Filtering description: 0.3% IEEE
    • Over current protection: Yes
    • Package weight: 803.1 lbs (364.3 kg)
    • Ethernet LAN (RJ-45) ports: 1
    • AC outlet types: NEMA 5–20R, NEMA L6-20R, NEMA L6-30R
    • AC outlets quantity: 18 AC outlet(s)
    • Serial ports quantity: 3
    • RS-232 ports: 1
    • Number of phases: 2
    • Rack capacity: 14U
    • Weight: 641.3 lbs (290.9 kg)
    • Width: 17" (432 mm)
    • Height: 24.5" (622 mm)
    • Depth: 30.4" (773 mm)
