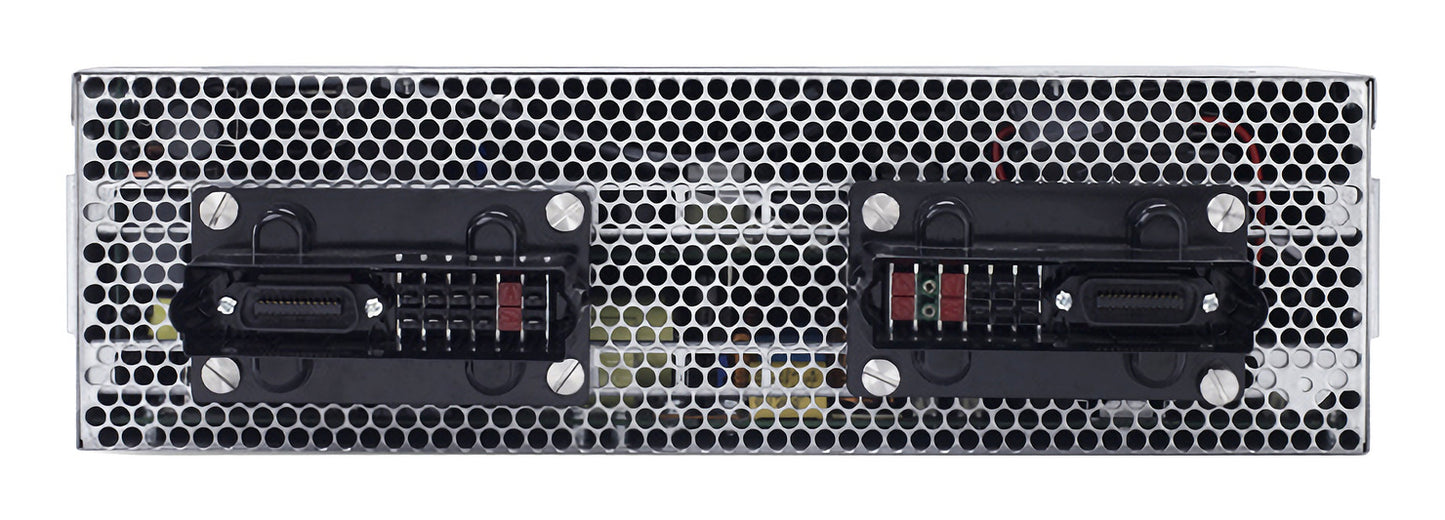

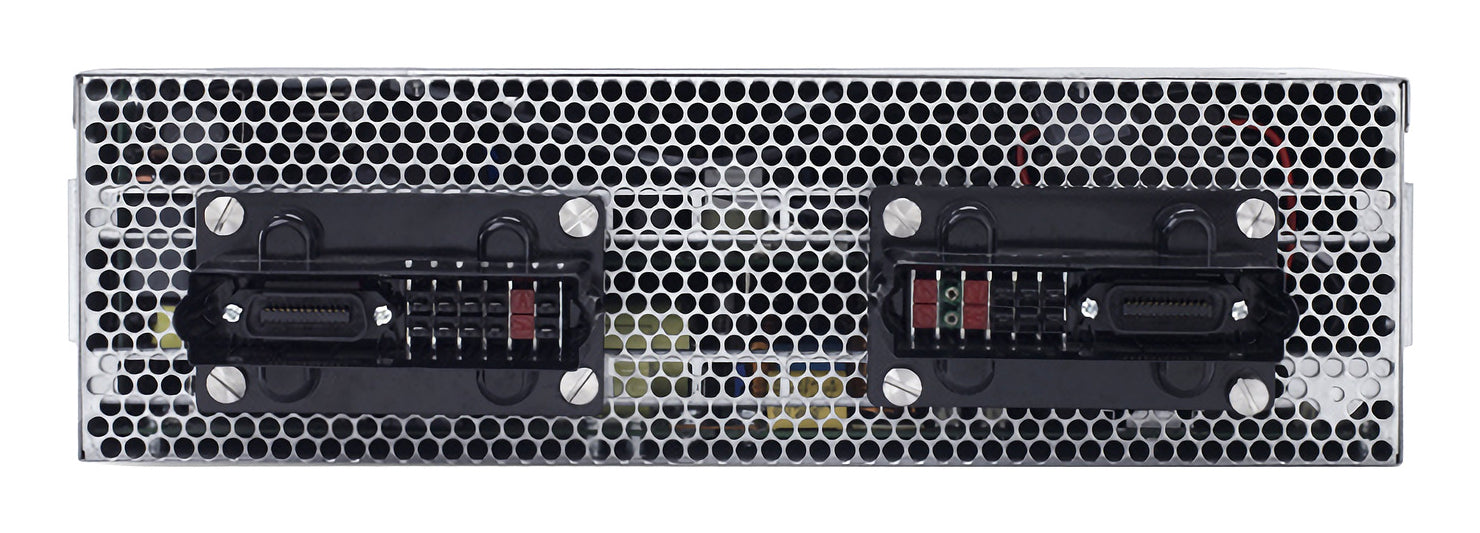

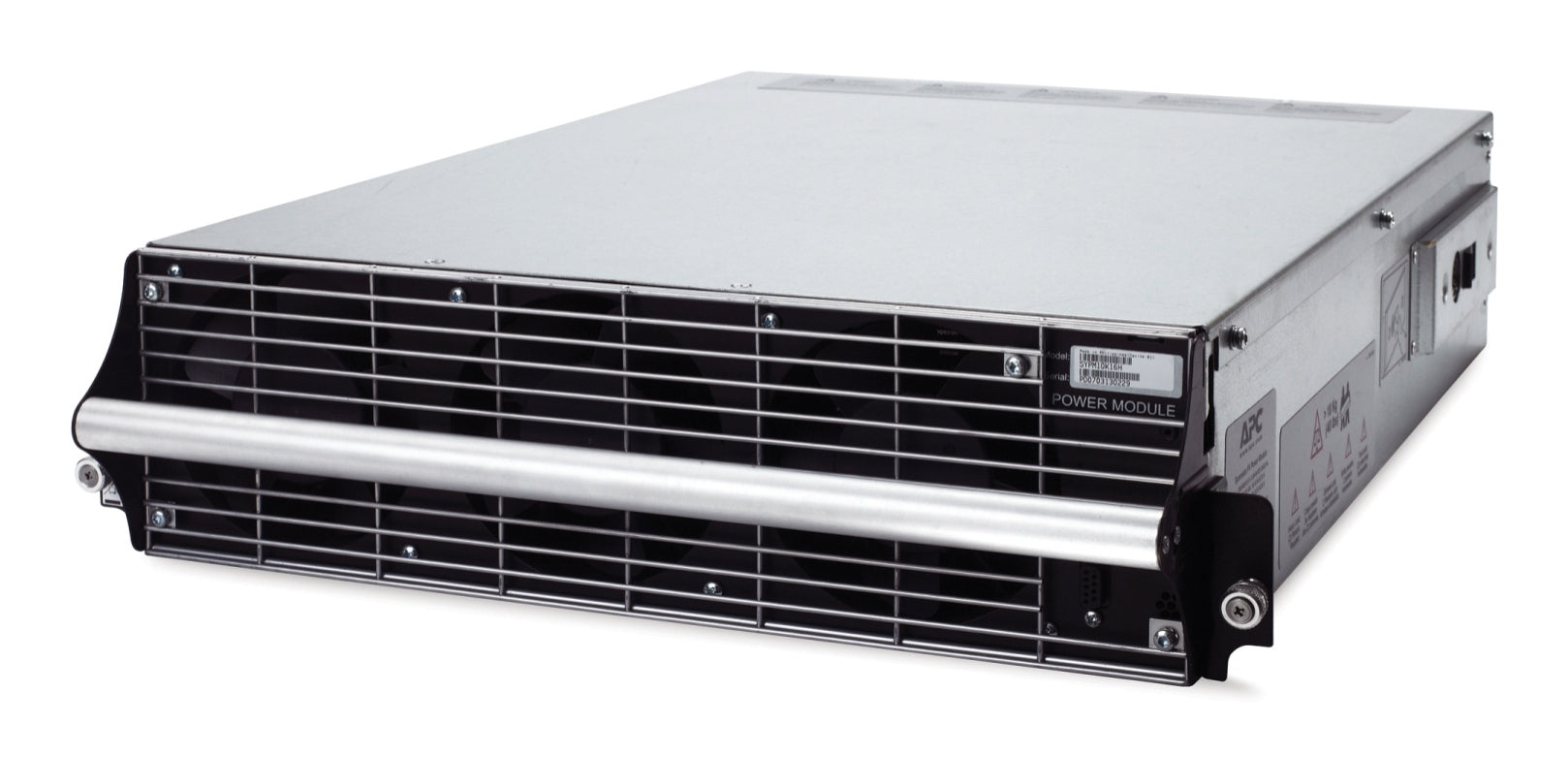

APC Symmetra PX Power Module, 10/16kW, 400V

APC Symmetra PX Power Module, 10/16kW, 400V

SYPM10K16H

$14,157.44 USD
$14,157.44 USD
Sale Sold out

MSRP: $20,755.00

APC Symmetra PX Power Module. Product type: Power module, Product color: Black, Gray, Noise level: 63 dB. Load capacity: 16000 VA, Capacity: 16000 W, Input voltage: 400 V. Certification: CE,EN 50091-1,EN 50091-3,FCC Part 15 Class A,VFI-SS-111. Width: 19" (483 mm), Depth: 2.76" (70 mm), Height: 5.2" (132 mm). Package width: 27.6" (700 mm), Package depth: 23.4" (595 mm), Package height: 8.86" (225 mm)
View full details
    • Details: APC Symmetra PX Power Module. Product type: Power module, Product color: Black, Gray, Noise level: 63 dB. Load capacity: 16000 VA, Capacity: 16000 W, Input voltage: 400 V. Certification: CE,EN 50091-1,EN 50091-3,FCC Part 15 Class A,VFI-SS-111. Width: 19" (483 mm), Depth: 2.76" (70 mm), Height: 5.2" (132 mm). Package width: 27.6" (700 mm), Package depth: 23.4" (595 mm), Package height: 8.86" (225 mm)
    • Info: Input power factor correction minimizes installation costs by enabling the use of smaller generators and cabling|Modular design speeds up mean time to repair (MTTR)|Compatible with 400V Symmetra PX 48 and 96/160kW|Compatible with 208V Symmetra PX 20, 40, and 80kW
    • Certification: CE,EN 50091-1,EN 50091-3,FCC Part 15 Class A,VFI-SS-111
    • Product color: Black, Gray
    • Product type: Power module
    • Input frequency: 40/70 Hz
    • Output power capacity: 16 kVA
    • Harmonized System (HS) code: 85079080
    • Operating temperature (T-T): 0 - 40 °C
    • Storage temperature (T-T): -15 - 40 °C
    • Operating relative humidity (H-H): 0 - 95%
    • Storage relative humidity (H-H): 0 - 95%
    • Operating altitude: 0 - 39960.6" (0 - 1015 m)
    • Non-operating altitude: 0 - 180000" (0 - 4572 m)
    • Package width: 27.6" (700 mm)
    • Package height: 8.86" (225 mm)
    • Package depth: 23.4" (595 mm)
    • Package weight: 131.2 lbs (59.5 kg)
    • Noise level: 63 dB
    • Export Control Classification Number (ECCN): EAR99
    • Output voltage: 400 V
    • Input voltage: 400 V
    • Maximum total current draw per phase: 33 A
    • Load capacity: 16000 VA
    • Number of phases: 3
    • Capacity: 16000 W
    • Weight: 62.8 lbs (28.5 kg)
    • Width: 19" (483 mm)
    • Height: 5.2" (132 mm)
    • Depth: 2.76" (70 mm)
