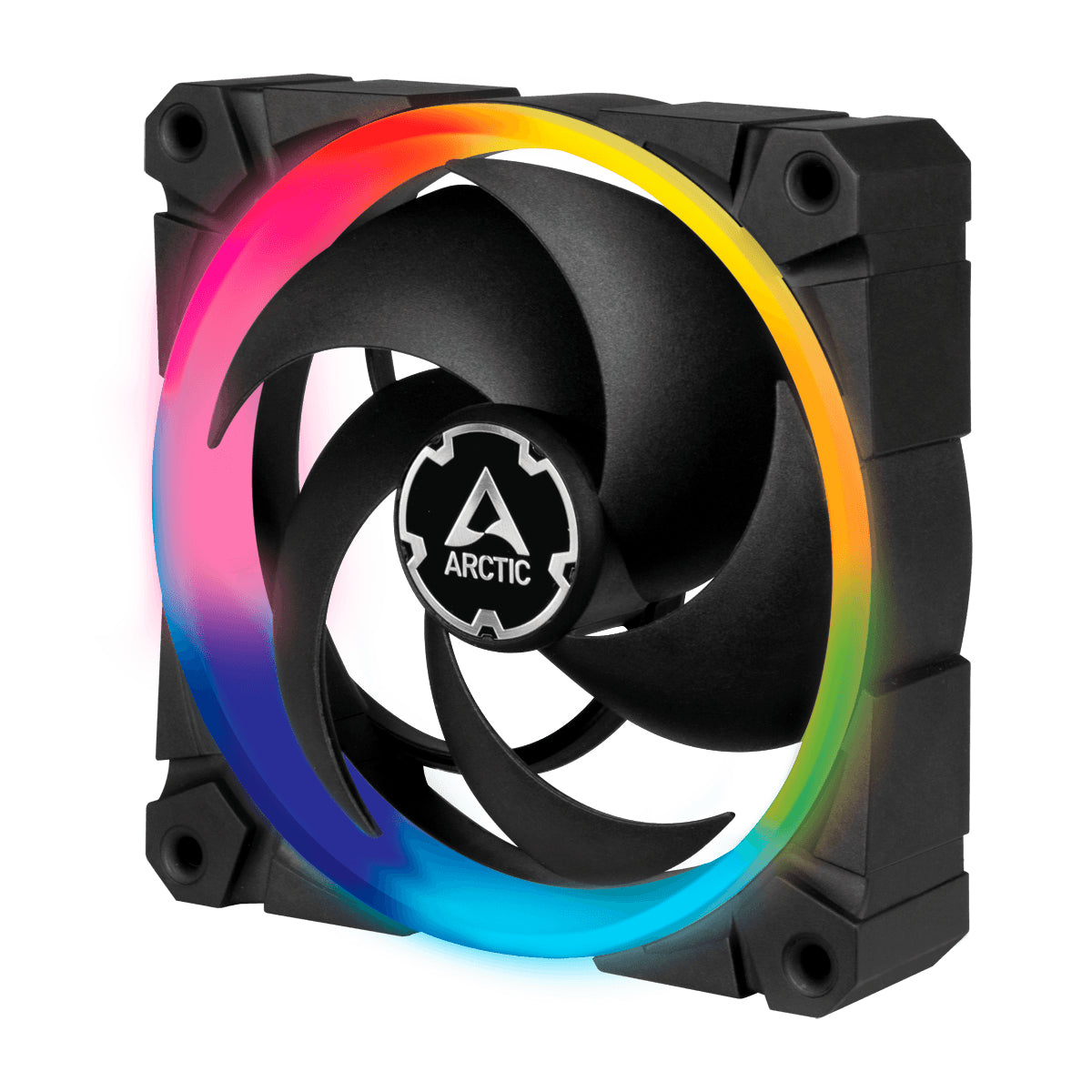

• ARCTIC ACFAN00146A computer cooling system Computer case Fan 4.72" (12 cm) Black
1 1

ARCTIC ACFAN00146A computer cooling system Computer case Fan 4.72" (12 cm) Black

ARCTIC ACFAN00146A computer cooling system Computer case Fan 4.72" (12 cm) Black

ACFAN00146A

$18.25 USD
$18.25 USD
Sale Sold out

MSRP: $25.99

ARCTIC ACFAN00146A. Type: Fan, Fan diameter: 4.72" (12 cm), Rotational speed (min): 400 RPM, Rotational speed (max): 2300 RPM, Noise level: 0.45 sone, Airflow: 81.55 m³/h, Maximum air pressure: 2.1 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 4.72" (120 mm), Depth: 4.72" (120 mm), Height: 1.18" (30 mm). Product color: Black
View full details
    • Details: ARCTIC ACFAN00146A. Type: Fan, Fan diameter: 4.72" (12 cm), Rotational speed (min): 400 RPM, Rotational speed (max): 2300 RPM, Noise level: 0.45 sone, Airflow: 81.55 m³/h, Maximum air pressure: 2.1 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 4.72" (120 mm), Depth: 4.72" (120 mm), Height: 1.18" (30 mm). Product color: Black
    • ReasonsToBuy: A-RGB for Full Colour Control|http://images.icecat.biz/img/bullets/87793747-6086bfe554726666495909.jpg|The 12 A-RGB LEDs installed in the BioniX P120 A-RGB are autonomously controllable. The BioniX P120 A-RGB is compatible with the common A-RGB standards of leading motherboard manufacturers for the simplest possible use. It can therefore be fully illuminated directly via the A-RGB motherboard connection or via an external controller and synchronized with other hardware lighting.
    • Easy installation and extension via Connector Technology|http://images.icecat.biz/img/bullets/87793747-6086bfef55554211296223.jpg|The ARCTIC BioniX P120 A-RGB have a modular cable management and use two connections: a power-in and a connector output. ARCTIC uses an 8-pin connector for this, which forwards both the fan and lighting signals and considerably simplifies the cabling *. The included connector block also enables a wireless series connection.
    • * all necessary cables are included
    • High-quality plain bearing|http://images.icecat.biz/img/bullets/87793747-6086bffdbcc7c733300345.jpg|Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced, increasing efficiency.
    • In this way, less heat is generated, there is less bearing noise and the service life of the fan is extended.
    • Optimised for static pressure|http://images.icecat.biz/img/bullets/87793747-6086c0090f73a659247546.jpg|With the BioniX P120 A-RGB, as with the entire P-series, special emphasis was placed on a focused airflow and high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance.
    • This makes the BioniX P120 A-RGB particularly suitable for use on covered case vents or inlets with filters.
    • Maximum smoothness, minimum vibration|http://images.icecat.biz/img/bullets/87793747-6086c014f2a93819969134.jpg|The operating noise of the newly developed ARCTIC motor is barely noticeable even at the lowest speed.
    • Thanks to sinus magnetization, the P fan's motor generates only 5% of the commutation vibrations of a conventional DC motor. In addition, the ARCTIC BioniX P120 A-RGB has rubber pads on its contact surfaces for further decoupling.
    • 400 to 2300 rpm regulated via PWM|http://images.icecat.biz/img/bullets/87793747-6086c01d9afb6542072717.jpg|With a wide speed range and the connector functionality, the fan speed of the BioniX P120 A-RGB can be controlled synchronously with other fans. This reduces the noise development to a minimum while at the same time guaranteeing maximum cooling performance.
    • Available as a bundle or individually|http://images.icecat.biz/img/bullets/87793747-6086c02836f39274608449.jpg|The BioniX P120 A-RGB is availlable as Singe Case Fan or in a Bundle, including 3 BioniX P120 A-RGB and ARCTICs A-RGB Controller.
    • Illumination LED: Yes
    • Illumination color: Blue, Green, Red
    • Number of LEDs: 12
    • Product color: Black
    • Type: Fan
    • Harmonized System (HS) code: 84733080
    • Country of origin: China
    • Number of screws: 8
    • Package width: 4.92" (125 mm)
    • Package height: 1.34" (34 mm)
    • Package depth: 6.34" (161 mm)
    • Package weight: 9.14 oz (259 g)
    • Screws included: Yes
    • Noise level: 0.45 sone
    • Number of fans: 1 fan(s)
    • Suitable location: Computer case
    • Airflow: 81.55 m³/h
    • Fan diameter: 4.72" (12 cm)
    • Rotational speed (min): 400 RPM
    • Rotational speed (max): 2300 RPM
    • Pulse-width modulation (PWM) support: Yes
    • Bearing type: Fluid Dynamic Bearing (FDB)
    • Maximum airflow: 48 cfm
    • Maximum air pressure: 2.1 mmH2O
    • Voltage: 12 V
    • Rated current: 0.13 A
    • Starting voltage: 7 V
    • Compliance certificates: RoHS
    • Weight: 7.51 oz (213 g)
    • Width: 4.72" (120 mm)
    • Height: 1.18" (30 mm)
    • Depth: 4.72" (120 mm)
