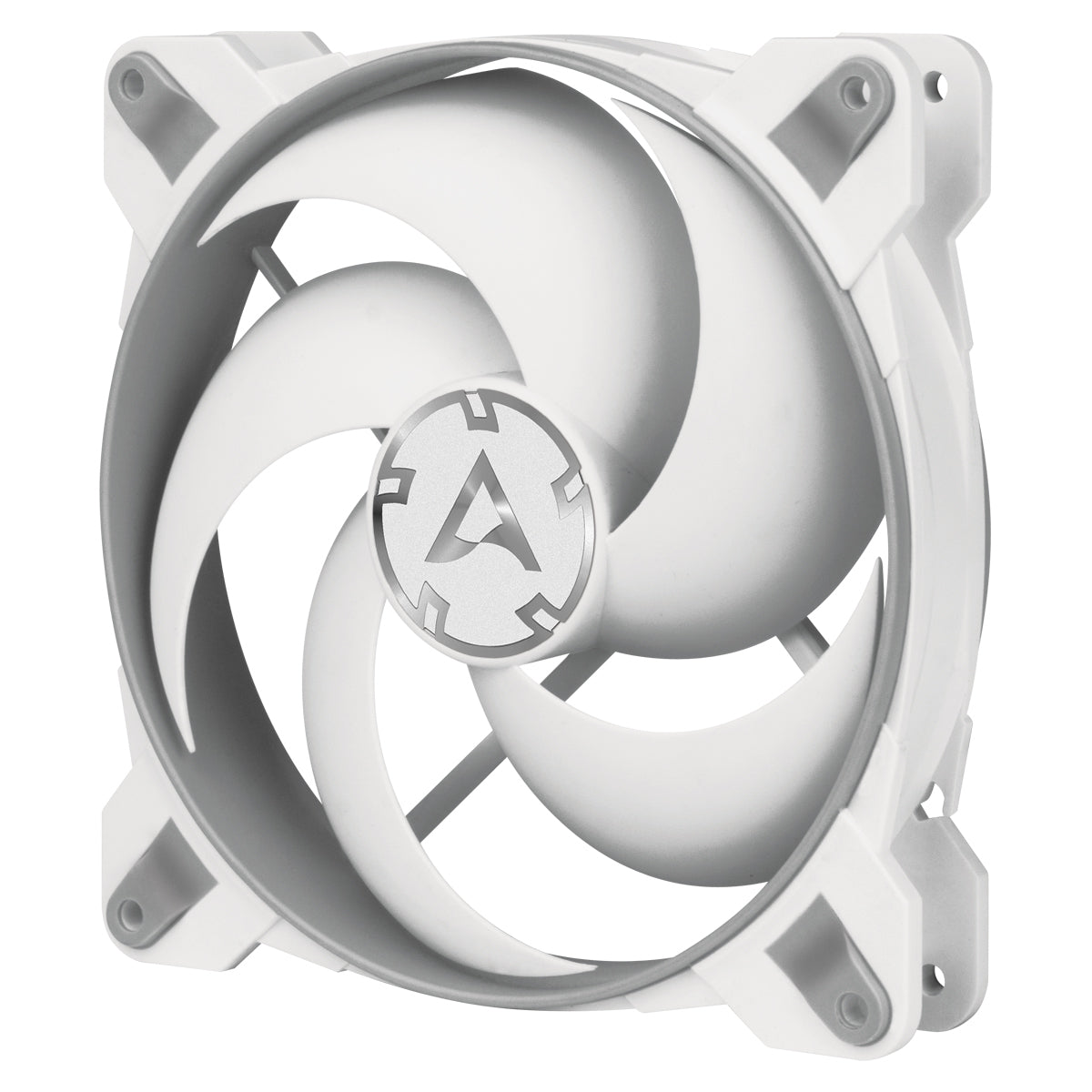

ARCTIC BioniX P140 Computer case Fan 5.51" (14 cm) Gray, White

ARCTIC BioniX P140 Computer case Fan 5.51" (14 cm) Gray, White

ACFAN00160A

$11.48 USD
$11.48 USD
Sale Sold out

MSRP: $16.99

ARCTIC BioniX P140. Type: Fan, Fan diameter: 5.51" (14 cm), Rotational speed (min): 200 RPM, Rotational speed (max): 1950 RPM, Noise level: 0.45 sone, Airflow: 131.92 m³/h, Maximum air pressure: 2.85 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 5.51" (140 mm), Depth: 1.1" (28 mm), Height: 5.51" (140 mm). Product color: Gray, White
View full details
    • Details: ARCTIC BioniX P140. Type: Fan, Fan diameter: 5.51" (14 cm), Rotational speed (min): 200 RPM, Rotational speed (max): 1950 RPM, Noise level: 0.45 sone, Airflow: 131.92 m³/h, Maximum air pressure: 2.85 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 5.51" (140 mm), Depth: 1.1" (28 mm), Height: 5.51" (140 mm). Product color: Gray, White
    • ReasonsToBuy: Optimised for Static Pressure|http://images.icecat.biz/img/bullets/77680449-5e29a7028a0d2508404092.jpg|During the development of the new BioniX P140, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the BioniX P140 is particularly suitable for use on heatsinks and radiators.
    • Maximum Quietness, Minimum Vibration|http://images.icecat.biz/img/bullets/77680449-5e29a711e8717287835600.jpg|Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.
    • Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
    • Extended Life Span|http://images.icecat.biz/img/bullets/77680449-5e29a71eade08610114889.jpg|A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 years.
    • 200 to 1950 RPM regulated via PWM PST|http://images.icecat.biz/img/bullets/77680449-5e29a72a1c113709566520.jpg|With a wide range of regulation and the PWM Sharing Technology (PST), the BioniX P140 fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.
    • High Quality Bearing|http://images.icecat.biz/img/bullets/77680449-5e29a738ea548614787248.jpg|Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and
    • greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
    • Info: Optimised for static pressure|Ideal choice on heatsinks, radiators and (partly-) covered case vents|Broad RPM range for highest performance and low noise level|Push- or pull-configuration|PWM Sharing Technology (PST) regulates fan speed synchronously|Newly developed, very quiet motor|Extended life span|Available in multiple distinct colors
    • Fan connector: 4-pin + 4-pin
    • Number of fan blades: 5
    • Product color: Gray, White
    • Cable length: 15.7" (0.4 m)
    • Type: Fan
    • Harmonized System (HS) code: 84733080
    • Country of origin: China
    • Mounting hole pattern (WxD): 4.92 x 4.92" (125 x 125 mm)
    • Number of screws: 4
    • Package width: 5.83" (148 mm)
    • Package height: 5.83" (148 mm)
    • Package depth: 1.38" (35 mm)
    • Package weight: 8.11 oz (230 g)
    • Package type: Box
    • Screws included: Yes
    • Noise level: 0.45 sone
    • Number of fans: 1 fan(s)
    • Suitable location: Computer case
    • Airflow: 131.92 m³/h
    • Compatible processor series: Not supported
    • Fan diameter: 5.51" (14 cm)
    • Supported processor sockets: Not supported
    • Rotational speed (min): 200 RPM
    • Rotational speed (max): 1950 RPM
    • Pulse-width modulation (PWM) support: Yes
    • Bearing type: Fluid Dynamic Bearing (FDB)
    • Maximum airflow: 77.6 cfm
    • Maximum air pressure: 2.85 mmH2O
    • Power consumption (typical): 1.8 W
    • Voltage: 12 V
    • Rated current: 0.15 A
    • Weight: 6.38 oz (181 g)
    • Width: 5.51" (140 mm)
    • Height: 5.51" (140 mm)
    • Depth: 1.1" (28 mm)
