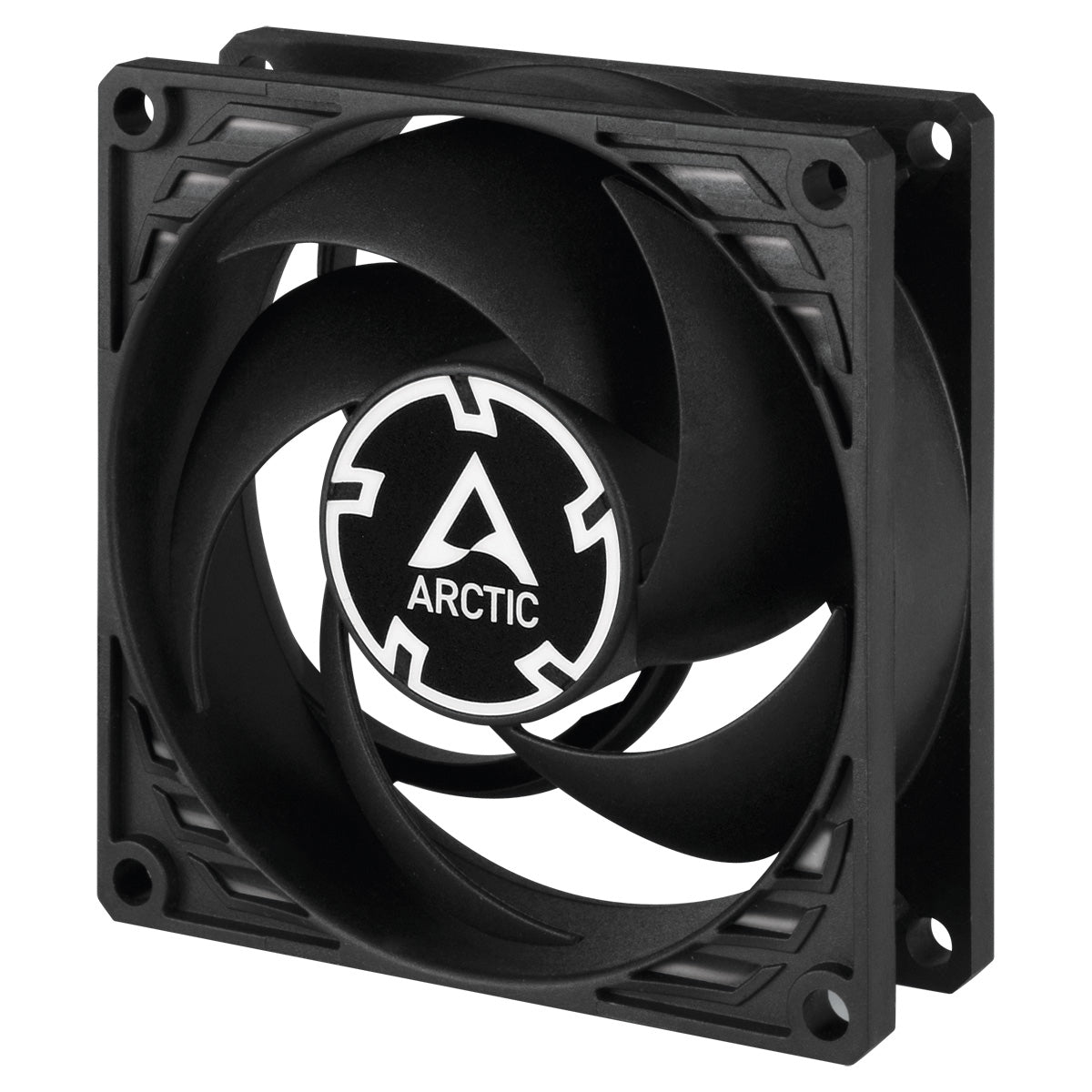

ARCTIC P8 PWM PST CO Computer case Fan 3.15" (8 cm) Black
ARCTIC P8 PWM PST CO Computer case Fan 3.15" (8 cm) Black
SKU: ACFAN00151A
Regular price
$6.08 USD
Regular price
Sale price
$6.08 USD
MSRP: $10.99
ARCTIC P8 PWM PST CO. Type: Fan, Fan diameter: 3.15" (8 cm), Rotational speed (min): 200 RPM, Rotational speed (max): 3000 RPM, Noise level: 0.3 sone, Airflow: 40.3 m³/h, Maximum air pressure: 1.9 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 3.15" (80 mm), Depth: 0.984" (25 mm), Height: 3.15" (80 mm). Product color: Black
Quantity
Couldn't load pickup availability
- Details: ARCTIC P8 PWM PST CO. Type: Fan, Fan diameter: 3.15" (8 cm), Rotational speed (min): 200 RPM, Rotational speed (max): 3000 RPM, Noise level: 0.3 sone, Airflow: 40.3 m³/h, Maximum air pressure: 1.9 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 3.15" (80 mm), Depth: 0.984" (25 mm), Height: 3.15" (80 mm). Product color: Black
- ReasonsToBuy: Optimised for Static Pressure|http://images.icecat.biz/img/bullets/77680285-5e299fb8c1223474523748.jpg|During the development of the new P8 PWM PST CO, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P8 PWM PST CO is particularly suitable for use on heatsinks and radiators.
- For Continuous Operation|http://images.icecat.biz/img/bullets/77680285-5e299fc26c597656934962.jpg|The premium quality Japanese dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearings and thus make it the perfect choice when reliability is essential.
- Maximum Quietness, Minimum Vibration|http://images.icecat.biz/img/bullets/77680285-5e299fe096ba1785038778.jpg|Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.
- Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
- Extended Life Span|http://images.icecat.biz/img/bullets/77680285-5e29a0034cde9412870163.jpg|A 10 °C lower motor temperature roughly doubles the life span of a fan.
- The new ARCTIC motor has a four times longer service life through its low coil temperature.
- Consequently, we have extended the warranty to 10 years.
- 200 to 3000 RPM regulated via PWM|http://images.icecat.biz/img/bullets/77680285-5e29a00e64ebd321718905.jpg|With a wide range of regulation and the PWM Sharing Technology (PST), the P8 PWM PST CO fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.
- Two Way Installation|http://images.icecat.biz/img/bullets/77680285-5e29a0208baf3234308980.jpg|Push warm air out of the case
- Pull cool air into your case
- Fan connector: 4-pin
- Number of fan blades: 5
- Product color: Black
- Type: Fan
- Country of origin: China
- Mounting hole pattern (WxD): 2.81 x 2.81" (71.5 x 71.5 mm)
- Manual: Yes
- Number of screws: 4
- Package width: 3.25" (82.5 mm)
- Package height: 3.25" (82.5 mm)
- Package depth: 1.02" (26 mm)
- Package weight: 3.42 oz (97 g)
- Package type: Box
- Screws included: Yes
- Noise level: 0.3 sone
- Number of fans: 1 fan(s)
- Suitable location: Computer case
- Airflow: 40.3 m³/h
- Compatible processor series: Not supported
- Fan diameter: 3.15" (8 cm)
- Supported processor sockets: Not supported
- Rotational speed (min): 200 RPM
- Rotational speed (max): 3000 RPM
- Pulse-width modulation (PWM) support: Yes
- Bearing type: Fluid Dynamic Bearing (FDB)
- Maximum airflow: 23.4 cfm
- Maximum air pressure: 1.9 mmH2O
- Voltage: 12 V
- Rated current: 0.09 A
- Weight: 2.77 oz (78.5 g)
- Width: 3.15" (80 mm)
- Height: 3.15" (80 mm)
- Depth: 0.984" (25 mm)
