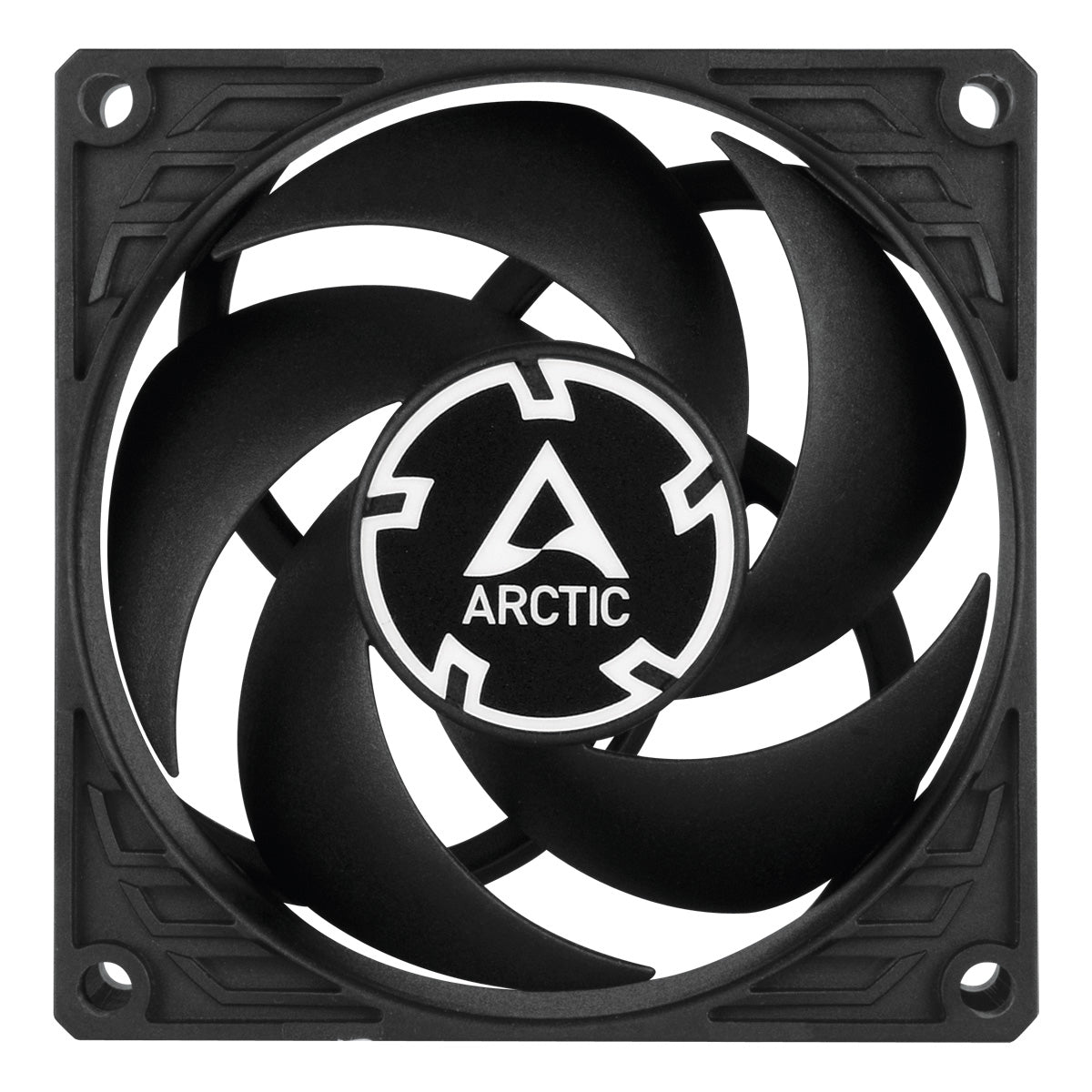

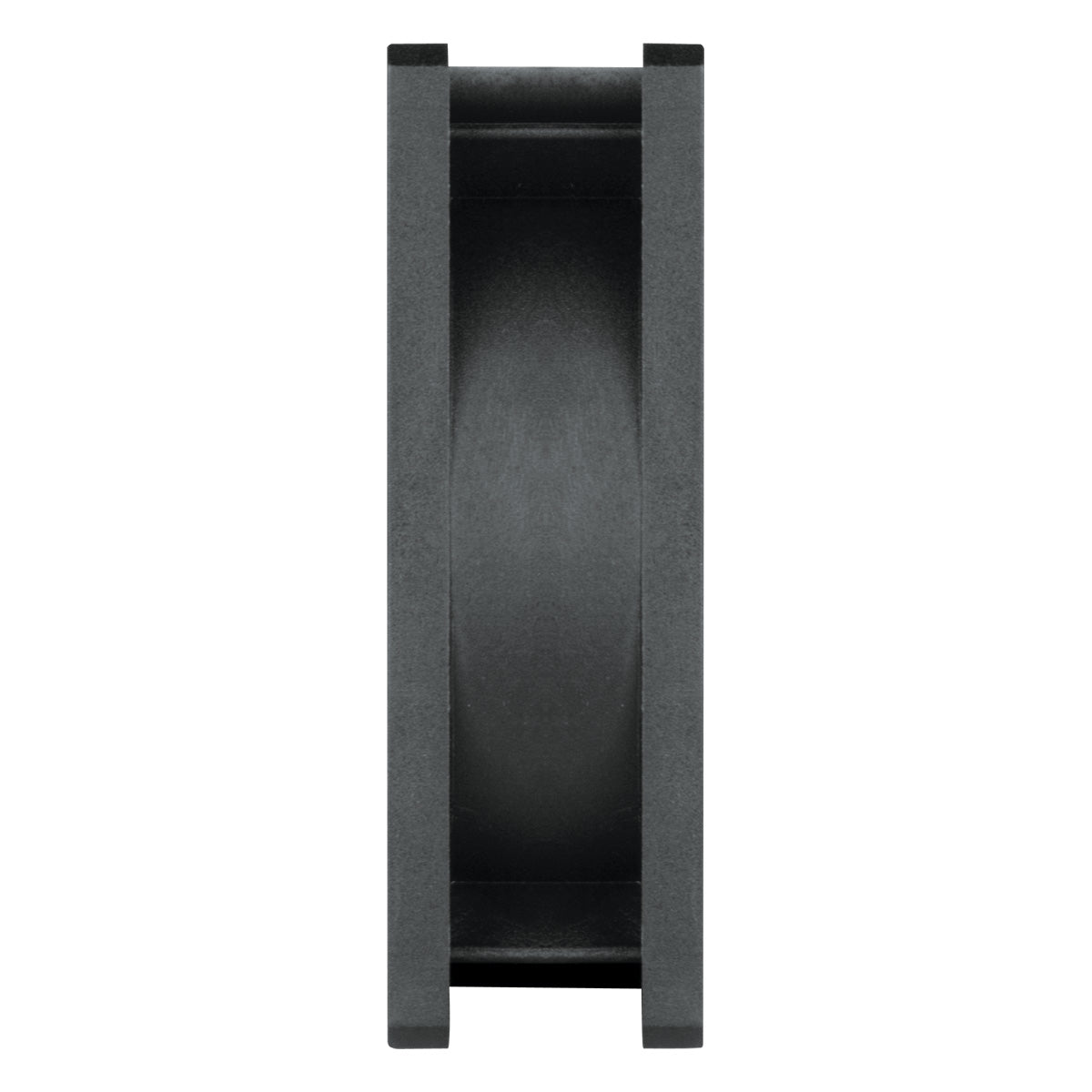

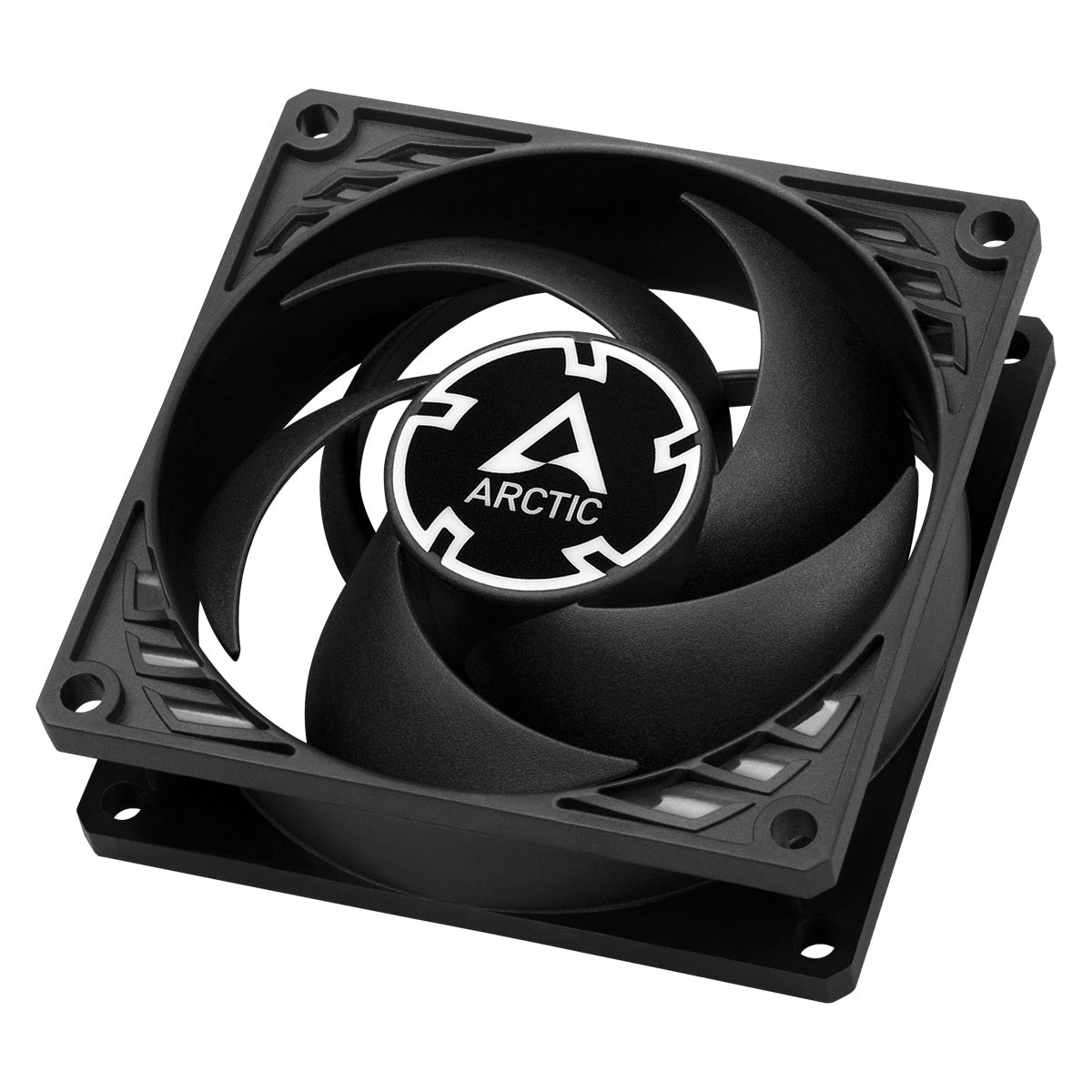

ARCTIC P8 PWM PST Computer case Fan 3.15" (8 cm) Black
ARCTIC P8 PWM PST Computer case Fan 3.15" (8 cm) Black
SKU: ACFAN00154A
Regular price
$21.58 USD
Regular price
Sale price
$21.58 USD
MSRP: $28.99
ARCTIC P8 PWM PST. Type: Fan, Fan diameter: 3.15" (8 cm), Rotational speed (min): 200 RPM, Rotational speed (max): 3000 RPM, Noise level: 0.3 sone, Airflow: 40.3 m³/h, Maximum air pressure: 1.9 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 3.15" (80 mm), Depth: 0.984" (25 mm), Height: 3.15" (80 mm). Product color: Black
Quantity
Couldn't load pickup availability
- Details: ARCTIC P8 PWM PST. Type: Fan, Fan diameter: 3.15" (8 cm), Rotational speed (min): 200 RPM, Rotational speed (max): 3000 RPM, Noise level: 0.3 sone, Airflow: 40.3 m³/h, Maximum air pressure: 1.9 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 3.15" (80 mm), Depth: 0.984" (25 mm), Height: 3.15" (80 mm). Product color: Black
- ReasonsToBuy: Optimised for Static Pressure|http://images.icecat.biz/img/bullets/77679993-5e2996caa19af758811069.jpg|During the development of the new P8 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P8 PWM PST is particularly suitable for use on heatsinks and radiators.
- Maximum Quietness, Minimum Vibration|http://images.icecat.biz/img/bullets/77679993-5e2996f865af1910373627.jpg|Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.
- Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
- Extended Life Span|http://images.icecat.biz/img/bullets/77679993-5e29972546d9a917097411.jpg|A 10 °C lower motor temperature roughly doubles the life span of a fan.
- The new ARCTIC motor has a four times longer service life through its low coil temperature.
- Consequently, we have extended the warranty to 10 years.
- 200 to 3000 RPM regulated via PWM PST|http://images.icecat.biz/img/bullets/77679993-5e299743ab4e1880472549.jpg|Thanks to the 4-pin connector, the RPM can be regulated in a broad spectrum via PWM.
- In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed.
- High Quality Bearing|http://images.icecat.biz/img/bullets/77679993-5e299752ed163348374481.jpg|Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
- Two Way Installation|http://images.icecat.biz/img/bullets/77679993-5e2997718f62f754430381.jpg|Push warm air out of the case
- Pull cool air into your case
- Fan connector: 4-pin
- Number of fan blades: 5
- Product color: Black
- Cable length: 15.7" (0.4 m)
- Type: Fan
- Country of origin: China
- Mounting hole pattern (WxD): 2.81 x 2.81" (71.5 x 71.5 mm)
- Manual: Yes
- Number of screws: 4
- Package width: 5" (127 mm)
- Package height: 3.5" (89 mm)
- Package depth: 3.39" (86 mm)
- Package weight: 16.3 oz (463 g)

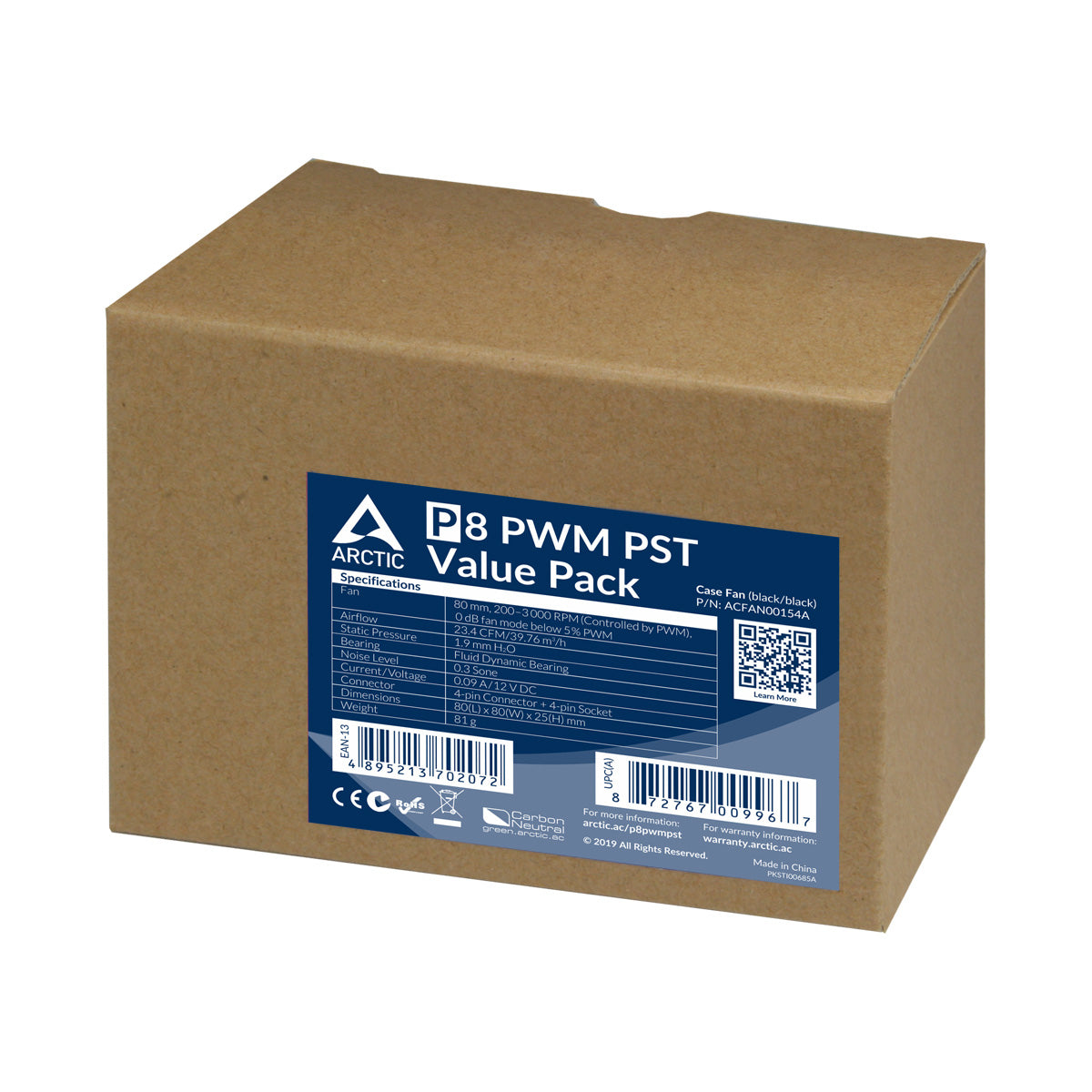

- Package type: Box
- Screws included: Yes
- Noise level: 0.3 sone

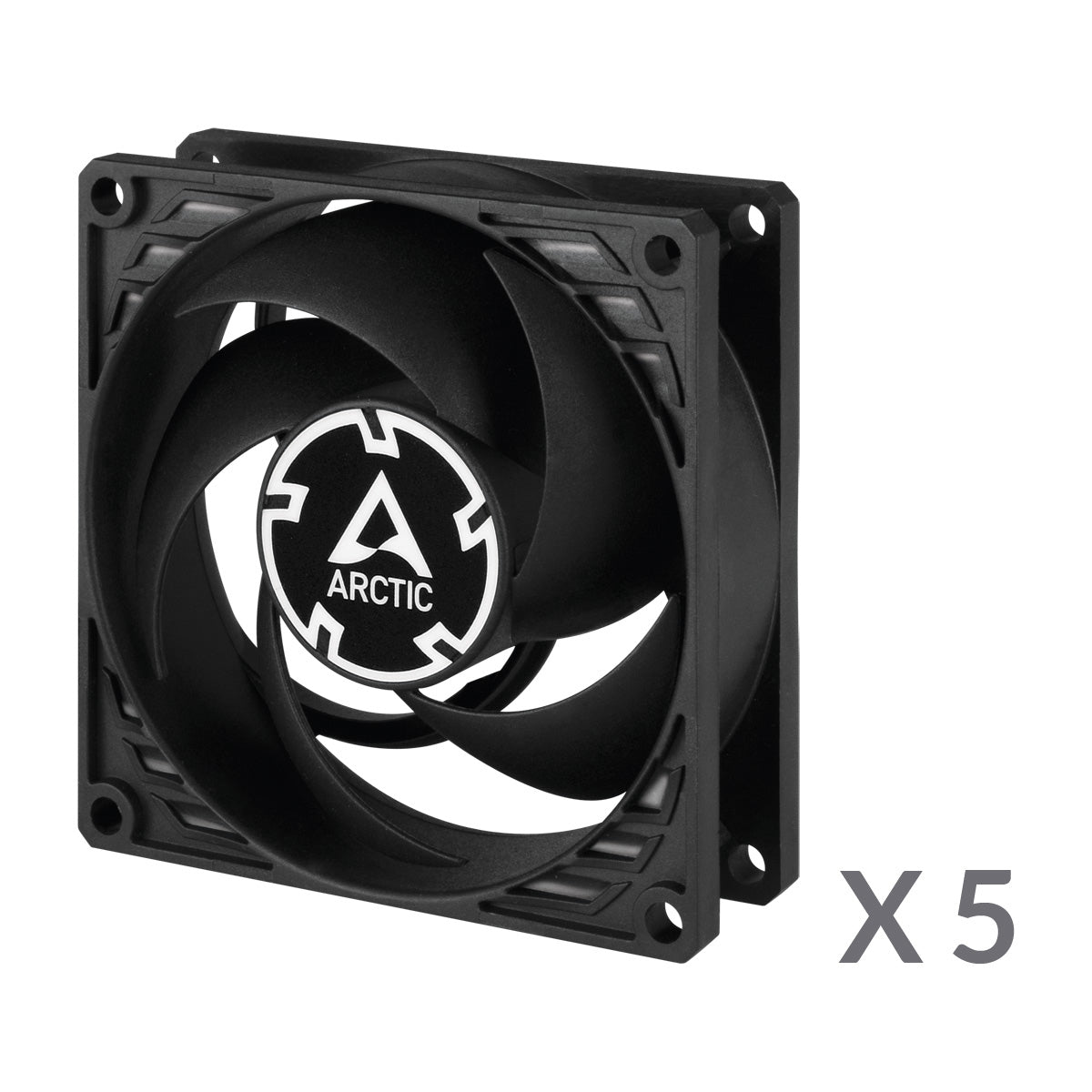

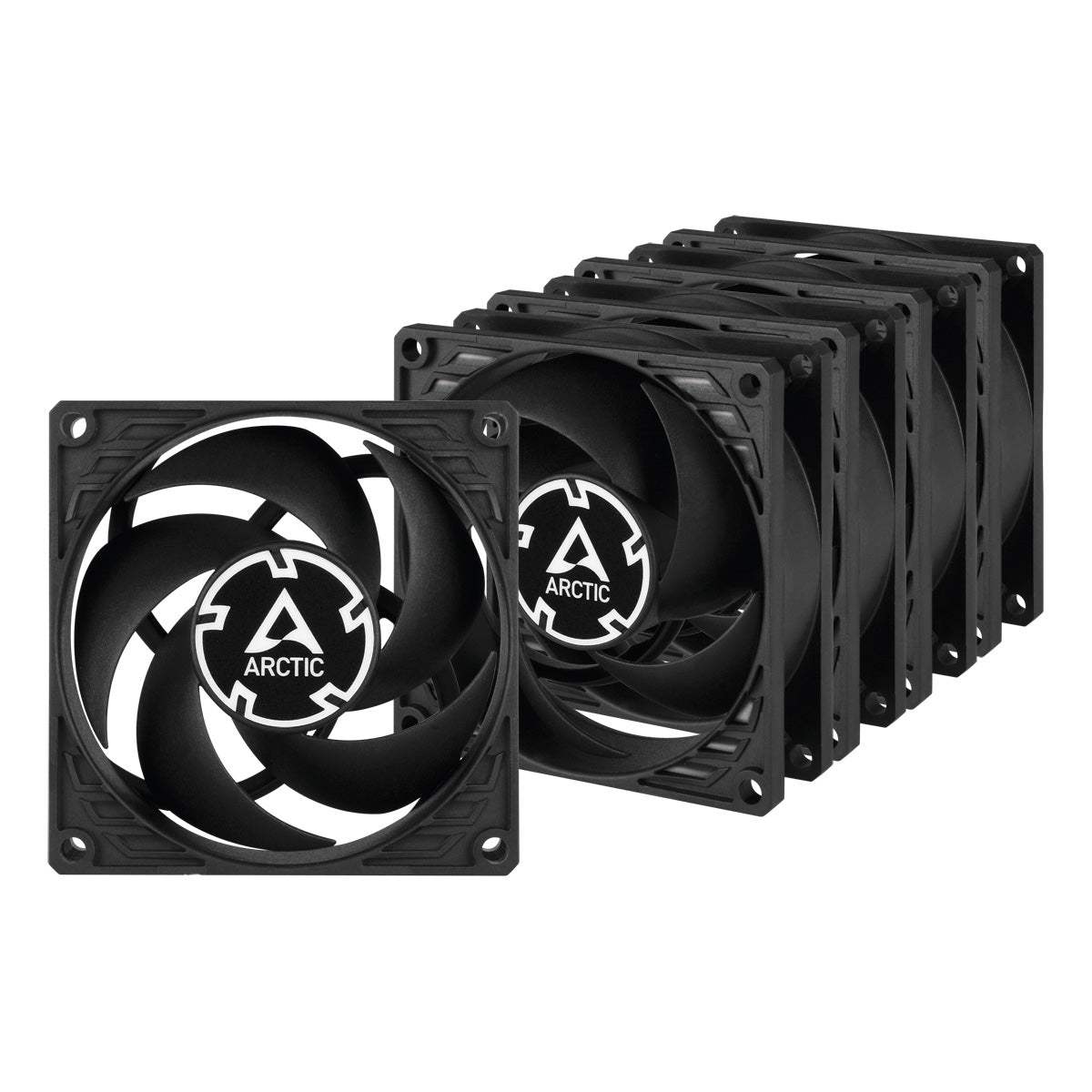

- Number of fans: 5 fan(s)
- Suitable location: Computer case
- Airflow: 40.3 m³/h
- Compatible processor series: Not supported
- Fan diameter: 3.15" (8 cm)
- Supported processor sockets: Not supported
- Rotational speed (min): 200 RPM
- Rotational speed (max): 3000 RPM
- Pulse-width modulation (PWM) support: Yes
- Bearing type: Fluid Dynamic Bearing (FDB)
- Maximum airflow: 23.4 cfm
- Maximum air pressure: 1.9 mmH2O
- Voltage: 12 V
- Weight: 2.86 oz (81 g)
- Width: 3.15" (80 mm)
- Height: 3.15" (80 mm)
- Depth: 0.984" (25 mm)
