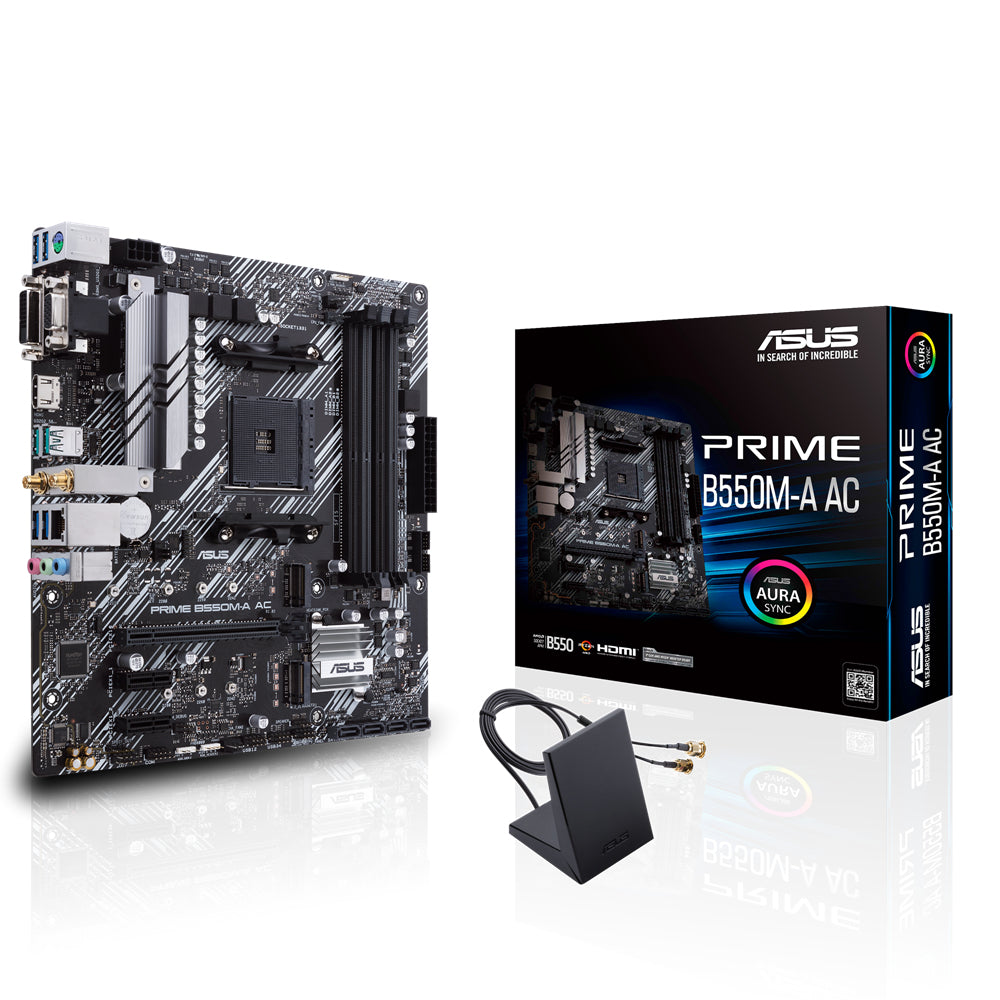

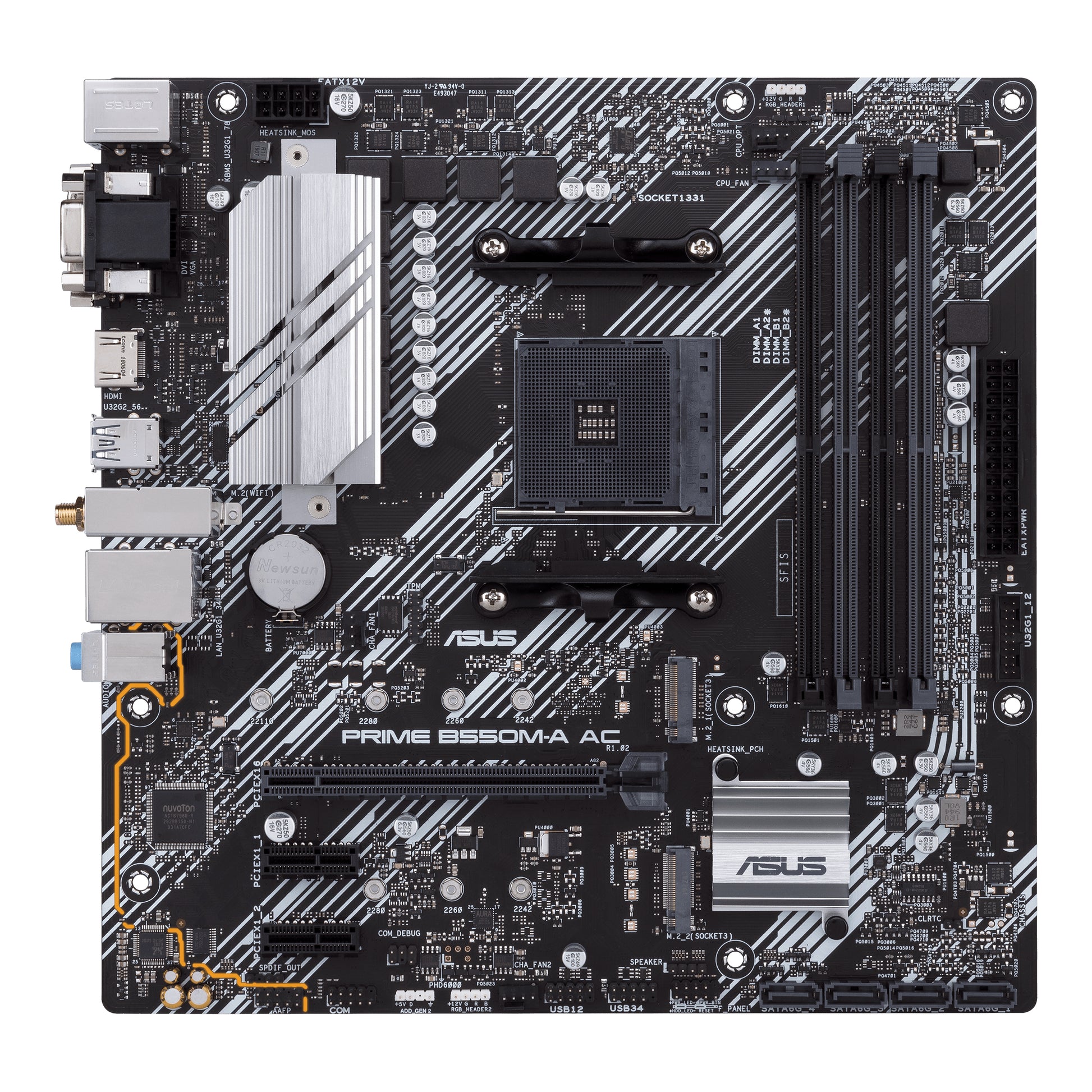

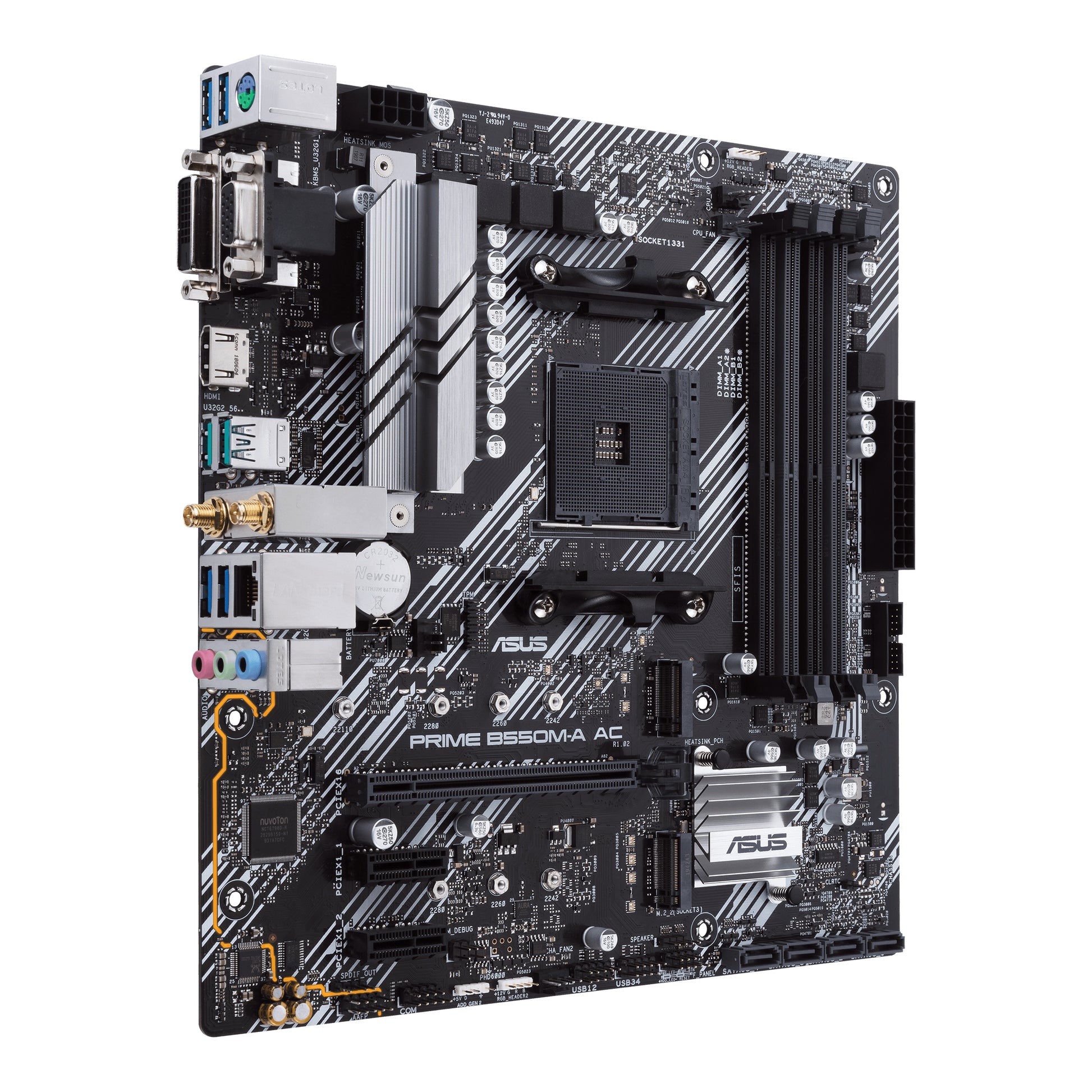

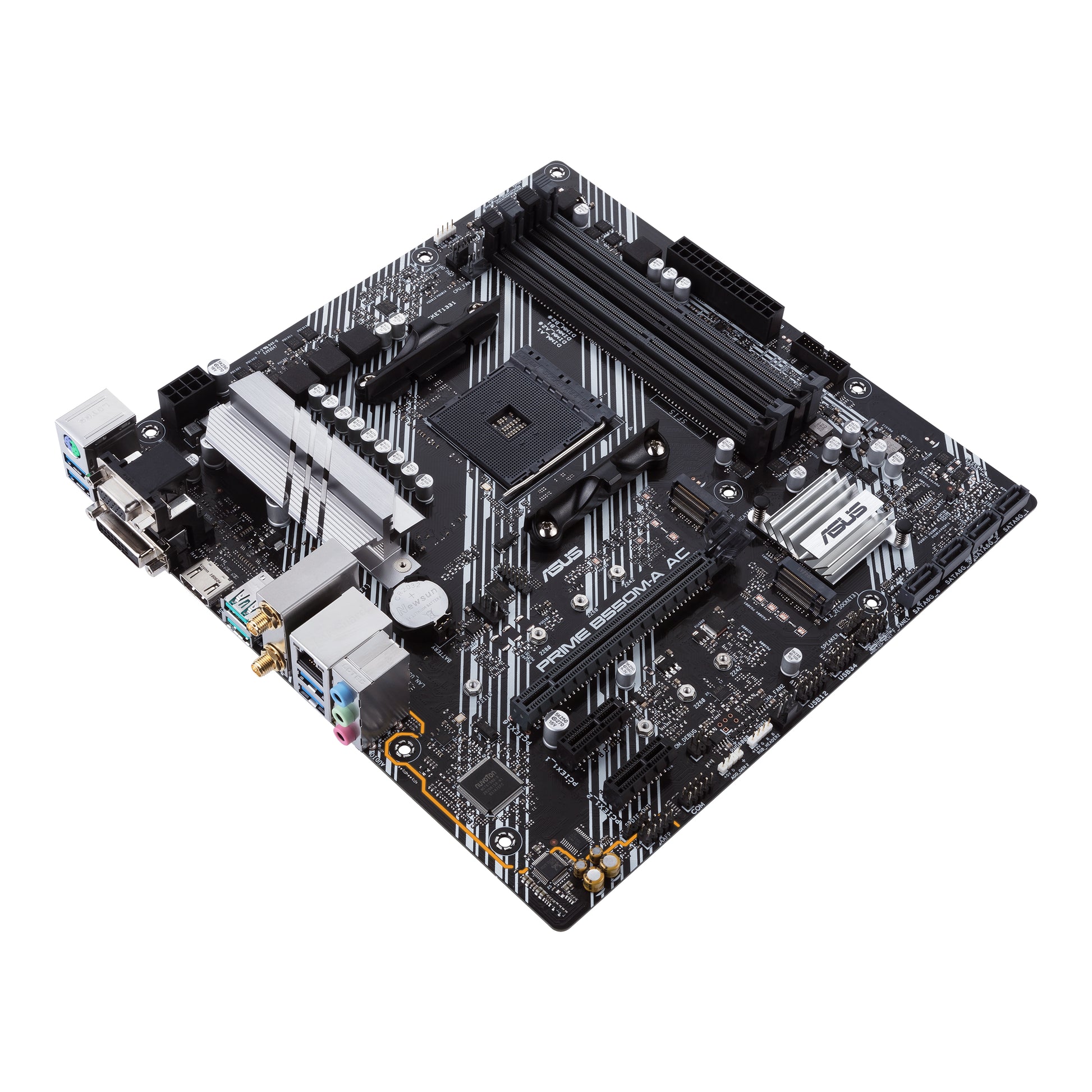

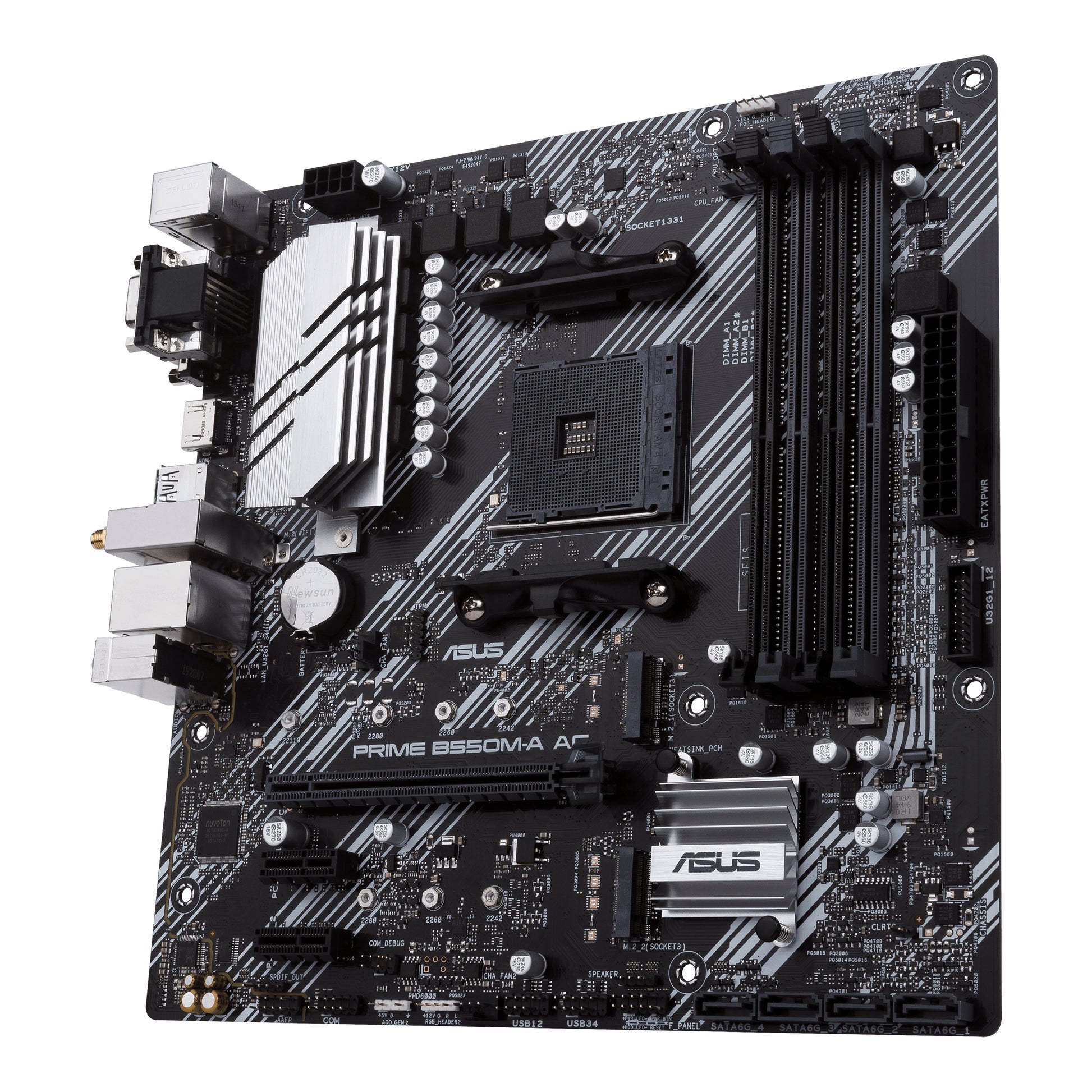

ASUS PRIME B550M-A AC AMD B550 Socket AM4 micro ATX
ASUS PRIME B550M-A AC AMD B550 Socket AM4 micro ATX
SKU: 90MB15K0-M0EAY0
Regular price
$109.99 USD
Regular price
Sale price
$109.99 USD
MSRP: $109.99
ASUS PRIME B550M-A AC. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 3840 x 2160 pixels. USB connector type: USB Type-A
Quantity
Couldn't load pickup availability
- Details: ASUS PRIME B550M-A AC. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 3840 x 2160 pixels. USB connector type: USB Type-A
- Info: AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors|Comprehensive cooling: VRM heatsink, PCH heatsink, Fan Xpert 2+|Ultrafast connectivity: Dual M.2, PCIe 4.0, 802.11ac Wi-Fi, USB 3.2 Gen 2 Type-A|Aura Sync RGB: Synchronizable LED effects across a vast portfolio of compatible PC gear, including addressable RGB strips
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- Clear CMOS jumper: Yes
- Component for: PC
- PCI Express x16 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 2
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 4.x) slots: 1
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
- Audio chip: Realtek ALC887 / Realtek ALC897
- Parallel processing technology support: Not supported
- USB 2.0 connectors: 2
- ATX Power connector (24-pin): Yes
- Number of chassis fan connectors: 2
- Number of COM connectors: 1
- TPM connector: Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Front panel audio connector: Yes
- Number of EATX power connectors: 1
- 12V power connector: Yes
- RGB LED pin header: Yes
- S/PDIF out connector: Yes
- Harmonized System (HS) code: 84733020
- Maximum internal memory: 128 GB
- Memory channels: Dual-channel
- Supported memory types: DDR4-SDRAM
- ECC ?ompatibility: ECC
- Supported memory clock speeds: 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4466,4600,4800 MHz
- Memory slots type: DIMM
- Number of memory slots: 4
- Unbuffered memory: Yes
- Ethernet LAN: Yes
- Wi-Fi: Yes
- Ethernet interface type: Gigabit Ethernet
- Wake-on-LAN ready: Yes
- Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
- WLAN controller model: Realtek RTL8821CE
- Bluetooth: Yes
- Bluetooth version: 5.0
- LAN controller: Realtek RTL8111H
- Audio output channels: 7.1 channels
- Cables included: SATA
- USB connector type: USB Type-A
- Maximum resolution: 3840 x 2160 pixels
- Motherboard chipset: AMD B550
- Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series
- Supported processor sockets: Socket AM4

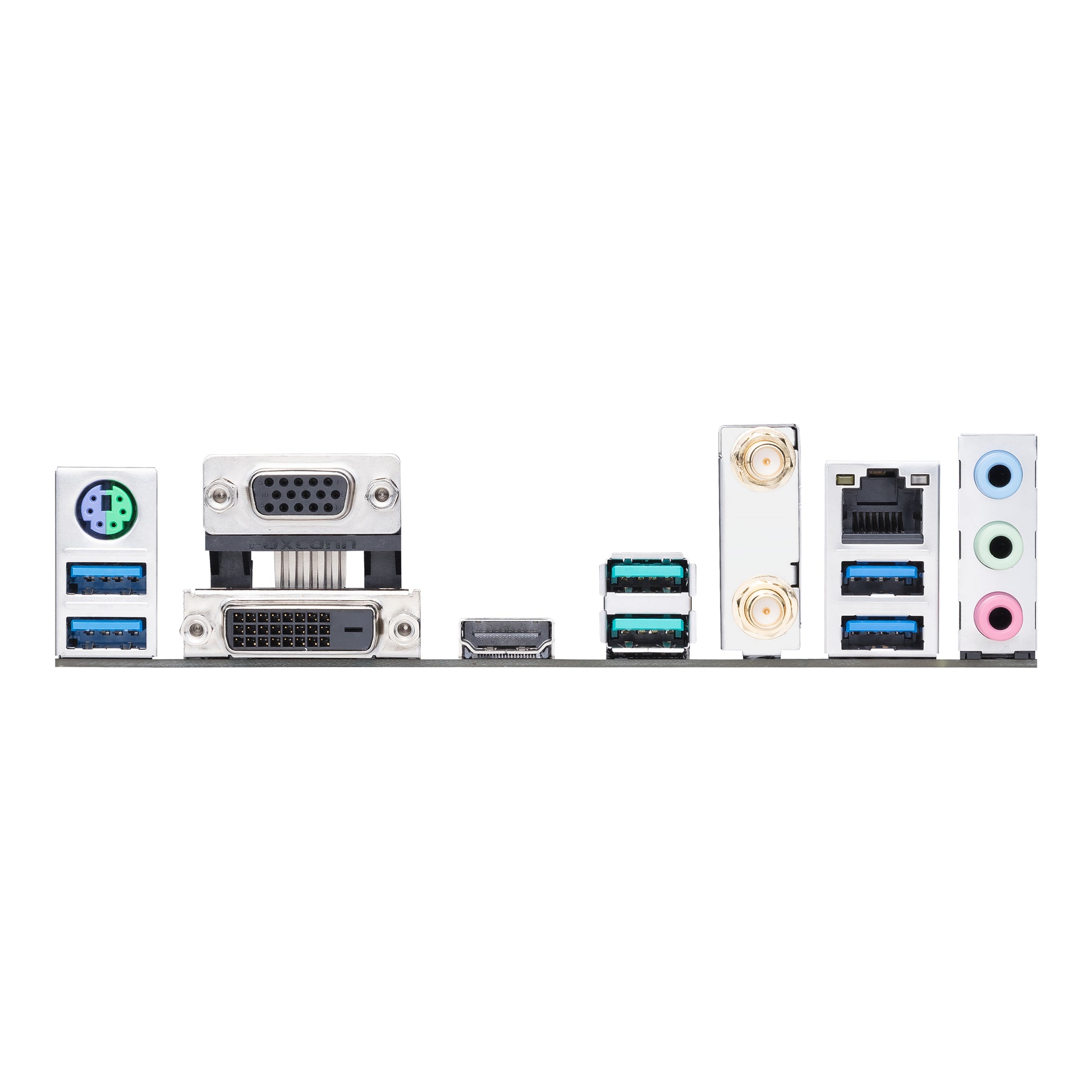

- Ethernet LAN (RJ-45) ports: 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- HDMI ports quantity: 1
- VGA (D-Sub) ports quantity: 1
- HDMI version: 2.1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- Headphone outputs: 3
- Microphone in: Yes
- PS/2 ports quantity: 1
- Number of SATA III connectors: 4
- Processor manufacturer: AMD
- Processor socket: Socket AM4
- DVI-D ports quantity: 1
- WiFi-AP antenna jack: 1
- Drivers included: Yes
- Number of storage drives supported: 6
- RAID levels: 0, 1, 10
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, SATA III
- RAID support: Yes
- Windows operating systems supported: Windows 10 x64
- Width: 9.61" (244 mm)
- Depth: 9.61" (244 mm)
