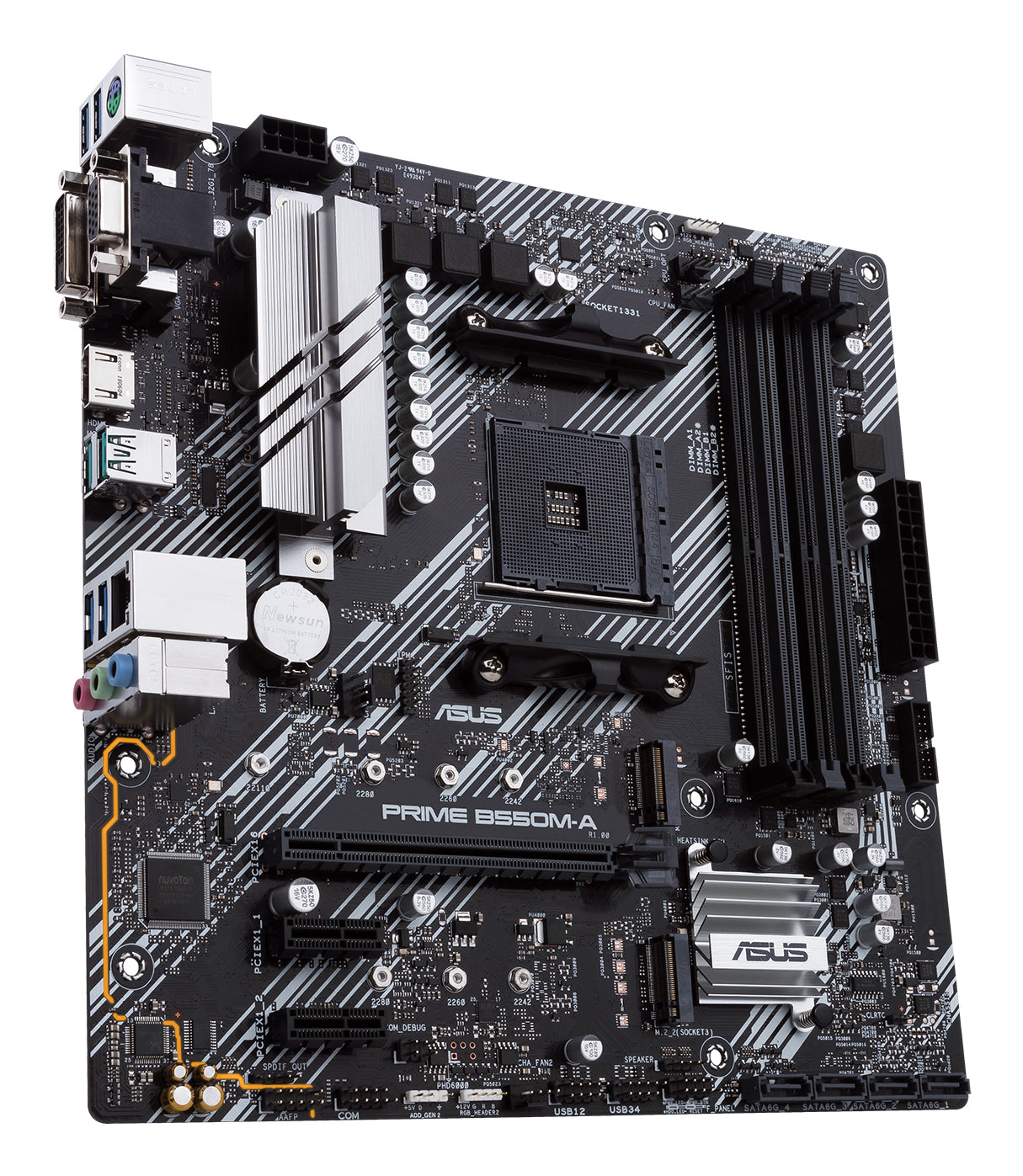

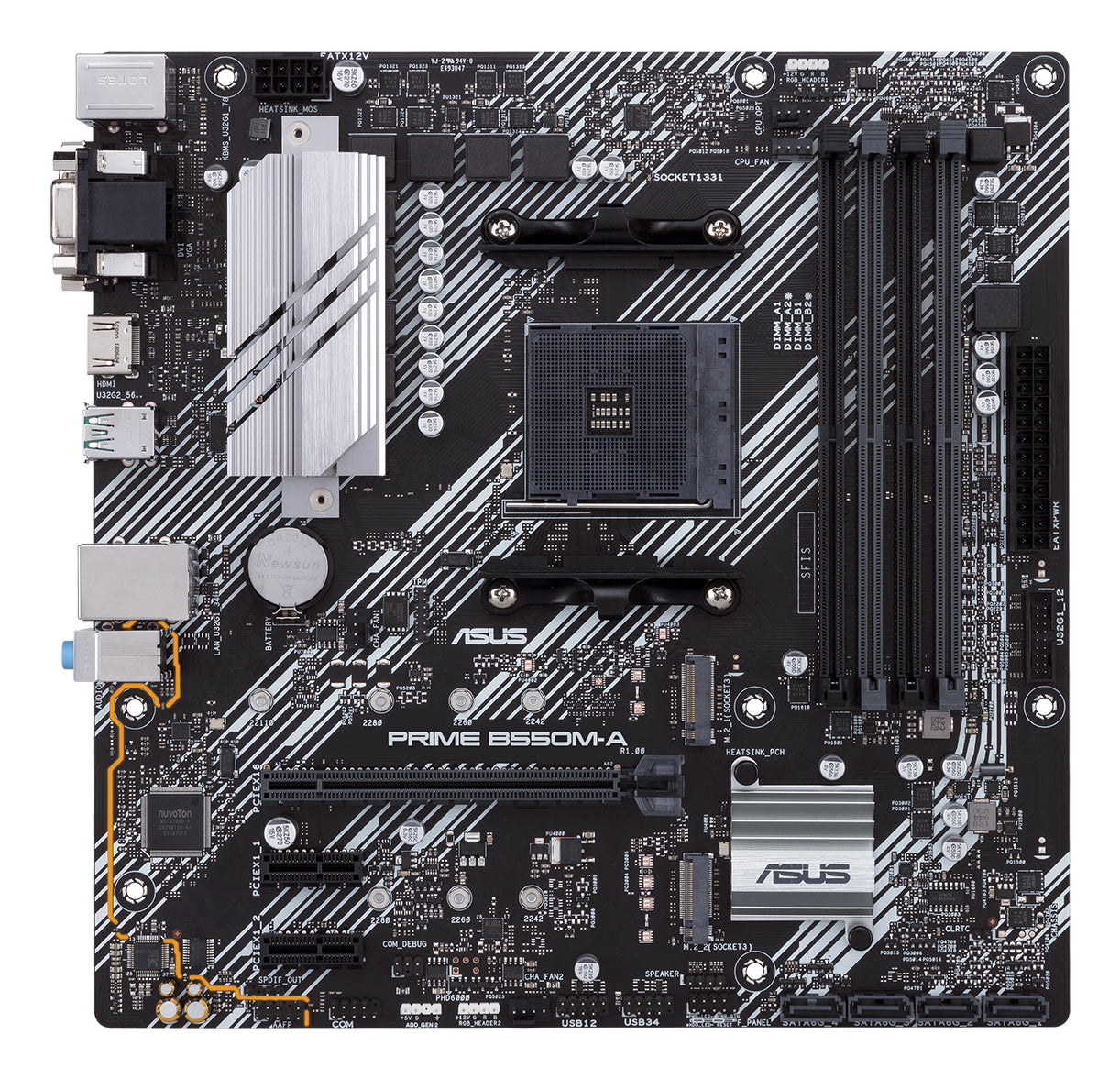

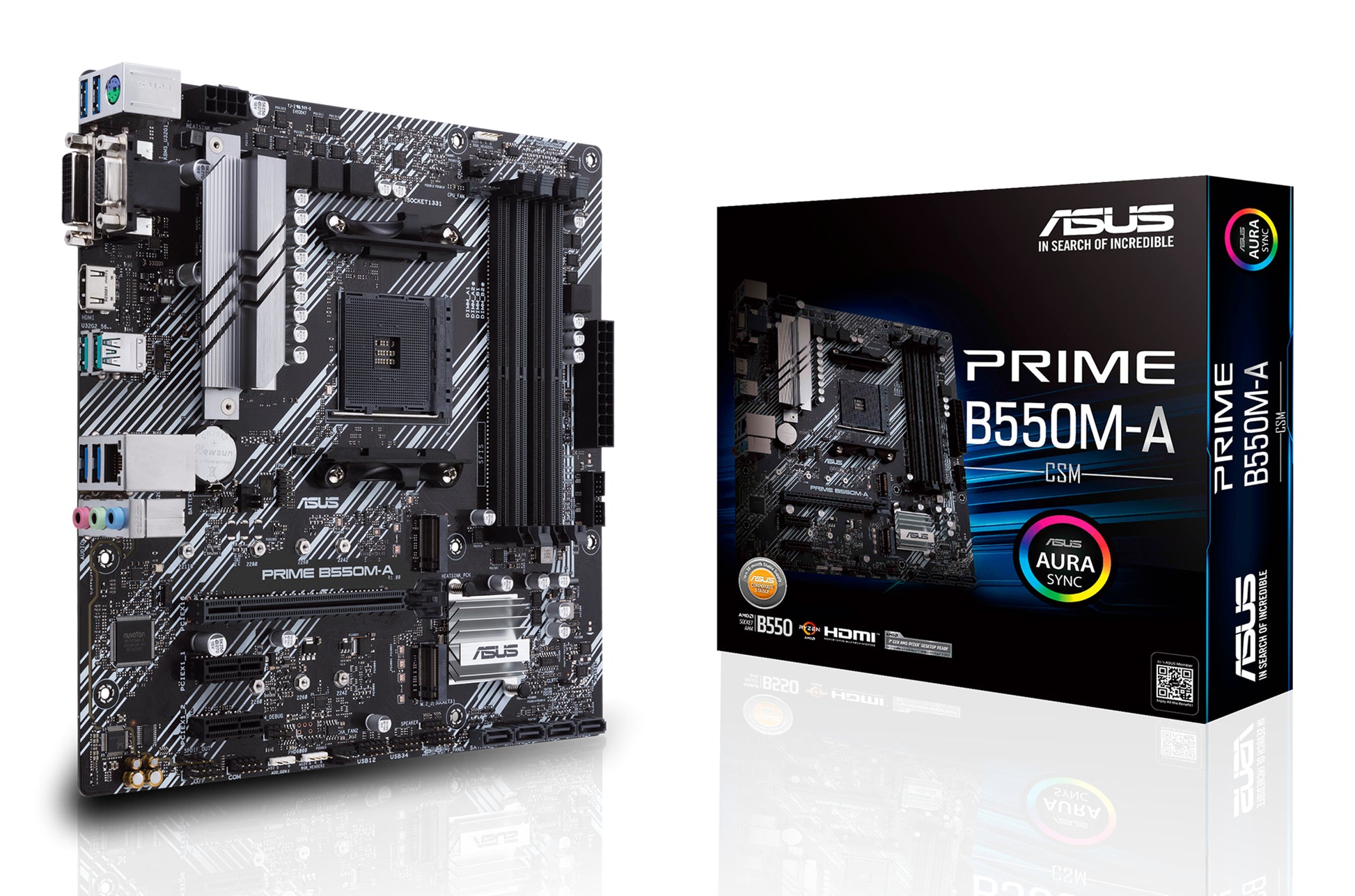

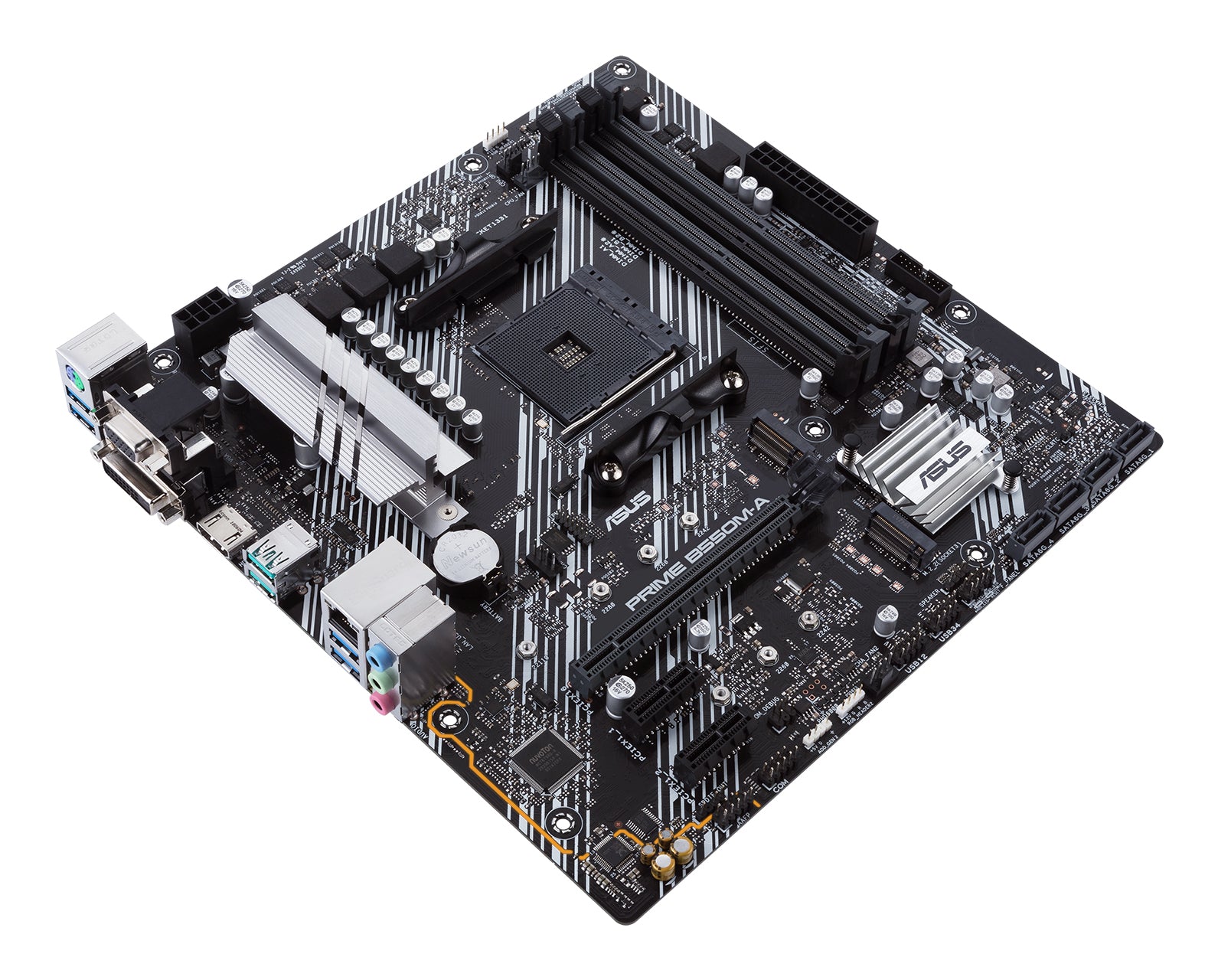

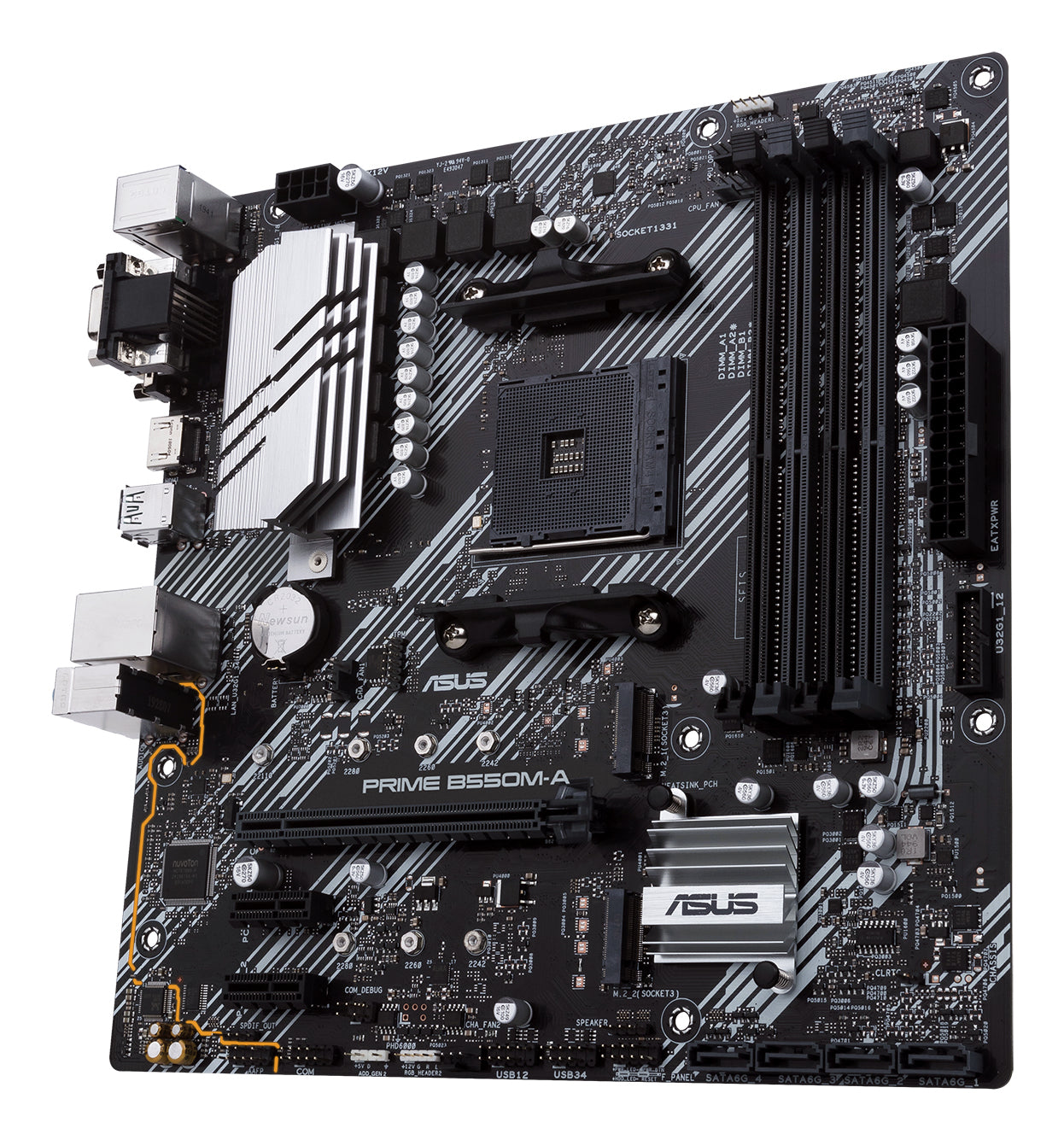

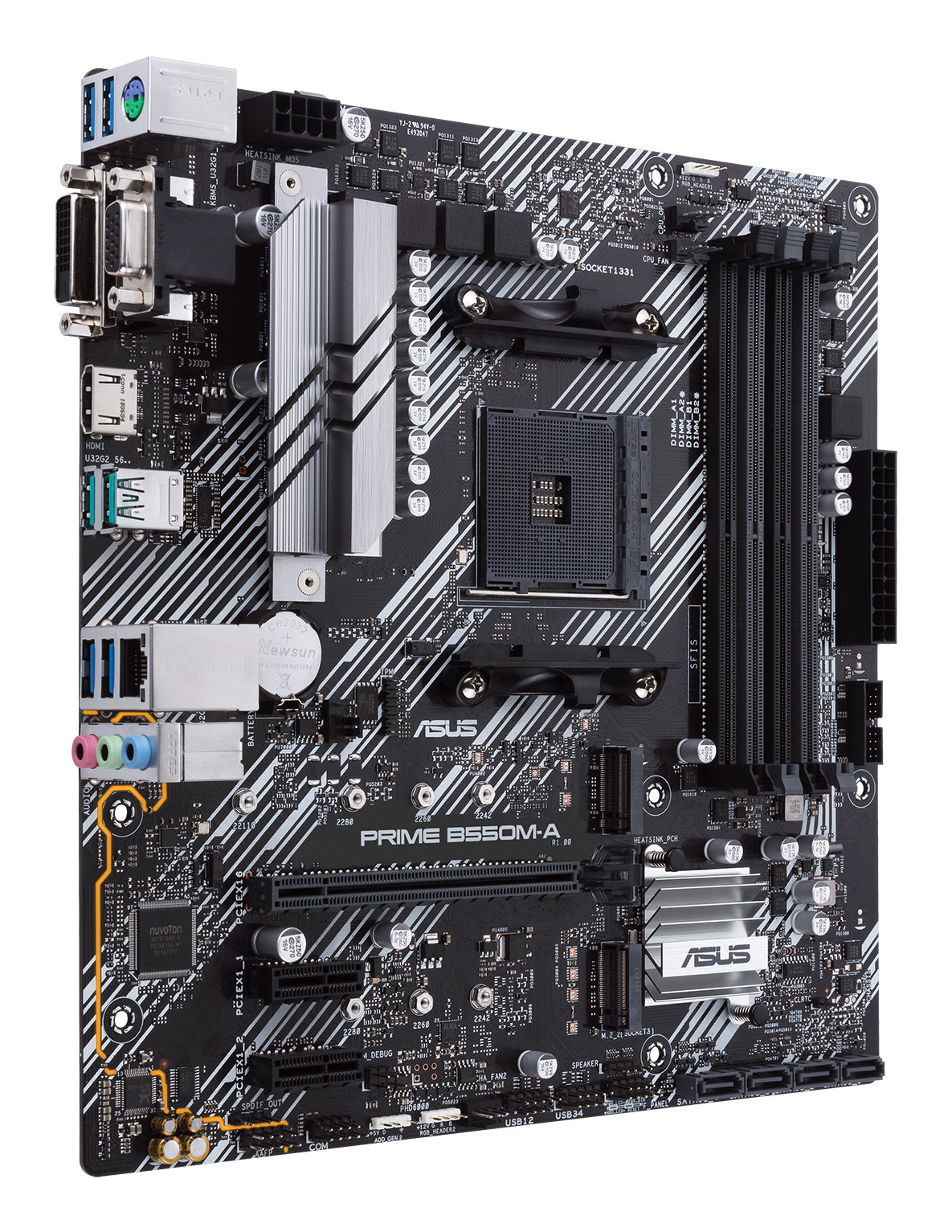

ASUS Prime B550M-A/CSM AMD B550 Socket AM4 micro ATX
ASUS Prime B550M-A/CSM AMD B550 Socket AM4 micro ATX
SKU: 90MB14I0-M0EAYC
Regular price
$109.99 USD
Regular price
Sale price
$109.99 USD
MSRP: $109.99
ASUS Prime B550M-A/CSM. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
Quantity
Couldn't load pickup availability
- Details: ASUS Prime B550M-A/CSM. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
- ReasonsToBuy: All-around Energy Efficiency||With the Energy Processing Unit (EPU), you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode.
- Flexible Cooling Controls|http://images.icecat.biz/img/bullets/85775543-63330cc6be41f365011706.jpg|Fan Xpert 2+ software provides comprehensive control over system fans. Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.
- Precise Digital Power Control||The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
- Info: AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors|Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert 2+|Ultrafast connectivity: Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A|Aura Sync RGB: Onboard addressable Gen 2 header for RGB LED strips, easily synced with Aura Sync-capable hardware
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- Clear CMOS jumper: Yes
- Component for: PC
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 4.x) slots: 1
- Product color: Black, Silver
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
- Audio chip: Realtek ALC887
- On-board graphics card: No
- USB 2.0 connectors: 2
- ATX Power connector (24-pin): Yes
- Number of chassis fan connectors: 2
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Front panel audio connector: Yes
- Harmonized System (HS) code: 84733020
- Maximum internal memory: 128 GB
- Supported memory types: DDR4-SDRAM
- Supported memory clock speeds: 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz
- Memory slots type: DIMM
- Number of memory slots: 4
- Unbuffered memory: Yes
- Ethernet LAN: Yes
- Wi-Fi: No
- Ethernet interface type: Gigabit Ethernet
- LAN controller: Realtek RTL8111H
- Audio output channels: 7.1 channels
- Motherboard chipset: AMD B550
- Compatible processor series: AMD Ryzen 3000 Series
- Ethernet LAN (RJ-45) ports: 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- HDMI ports quantity: 1
- VGA (D-Sub) ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- Headphone outputs: 1
- Microphone in: Yes
- PS/2 ports quantity: 1
- Number of SATA III connectors: 4
- Processor manufacturer: AMD
- Processor socket: Socket AM4
- DVI-D ports quantity: 1
- Supported storage drive interfaces: M.2, SATA III
- Windows operating systems supported: Windows 10 x64
- Weight: 29.8 oz (845 g)
- Width: 9.61" (244 mm)
- Height: 2.01" (51 mm)
- Depth: 9.61" (244 mm)
