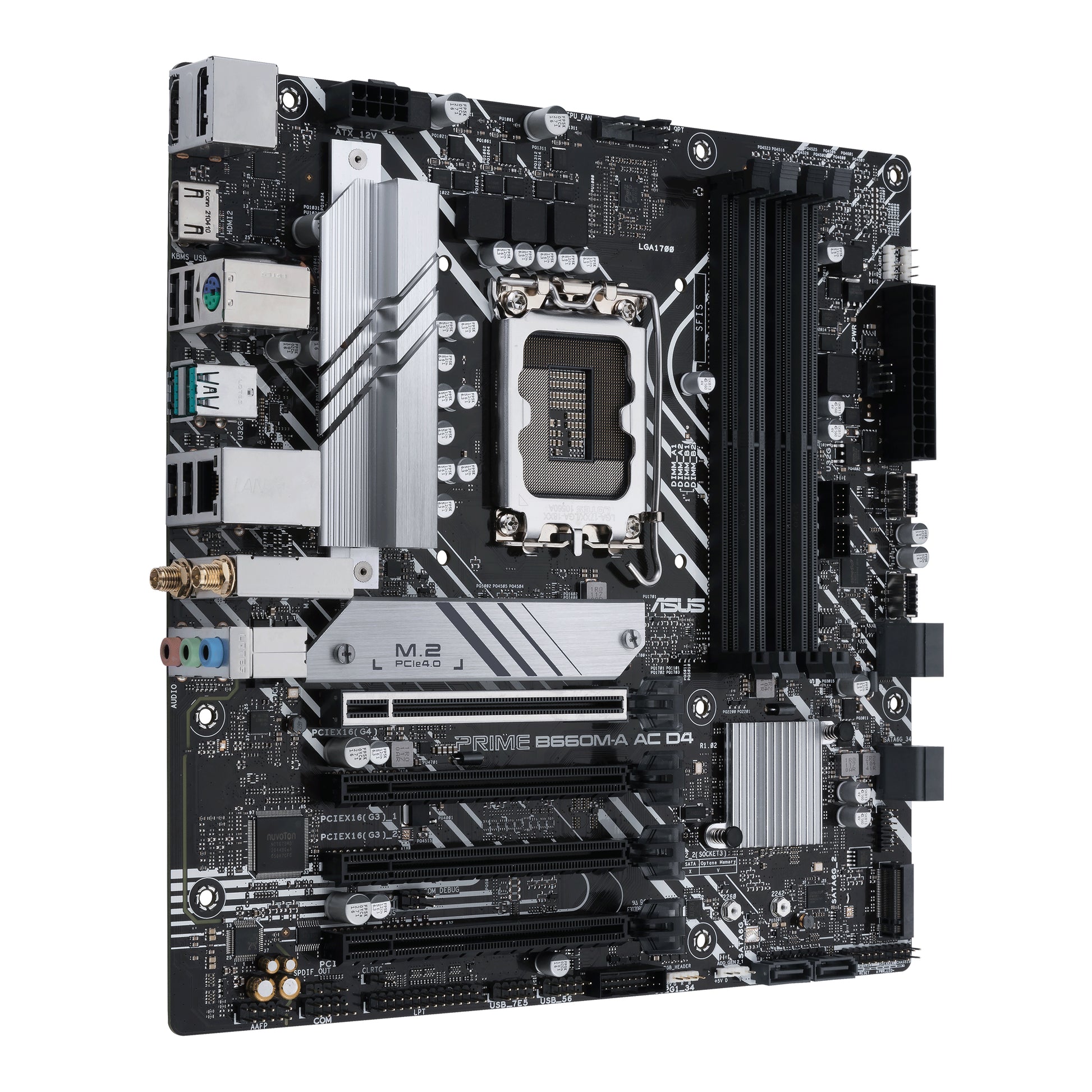

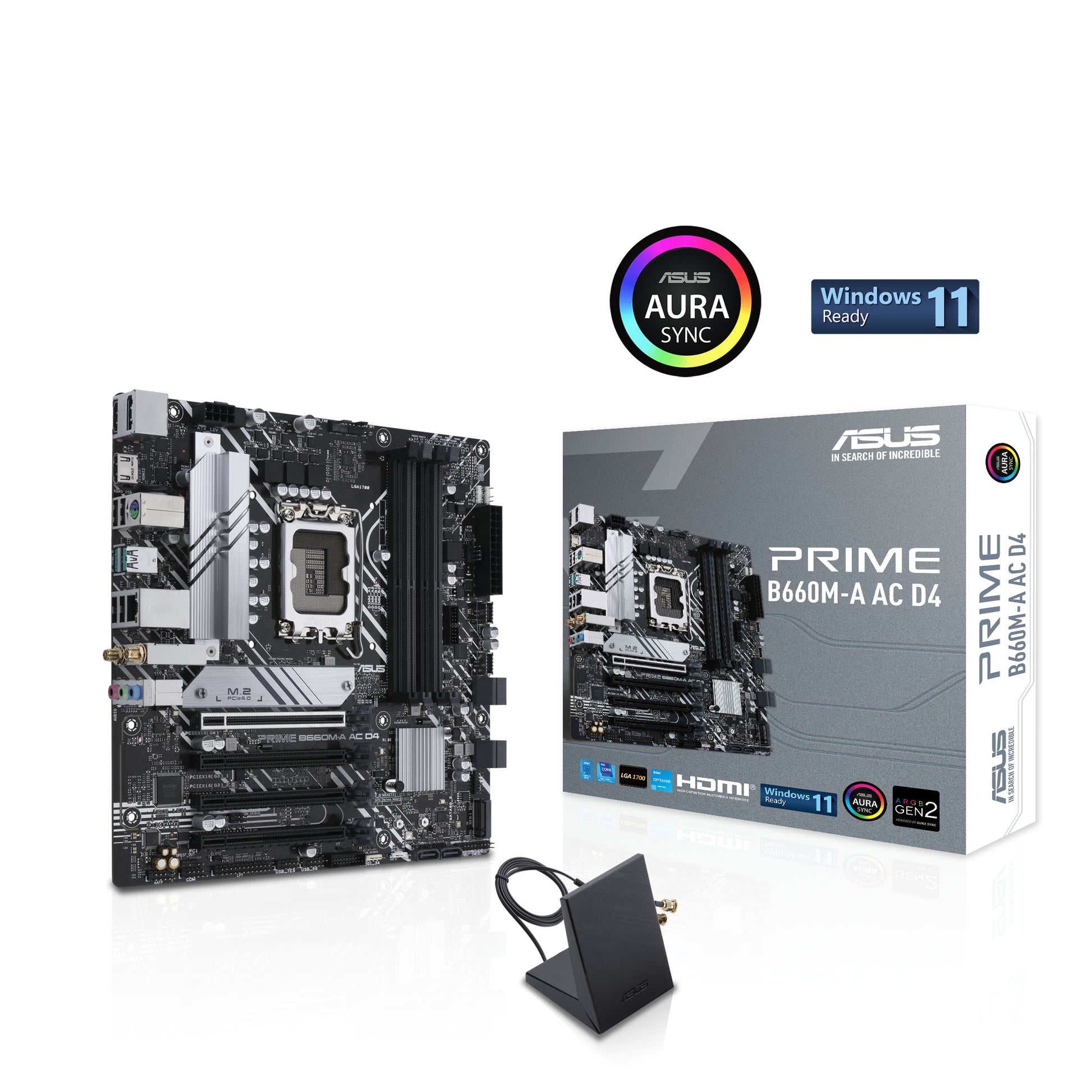

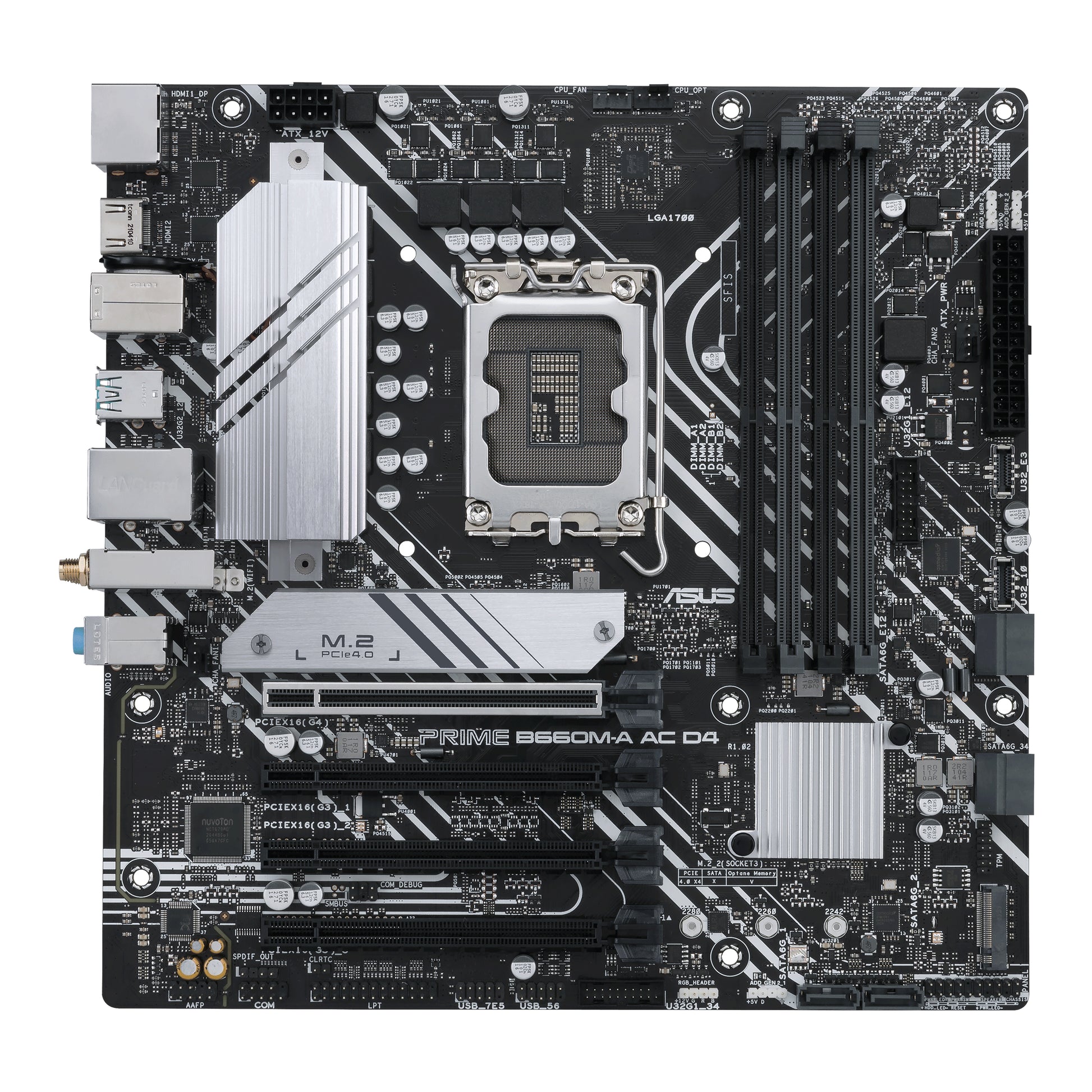

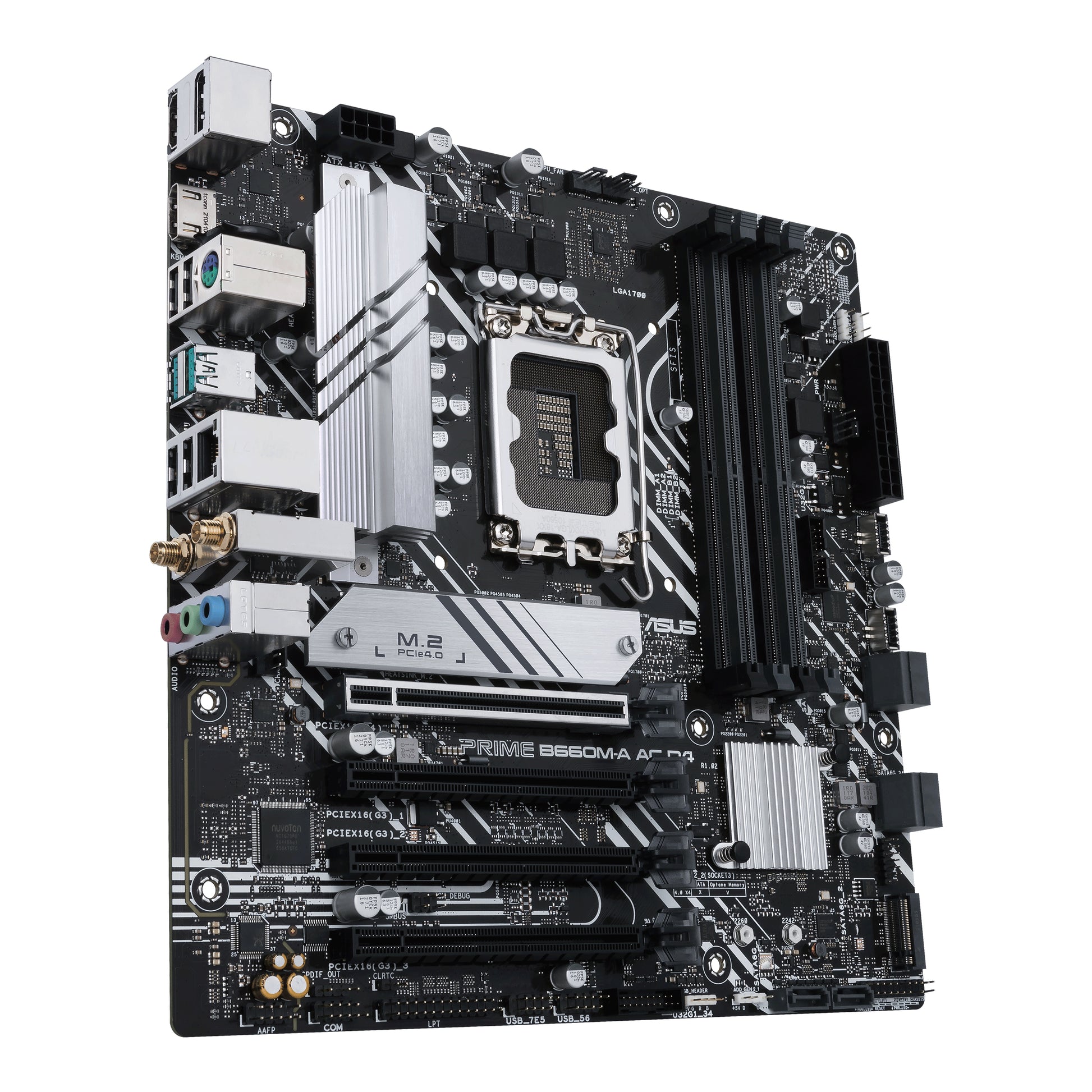

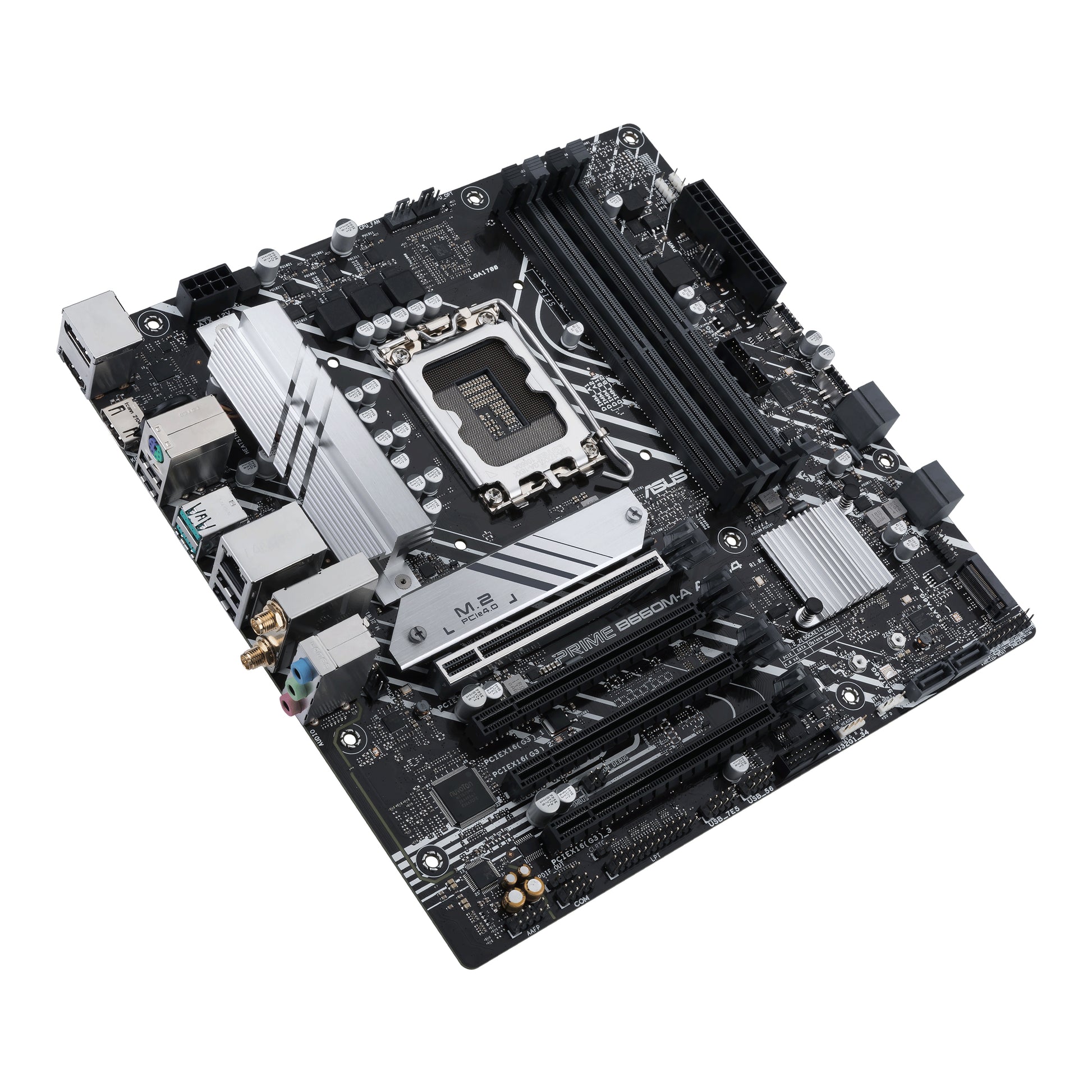

ASUS PRIME B660M-A AC D4 motherboard Intel B660 LGA 1700 micro ATX
ASUS PRIME B660M-A AC D4 motherboard Intel B660 LGA 1700 micro ATX
SKU: PRIME B660M-A AC D4
MSRP: $149.99
ASUS PRIME B660M-A AC D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. USB connector type: USB Type-A. Ethernet interface type: Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Couldn't load pickup availability
- Details: ASUS PRIME B660M-A AC D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. USB connector type: USB Type-A. Ethernet interface type: Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
- BIOS type: UEFI AMI
- BIOS memory size: 128 Mbit
- Component for: PC
- PCI Express x16 (Gen 3.x) slots: 2
- Number of M.2 (M) slots: 2
- PCI Express x16 (Gen 4.x) slots: 1
- Motherboard form factor: micro ATX
- Motherboard chipset family: Intel
- USB 2.0 connectors: 2
- ATX Power connector (24-pin): Yes
- Number of chassis fan connectors: 2
- Number of COM connectors: 1
- TPM connector: Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
- Front panel connector: Yes
- Front panel audio connector: Yes
- RGB LED pin header: Yes
- S/PDIF out connector: Yes
- Maximum internal memory: 128 GB
- Memory channels: Dual-channel
- Supported memory types: DDR4-SDRAM
- ECC ?ompatibility: Non-ECC
- Supported memory clock speeds: 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5333 MHz
- Memory slots type: DIMM
- Number of memory slots: 4
- Unbuffered memory: Yes
- Supported memory clock speed (max): 5333 MHz
- Ethernet LAN: Yes
- Wi-Fi: Yes
- Ethernet interface type: Gigabit Ethernet
- Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
- Bluetooth: Yes
- Bluetooth version: 5.1
- Audio output channels: 7.1 channels
- User guide: Yes

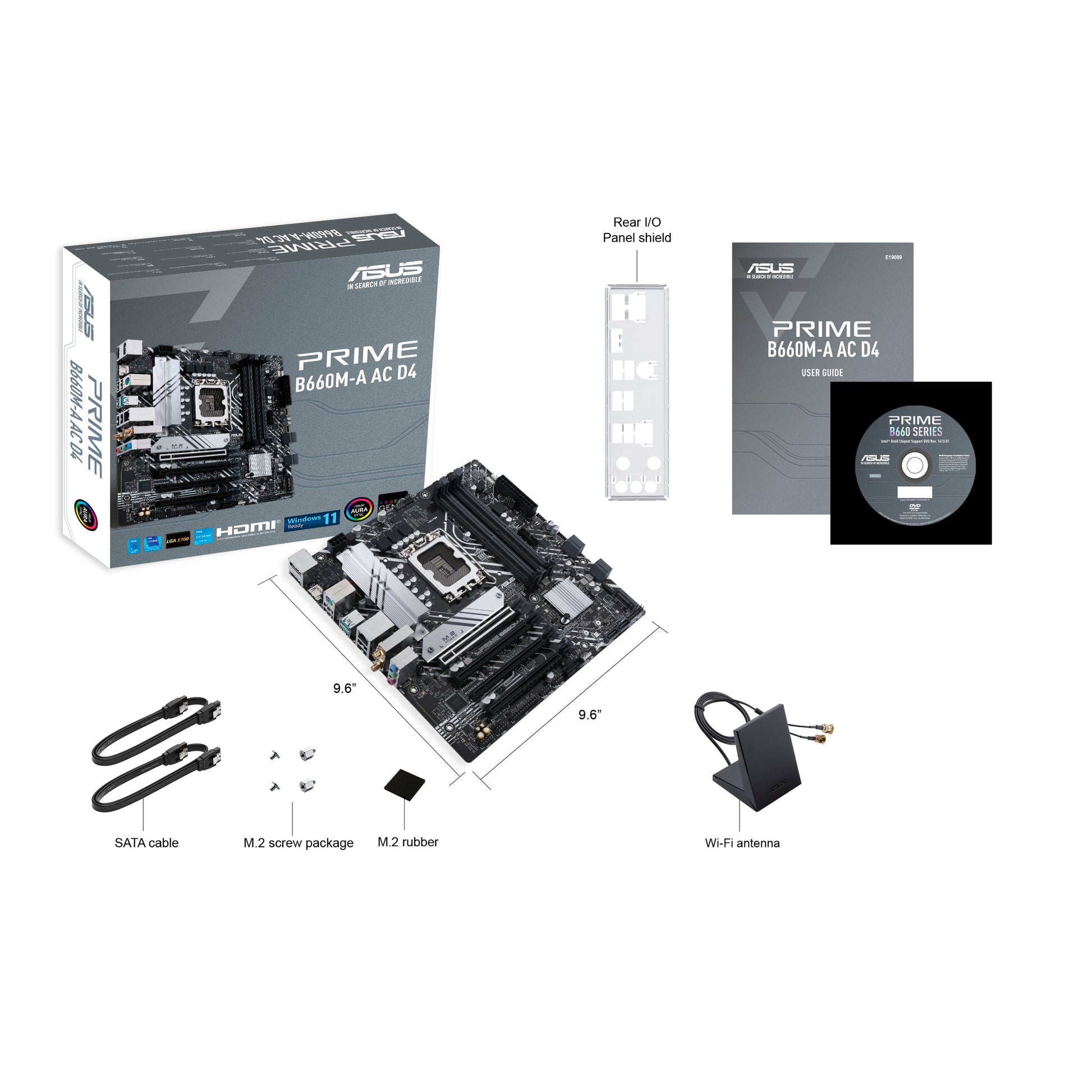

- Cables included: SATA
- USB connector type: USB Type-A
- Motherboard chipset: Intel B660
- Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
- Supported processor sockets: LGA 1700

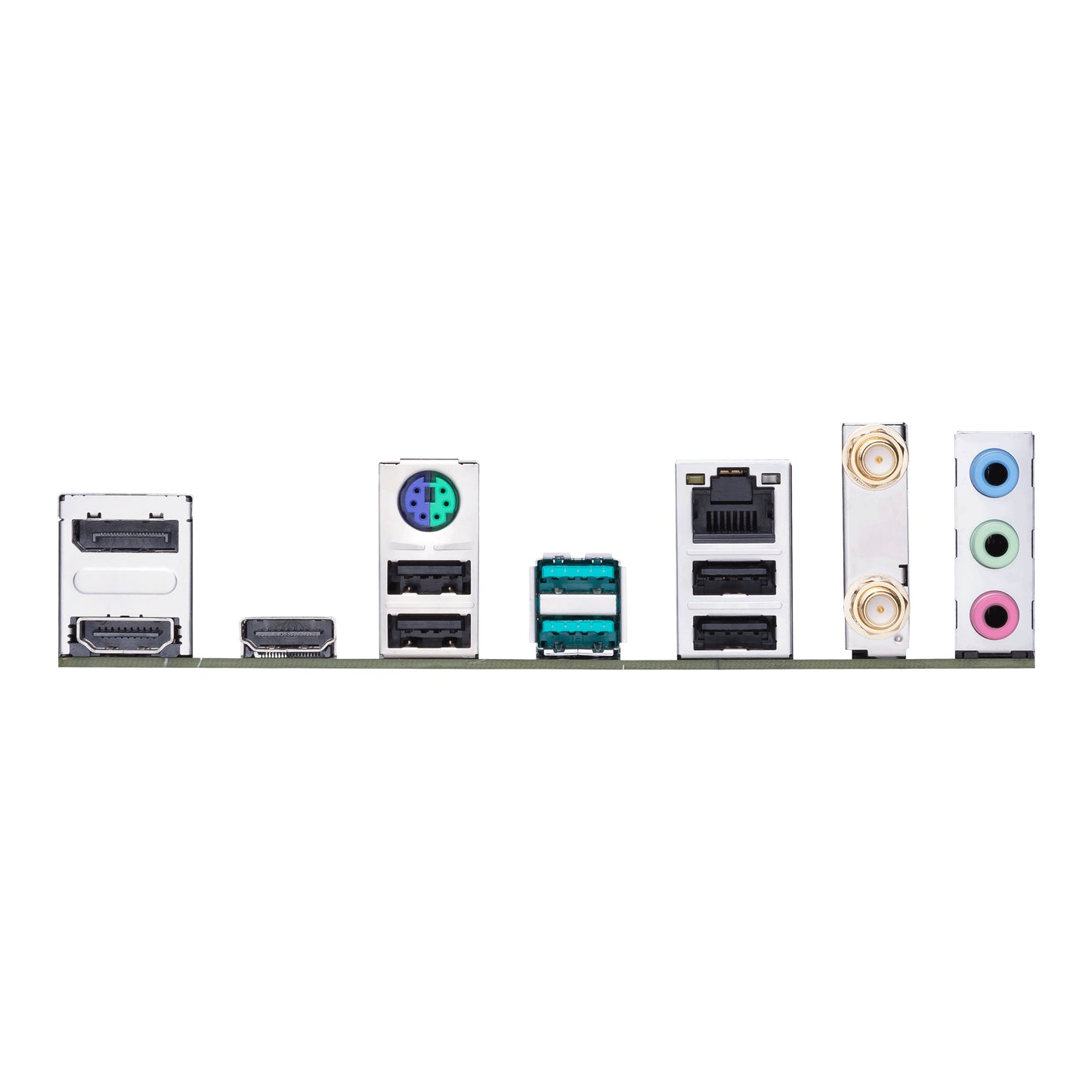

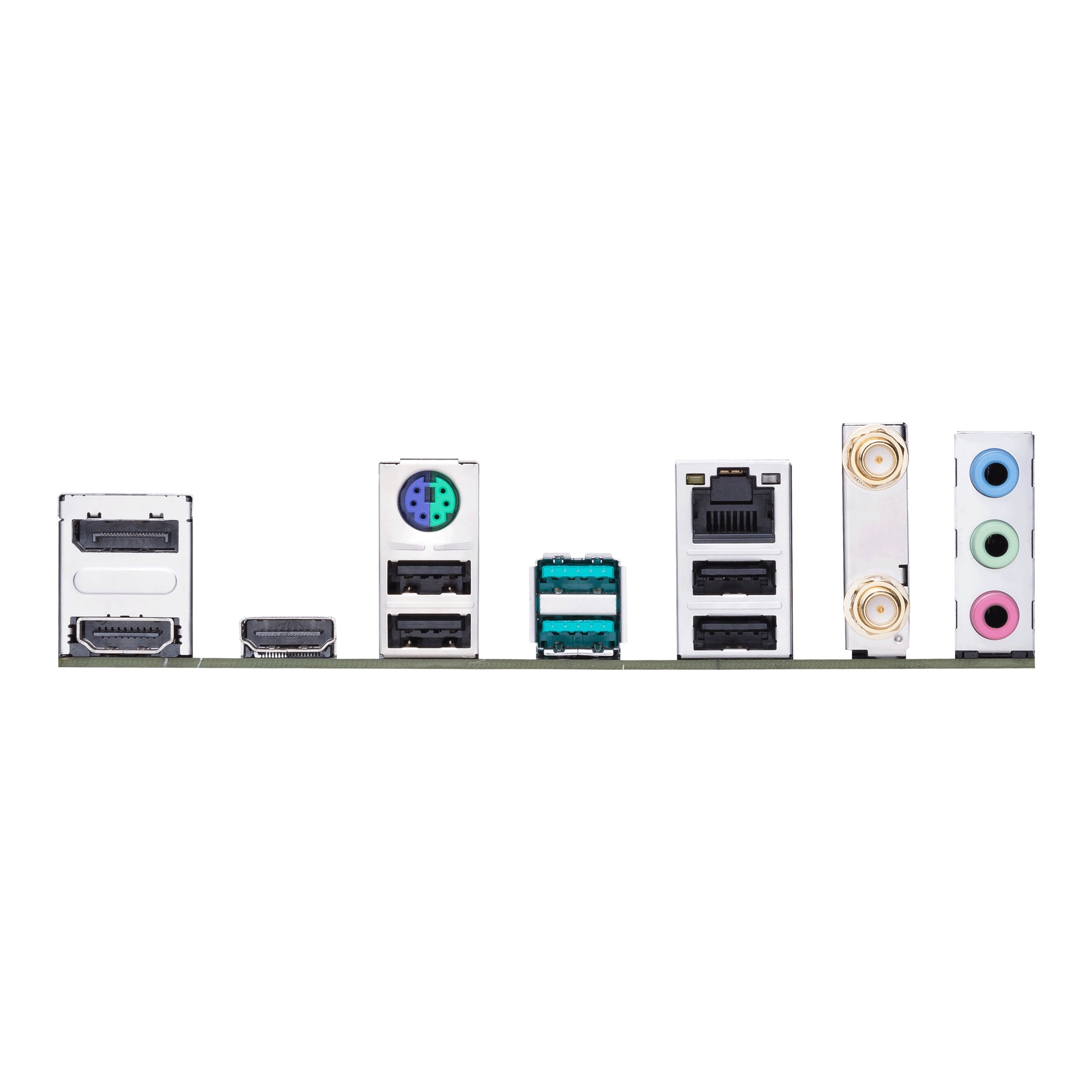

- Ethernet LAN (RJ-45) ports: 1
- USB 2.0 ports quantity: 4
- HDMI ports quantity: 2
- HDMI version: 2.1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- Headphone outputs: 1
- DisplayPorts quantity: 1
- Line-in: Yes
- DisplayPort version: 1.4
- PS/2 ports quantity: 1
- Number of SATA III connectors: 6
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- WiFi-AP antenna jack: 2
- Drivers included: Yes
- RAID levels: 0, 1, 5, 10
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
- RAID support: Yes
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- Width: 9.61" (244 mm)
- Depth: 9.61" (244 mm)
