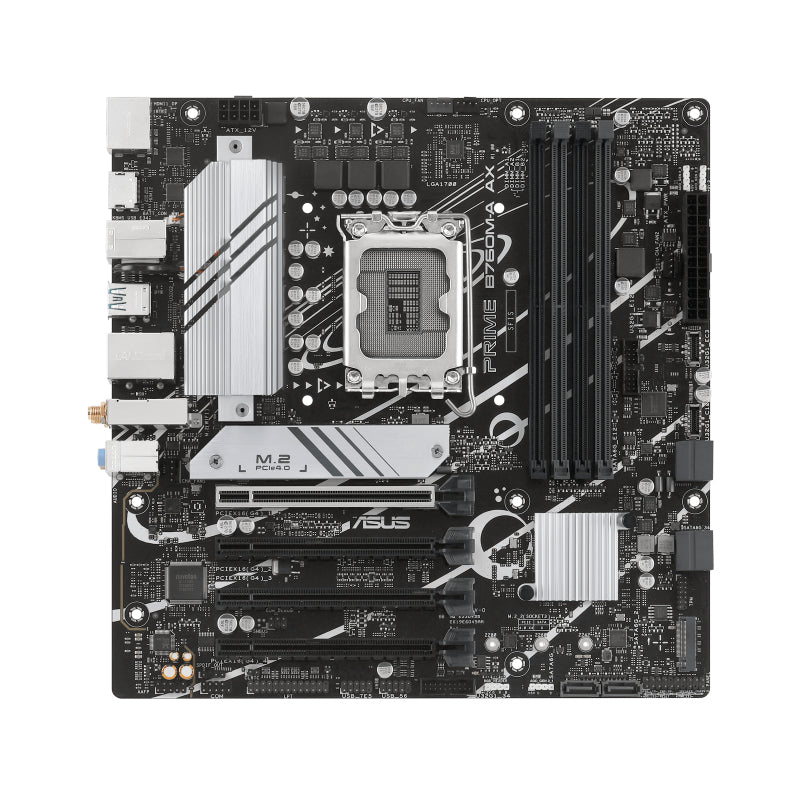

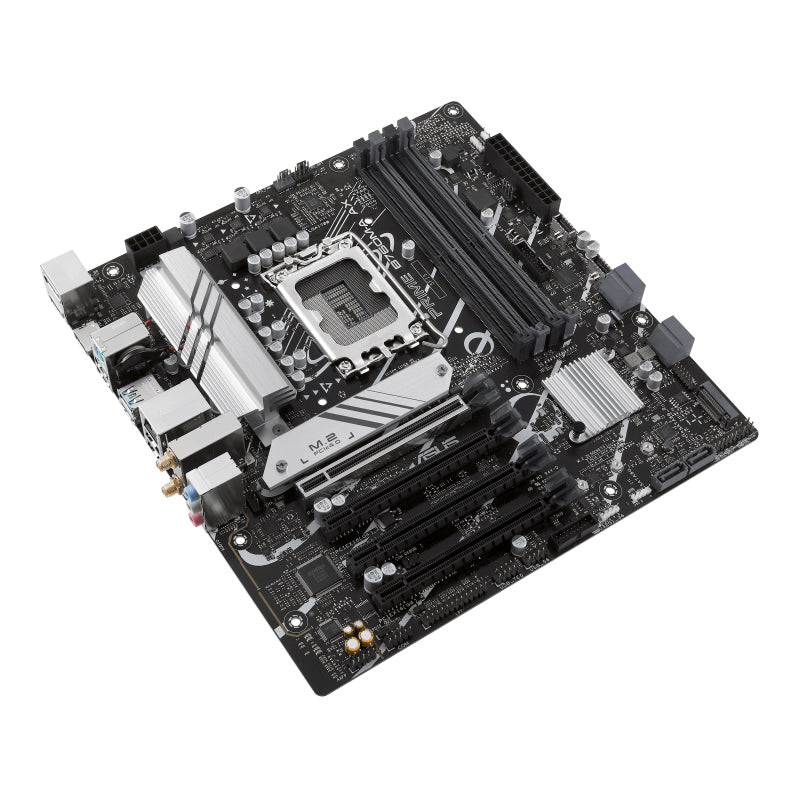

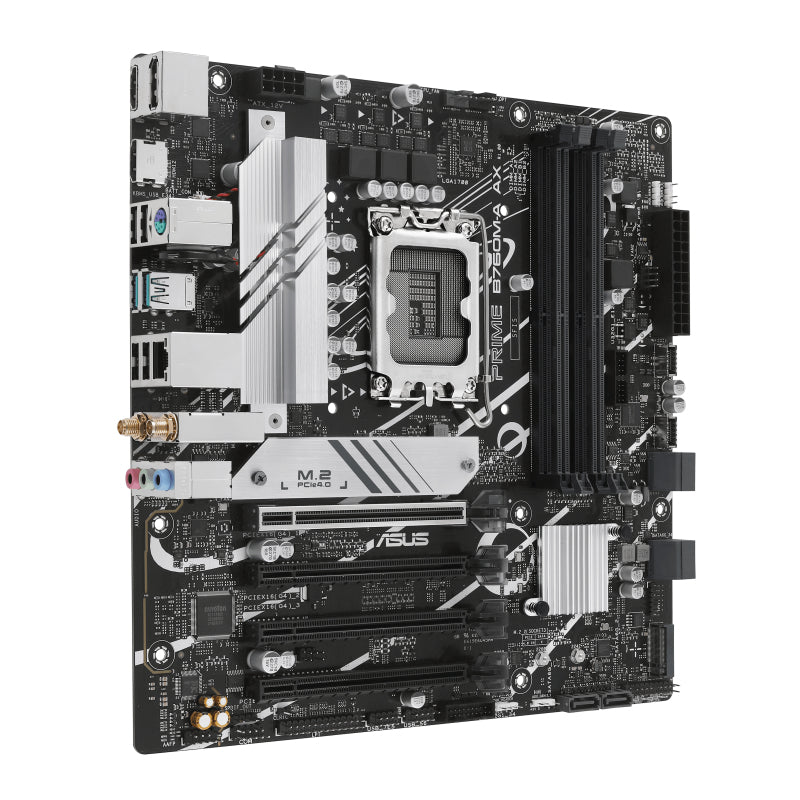

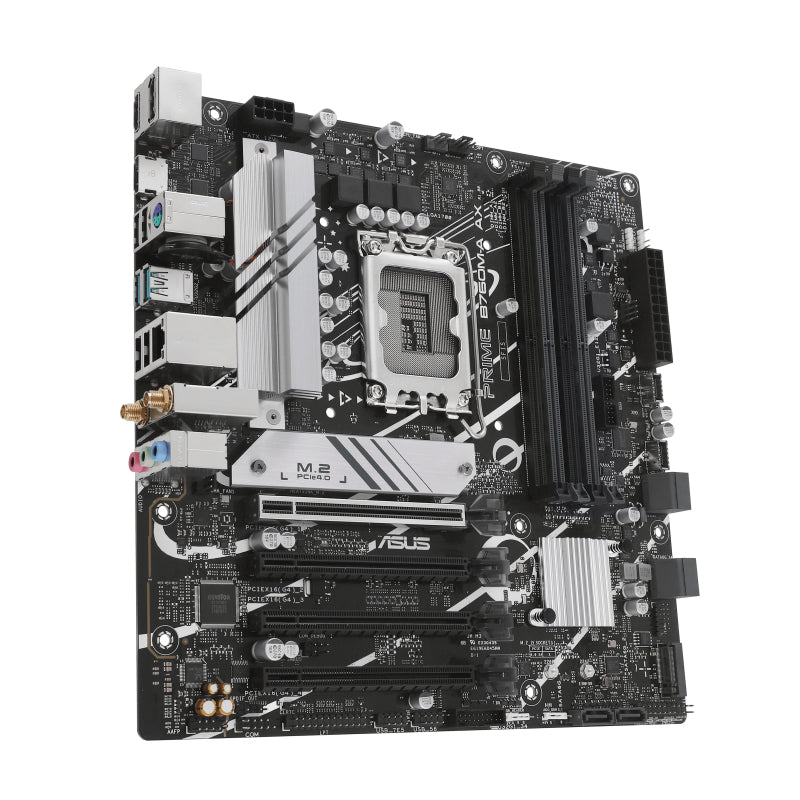

ASUS PRIME B760M-A AX motherboard Intel B760 LGA 1700 micro ATX
ASUS PRIME B760M-A AX motherboard Intel B760 LGA 1700 micro ATX
SKU: PRIME B760M-A AX
Regular price
$139.99 USD
Regular price
Sale price
$139.99 USD
MSRP: $139.99
ASUS PRIME B760M-A AX. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Quantity
Couldn't load pickup availability
- Details: ASUS PRIME B760M-A AX. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
- Info: Intel® LGA 1700 Socket: Ready for 13th Gen and 12th Gen Intel® processors|Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®|Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+|Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II|Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware|CEC Tier II ready
- Clear CMOS button: Yes
- BIOS type: UEFI AMI
- BIOS memory size: 128 Mbit
- Component for: PC
- Number of M.2 (M) slots: 2
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 4
- Product color: Aluminum, Black
- Motherboard form factor: micro ATX
- Motherboard chipset family: Intel
- On-board graphics card: No
- Parallel processing technology support: Not supported
- USB 2.0 connectors: 2
- ATX Power connector (24-pin): Yes
- Chassis intrusion connector: Yes
- Number of chassis fan connectors: 2
- Number of COM connectors: 1
- TPM connector: Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
- Front panel audio connector: Yes
- 12V power connector: Yes
- RGB LED pin header: Yes
- S/PDIF out connector: Yes
- Maximum internal memory: 128 GB
- Memory channels: Dual-channel
- Supported memory types: DDR5-SDRAM
- ECC ?ompatibility: Non-ECC
- Supported memory clock speeds: 7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
- Memory slots type: DIMM
- Number of memory slots: 4
- Unbuffered memory: Yes
- Supported memory clock speed (max): 7200 MHz
- Ethernet LAN: Yes
- Wi-Fi: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
- Bluetooth: Yes
- Bluetooth version: 5.2
- Audio output channels: 7.1 channels
- Cables included: SATA
- Motherboard chipset: Intel B760
- Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
- Supported processor sockets: LGA 1700
- Ethernet LAN (RJ-45) ports: 1
- USB 2.0 ports quantity: 4
- HDMI ports quantity: 2
- HDMI version: 2.1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- Headphone outputs: 1
- DisplayPorts quantity: 1
- Microphone in: Yes
- Line-in: Yes
- DisplayPort version: 1.4
- PS/2 ports quantity: 1
- Number of SATA III connectors: 6
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- WiFi-AP antenna jack: 1
- Number of storage drives supported: 8
- RAID levels: 0, 1, 5, 10
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- RAID support: Yes
- Number of HDDs supported: 6
- Windows operating systems supported: Windows 10 x64, Windows 11
- Width: 9.61" (244 mm)
- Depth: 9.61" (244 mm)
