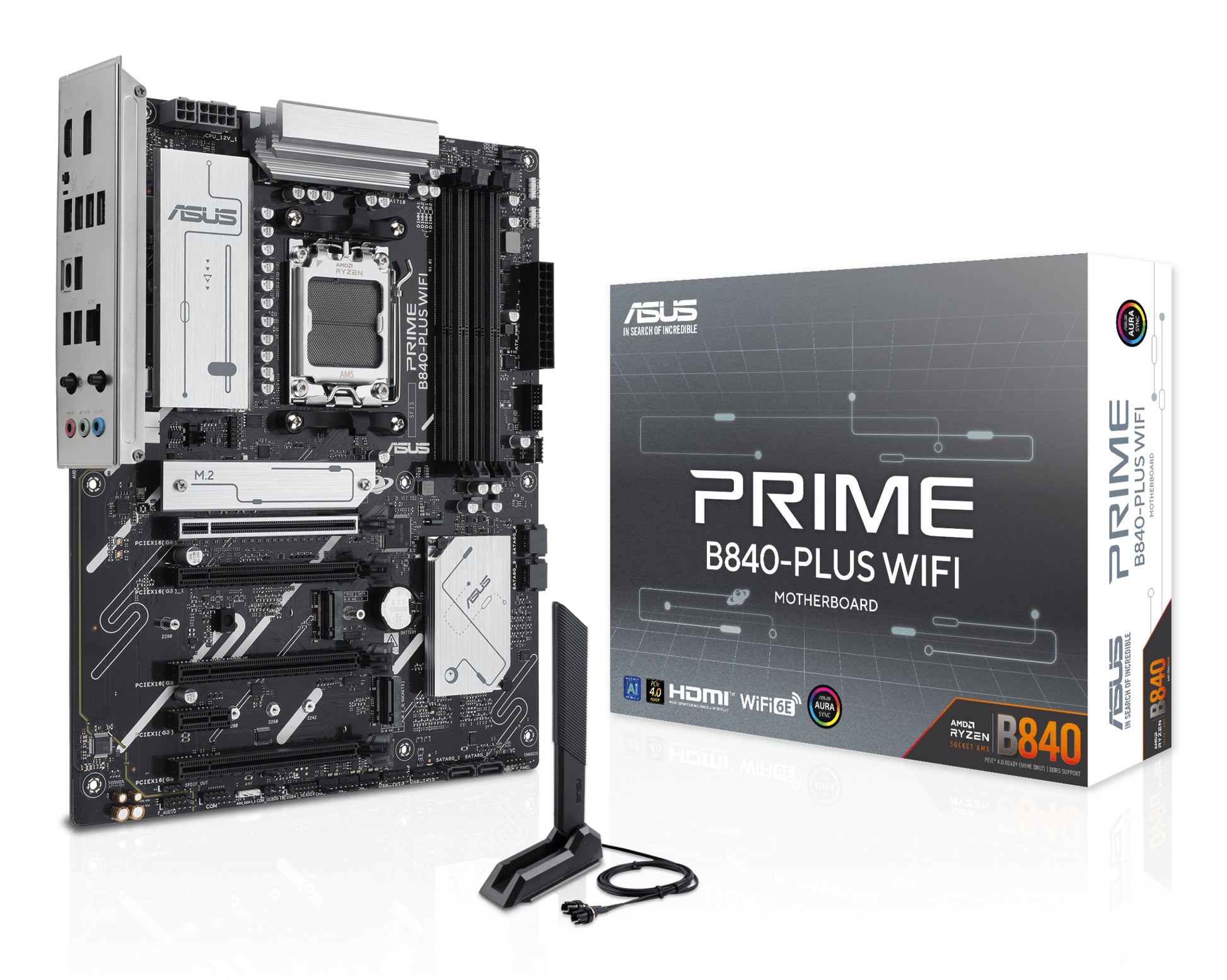

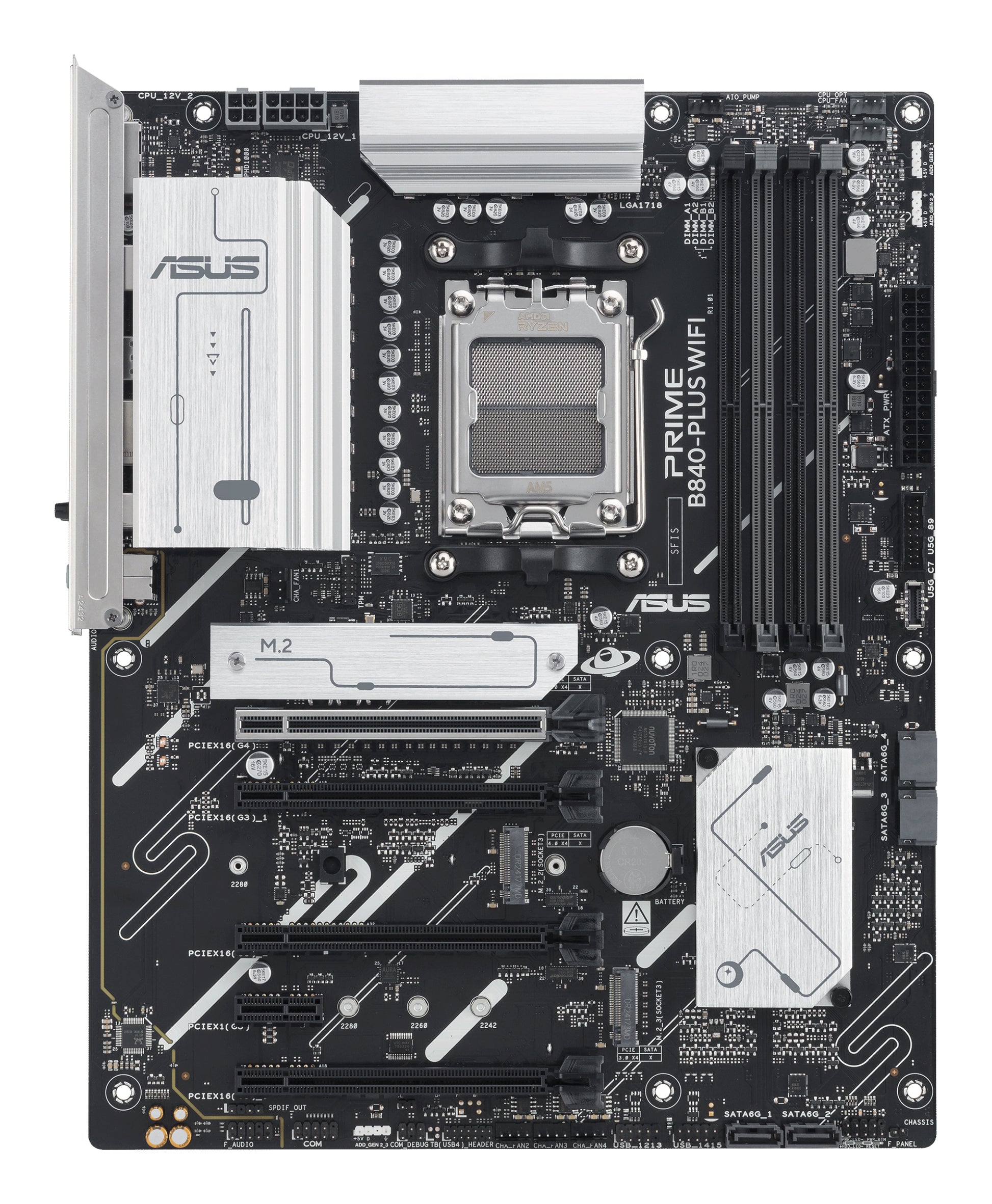

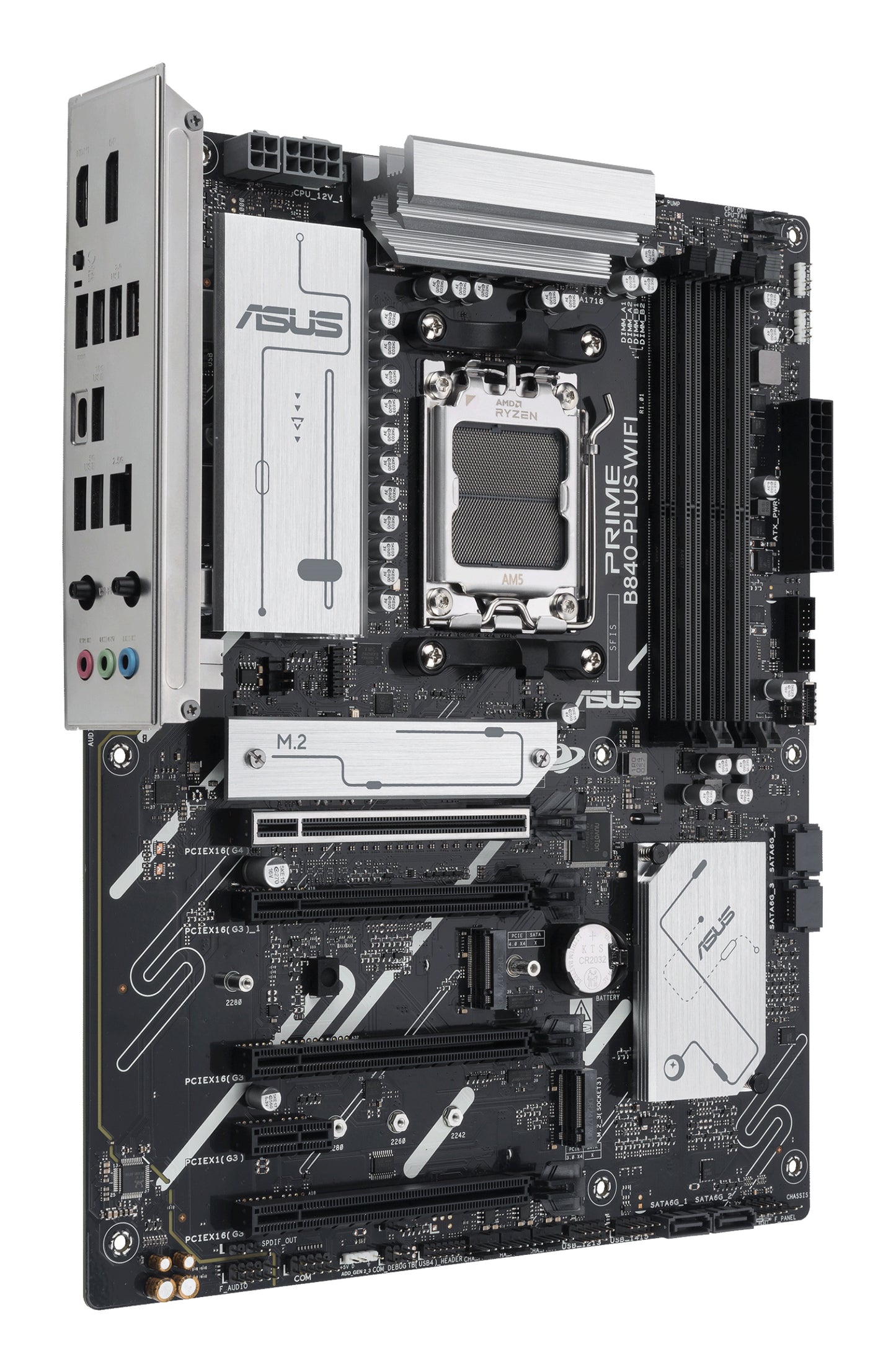

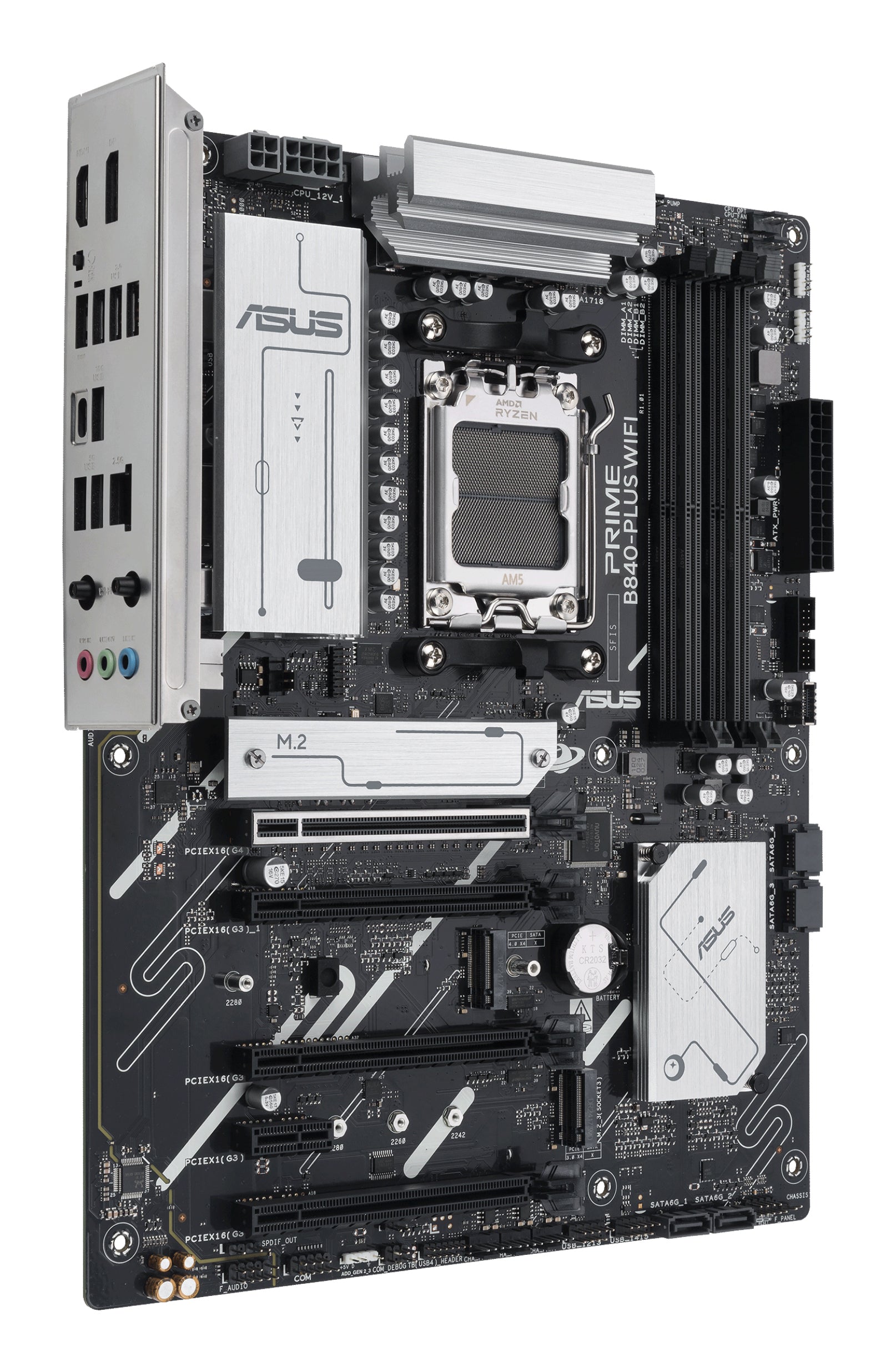

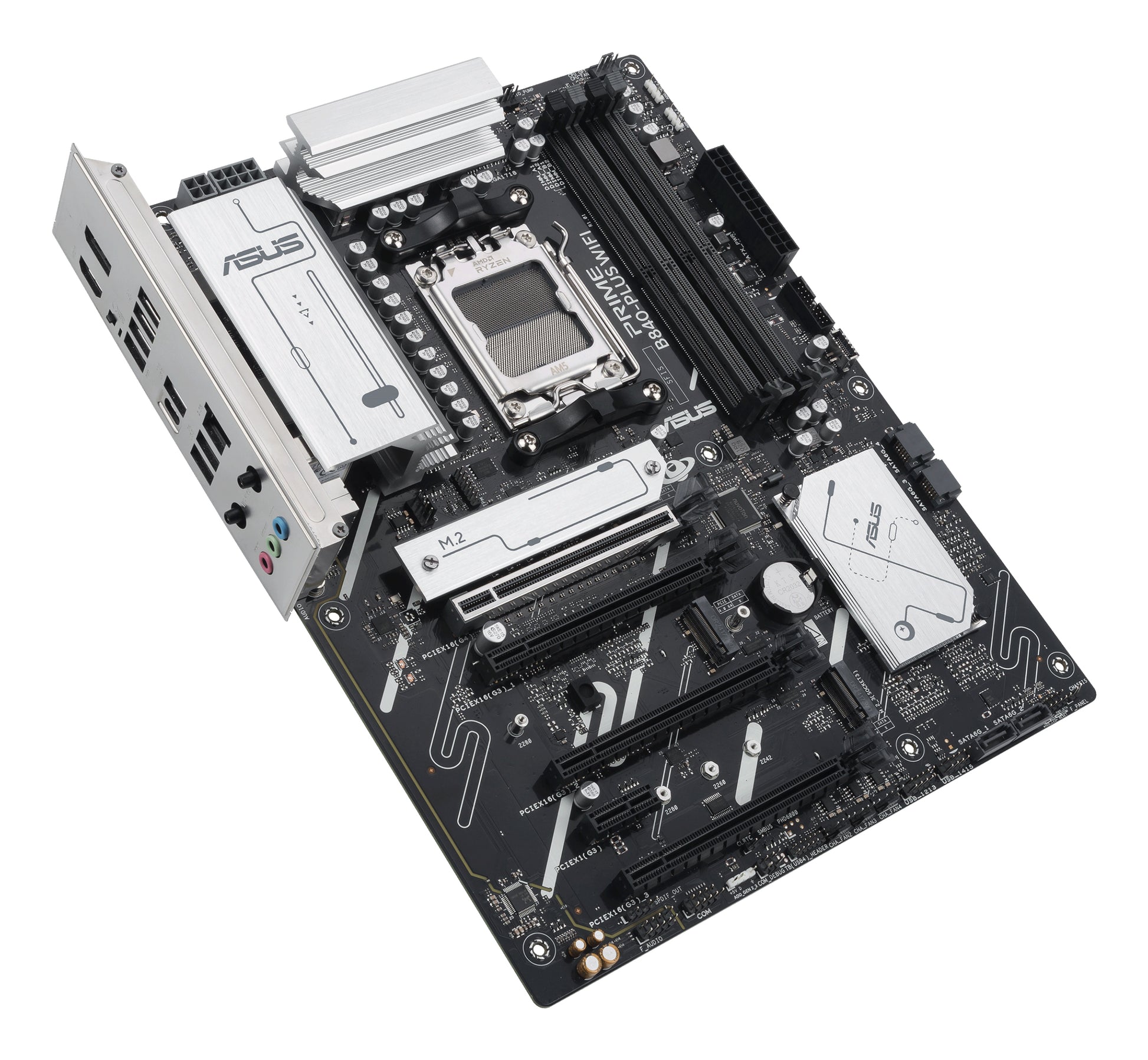

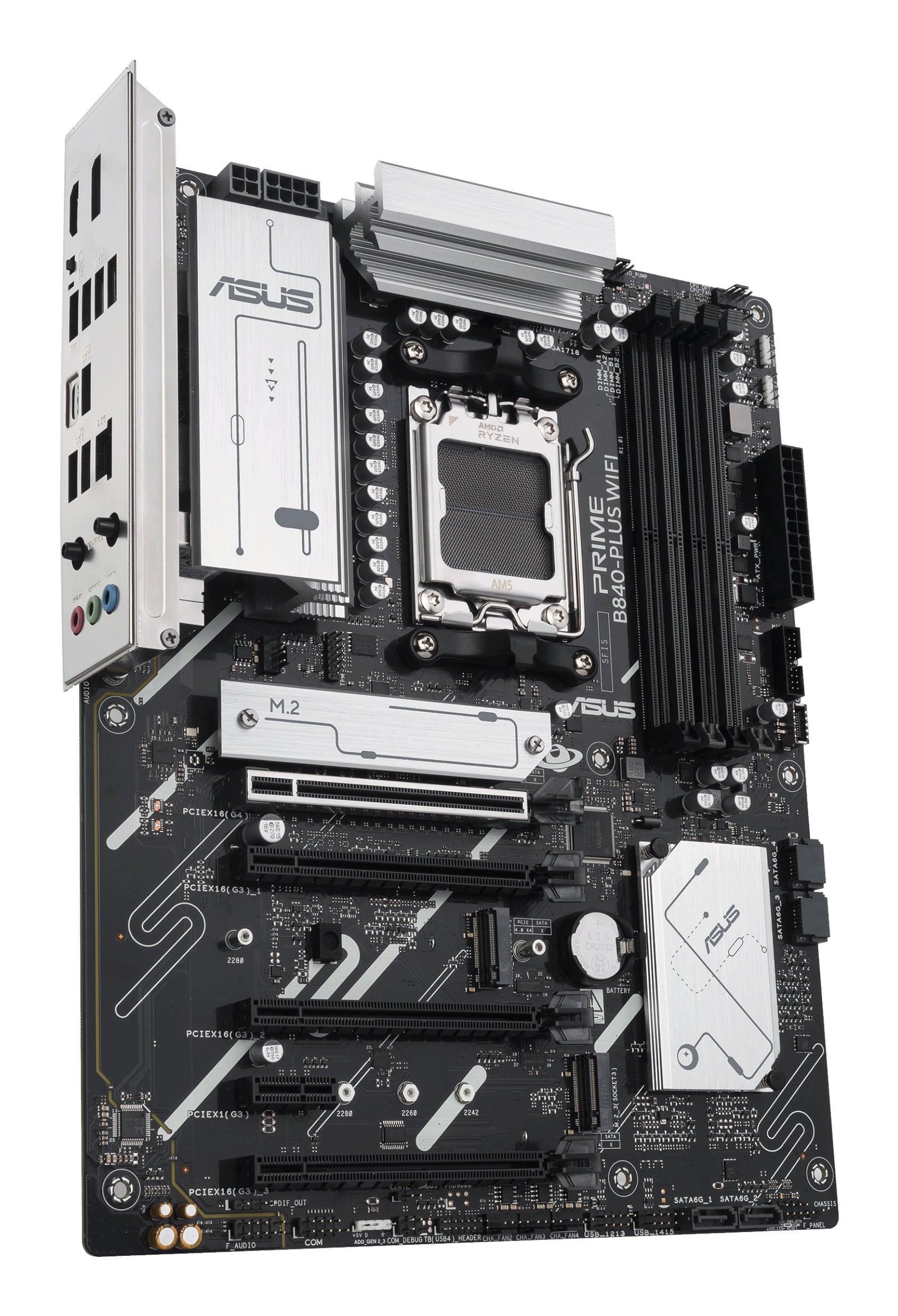

ASUS PRIME B840-PLUS WIFI AMD B840 Socket AM5 ATX
ASUS PRIME B840-PLUS WIFI AMD B840 Socket AM5 ATX
SKU: 90MB1IZ0-M0EAY0
Regular price
$199.99 USD
Regular price
Sale price
$199.99 USD
MSRP: $199.99
ASUS PRIME B840-PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
Quantity
Couldn't load pickup availability
- Details: ASUS PRIME B840-PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- Component for: PC
- PCI Express x16 (Gen 3.x) slots: 3
- Number of M.2 (M) slots: 3
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- 1st M.2 largest key size: 2280
- 1st M.2 highest PCI Express generation: 4.0
- 2nd M.2 largest key size: 2280
- 2nd M.2 highest PCI Express generation: 4.0
- 3rd M.2 largest key size: 2280
- 3rd M.2 highest PCI Express generation: 3.0
- Product color: Aluminum, Black
- Motherboard form factor: ATX
- Motherboard chipset family: AMD
- On-board graphics card: No
- Parallel processing technology support: Not supported
- USB 2.0 connectors: 2
- ATX Power connector (24-pin): Yes
- Chassis intrusion connector: Yes
- Number of chassis fan connectors: 4
- Number of COM connectors: 1
- TPM connector: Yes
- CPU fan connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Front panel audio connector: Yes
- Thunderbolt headers: 1
- 12V power connector: Yes
- S/PDIF out connector: Yes
- Maximum internal memory: 192 GB
- Memory channels: Dual-channel
- Supported memory types: DDR5-SDRAM
- ECC ?ompatibility: ECC & Non-ECC
- Memory slots type: DIMM
- Number of memory slots: 4
- Unbuffered memory: Yes
- Ethernet LAN: Yes
- Wi-Fi: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards: Wi-Fi 6E (802.11ax)
- Bluetooth: Yes
- Bluetooth version: 5.3
- Audio output channels: 7.1 channels

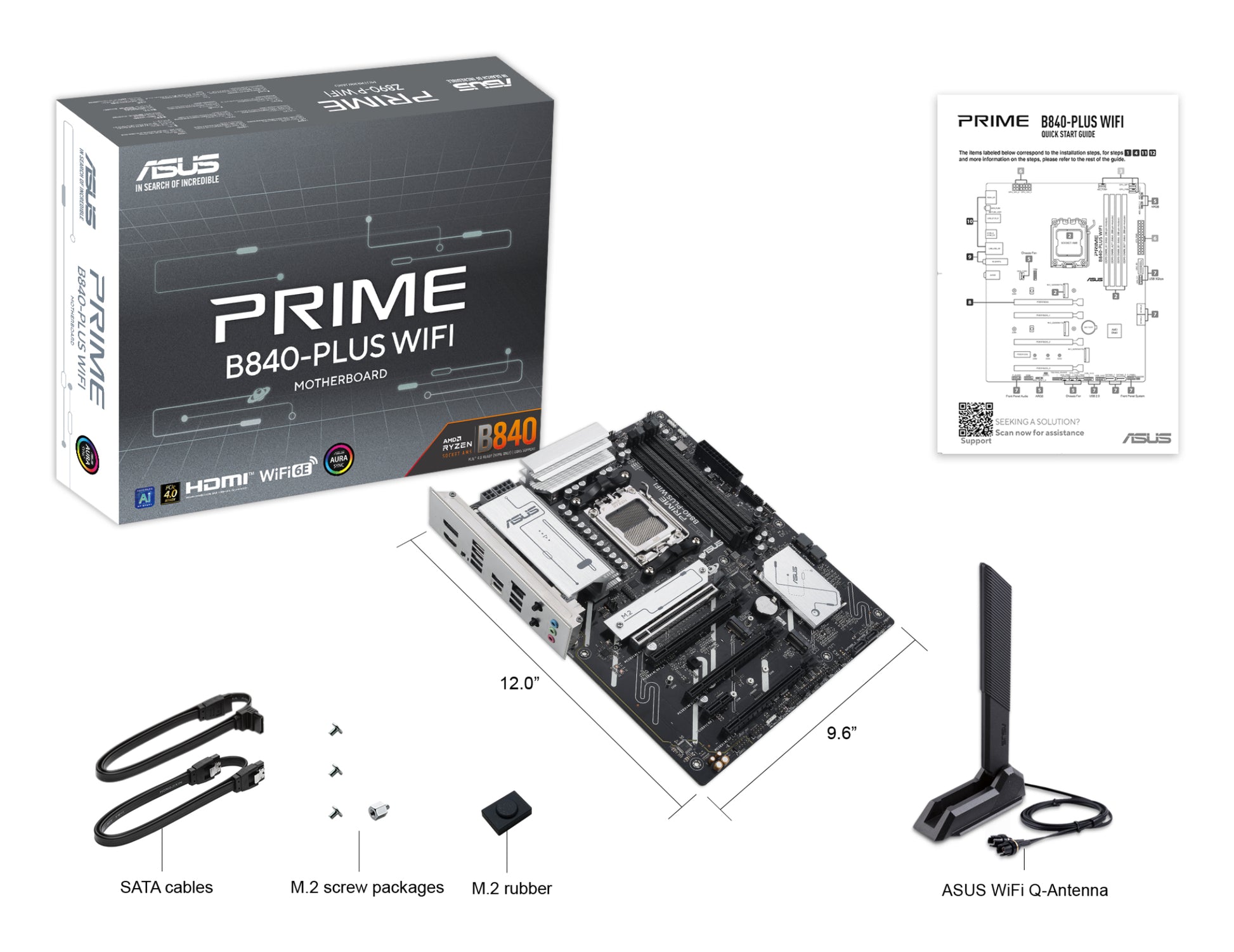

- Cables included: SATA

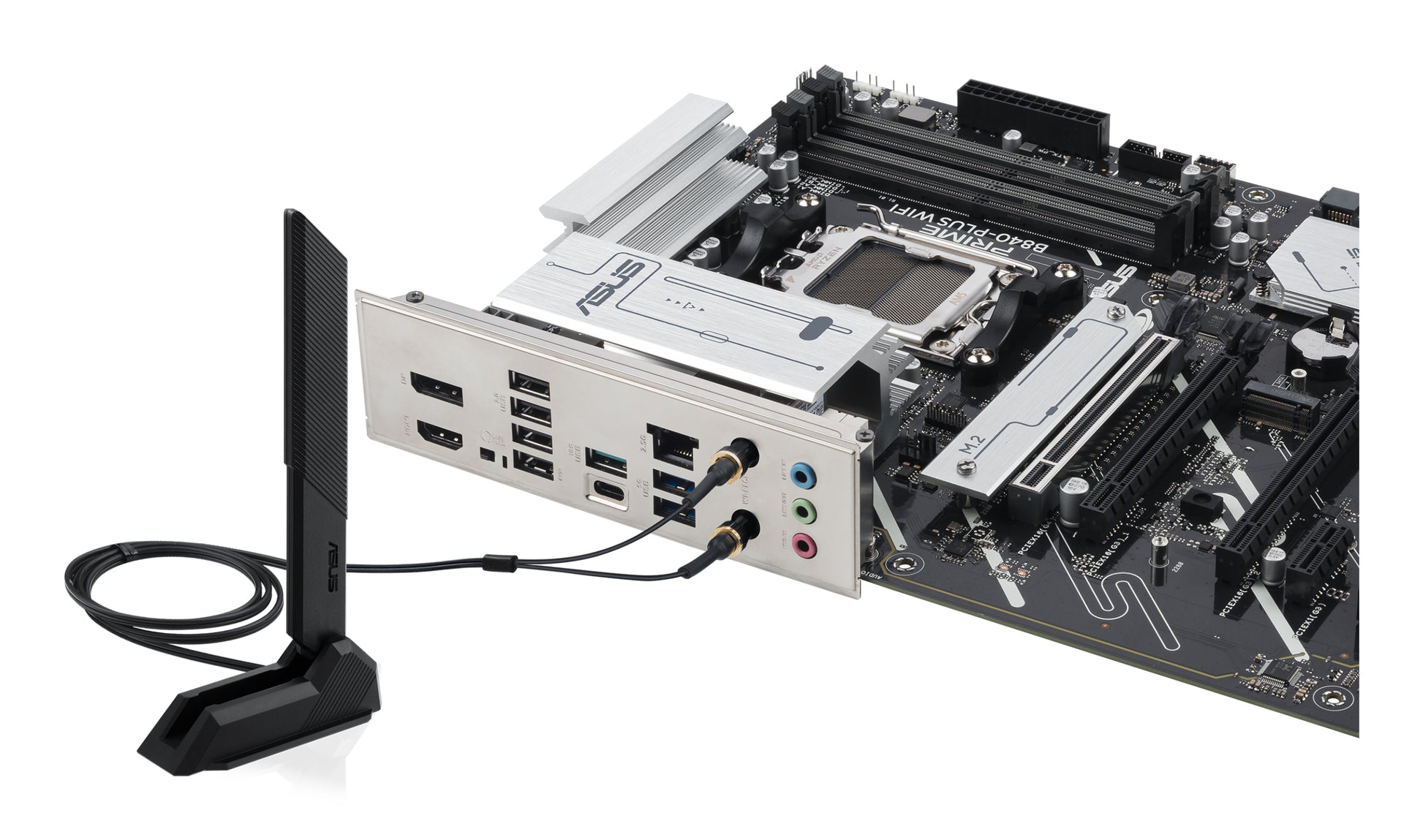

- Antenna included: Yes
- Package width: 13.9" (353 mm)
- Package height: 2.68" (68 mm)
- Package depth: 10.7" (273 mm)
- Package weight: 2.78 lbs (1.26 kg)
- Screws included: Yes
- Motherboard chipset: AMD B840
- Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Supported processor sockets: Socket AM5

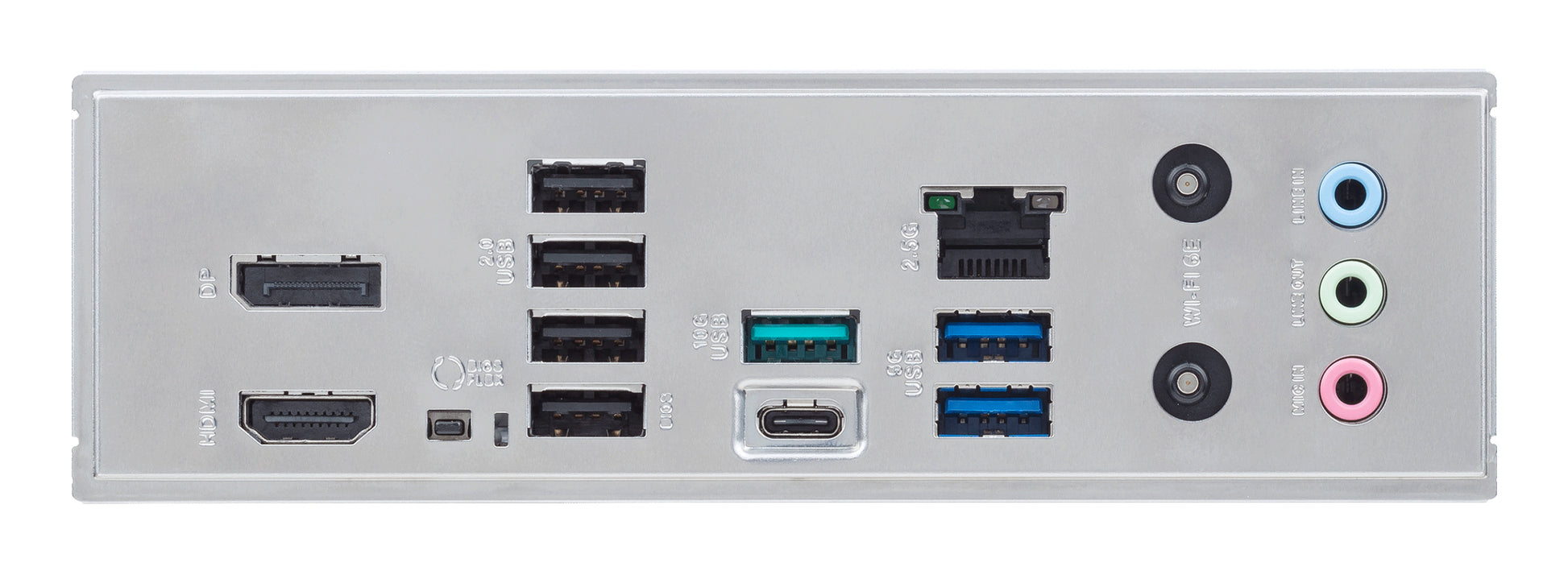

- Ethernet LAN (RJ-45) ports: 1
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- HDMI ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- DisplayPorts quantity: 1
- Number of SATA III connectors: 4
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- WiFi-AP antenna jack: 1
- Number of storage drives supported: 7
- RAID levels: 0, 1, 5, 10
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- RAID support: Yes
- Number of HDDs supported: 4
- Windows operating systems supported: Windows 10 x64, Windows 11
- Width: 12" (305 mm)
- Depth: 9.61" (244 mm)
