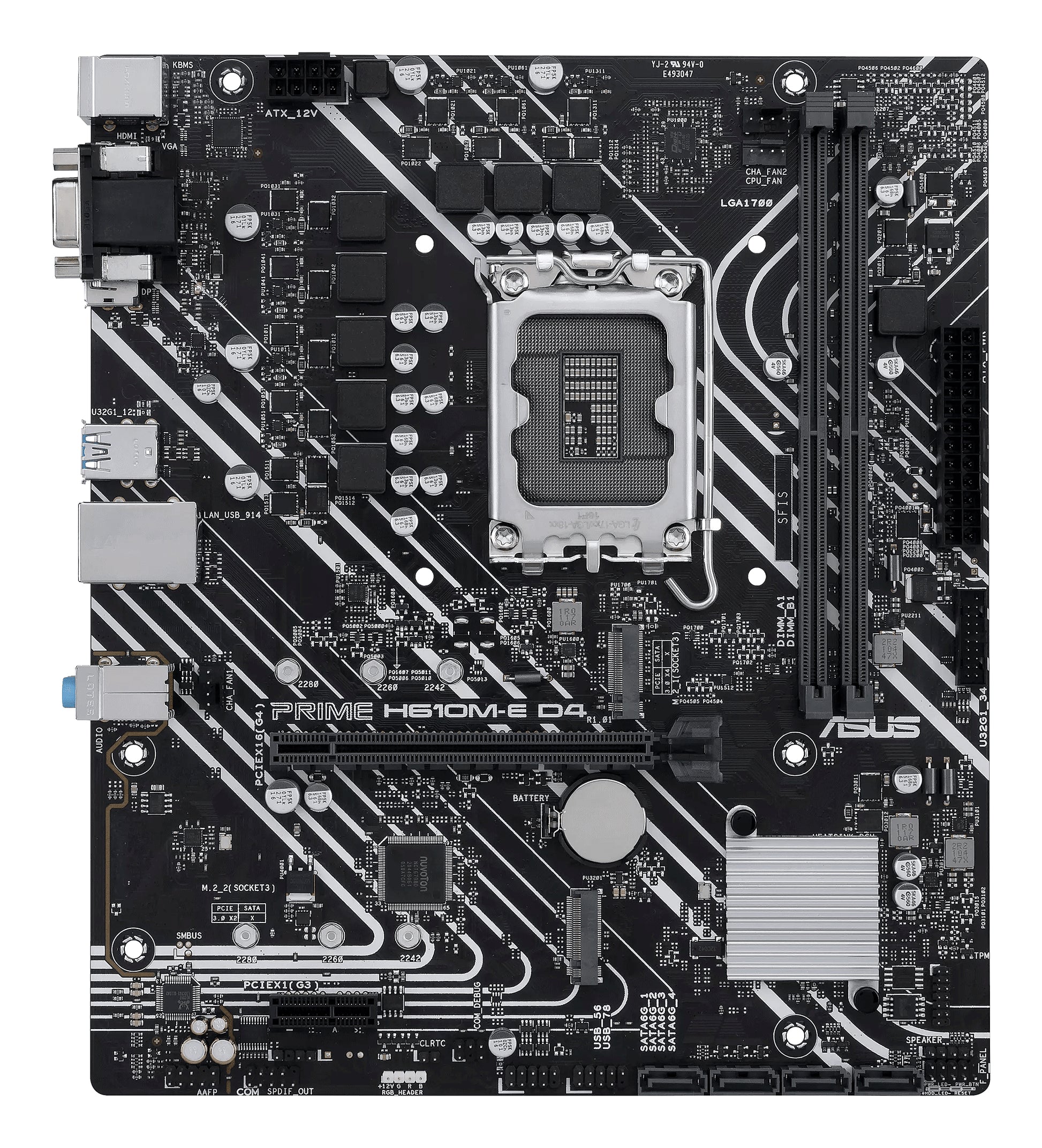

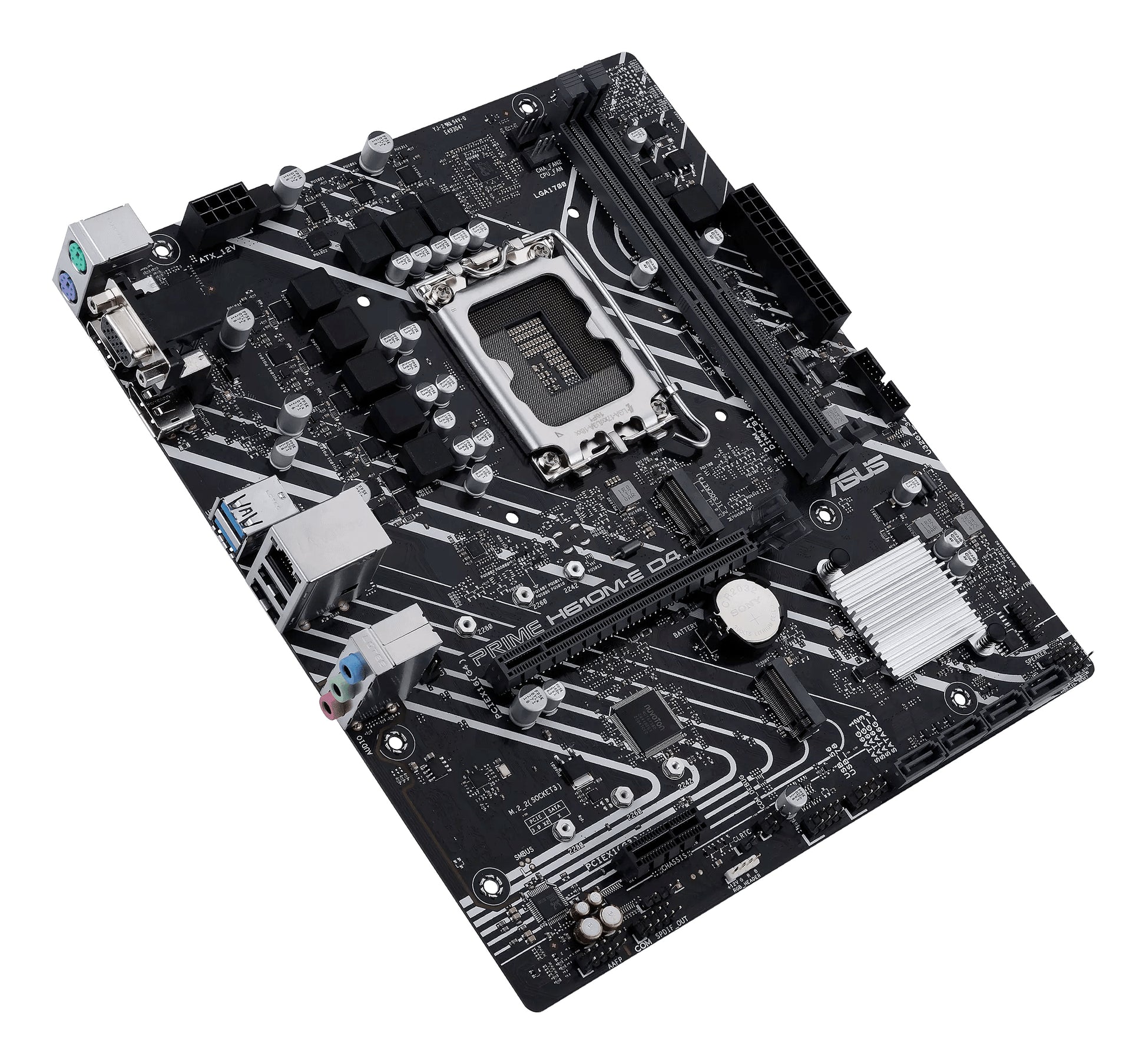

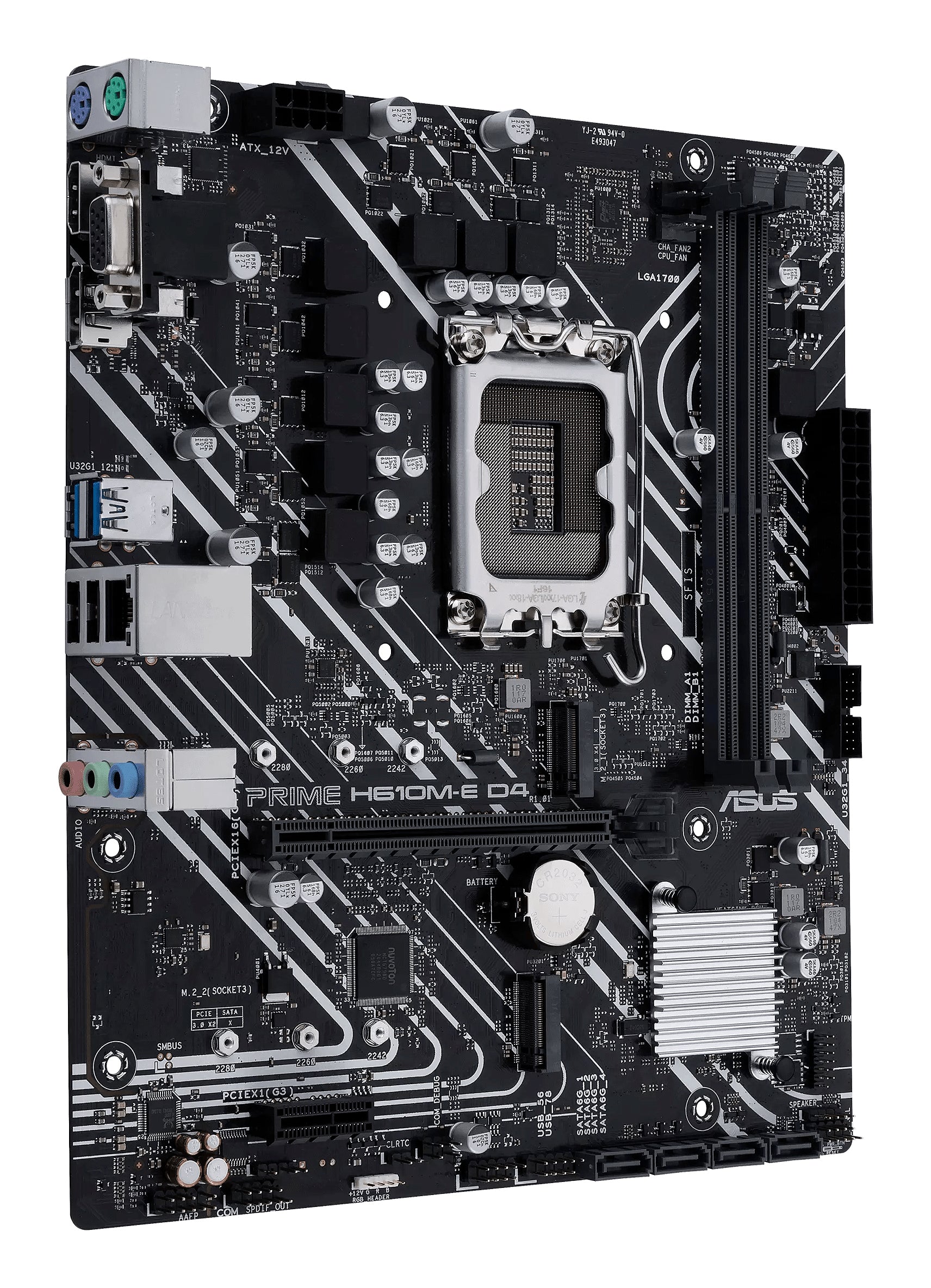

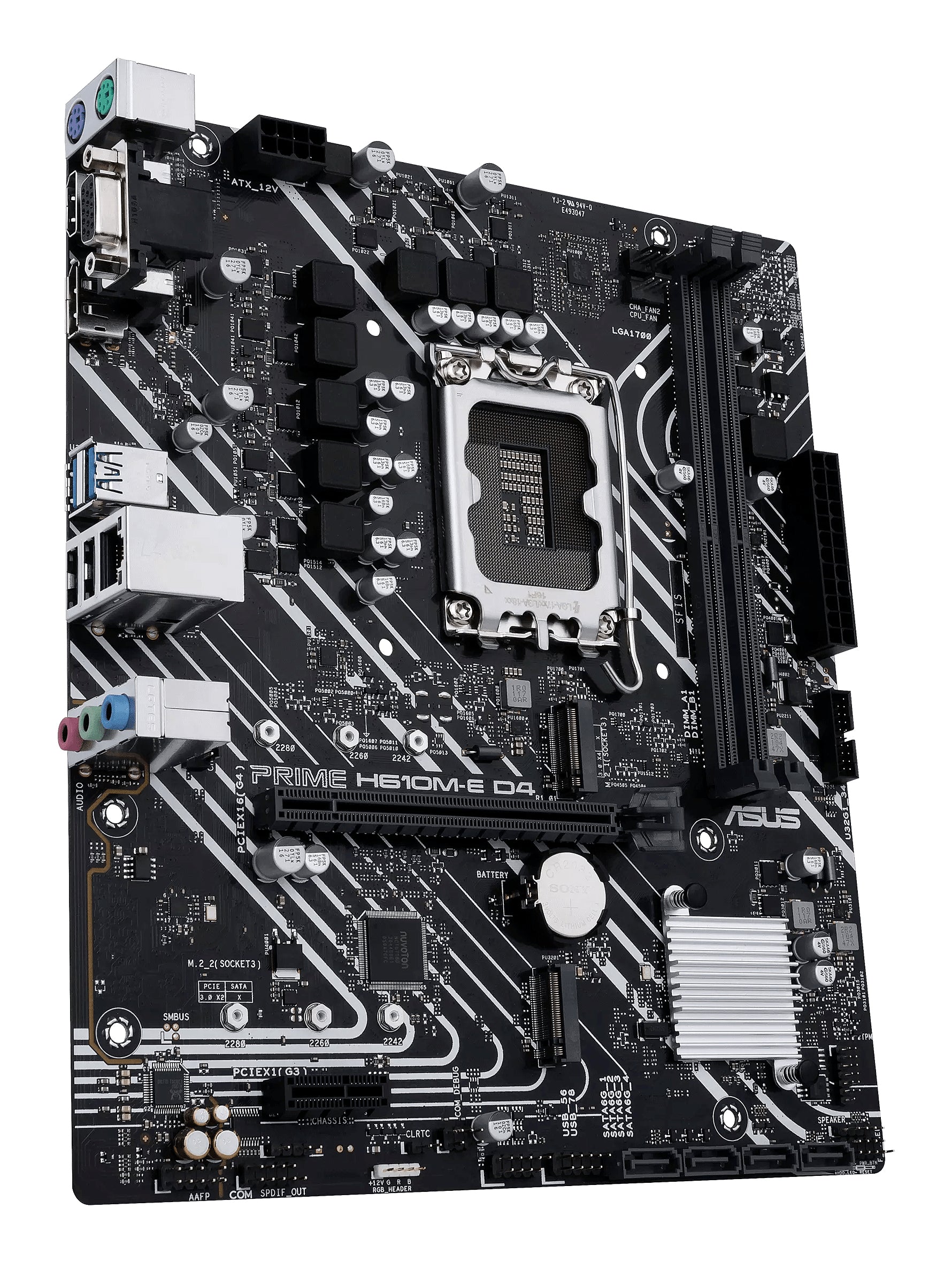

ASUS PRIME H610M-E D4-CSM Intel H610 LGA 1700 micro ATX
ASUS PRIME H610M-E D4-CSM Intel H610 LGA 1700 micro ATX
SKU: 90MB19N0-M0EAYC
Regular price
$105.99 USD
Regular price
Sale price
$105.99 USD
MSRP: $105.99
ASUS PRIME H610M-E D4-CSM. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel. Width: 9.61" (244 mm), Depth: 8.31" (211 mm), Height: 8.7" (221 mm)
Quantity
Couldn't load pickup availability
- Details: ASUS PRIME H610M-E D4-CSM. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel. Width: 9.61" (244 mm), Depth: 8.31" (211 mm), Height: 8.7" (221 mm)
- ReasonsToBuy: All-Around Energy Efficiency||The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
- Flexible cooling controls|http://images.icecat.biz/img/bullets/96560544-6332eb6a5cdbc499856736.jpg|Prime 600 Series motherboards offer comprehensive control over system fans, via the included Fan Xpert 2+ software. Auto-Tuning mode intelligently configures all parameters with a single click.
- Precise Digital Power Control||The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
- Info: Intel LGA 1700 socket: Ready for 12th Gen Intel processors|Comprehensive cooling: PCH heatsink and Fan Xpert 2+|Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1|5X Protection III: Multiple hardware safeguards for all-round protection|ASUS Control Center Express (ACCE) for easier IT endpoint management
- Component for: PC
- Number of M.2 (M) slots: 2
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- Product color: Multicolor
- Motherboard form factor: micro ATX
- Motherboard chipset family: Intel
- On-board graphics card: No
- Parallel processing technology support: Not supported
- USB 2.0 connectors: 2
- ATX Power connector (24-pin): Yes
- Number of chassis fan connectors: 2
- Number of COM connectors: 1
- TPM connector: Yes
- CPU fan connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- 12V power connector: Yes
- S/PDIF out connector: Yes
- Audio connector: Yes
- Harmonized System (HS) code: 84733020
- Maximum internal memory: 64 GB
- Memory channels: Dual-channel
- Supported memory types: DDR4-SDRAM
- ECC ?ompatibility: Non-ECC
- Supported memory clock speeds: 2133,2400,2666,2800,2933,3000,3200 MHz
- Memory slots type: DIMM
- Number of memory slots: 2
- Unbuffered memory: Yes
- Ethernet LAN: Yes
- Wi-Fi: No
- Ethernet interface type: Gigabit Ethernet
- Wake-on-LAN ready: Yes
- Audio output channels: 7.1 channels
- Cables included: SATA
- Motherboard chipset: Intel H610
- Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
- Supported processor sockets: LGA 1700

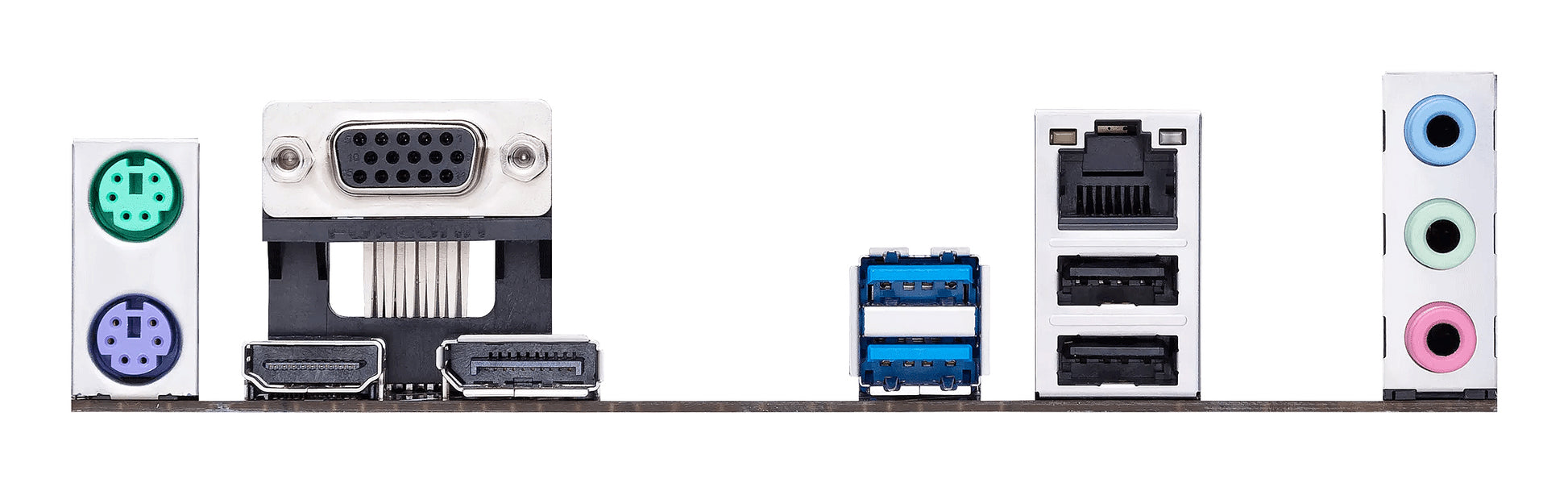

- Ethernet LAN (RJ-45) ports: 1
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- HDMI ports quantity: 1
- VGA (D-Sub) ports quantity: 1
- HDMI version: 2.1
- DisplayPorts quantity: 1
- DisplayPort version: 1.4
- PS/2 ports quantity: 1
- Number of SATA III connectors: 4
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Maximum number of SMP processors: 1
- Drivers included: Yes
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- Weight: 13.5 oz (382 g)
- Width: 9.61" (244 mm)
- Height: 8.7" (221 mm)
- Depth: 8.31" (211 mm)
