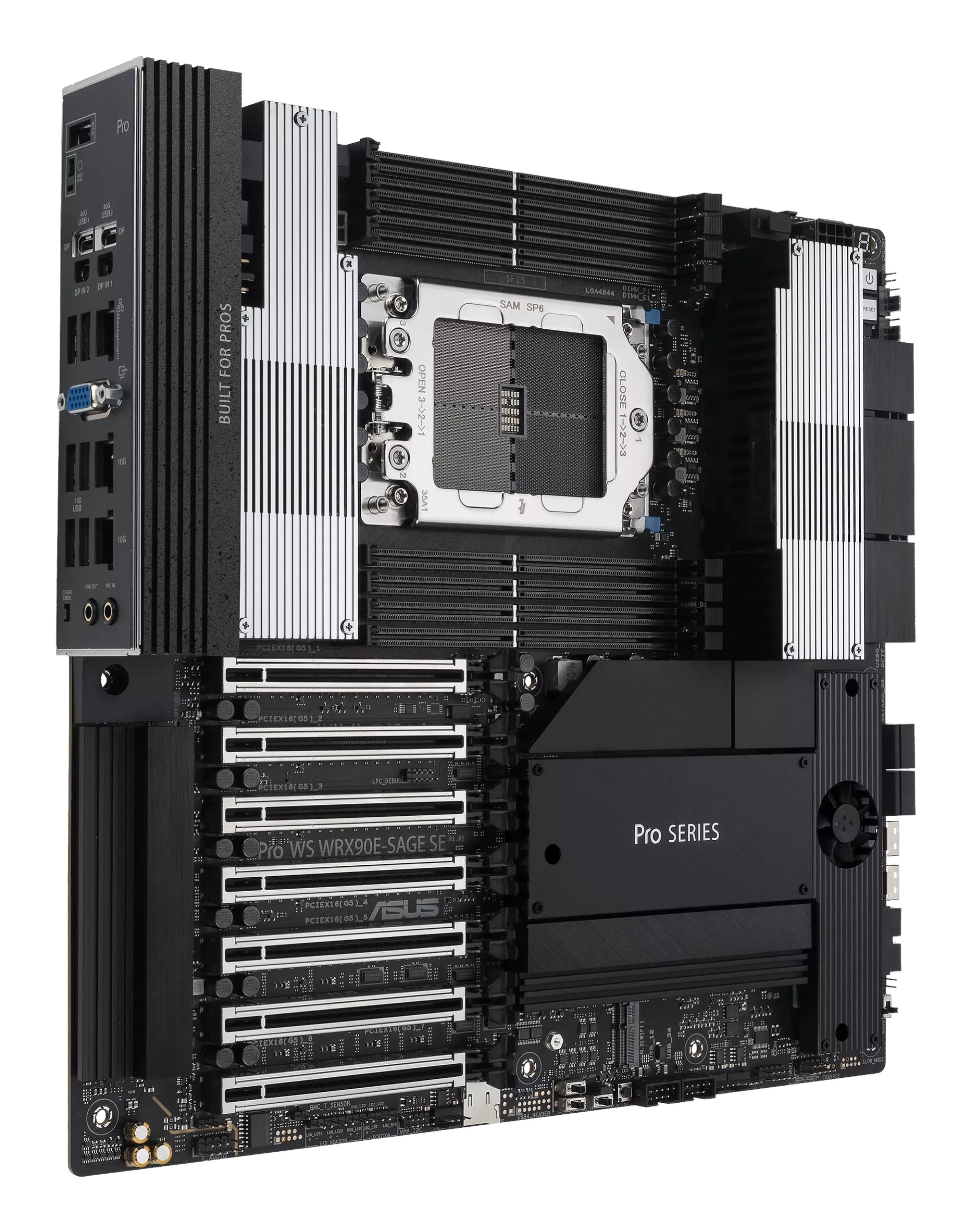

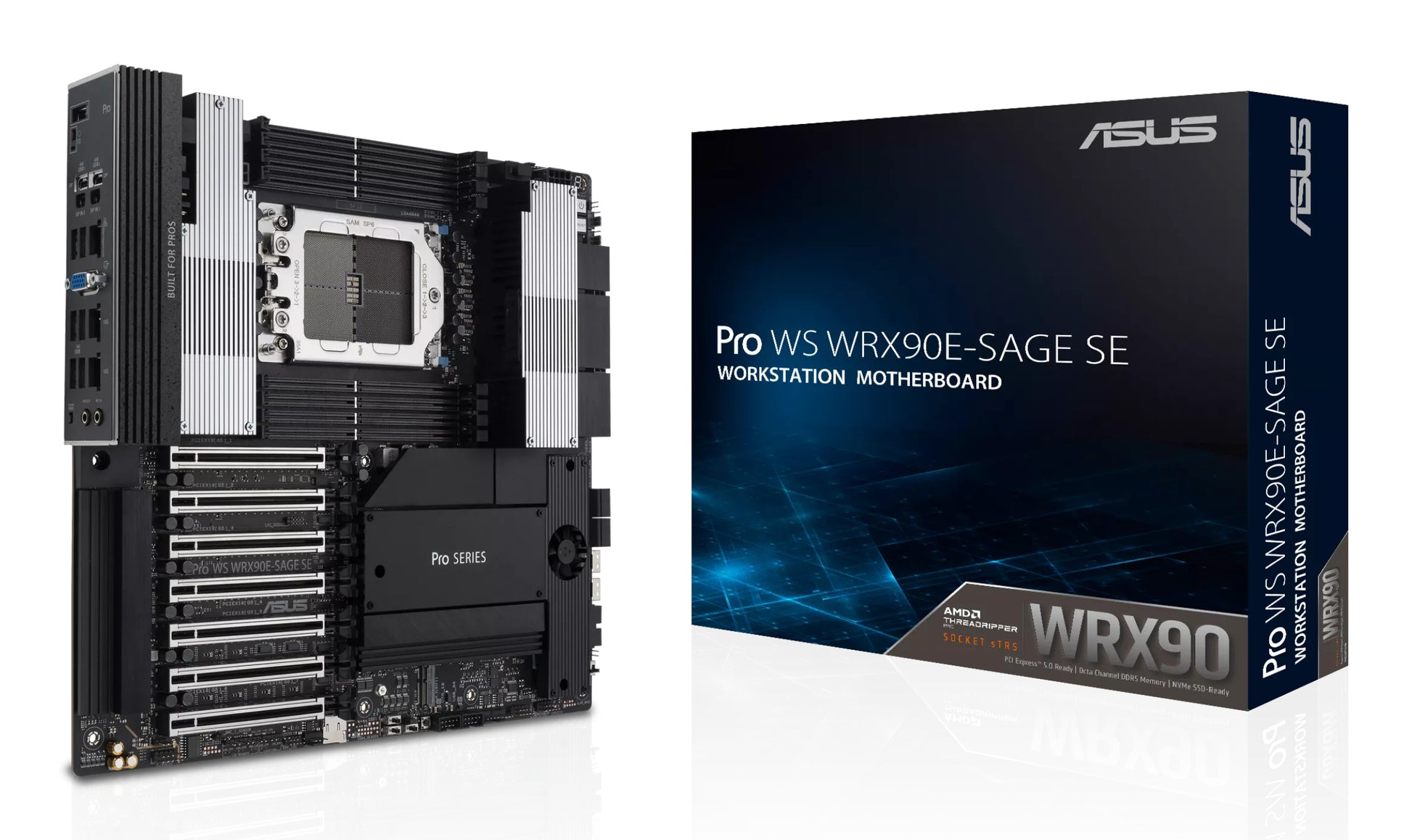

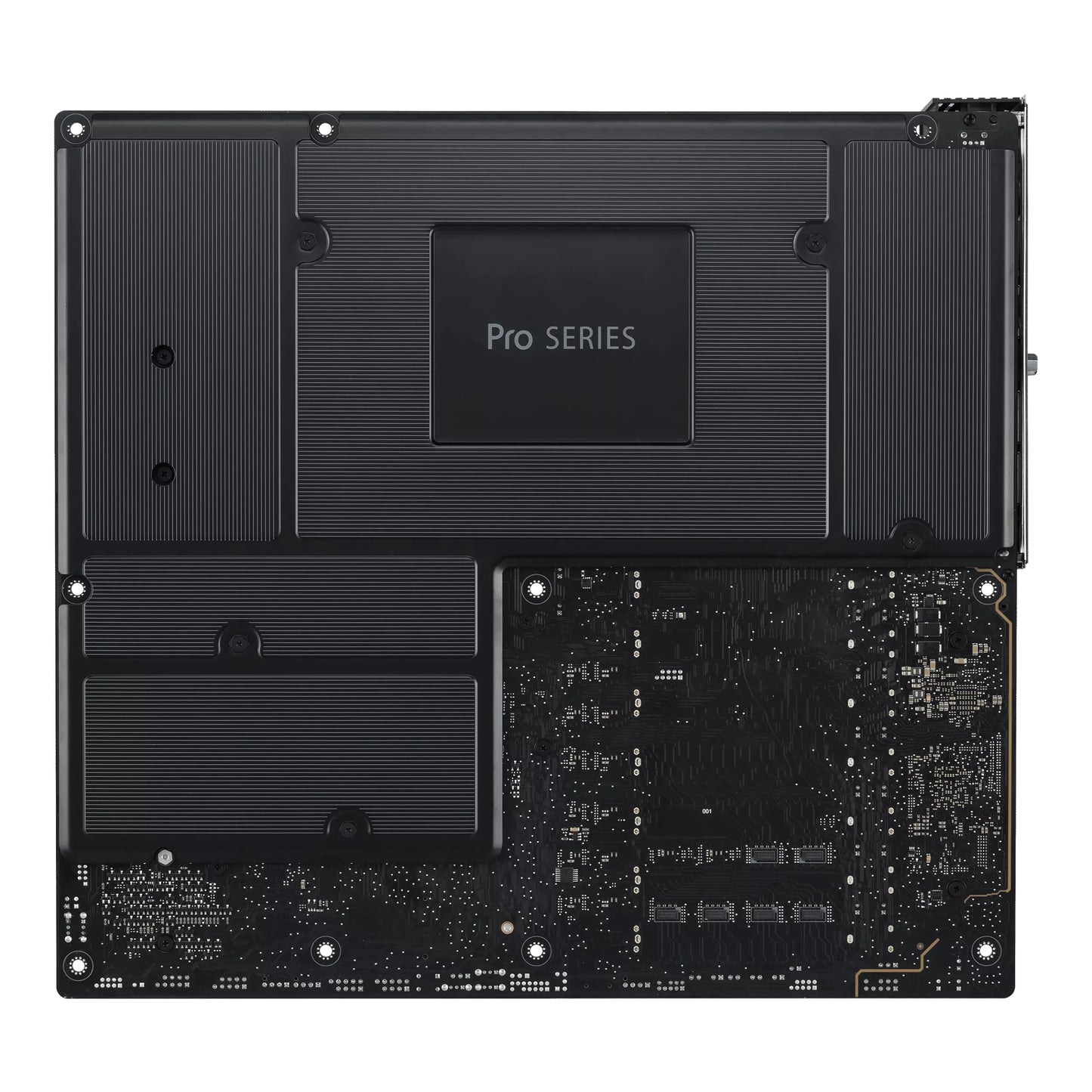

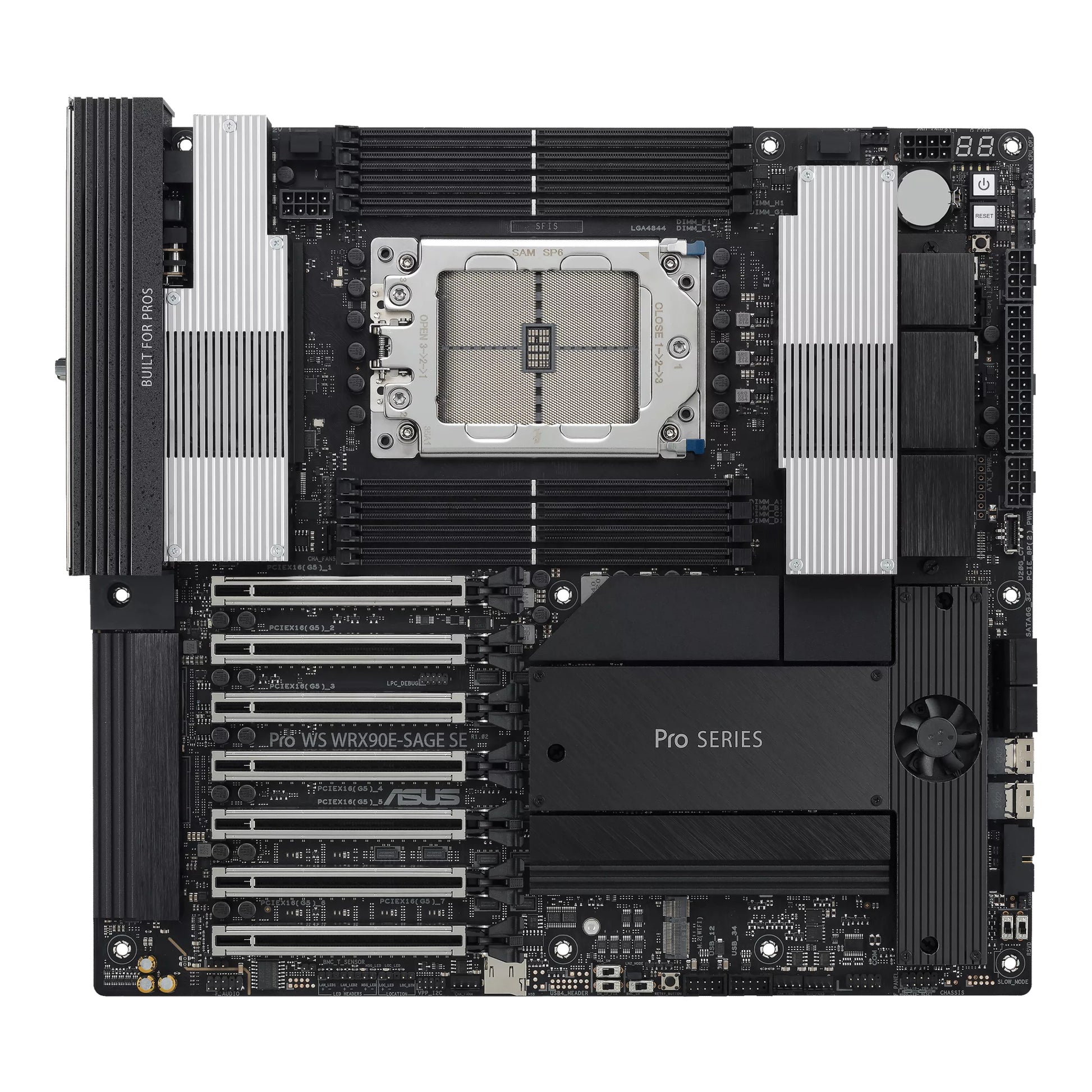

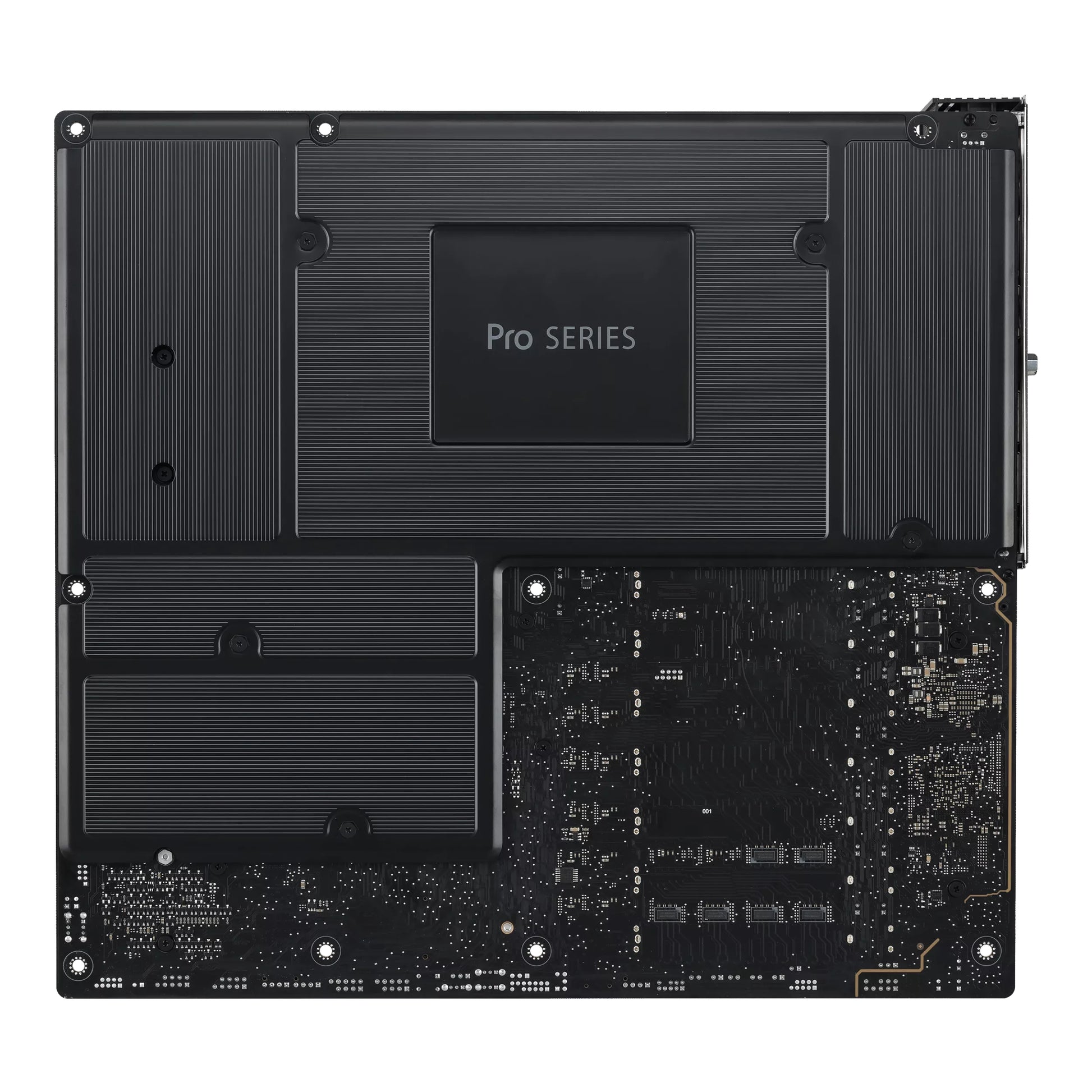

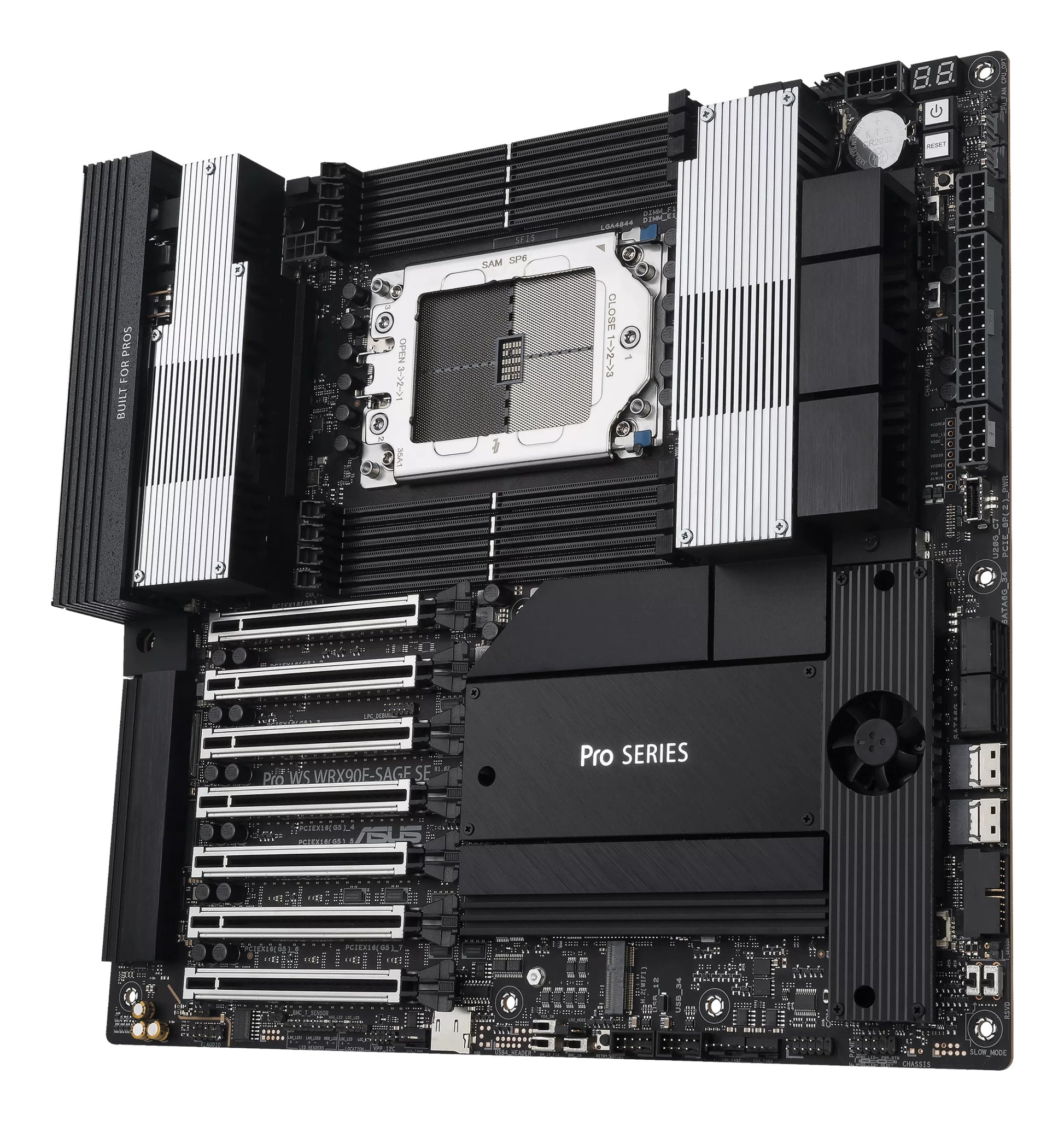

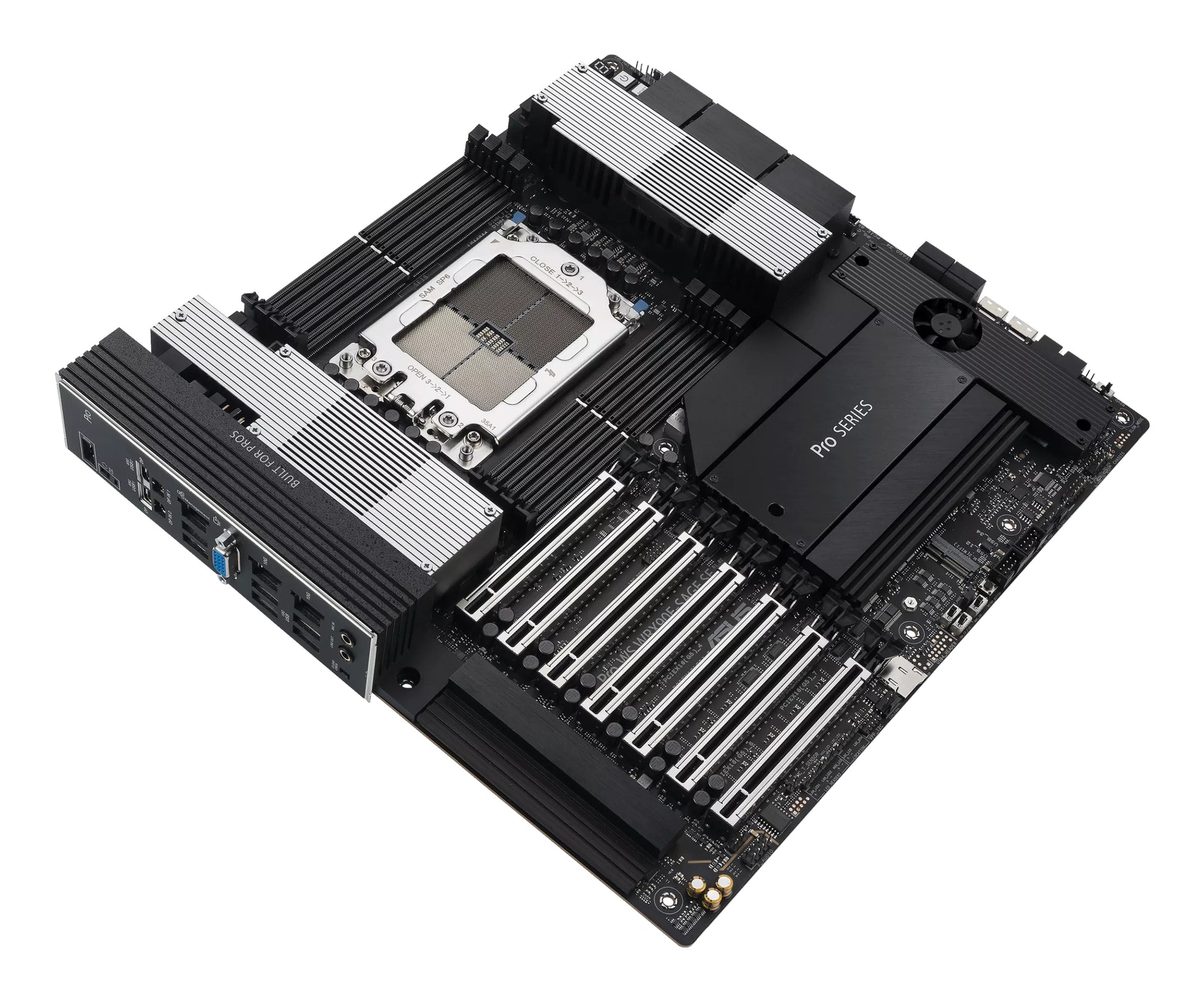

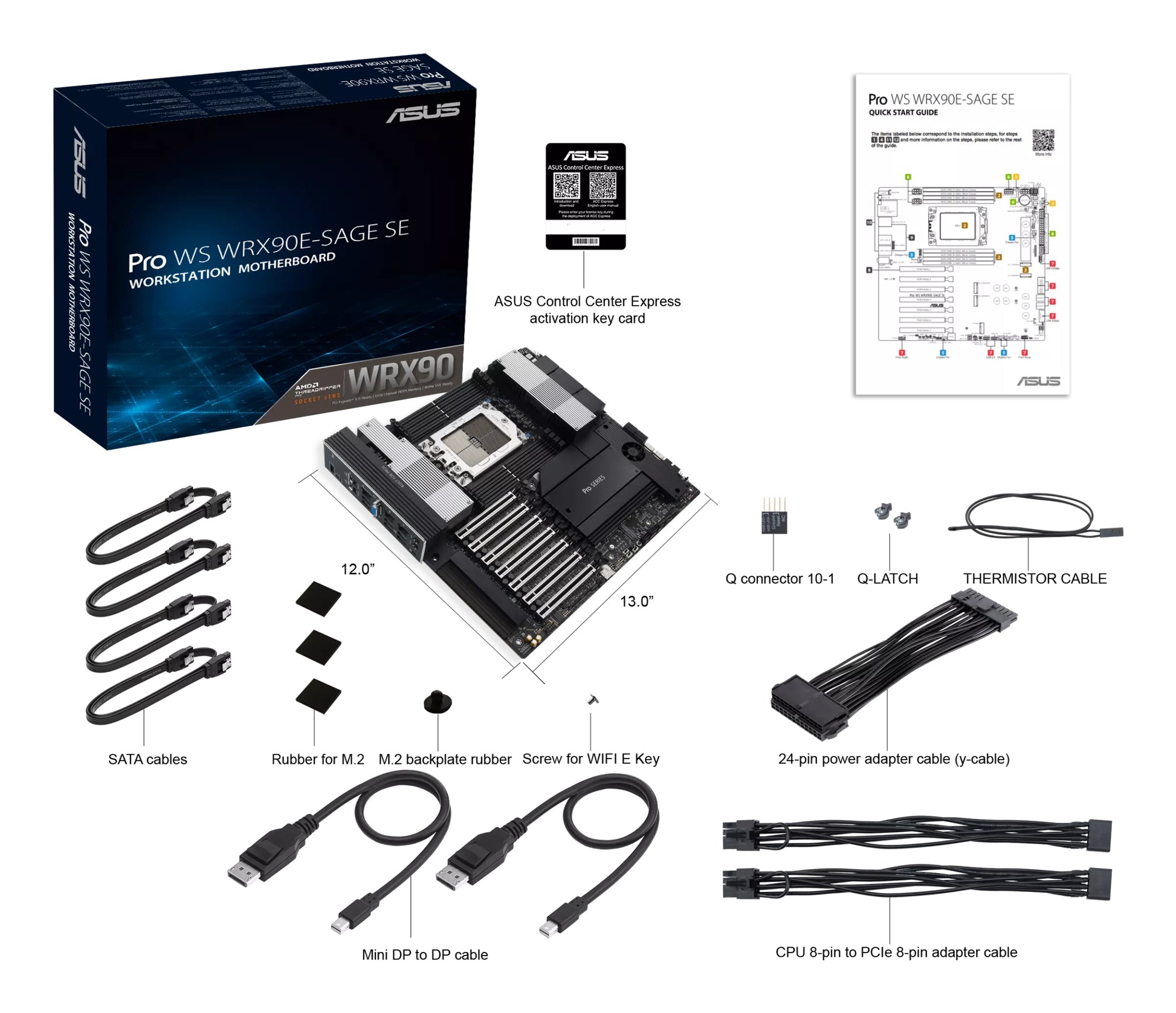

ASUS PRO WS WRX90E-SAGE SE AMD WRX90 Socket sTR5 EEB
ASUS PRO WS WRX90E-SAGE SE AMD WRX90 Socket sTR5 EEB
SKU: 90MB1FW0-M0EAY0
Regular price
$1,299.99 USD
Regular price
Sale price
$1,299.99 USD
MSRP: $1,299.99
ASUS PRO WS WRX90E-SAGE SE. Processor manufacturer: AMD, Processor socket: Socket sTR5, Compatible processor series: AMD Ryzen Threadripper PRO 7000 WX-Series. Supported memory types: DDR5-SDRAM, Memory slots type: DIMM, Memory channels: Octa-channel. Supported storage drive interfaces: M.2, SATA III, SlimSAS, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Quantity
Couldn't load pickup availability
- Details: ASUS PRO WS WRX90E-SAGE SE. Processor manufacturer: AMD, Processor socket: Socket sTR5, Compatible processor series: AMD Ryzen Threadripper PRO 7000 WX-Series. Supported memory types: DDR5-SDRAM, Memory slots type: DIMM, Memory channels: Octa-channel. Supported storage drive interfaces: M.2, SATA III, SlimSAS, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet

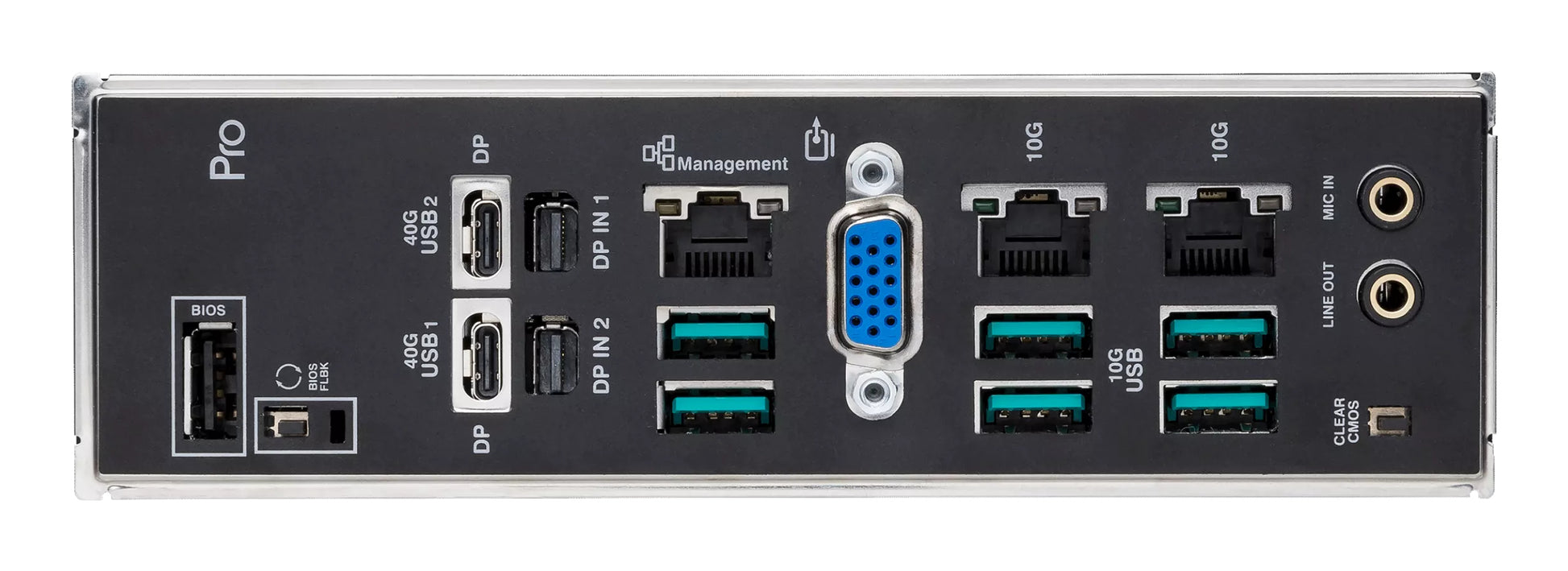

- Info: AMD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors|Ultrafast connectivity: Seven PCIe® 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4® 40Gbps Type-C® and SlimSAS NVMe support|CPU and memory overclocking: Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC)|Robust power and thermal design: 32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad|PCIe Q-release Slim: Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch|Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management|Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation
- Clear CMOS button: Yes
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- Component for: Workstation
- Number of M.2 (M) slots: 4
- PCI Express x16 (Gen 5.x) slots: 7
- Product color: Aluminum, Black
- Motherboard form factor: EEB
- Motherboard chipset family: AMD
- Audio chip: Realtek ALC1220P
- On-board graphics card: No
- USB 2.0 connectors: 2
- ATX Power connector (24-pin): Yes
- Chassis intrusion connector: Yes
- Number of chassis fan connectors: 5
- Number of COM connectors: 1
- TPM connector: Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Front panel audio connector: Yes
- USB 3.2 Gen 2x2 connectors: 1
- Memory channels: Octa-channel
- Supported memory types: DDR5-SDRAM
- ECC ?ompatibility: ECC
- Memory slots type: DIMM
- Number of memory slots: 8
- Ethernet LAN: Yes
- Wi-Fi: No
- Ethernet interface type: 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
- Package width: 14.8" (377 mm)
- Package height: 3.11" (79 mm)
- Package depth: 14.3" (362 mm)
- Package weight: 7.98 lbs (3.62 kg)
- USB connector type: USB Type-A, USB Type-C
- Motherboard chipset: AMD WRX90
- Compatible processor series: AMD Ryzen Threadripper PRO 7000 WX-Series
- Ethernet LAN (RJ-45) ports: 2
- USB 2.0 ports quantity: 1
- VGA (D-Sub) ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6
- USB4 Gen 3×2 ports quantity: 2
- Number of SATA III connectors: 4
- Mini DisplayPorts quantity: 2
- Processor manufacturer: AMD
- Processor socket: Socket sTR5
- Number of storage drives supported: 10
- RAID levels: 0, 1, 5, 10
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III, SlimSAS
- RAID support: Yes
- Number of HDDs supported: 4
- Windows operating systems supported: Windows 10 x64, Windows 11
- Weight: 7.34 lbs (3.33 kg)
- Width: 12" (305 mm)
- Height: 1.97" (50 mm)
- Depth: 13" (330 mm)
