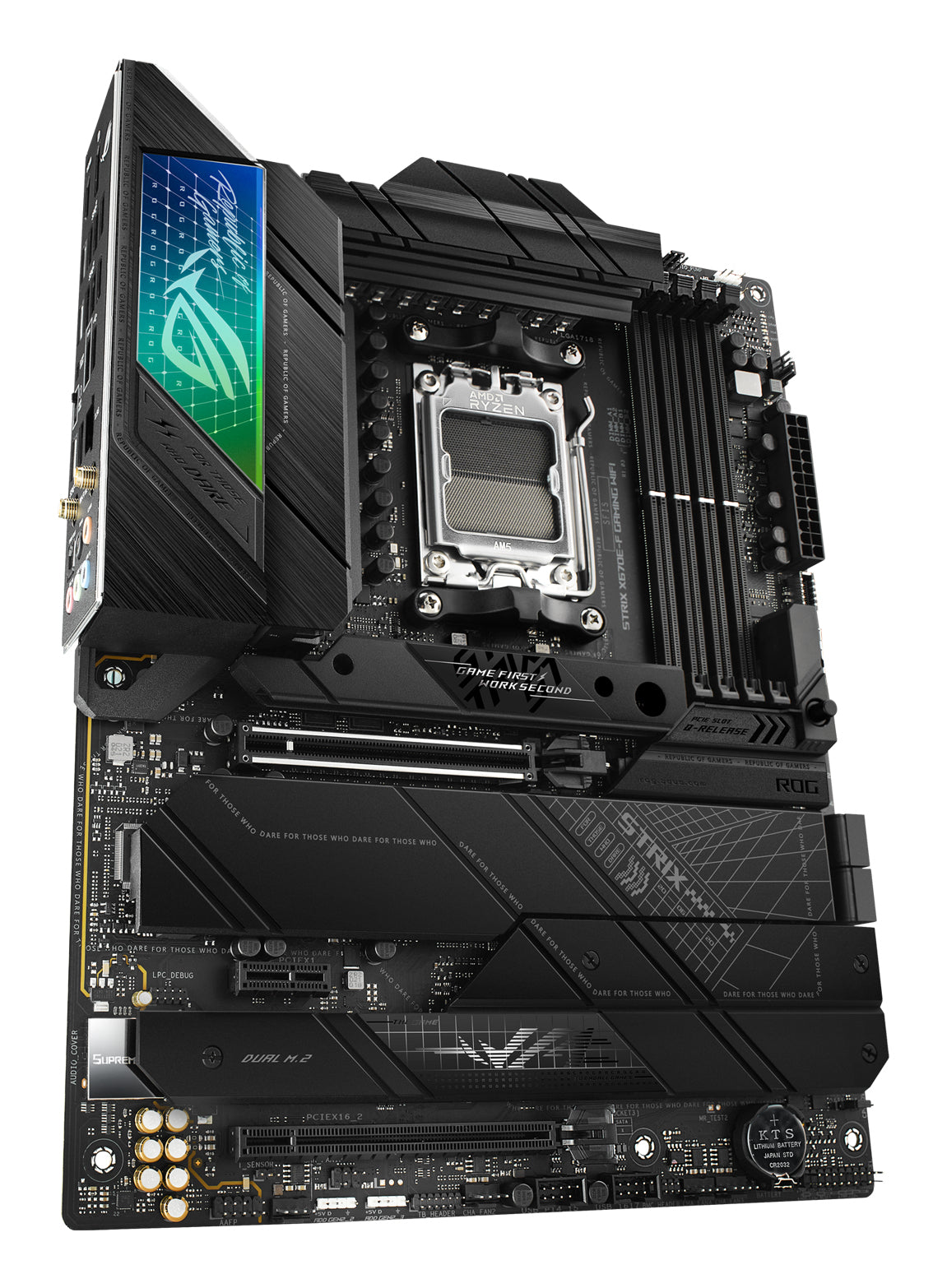

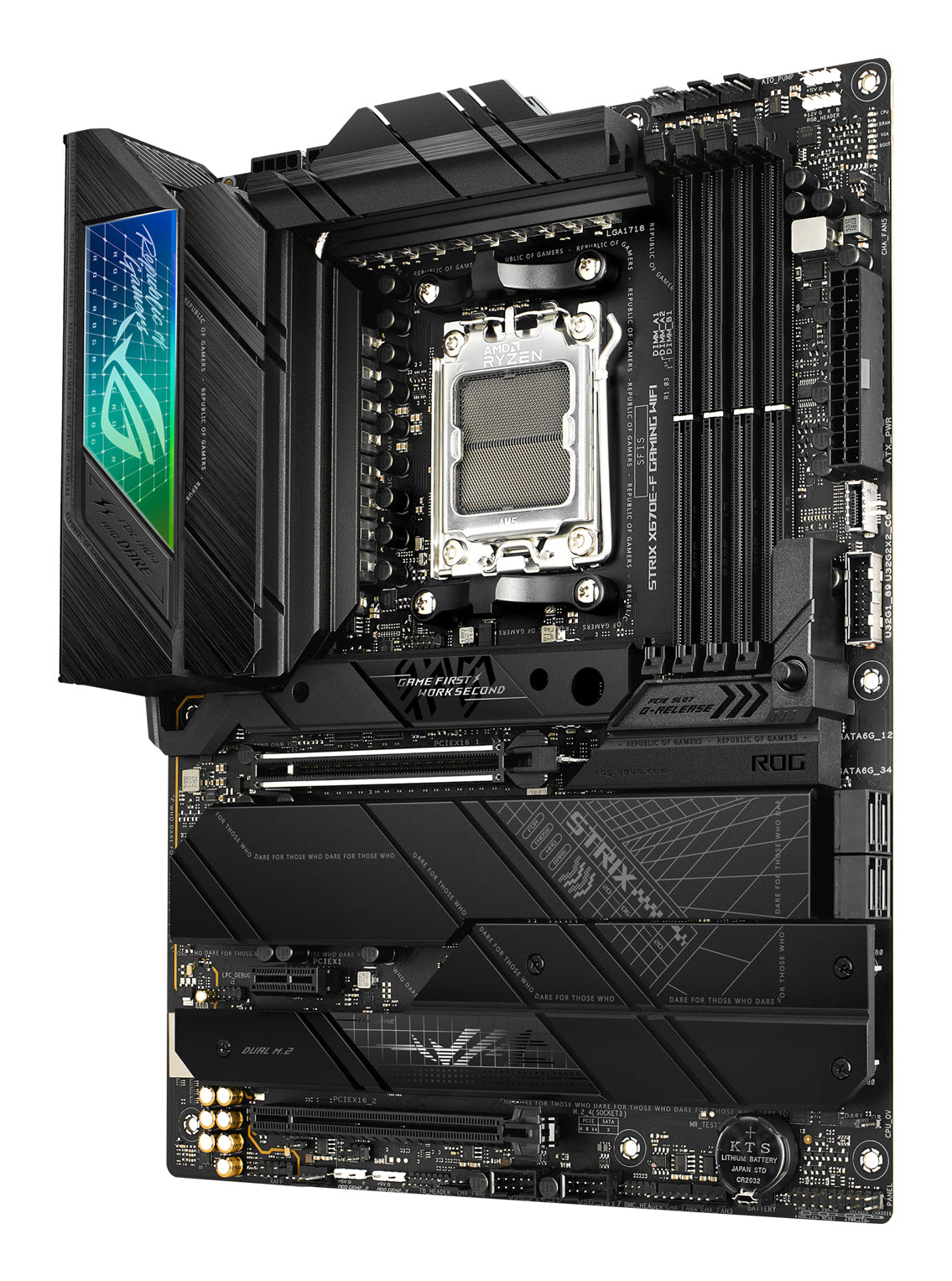

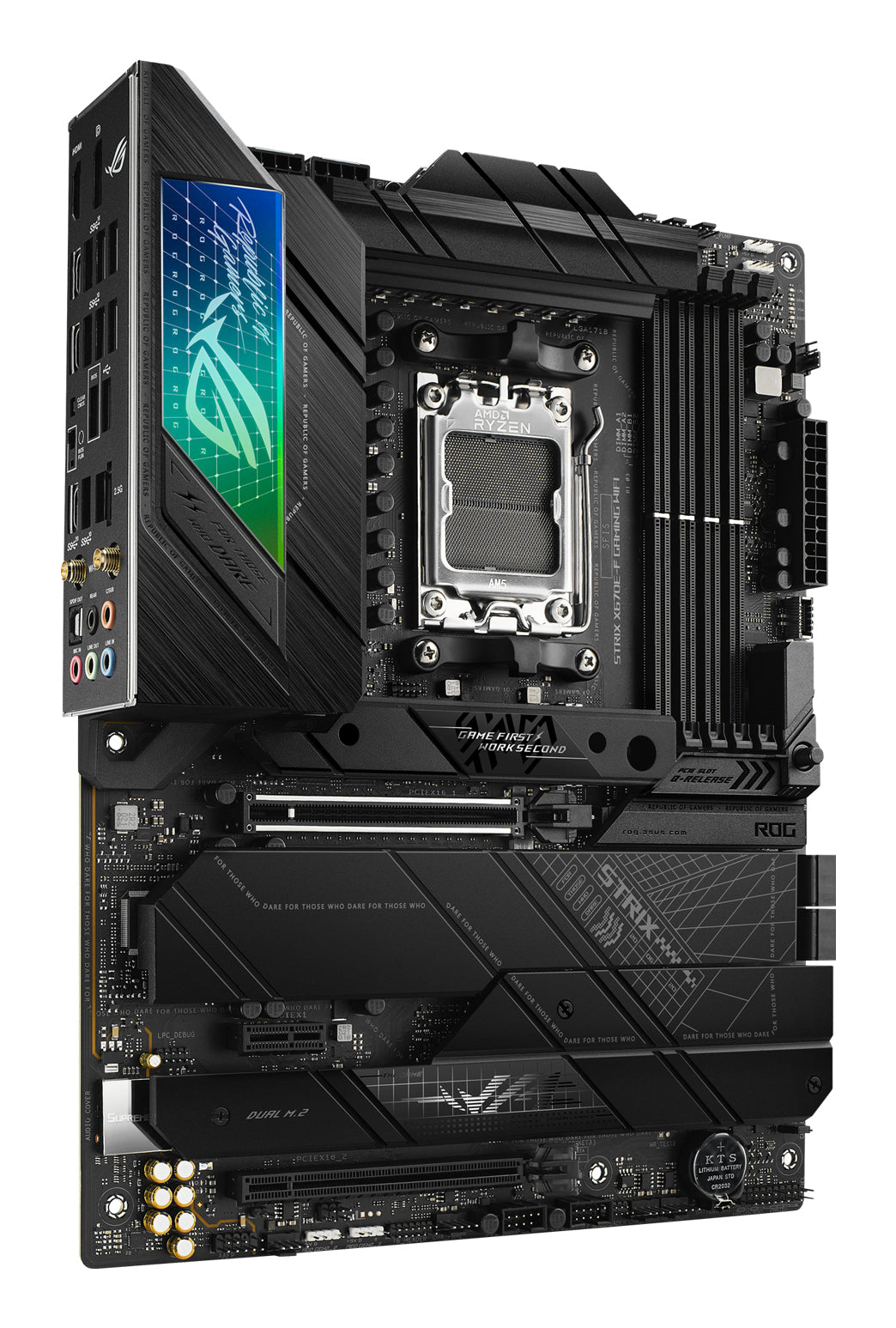

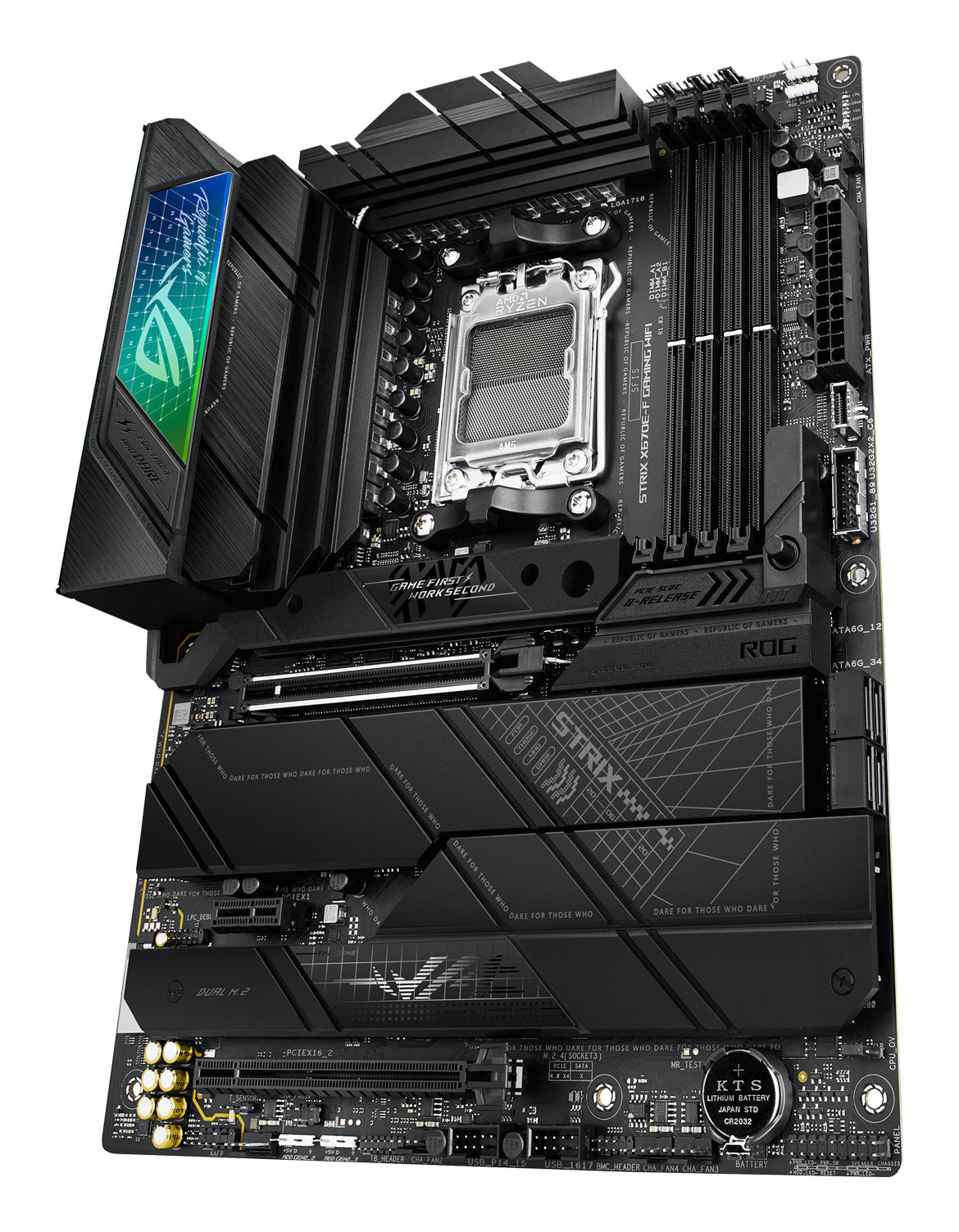

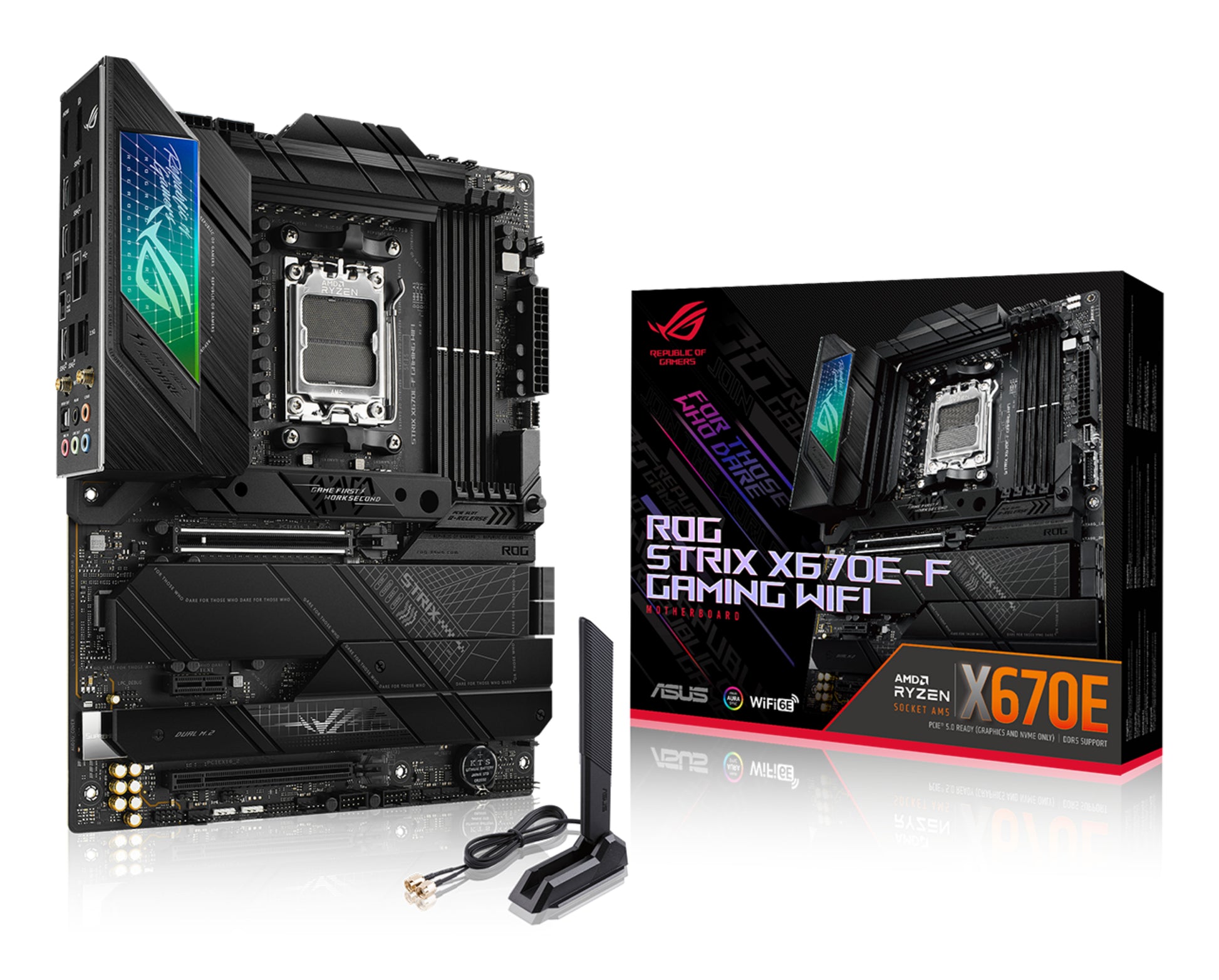

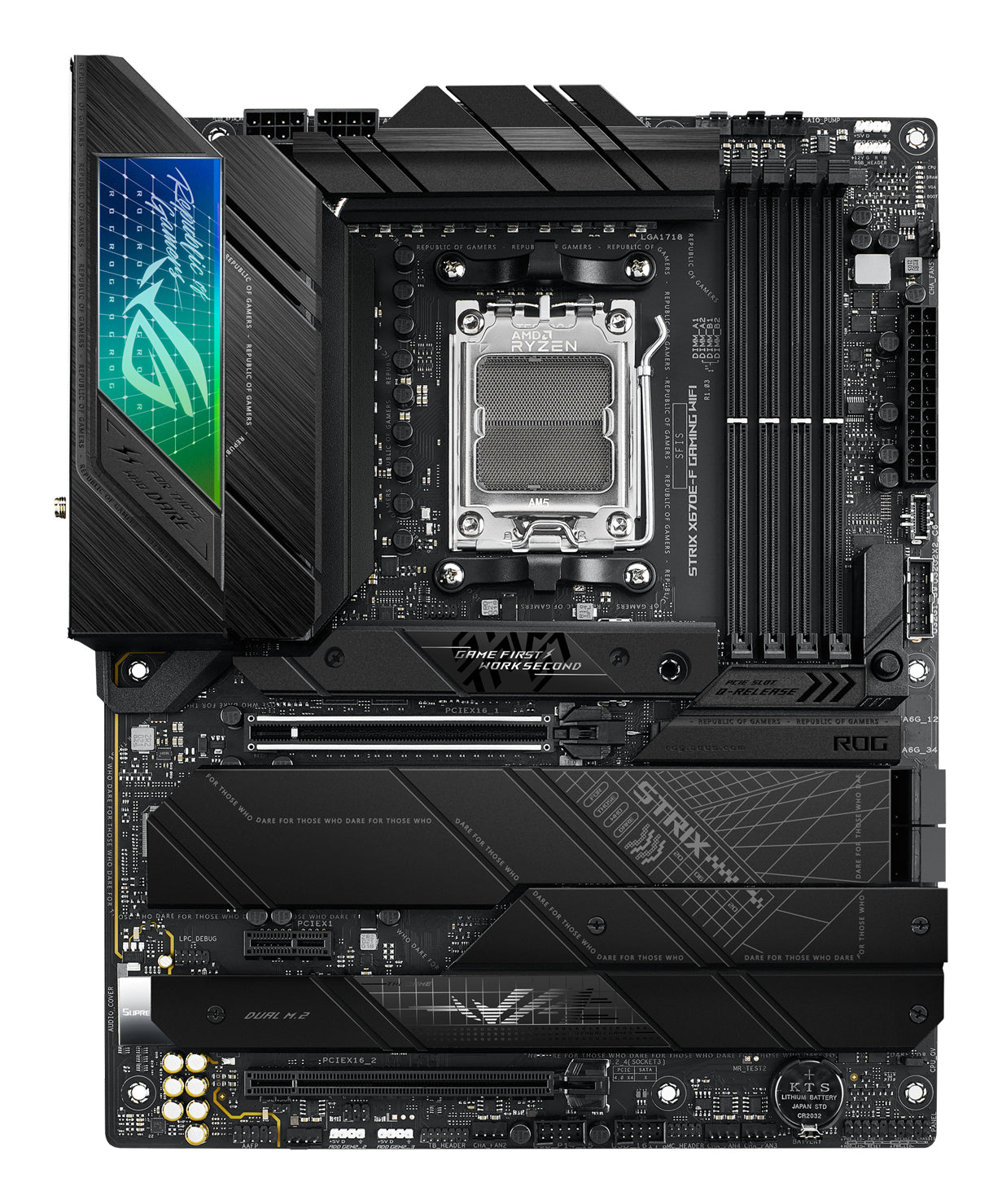

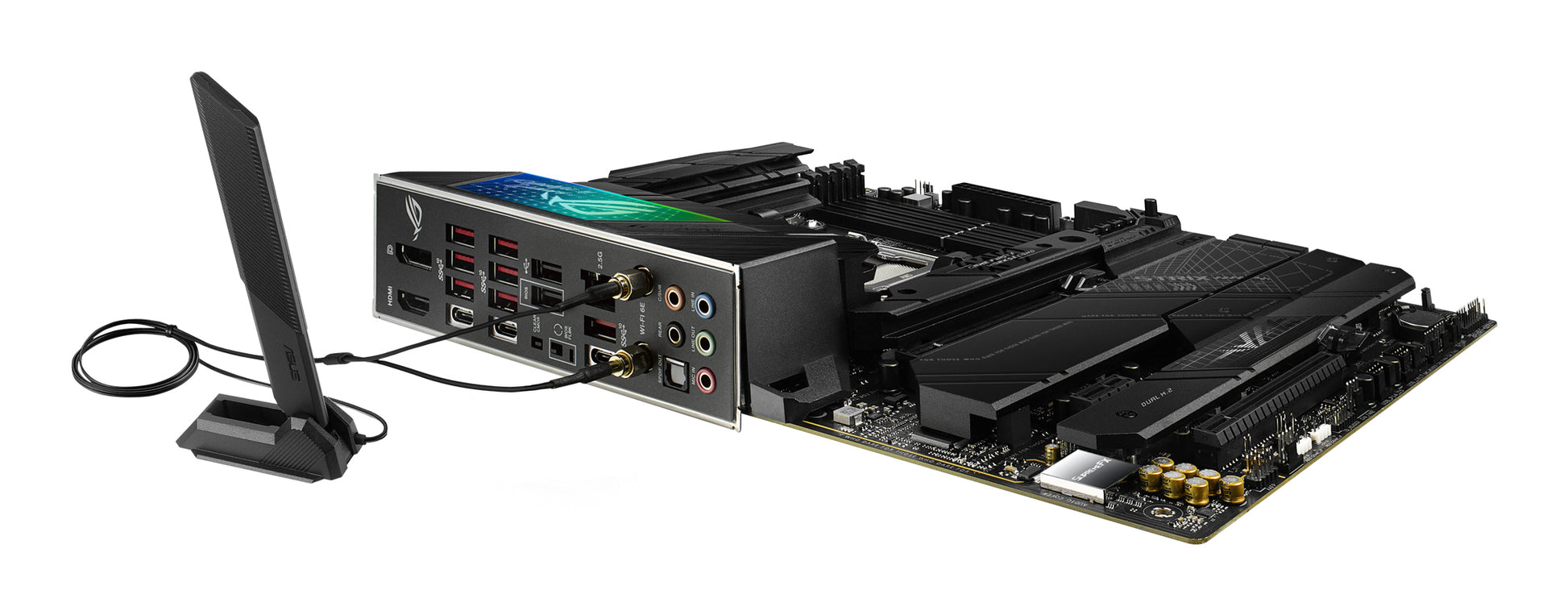

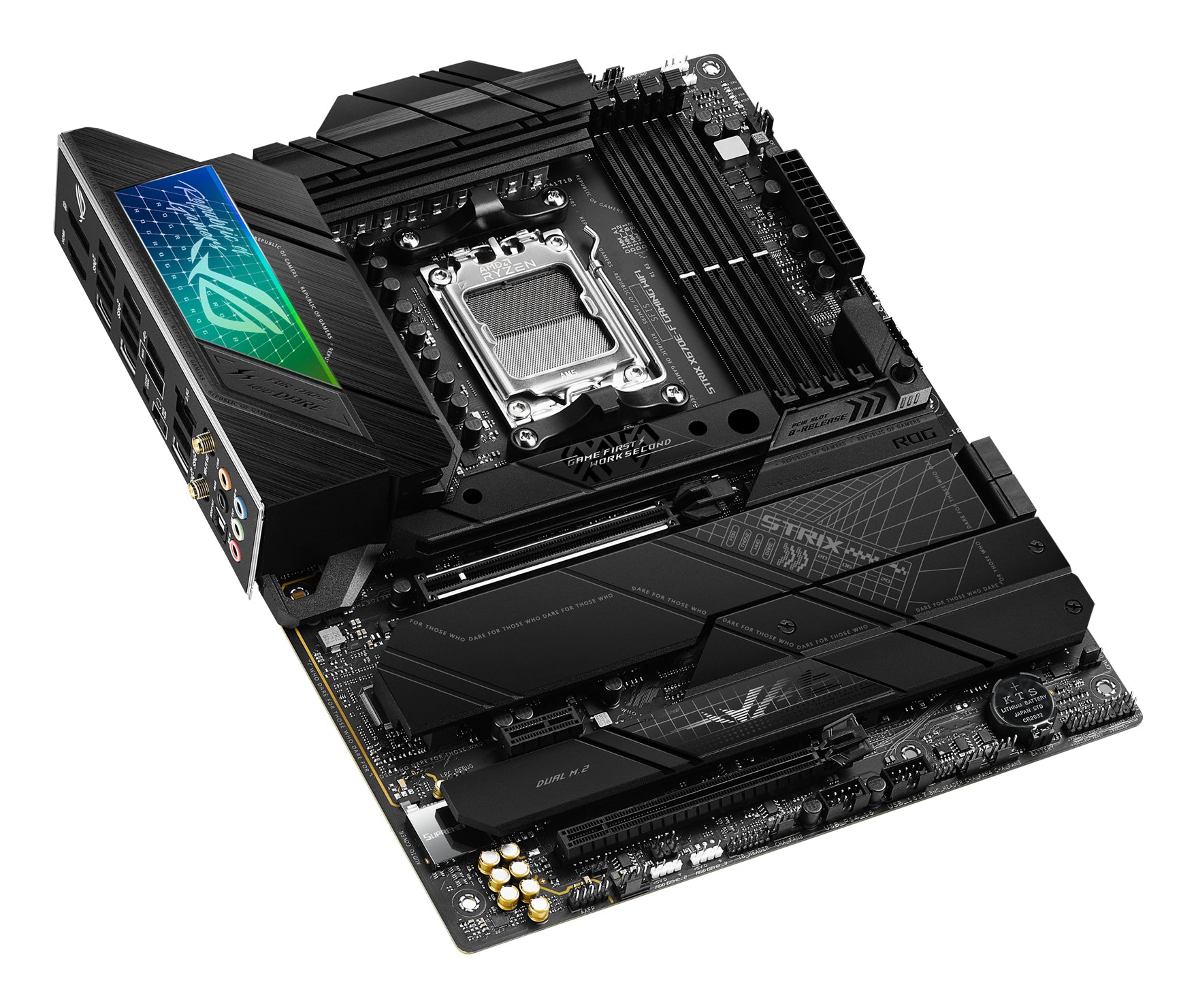

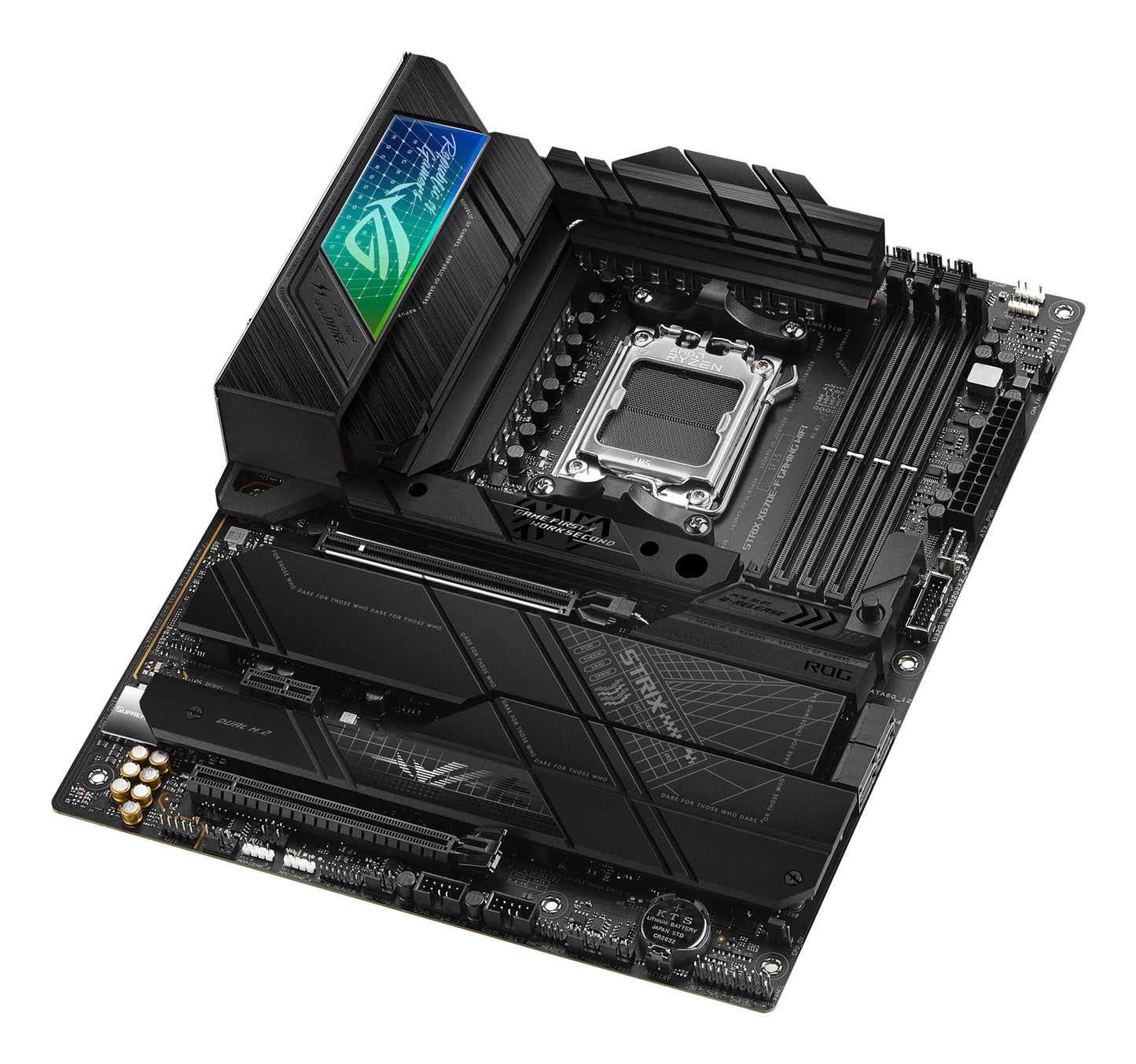

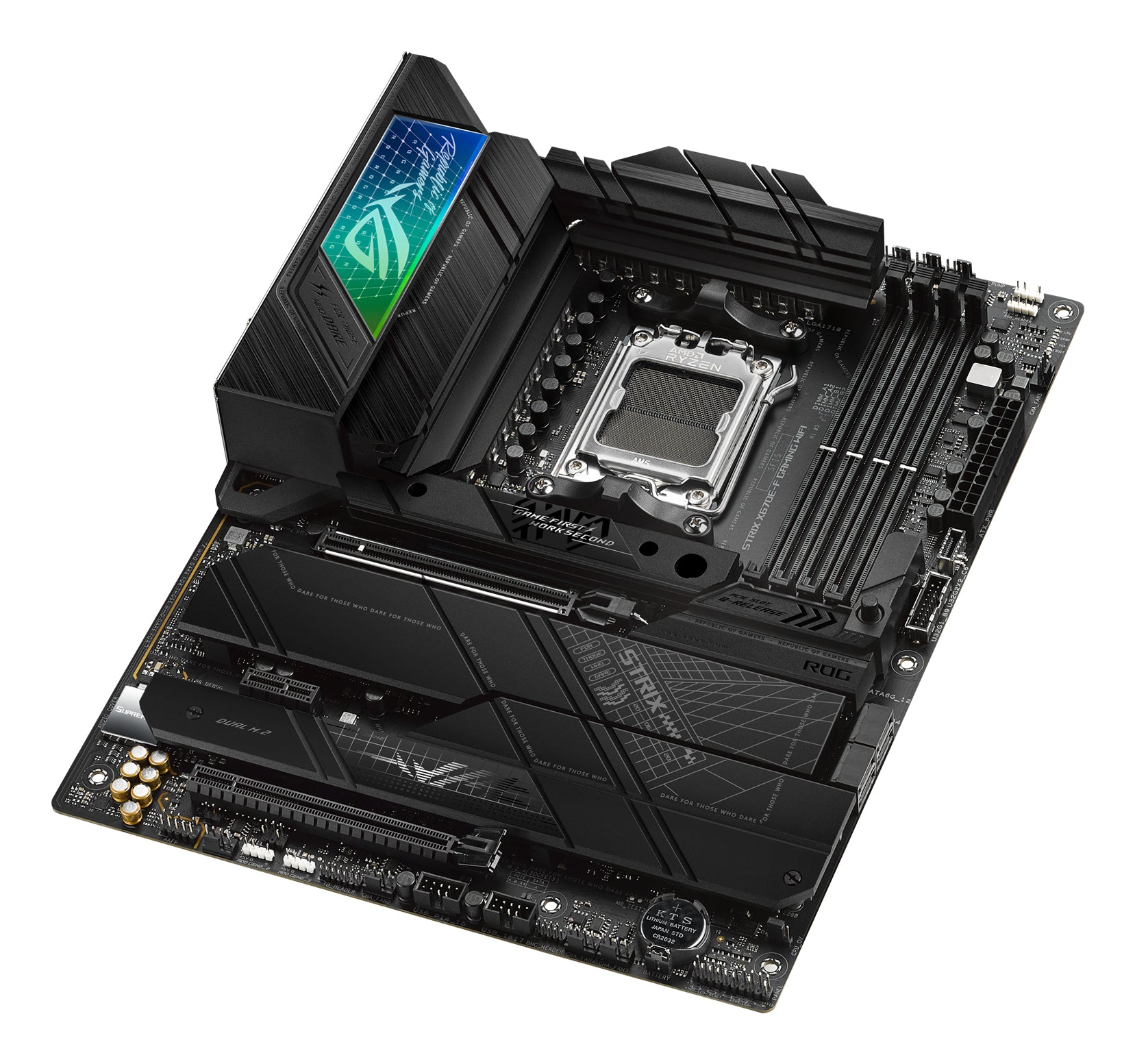

ASUS ROG STRIX X670E-F GAMING WIFI AMD X670 Socket AM5 ATX
ASUS ROG STRIX X670E-F GAMING WIFI AMD X670 Socket AM5 ATX
SKU: 90MB1BA0-M0EAY0
MSRP: $319.99
ASUS ROG STRIX X670E-F GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 7. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
Couldn't load pickup availability
- Details: ASUS ROG STRIX X670E-F GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 7. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
- Clear CMOS button: Yes
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- Component for: PC
- Cooling type: Active
- Number of M.2 (M) slots: 4
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- Motherboard form factor: ATX
- Motherboard chipset family: AMD
- Audio chip: Realtek ALC4080
- Parallel processing technology support: Not supported
- USB 2.0 connectors: 4
- ATX Power connector (24-pin): Yes
- Number of chassis fan connectors: 5
- CPU fan connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Front panel audio connector: Yes
- Thunderbolt headers: 1
- 12V power connector: Yes
- RGB LED pin header: Yes
- Maximum internal memory: 128 GB
- Memory channels: Dual-channel
- Supported memory types: DDR5-SDRAM
- ECC ?ompatibility: ECC & Non-ECC
- Supported memory clock speeds: 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
- Memory slots type: DIMM
- Number of memory slots: 4
- Unbuffered memory: Yes
- Ethernet LAN: Yes
- Wi-Fi: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
- Bluetooth: Yes
- Bluetooth version: 5.2
- Audio output channels: 7.1 channels
- Cables included: SATA
- Package width: 13.3" (338 mm)
- Package height: 26.8" (680 mm)
- Package depth: 10.7" (273 mm)
- Package weight: 5.62 lbs (2.55 kg)
- Motherboard chipset: AMD X670
- Compatible processor series: AMD Ryzen™ 7

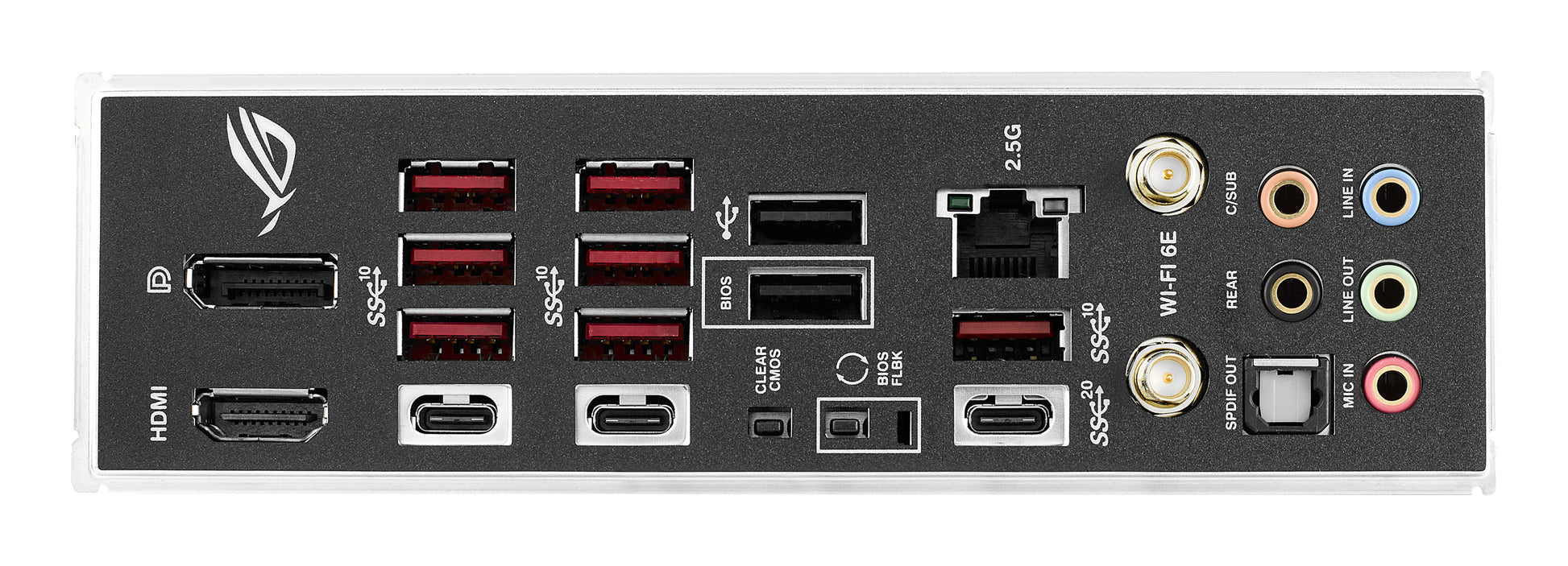

- Ethernet LAN (RJ-45) ports: 1
- USB 2.0 ports quantity: 2
- HDMI ports quantity: 1
- HDMI version: 2.1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 7
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
- Headphone outputs: 1
- USB 3.2 Gen 2x2 Type-C ports quantity: 1
- DisplayPorts quantity: 1
- Microphone in: Yes
- Line-in: Yes
- DisplayPort version: 1.4
- S/PDIF out port: Yes
- Number of SATA III connectors: 4
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Digital audio optical out: 1
- RAID levels: 0, 1, 10
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- RAID support: Yes
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- Width: 12" (305 mm)
- Depth: 9.61" (244 mm)
