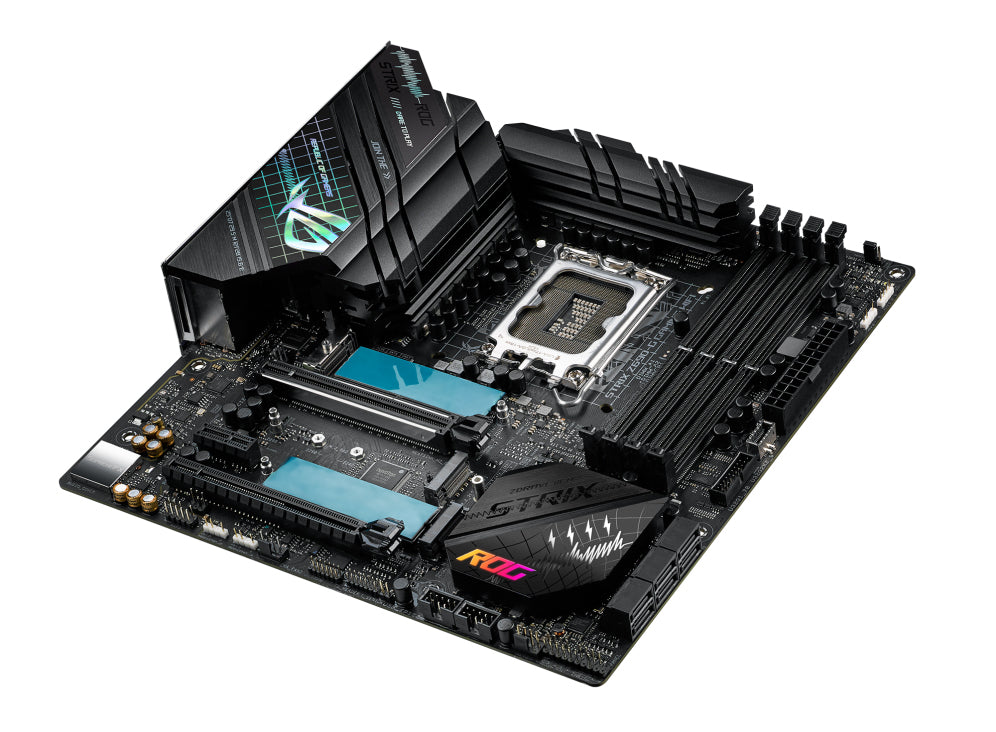

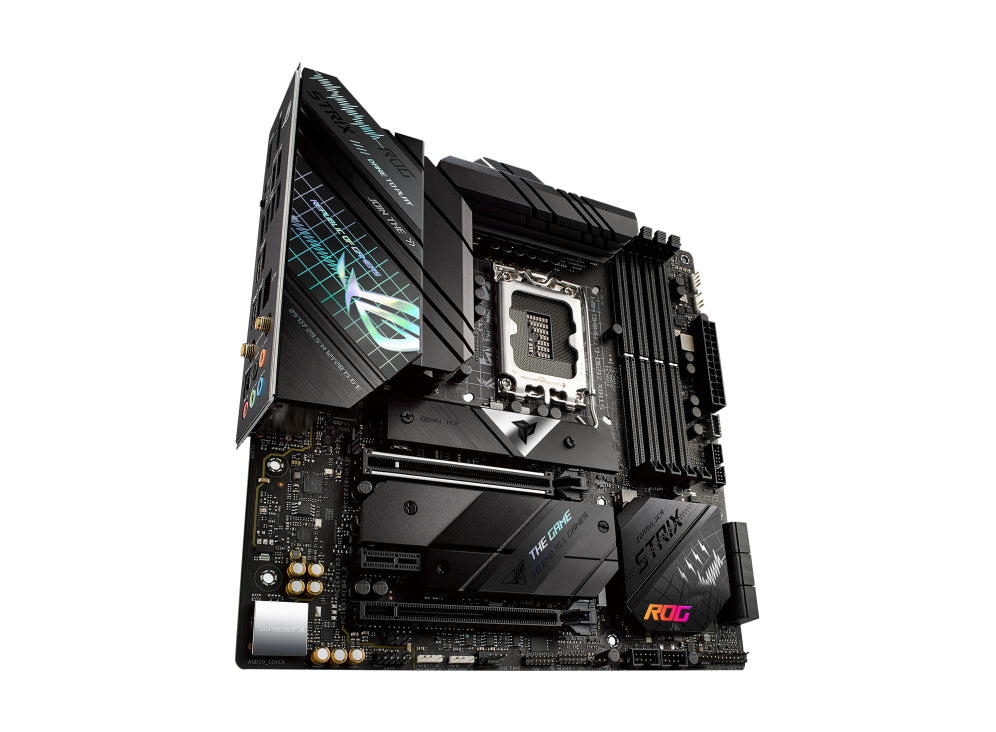

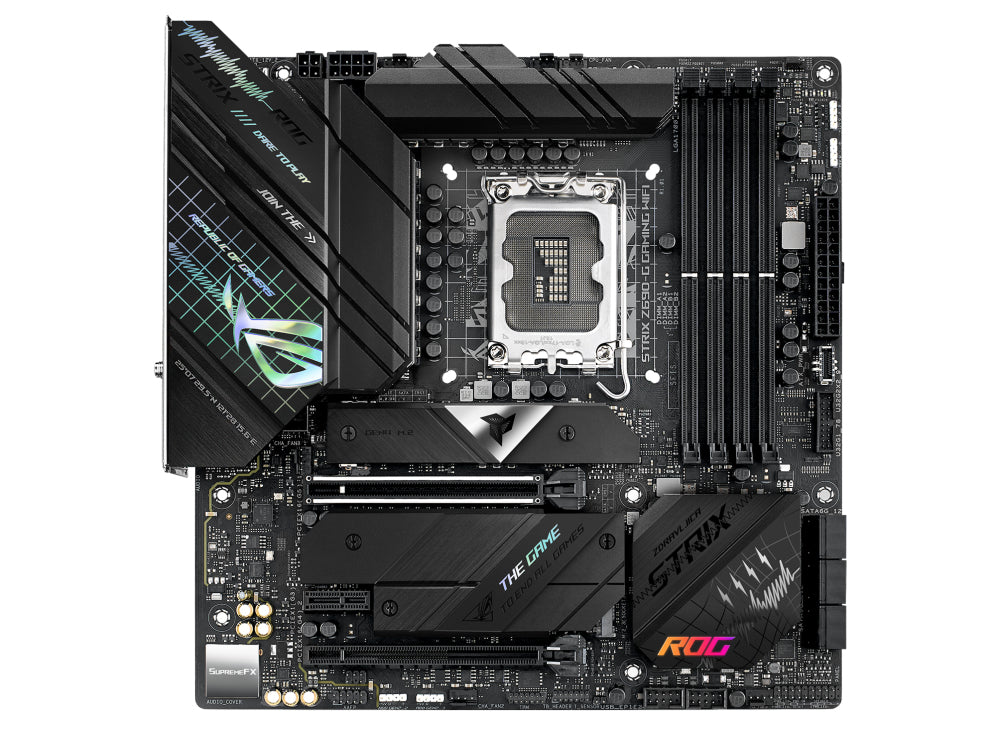

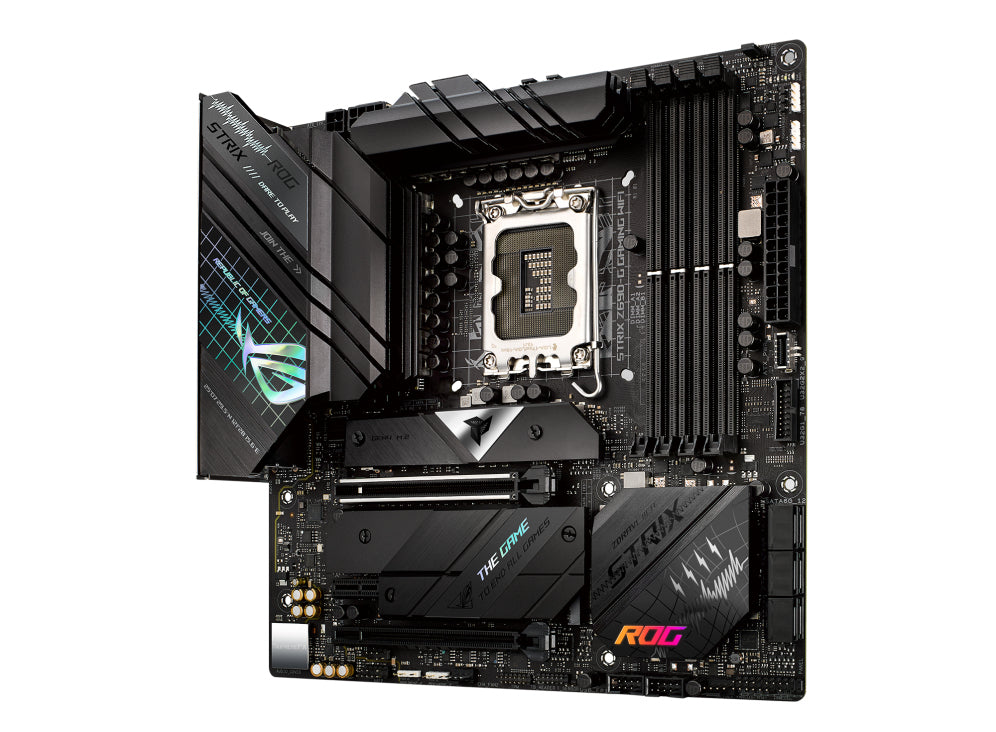

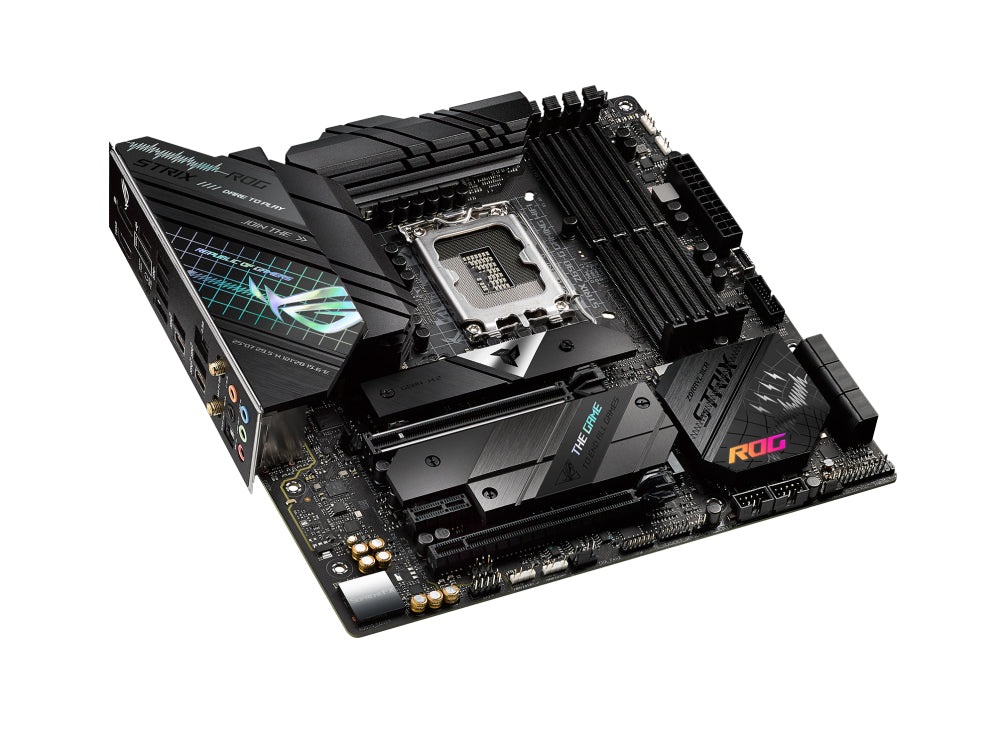

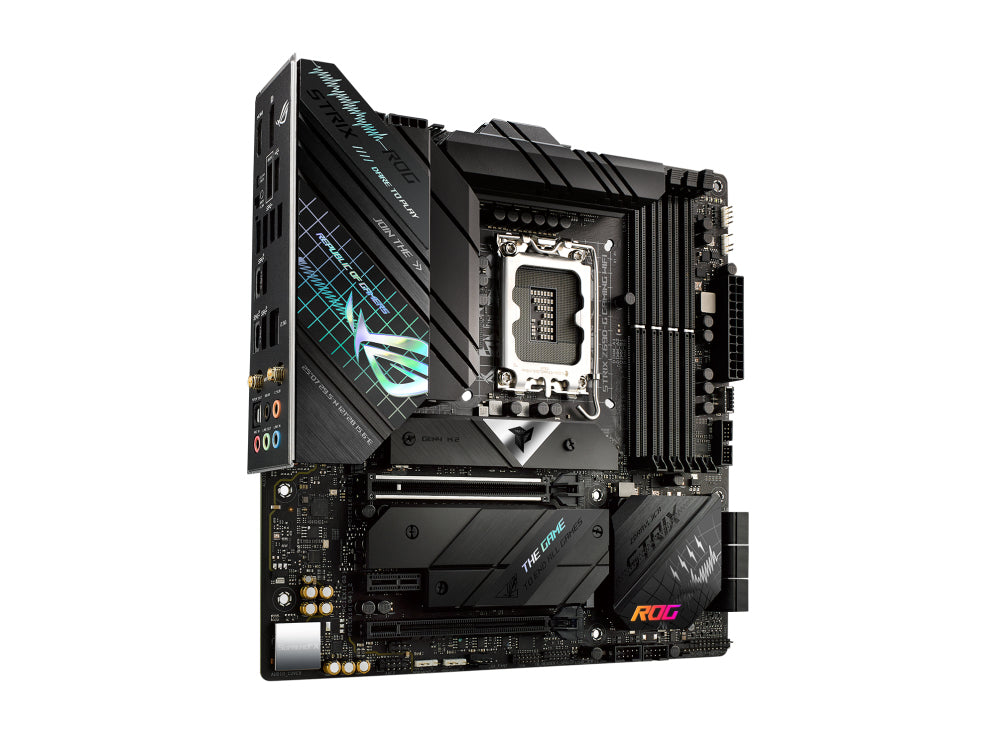

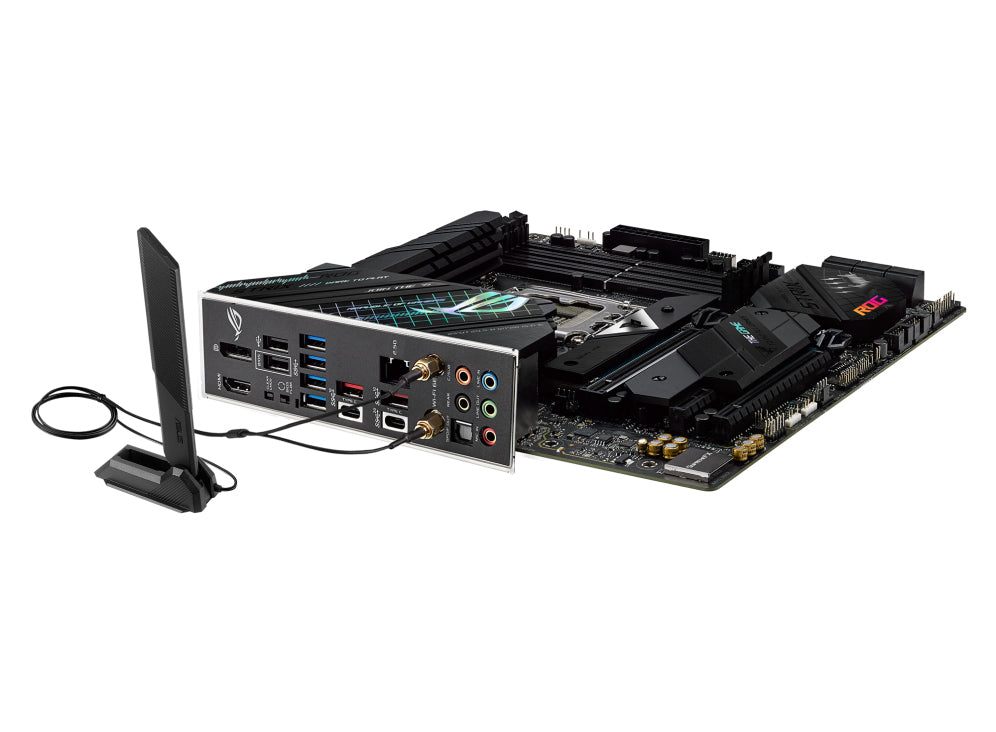

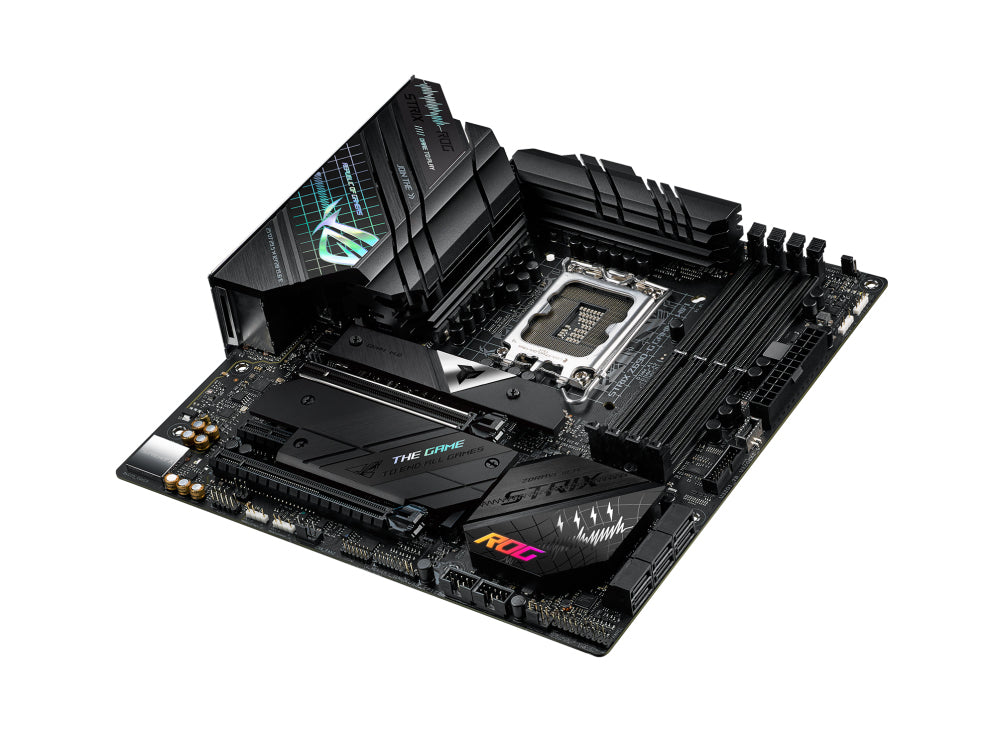

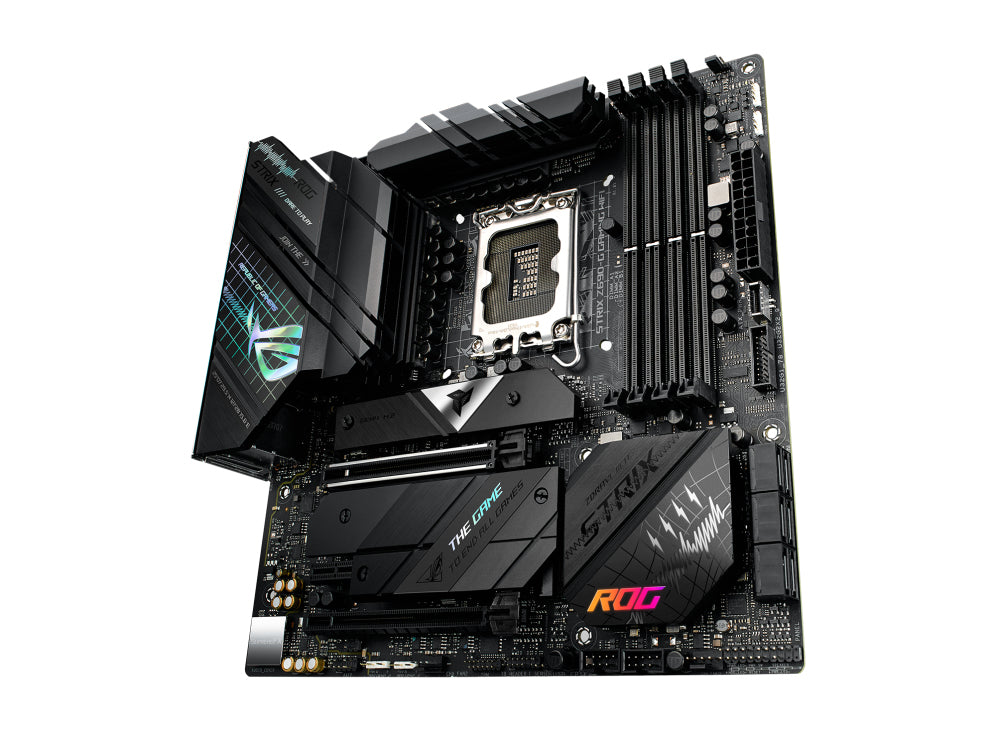

ASUS ROG STRIX Z690-G GAMING WIFI Intel Z690 LGA 1700 micro ATX
ASUS ROG STRIX Z690-G GAMING WIFI Intel Z690 LGA 1700 micro ATX
SKU: 90MB19G0-M0UAY0
Regular price
$299.99 USD
Regular price
Sale price
$299.99 USD
MSRP: $299.99
ASUS ROG STRIX Z690-G GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Quantity
Couldn't load pickup availability
- Details: ASUS ROG STRIX Z690-G GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
- Info: Intel® LGA 1700 socket: Ready for 12th Gen Intel Core™, Pentium® Gold and Celeron® Processors|Optimal Power Solution: 14+1 DrMos with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors|Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, three onboard M.2 heatsinks, and M.2 backplates for two M.2 slots|High-performance Networking: On-board Intel® WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard|Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, three M.2 slots, as well as USB 3.2 Gen 2x2 Type-C®|Intelligent Control: ASUS-exclusive AI Overclocking and Two-Way AI Noise Cancelation to simplify setup and improve performance|DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ button, and Clr CMOS button|Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including a RGB header and three addressable Gen 2 headers|Industry-leading Gaming Audio: High fidelity audio with ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III|Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- Component for: PC
- Number of M.2 (M) slots: 3
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- Motherboard form factor: micro ATX
- Motherboard chipset family: Intel
- Audio chip: Realtek ALC4080
- Parallel processing technology support: Not supported
- USB 2.0 connectors: 2
- ATX Power connector (24-pin): Yes
- Power fan connector: Yes
- Number of chassis fan connectors: 3
- TPM connector: Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Peripheral (Molex) power connectors (4-pin): 1
- Front panel audio connector: Yes
- Thunderbolt headers: 1
- 12V power connector: Yes
- RGB LED pin header: Yes
- Maximum internal memory: 128 GB
- Memory channels: Dual-channel
- Supported memory types: DDR5-SDRAM
- ECC ?ompatibility: Non-ECC
- Supported memory clock speeds: 4800,5000,5200,5400,5600,5800,6000 MHz
- Memory slots type: DIMM
- Number of memory slots: 4
- Unbuffered memory: Yes
- Ethernet LAN: Yes
- Wi-Fi: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
- Bluetooth: Yes
- Bluetooth version: 5.2
- Packaging content: 4 x SATA 6Gb/s cables
- 1 x ASUS Wi-Fi moving antennas
- 1 x Cable ties pack
- 1 x M.2 Rubber Package
- 1 x M.2 Q-Latch package
- 1 x M.2 Q-Latch package for M.2 backplate
- 1 x ROG key chain
- 1 x ROG Strix stickers
- 1 x ROG Strix thank you card
- 1 x Support DVD
- 1 x User manual
- Audio output channels: 7.1 channels
- Cables included: SATA
- Motherboard chipset: Intel Z690
- Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G
- Ethernet LAN (RJ-45) ports: 1
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- HDMI ports quantity: 1
- HDMI version: 2.1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- Headphone outputs: 1
- USB 3.2 Gen 2x2 Type-C ports quantity: 1
- DisplayPorts quantity: 1
- Microphone in: Yes
- DisplayPort version: 1.4
- S/PDIF out port: Yes
- Number of SATA III connectors: 6
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Drivers included: Yes
- RAID levels: 0, 1, 5, 10
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA
- RAID support: Yes
- Windows operating systems supported: Windows 10, Windows 11
- Width: 9.61" (244 mm)
- Height: 9.61" (244 mm)
