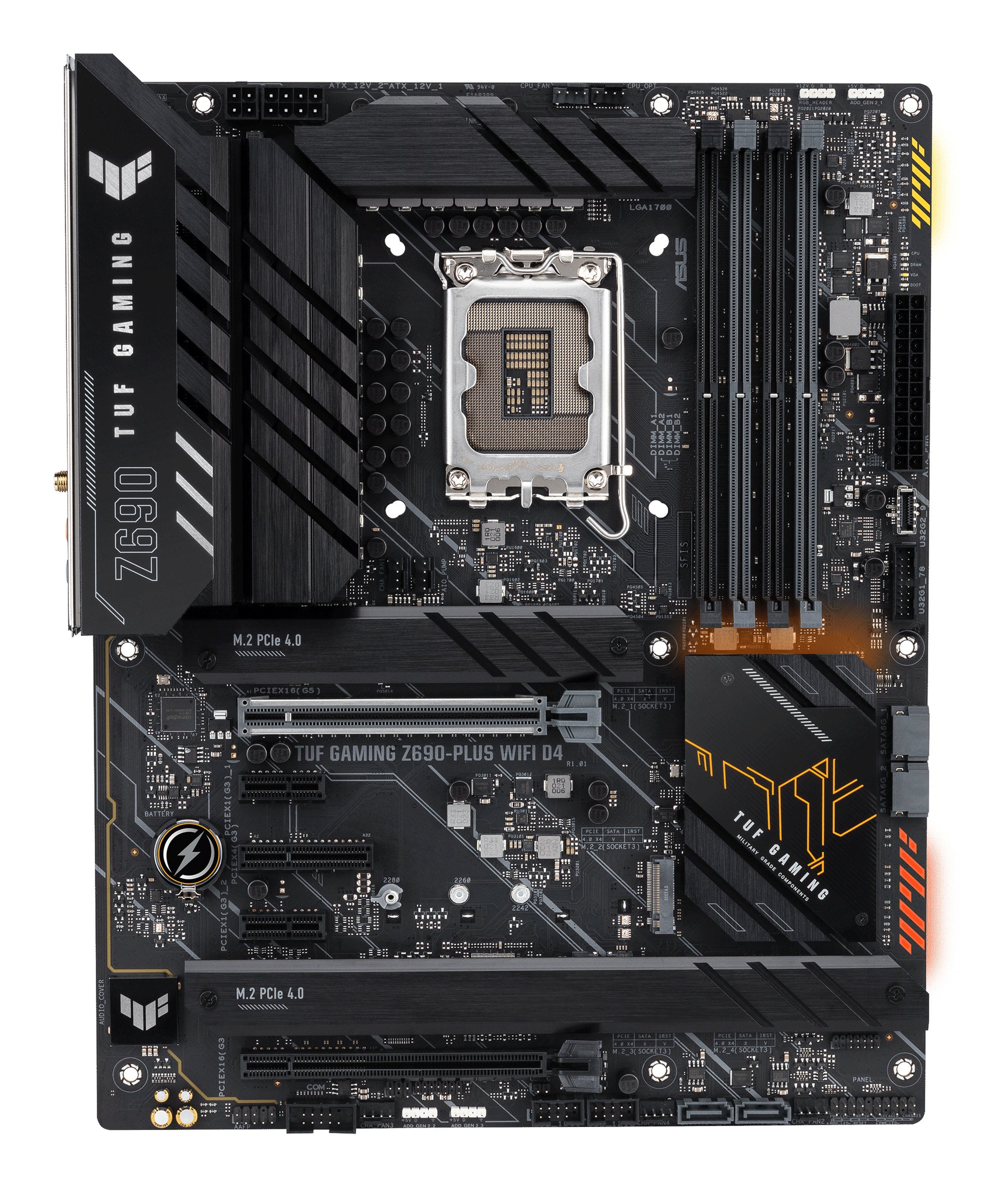

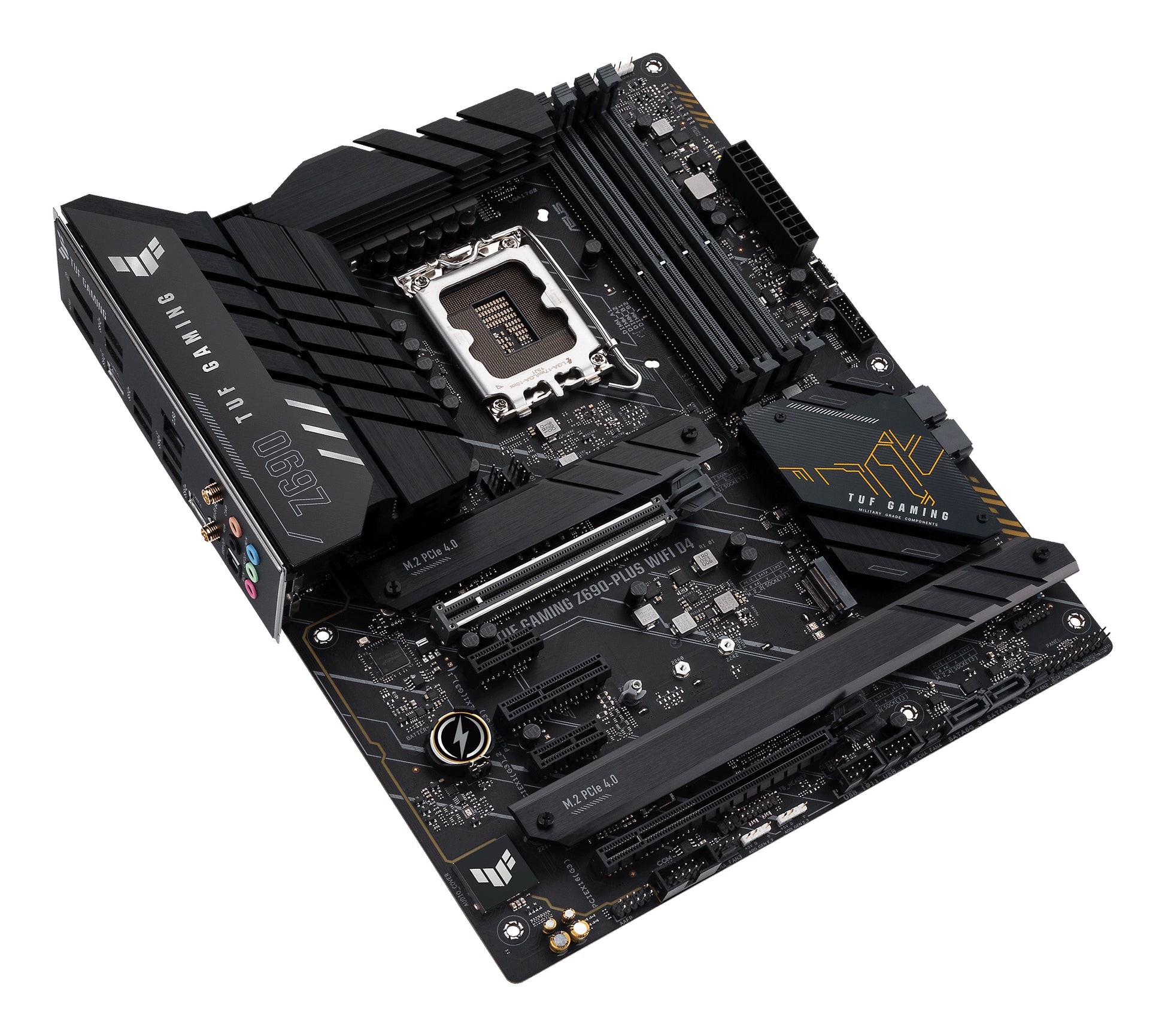

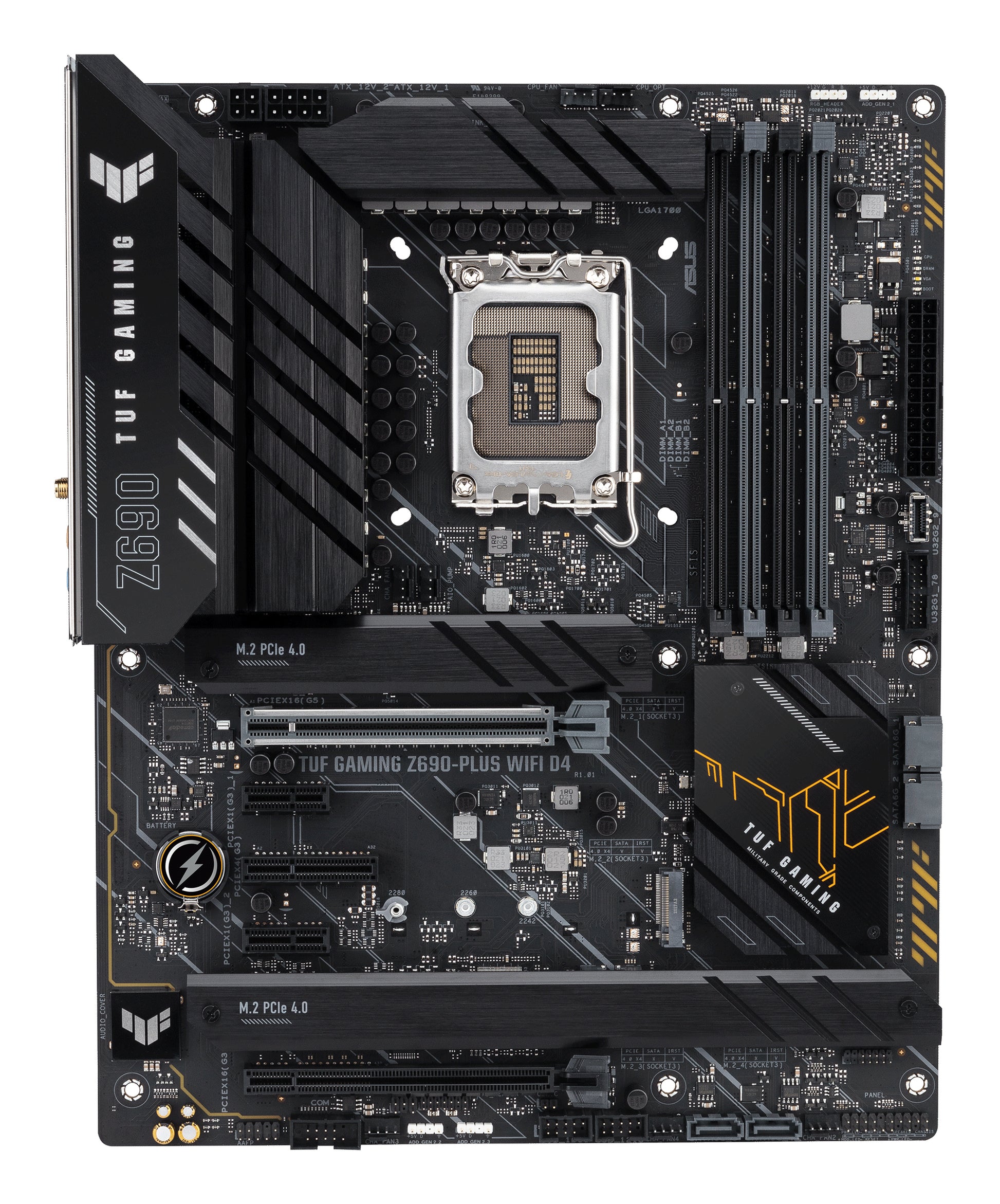

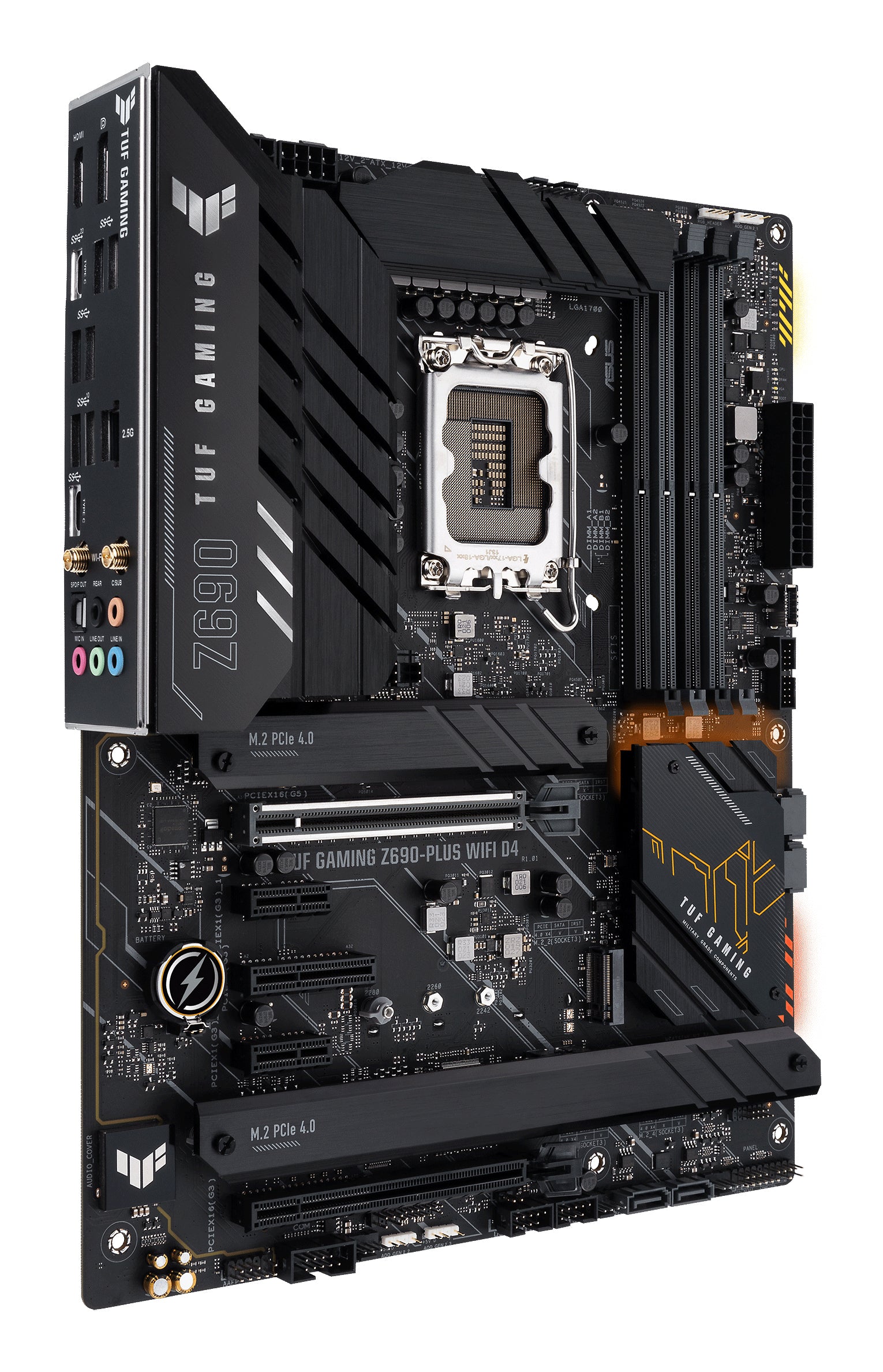

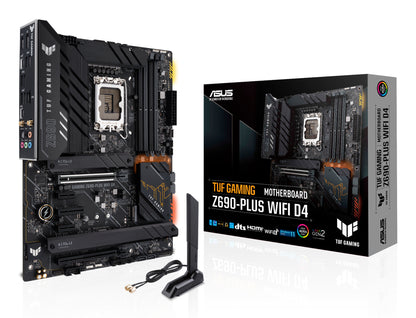

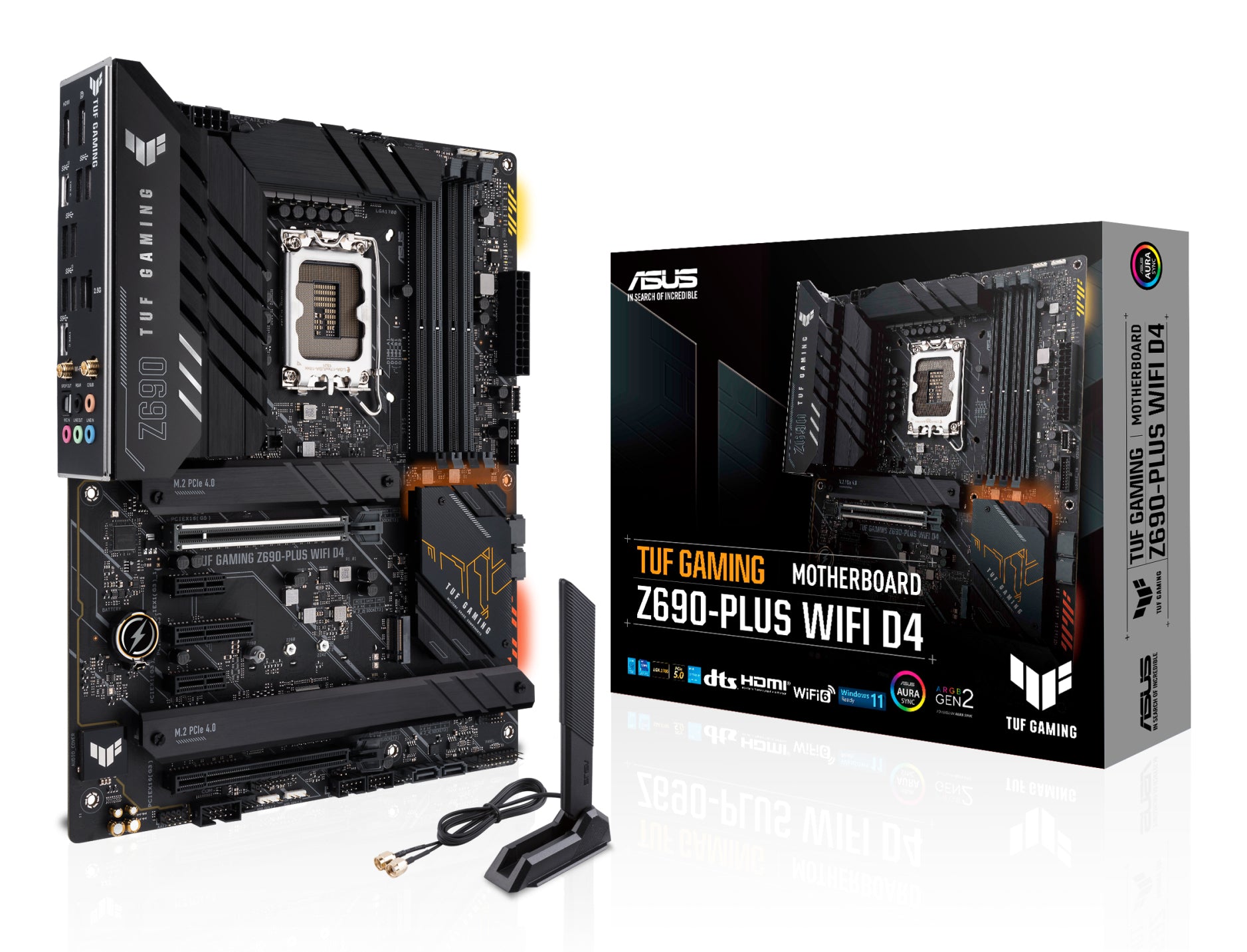

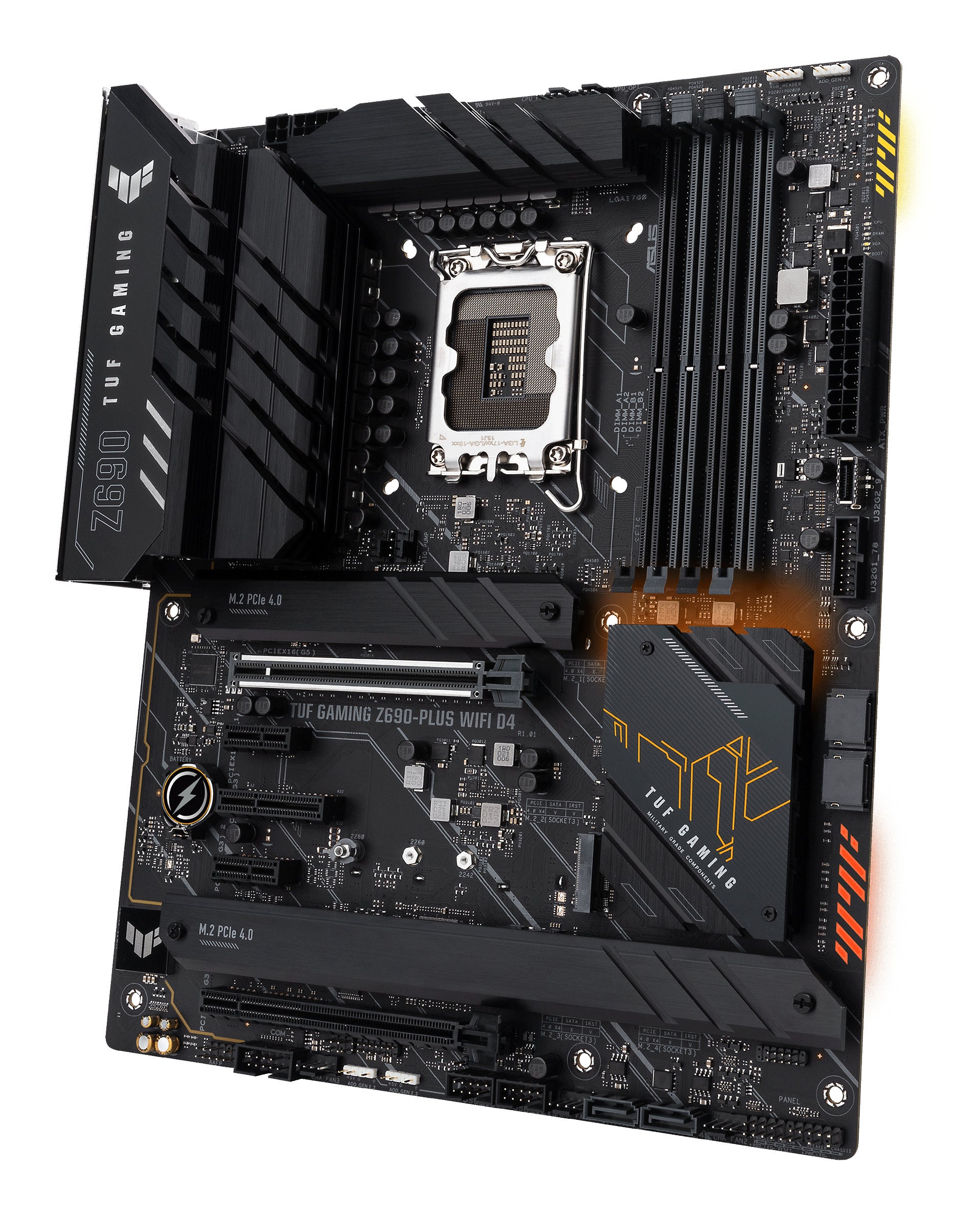

ASUS TUF GAMING Z690-PLUS WIFI D4 Intel Z690 LGA 1700 ATX
ASUS TUF GAMING Z690-PLUS WIFI D4 Intel Z690 LGA 1700 ATX
SKU: 90MB18V0-M0EAY0
Regular price
$259.99 USD
Regular price
Sale price
$259.99 USD
MSRP: $259.99
ASUS TUF GAMING Z690-PLUS WIFI D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
Quantity
Couldn't load pickup availability
- Details: ASUS TUF GAMING Z690-PLUS WIFI D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
- Info: Intel® LGA 1700 socket: Ready for 12th Gen Intel Core™ processors|Enhanced power solution: 14+1 DrMOS, six-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power delivery|Next-gen connectivity: PCIe® 5.0, USB 3.2 Gen2x2 Type-C®, front USB 3.2 Gen 2 Type-C, Thunderbolt™ 4 header support|Made for online gaming: WiFi 6, Intel 2.5 Gb Ethernet and TUF LANGuard|Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences|Comprehensive cooling: Enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility in Armoury Crate|Outshine RGB Aura Effect: Stylish edge and PCH lighting design, addressable RGB headers and RGB strip header support
- BIOS type: UEFI AMI
- BIOS memory size: 192 Mbit
- Component for: PC
- PCI Express x4 slots: 1
- PCI Express x16 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 4
- PCI Express x1 (Gen 3.x) slots: 2
- Product color: Black
- Motherboard form factor: ATX
- Motherboard chipset family: Intel
- On-board graphics card: No
- Parallel processing technology support: Not supported
- USB 2.0 connectors: 2
- ATX Power connector (24-pin): Yes
- Power fan connector: Yes
- Number of chassis fan connectors: 4
- Number of COM connectors: 1
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Peripheral (Molex) power connectors (4-pin): 1
- Front panel audio connector: Yes
- Thunderbolt headers: 1
- 12V power connector: Yes
- RGB LED pin header: Yes
- Harmonized System (HS) code: 84733020
- Maximum internal memory: 128 GB
- Memory channels: Dual-channel
- Supported memory types: DDR4-SDRAM
- ECC ?ompatibility: Non-ECC
- Supported memory clock speeds: 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800,5000,5133,5333 MHz
- Memory slots type: DIMM
- Number of memory slots: 4
- Unbuffered memory: Yes
- Ethernet LAN: Yes
- Wi-Fi: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
- Bluetooth: Yes
- Bluetooth version: 5.2

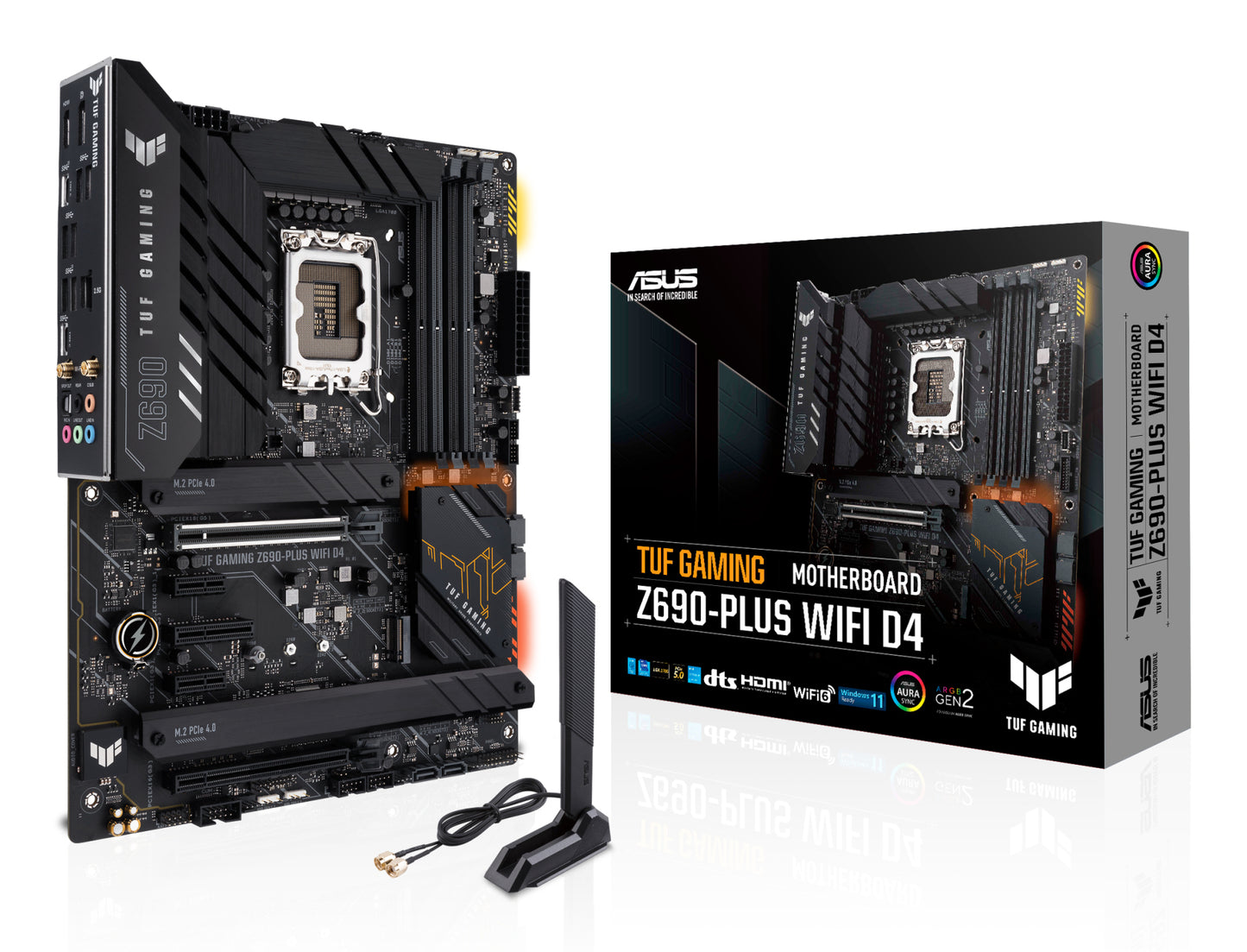

- Packaging content: 2 x SATA 6Gb/s cables

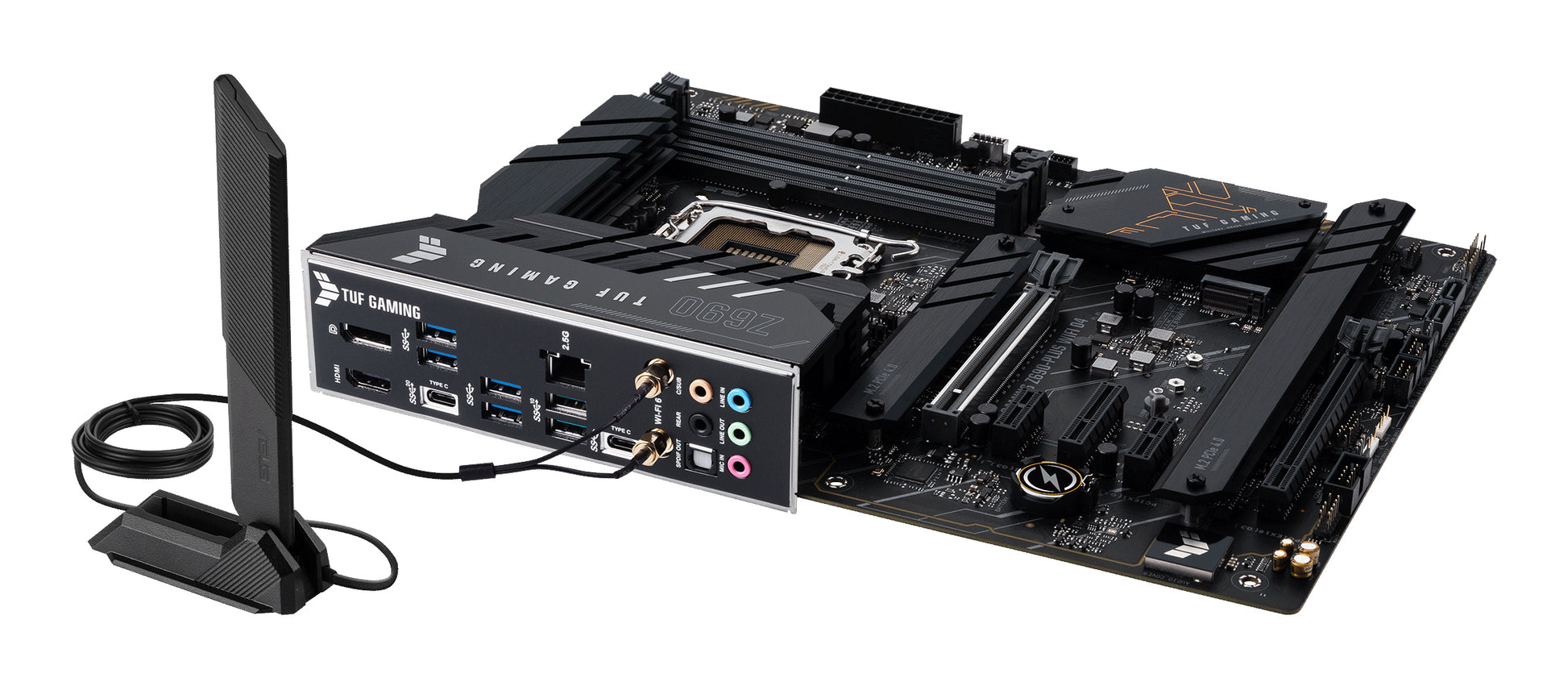

- 1 x ASUS Wi-Fi moving antenna
- 2 x M.2 Rubber Packages
- 1 x M.2 SSD screw package
- 1 x TUF GAMING sticker
- 1 x Support DVD
- 1 x TUF Certification card
- 1 x User guide
- Audio output channels: 7.1 channels
- Cables included: SATA
- Motherboard chipset: Intel Z690
- Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G

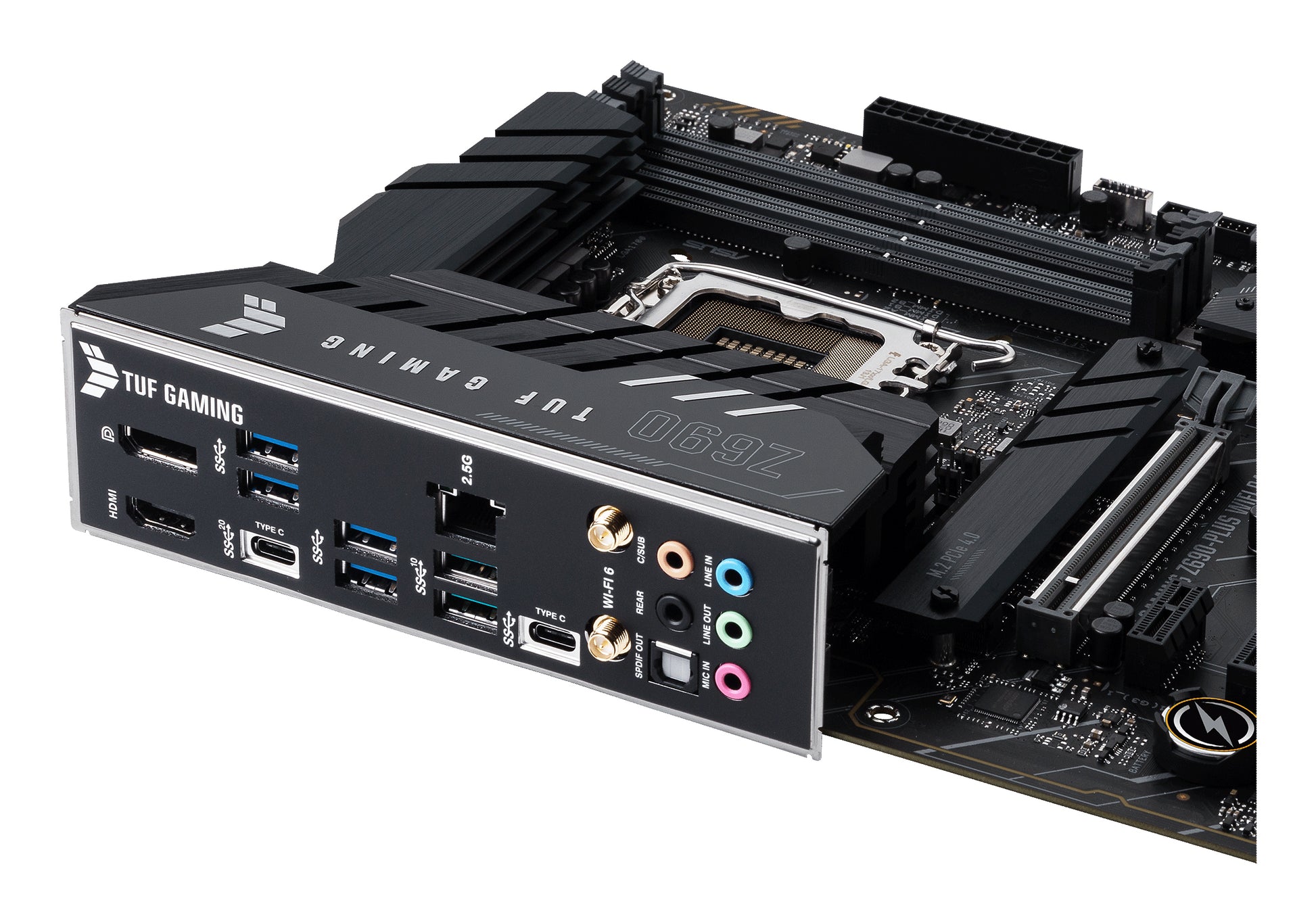

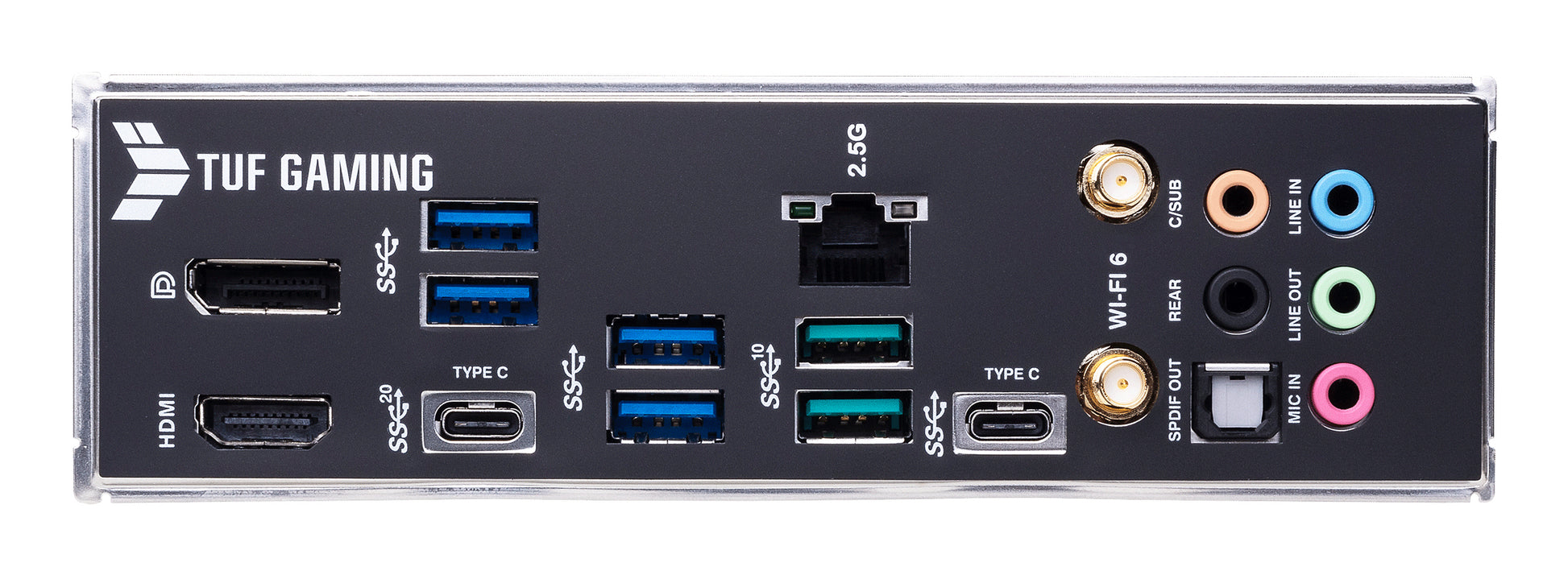

- Ethernet LAN (RJ-45) ports: 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- Headphone outputs: 1
- USB 3.2 Gen 2x2 Type-C ports quantity: 1
- DisplayPorts quantity: 1
- Microphone in: Yes
- DisplayPort version: 1.4
- S/PDIF out port: Yes
- Number of SATA III connectors: 4
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Drivers included: Yes
- RAID levels: 0, 1, 5, 10
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA
- RAID support: Yes
- Windows operating systems supported: Windows 10, Windows 11
- Weight: 2.91 lbs (1.32 kg)
- Width: 12" (305 mm)
- Depth: 9.61" (244 mm)
