• ATEN 4-Port 4K Input Board
  • ATEN 4-Port 4K Input Board
1 2

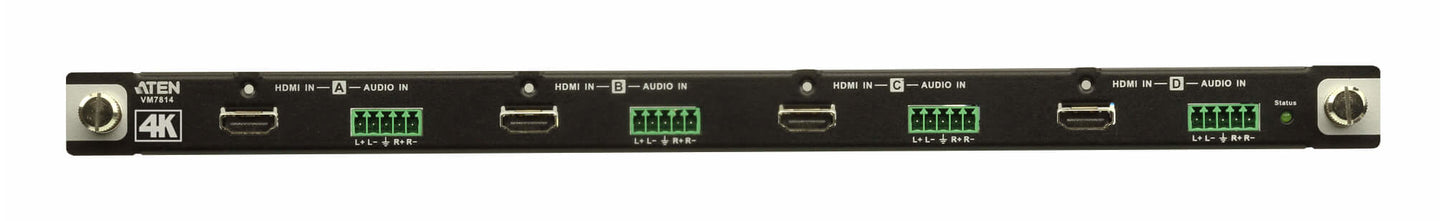

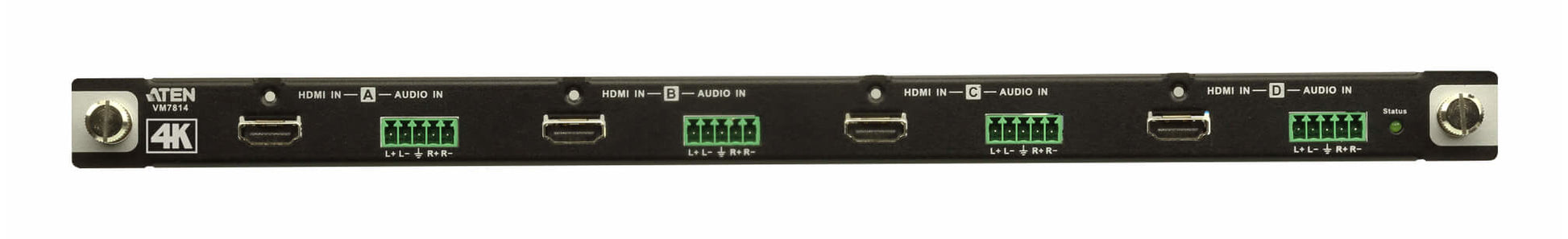

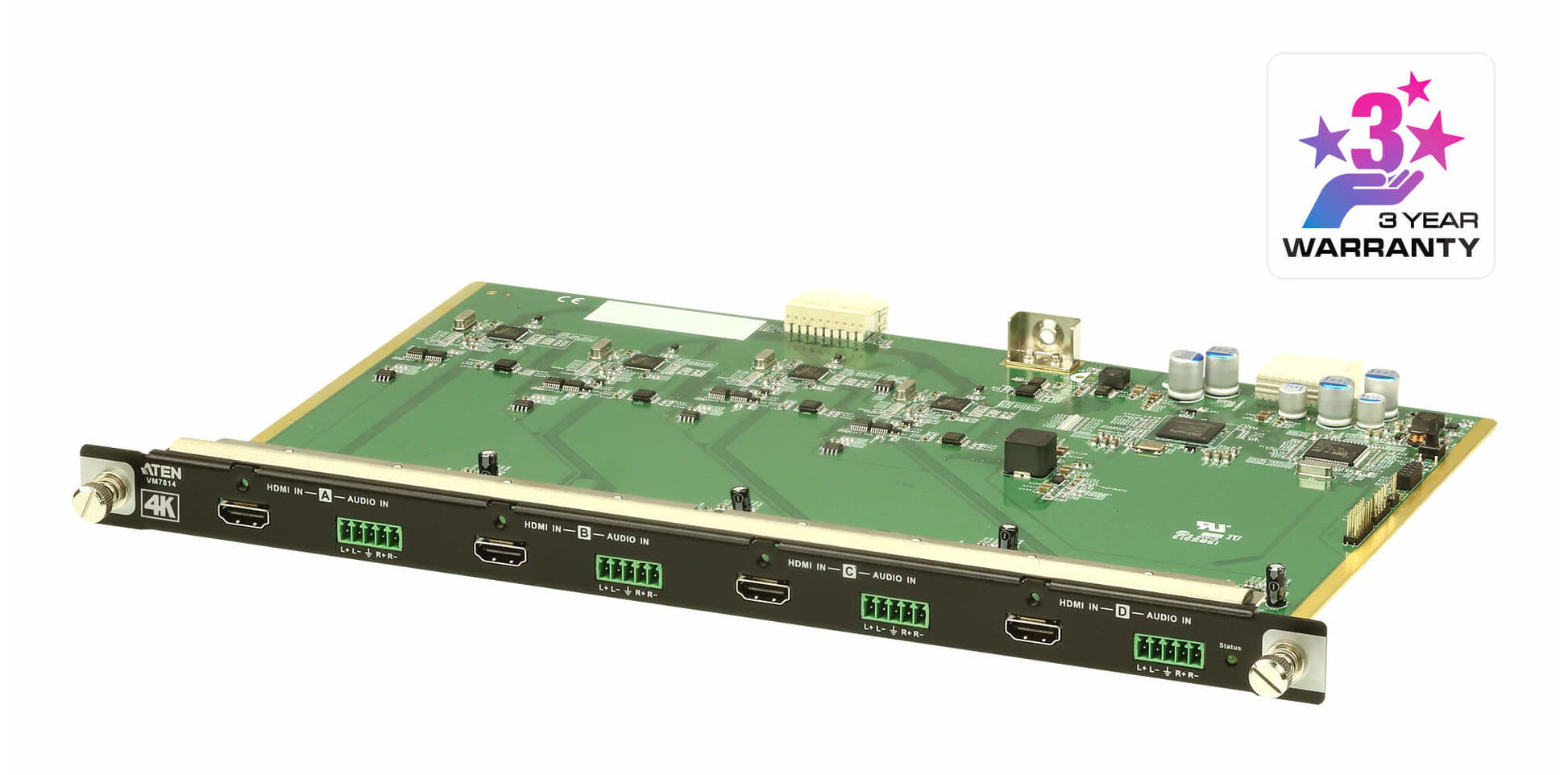

ATEN 4-Port 4K Input Board

ATEN 4-Port 4K Input Board

VM7814

$1,144.25 USD
$1,144.25 USD
Sale Sold out

MSRP: $1,646.00

ATEN VM7814. Product type: Input board, Product color: Black, Green, Material: Metal. Power consumption (typical): 4.45 W. Width: 9.37" (238 mm), Depth: 13.9" (352 mm), Height: 9.17" (233 mm)
View full details
    • Details: ATEN VM7814. Product type: Input board, Product color: Black, Green, Material: Metal. Power consumption (typical): 4.45 W. Width: 9.37" (238 mm), Depth: 13.9" (352 mm), Height: 9.17" (233 mm)
    • PDF: http://objects.icecat.biz/objects/mmo_107346405_1739734087_3915_2643064.pdf
    • Info: 4-port 4K HDMI Input Board that is compatible with the VM1600/VM3200 and can be mixed with modular I/O boards of any type for optimum flexibility|Superior video quality – HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080); 4K2K@60 (4:2:0)|Audio-enabled, stereo audio can be embedded|EDID Expert – selects optimum EDID settings for smooth power-up and the highest quality display|HDMI (3D, Deep Color); HDCP 2.2 Compatible|Cable Quality Tester – examines the HDMI cable quality|Consumer Electronics Control (CEC) support
    • Product color: Black, Green
    • Product type: Input board
    • Operating temperature (T-T): 0 - 40 °C
    • Storage temperature (T-T): -20 - 60 °C
    • Operating relative humidity (H-H): 0 - 80%
    • HDMI ports quantity: 4
    • Power consumption (typical): 4.45 W
    • Material: Metal
    • Weight: 19.8 oz (560 g)
    • Width: 9.37" (238 mm)
    • Height: 9.17" (233 mm)
    • Depth: 13.9" (352 mm)
