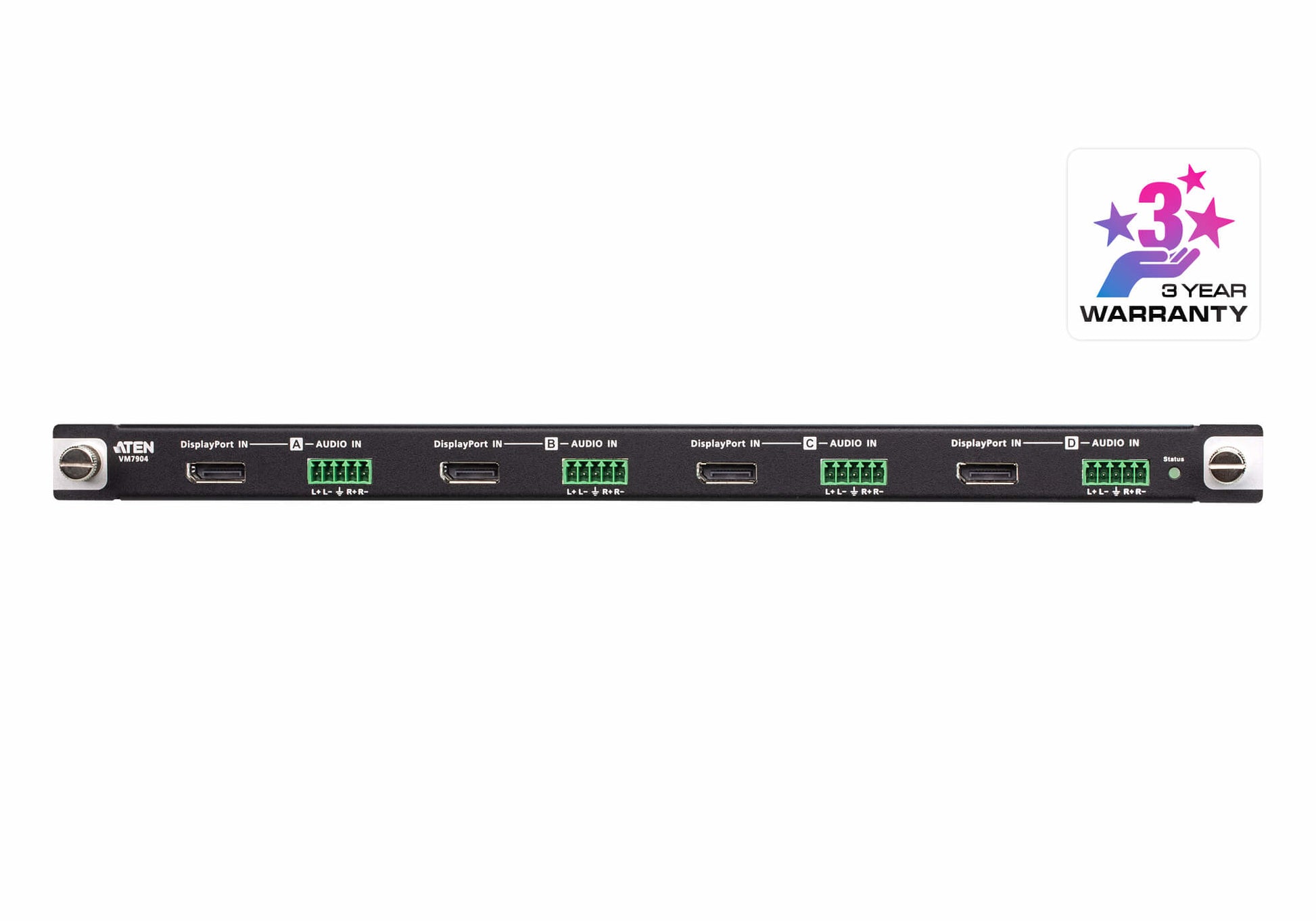

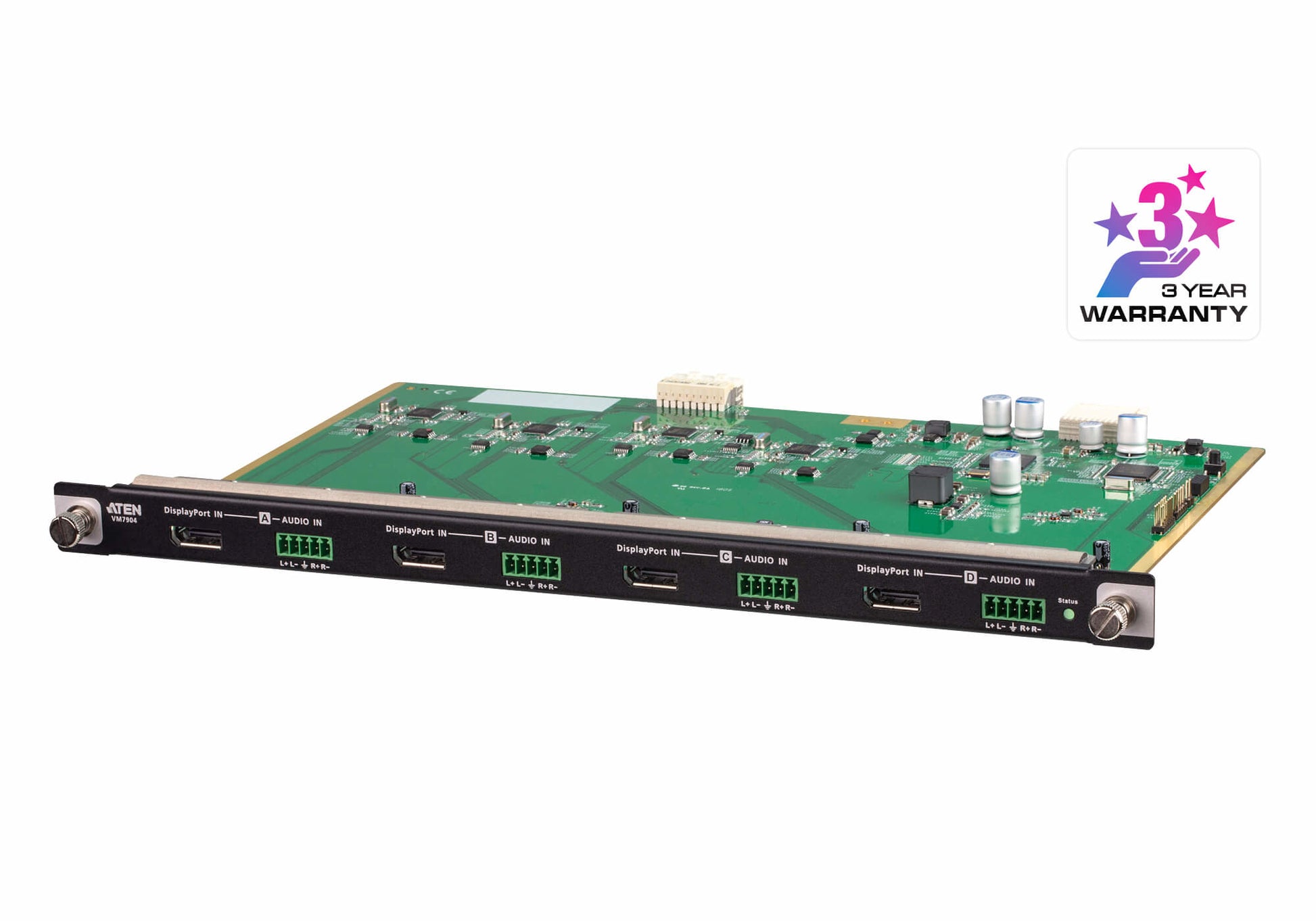

- Details: ATEN VM7904. Product type: Input board, Product color: Black, Green, Material: Metal. Power consumption (typical): 7.18 W. Width: 9.37" (238 mm), Depth: 13.9" (352 mm), Height: 0.917" (23.3 mm). Package width: 11.2" (285 mm), Package depth: 16.8" (426 mm), Package height: 2.24" (57 mm). Quantity per master (outer) case: 2 pc(s), Master (outer) case weight: 4.96 lbs (2.25 kg), Master (outer) case length: 17.3" (440 mm)
- Info: Compatible with the VM1600A / VM3200; mix and match with modular I/O boards of any type for optimum flexibility|Superior video quality – up to 4096 x 2160 / 3840 x 2160 @ 30 Hz (4:4:4)|Audio-enabled - DisplayPort audio can be exracted and stereo audio can be embedded|Support DP1.1 with data rate up to 10.8 Gbps (2.7 Gbps per lane)
- Product color: Black, Green
- Product type: Input board
- Quantity per master (outer) case: 2 pc(s)
- Master (outer) case weight: 4.96 lbs (2.25 kg)
- Master (outer) case width: 11.8" (300 mm)
- Master (outer) case length: 17.3" (440 mm)
- Master (outer) case height: 5.43" (138 mm)
- Master (outer) case net weight: 2.43 lbs (1.1 kg)
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Package width: 11.2" (285 mm)
- Package height: 2.24" (57 mm)
- Package depth: 16.8" (426 mm)
- Package weight: 32.1 oz (910 g)
- DisplayPorts quantity: 4
- Power consumption (typical): 7.18 W
- Compliance certificates: RoHS
- Material: Metal
- Weight: 19.4 oz (550 g)
- Width: 9.37" (238 mm)
- Height: 0.917" (23.3 mm)
- Depth: 13.9" (352 mm)
