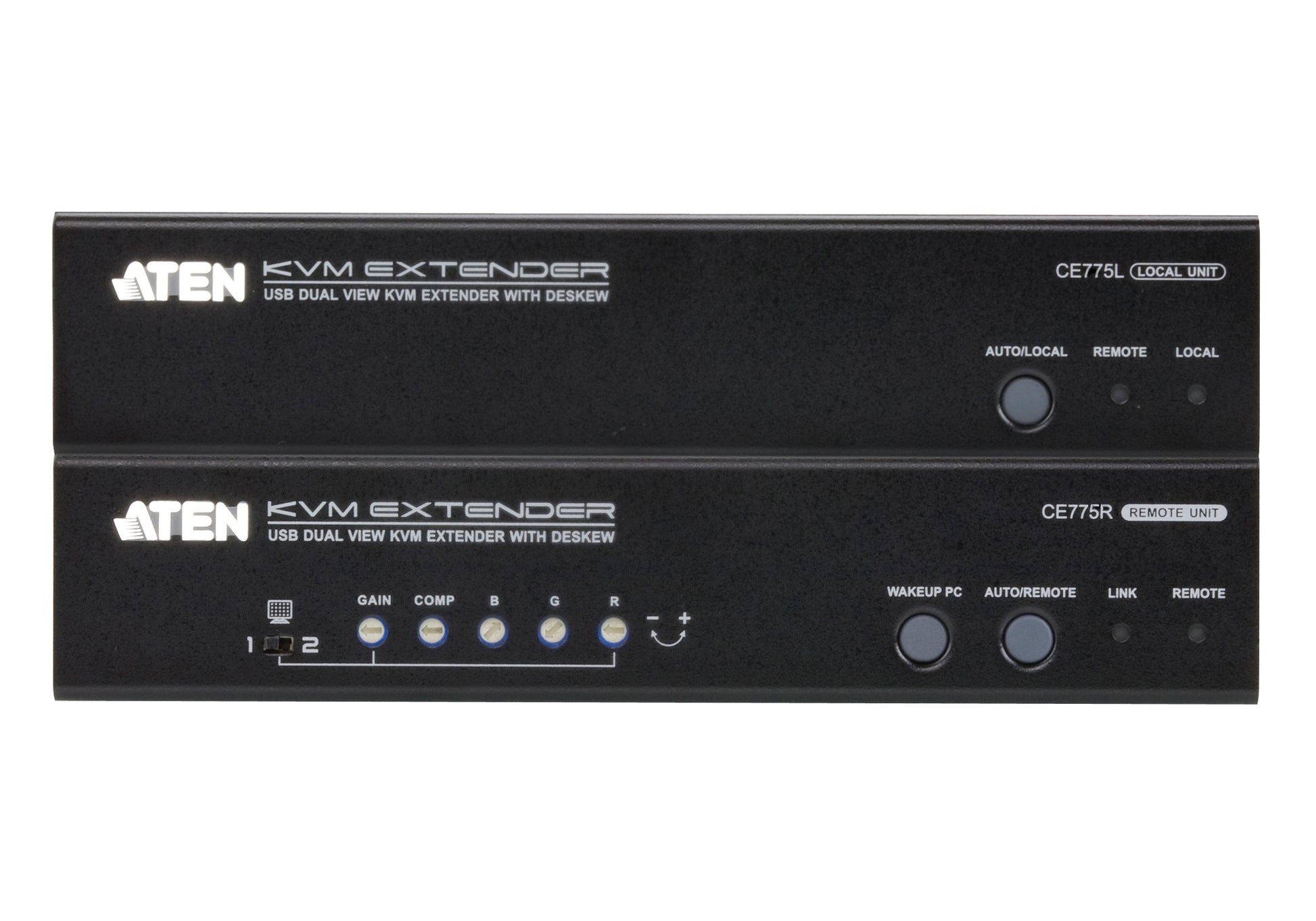

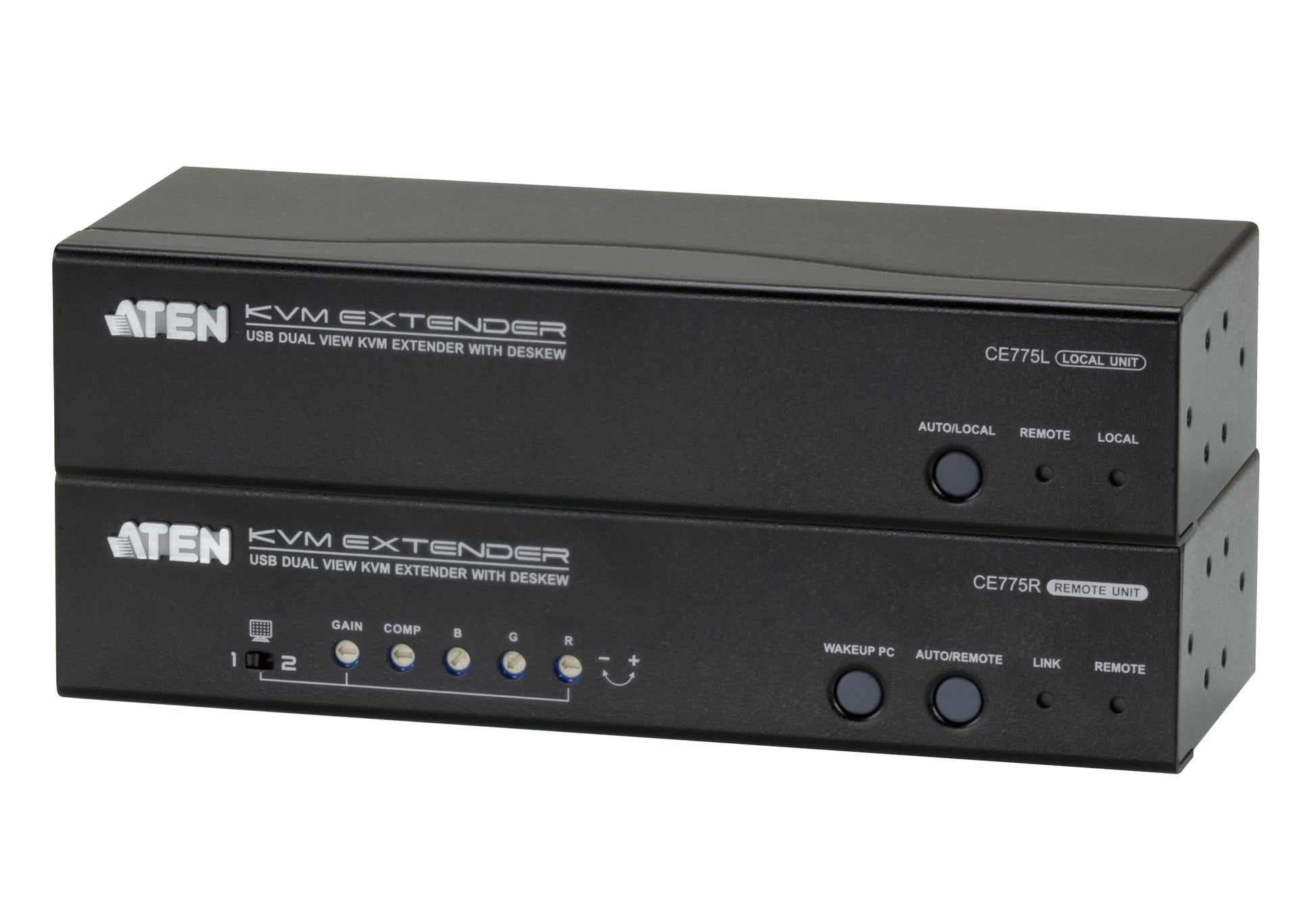

ATEN CE775 AV extender AV transmitter & receiver Black

ATEN CE775 AV extender AV transmitter & receiver Black

CE775

$826.94 USD
$826.94 USD
Sale Sold out

MSRP: $1,135.00

ATEN CE775. Type: AV transmitter & receiver, Maximum resolution: 1920 x 1200 pixels, Cable types supported: Cat5e. Audio input: 3.5mm, Audio output: 3.5mm. Operating voltage: 5.3 V. Dimensions (WxDxH): 2.98 x 7.87 x 1.65" (75.8 x 200 x 42 mm), Weight: 24.3 oz (690 g)
View full details
    • Details: ATEN CE775. Type: AV transmitter & receiver, Maximum resolution: 1920 x 1200 pixels, Cable types supported: Cat5e. Audio input: 3.5mm, Audio output: 3.5mm. Operating voltage: 5.3 V. Dimensions (WxDxH): 2.98 x 7.87 x 1.65" (75.8 x 200 x 42 mm), Weight: 24.3 oz (690 g)
    • Info: Dual View Support - connect two screens to transmit two video output signals to a remote site up to 300 m away using inexpensive Cat 5e/6 cables|Dual Console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles|Deskew Function – automatically synchronizes the time delay of RGB signals to compensate for distance|PC Wakeup support - from the remote console, simply use a pushbutton to wake a computer at the local site via RS-232|Superior video quality – 1920x1200@60Hz(150 m), 1280x1024@60Hz(300 m)|Gain/Compensation Control – adjusts signal strength in order to compensate for distance|On Screen Display – conveniently adjust video quality with the intuitive OSD menu system|RS-232 Channel – allow you to connect to a serial terminal, or serial devices such as touchscreens and barcode scanners|Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)|Sun/Mac keyboard support and emulation *|Supports Wide Screen formats **|* 1. PC keyboard combinations emulate Sun/Mac keyboards|2. Sun/Mac keyboards only work with their own computers|** The EDID data for a widescreen is sent from the local video output port. For widescreen modes and displays connect the monitor to the local video output port or use an ATEN EDID emulator.
    • LED indicators: Yes
    • Product color: Black
    • Type: AV transmitter & receiver
    • Cable types supported: Cat5e
    • Operating temperature (T-T): 0 - 50 °C
    • Storage temperature (T-T): -20 - 60 °C
    • Operating relative humidity (H-H): 0 - 80%
    • Dimensions (WxDxH): 2.98 x 7.87 x 1.65" (75.8 x 200 x 42 mm)
    • Maximum transfer distance: 11811" (300 m)
    • Audio system: Multichannel
    • Maximum resolution: 1920 x 1200 pixels
    • DC-in jack: Yes

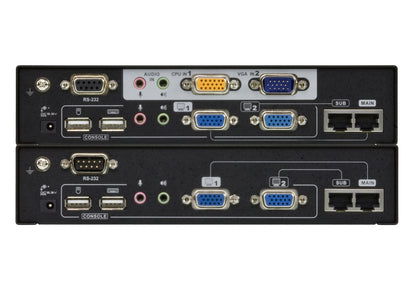

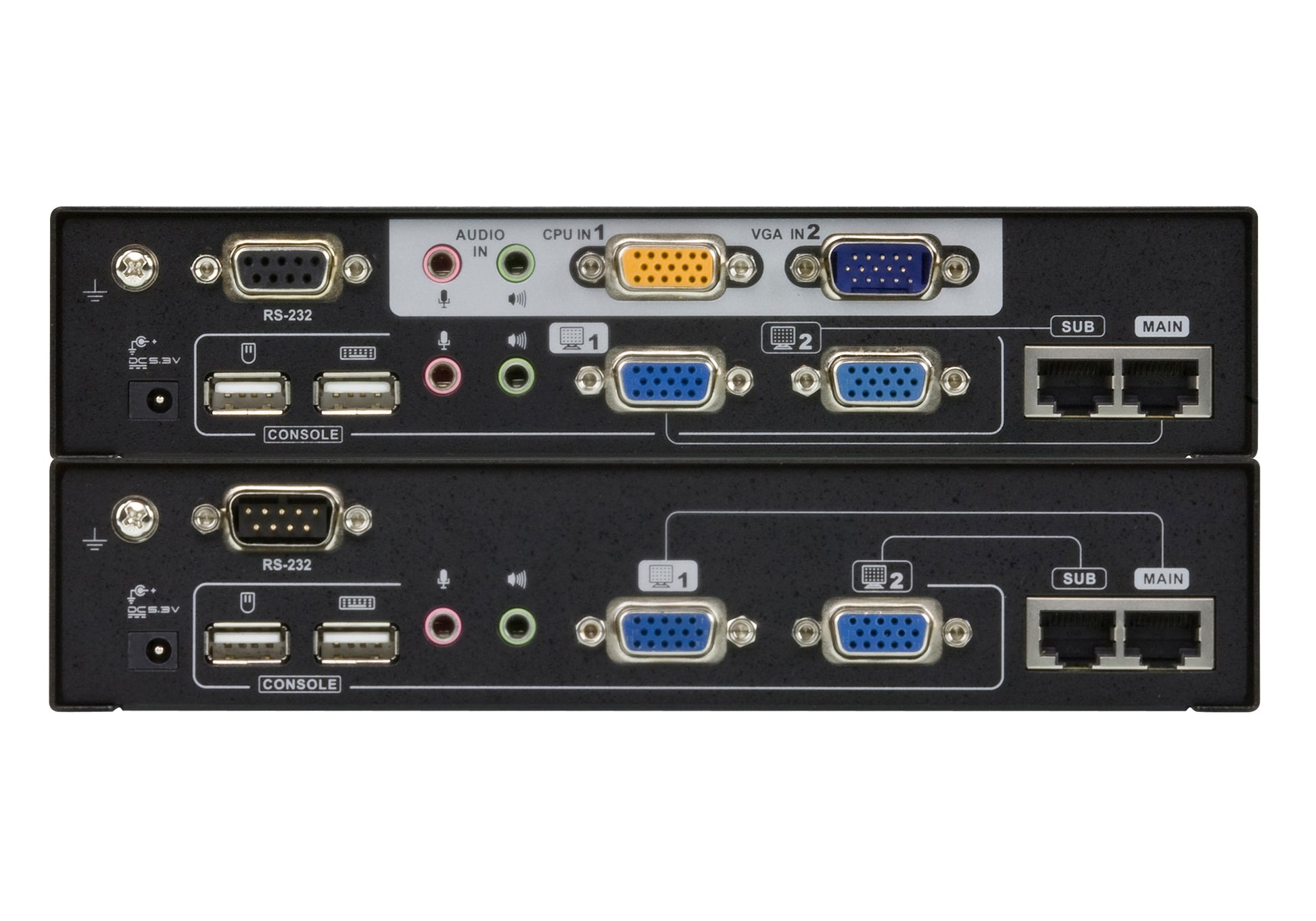

    • RJ-45 input ports: 2
    • RJ-45 output ports: 2
    • Audio input: 3.5mm
    • Audio output: 3.5mm
    • VGA (D-Sub) input ports: 4
    • Operating voltage: 5.3 V
    • External power adapter: Yes
    • Connector type: USB, SPHD-17, RS-232
    • Weight: 24.3 oz (690 g)
