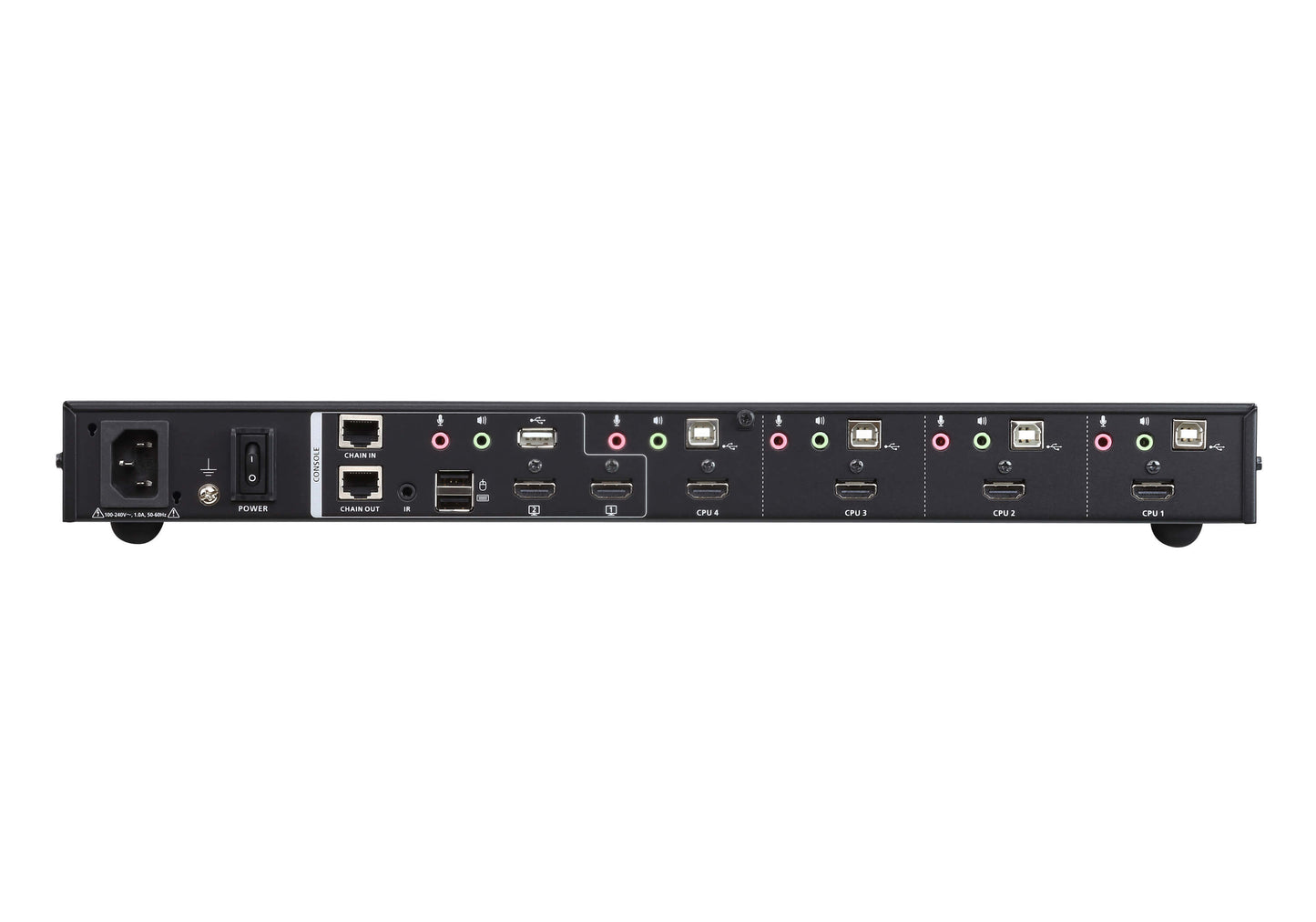

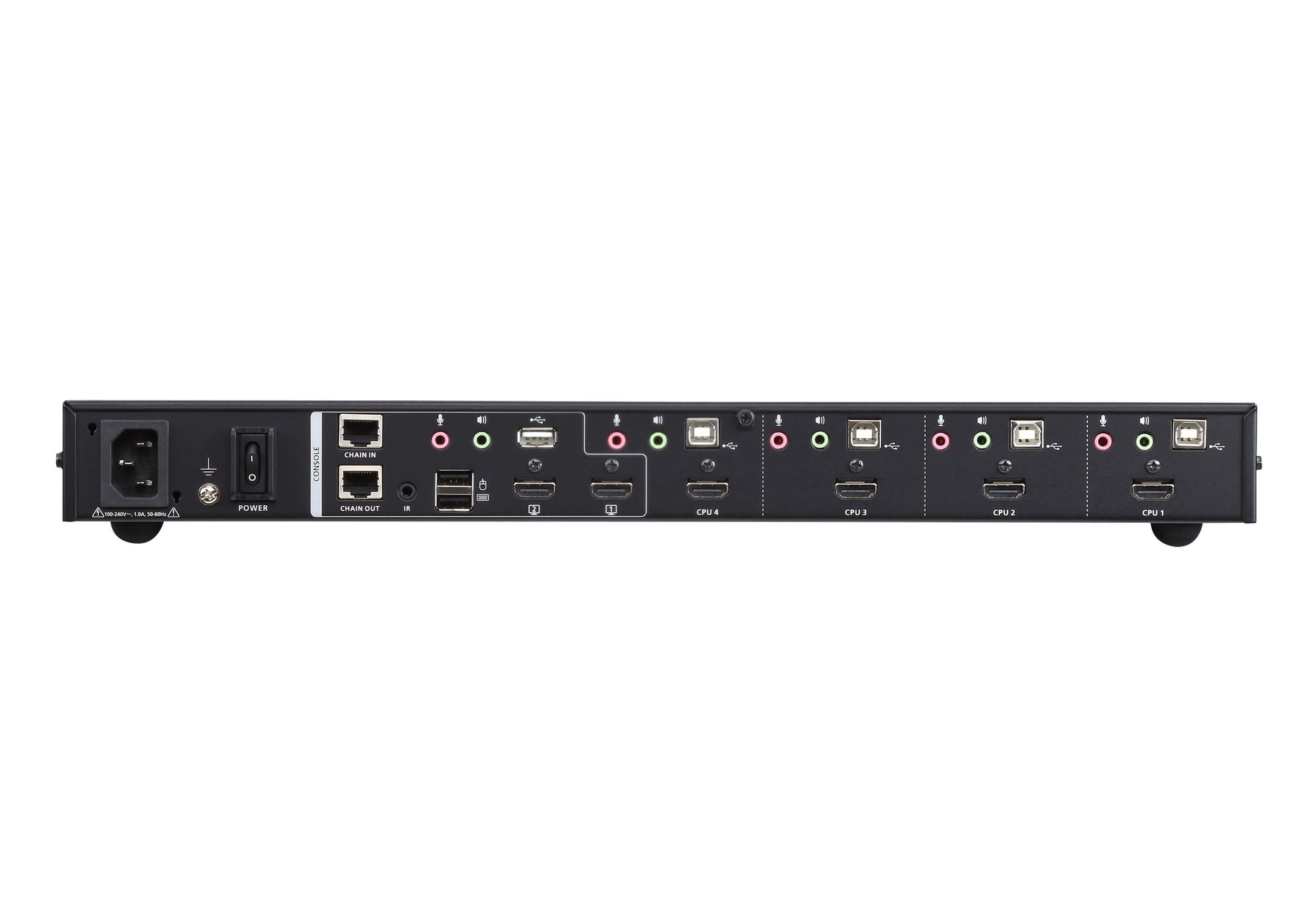

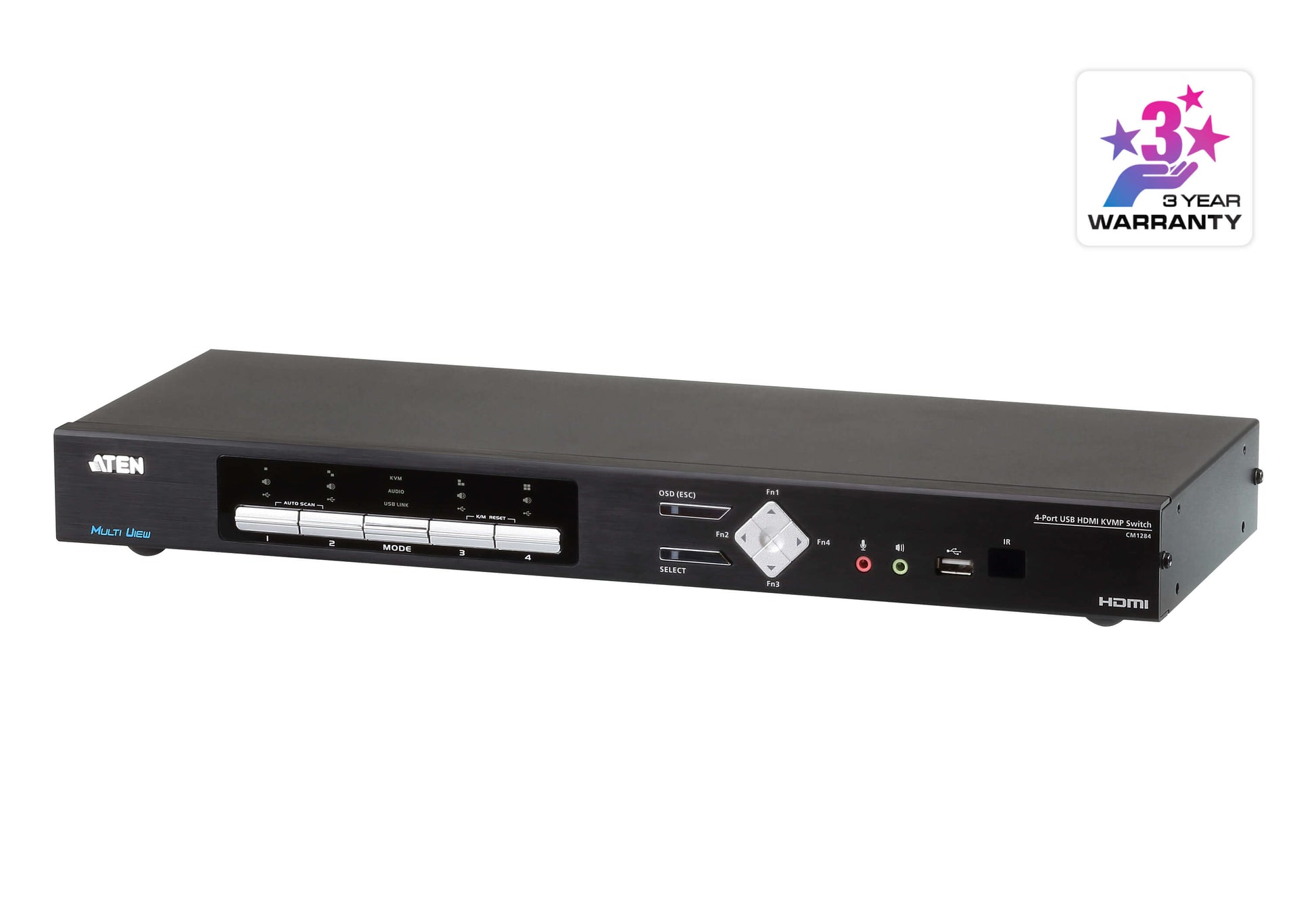

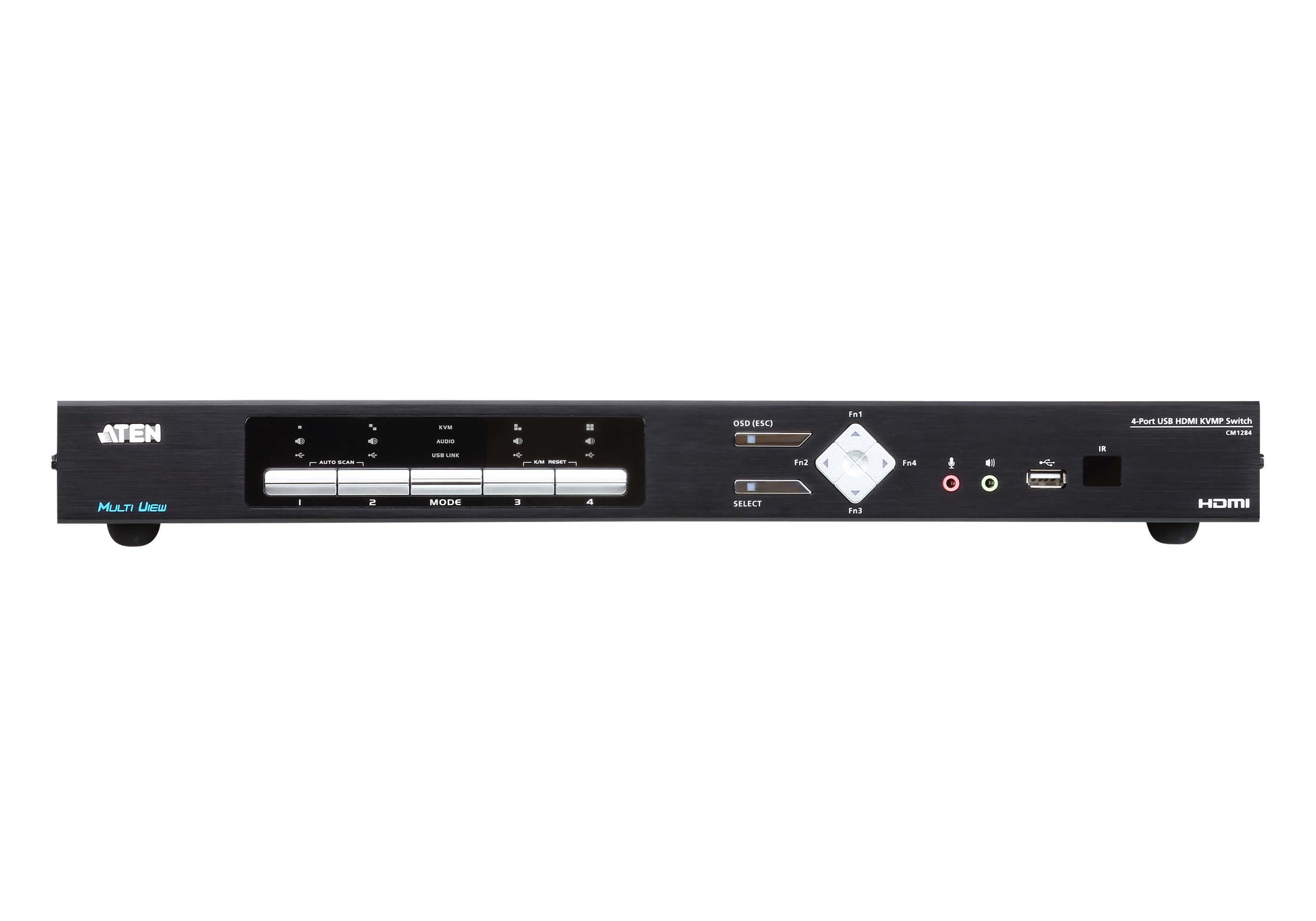

ATEN CM1284 KVM switch Rack mounting Black
ATEN CM1284 KVM switch Rack mounting Black
SKU: CM1284
Regular price
$2,090.63 USD
Regular price
Sale price
$2,090.63 USD
MSRP: $2,255.00
ATEN CM1284. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 30 Hz. Product color: Black, Housing material: Metal. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Width: 6.46" (164 mm), Depth: 17.2" (437.2 mm), Height: 1.73" (44 mm)
Quantity
Couldn't load pickup availability
- Details: ATEN CM1284. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 30 Hz. Product color: Black, Housing material: Metal. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Width: 6.46" (164 mm), Depth: 17.2" (437.2 mm), Height: 1.73" (44 mm)
- PDF: http://objects.icecat.biz/objects/mmo_65264915_1543504160_6042_3241.pdf
- Info: Multi-view console controls up to four video sources on one screen with display modes including Quad View, Picture in Picture (PiP), Picture by Picture (PbP), and Picture on Picture (PoP)|Features dual output on console side – a multi-view output and a full screen output|Easily resizes and / or reposition any PiP or PbP to suit users’ viewing needs|System configuration via front panel, OSD, IR Remote, and RS-232 commands – display mode and port selection|Supports superior video quality – Up to 4K (4096 x 2160 @ 30 Hz) ; YCbCr 4 :2 : 2|Drop down menu – edit display windows and other functions with the mouse and on-screen control panel|Computer selection via front panel pushbutton and hotkey, mouse, and the serial commands1|Boundless Switching – simply move the mouse cursor across windows to switch to other video sources even among the daisy chained installation|Boundless Switching Focus – a window frame to indicate which computer that it currently has the focus|Supports Extended Desktops Boundless Switching2|Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes the resolution when switching among different sources|EDID Expert™ – Selects optimum EDID settings for smooth power- up, high-quality display and use of the best video resolution across different screens|DCC (Daisy Chain Control) – Controls up to 3 additional CM1284 units from a single console|Cascade up to 2 levels – Controls up to 16 computers (with up to 4 x 4 Multi-view mode)|HDCP 1.4 compliant|Console keyboard emulation / bypass feature that support most multimedia keyboards|Console mouse port emulation / bypass feature that supports most mouse drivers and multifunction mice|Independent switching for USB peripheral port, audio function and KVM switch focus|Power on detection|Auto Scan feature|Firmware upgradable via computer’s USB port|Full bass response provides a rich experience for 2.1 channel audio|Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards|Hot-pluggable|Supports keyboard combinations via emulation (for Sun / Mac)3|Note:|1. Mouse port switching is only workable under the mouse emulation mode and applicable to 3-key USB wheel mouse only.|2. This function is only supported by Multi-View KVMP™ Switch using firmware version v2.3.222 or later.|3. PC keyboard combinations emulate Mac keyboard. Mac keyboard only works with their computers.
- LED indicators: Yes
- Rack mounting: Yes
- Push button: Yes
- HD type: 4K Ultra HD
- On Screen Display (OSD): Yes
- Product color: Black
- Housing material: Metal
- Daisy chain: Yes
- USB hub: Yes
- Ethernet LAN: Yes
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 95%
- Hot-Plug support: Yes
- Cables included: AC, KVM, USB
- Manual: Yes
- Rack mount kit: Yes
- Built-in display: No
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: HDMI
- Maximum resolution: 4096 x 2160 pixels
- Video bandwidth: 30 Hz
- Scan interval: 5,10,15,30,60,90 s
- Ethernet LAN (RJ-45) ports: 2
- HDMI ports quantity: 6
- Headphone outputs: 6
- HDCP: Yes
- Number of computers controlled: 4
- USB 2.0 Type-B ports quantity: 4
- Audio connections: Yes

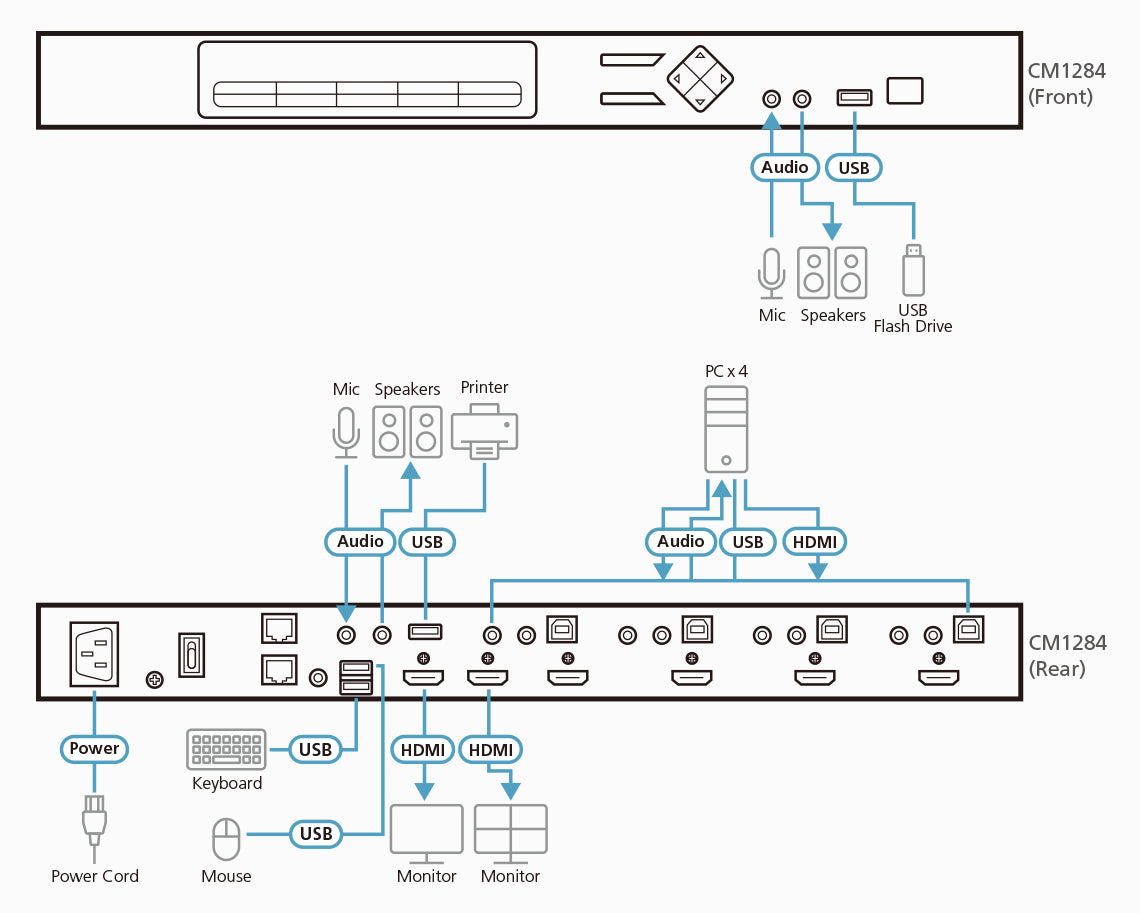

- Console ports: 3.5mm headphone, 3.5mm mic, HDMI, RJ–45, USB A
- Console USB ports quantity: 2
- USB 2.0 Type-A hub ports quantity: 2
- Number of microphone inputs: 6
- AC input frequency: 50 - 60 Hz
- Input voltage: 100 - 240 V
- Input current: 1 A
- Power source: AC
- Weight: 5.42 lbs (2.46 kg)
- Width: 6.46" (164 mm)
- Height: 1.73" (44 mm)
- Depth: 17.2" (437.2 mm)
