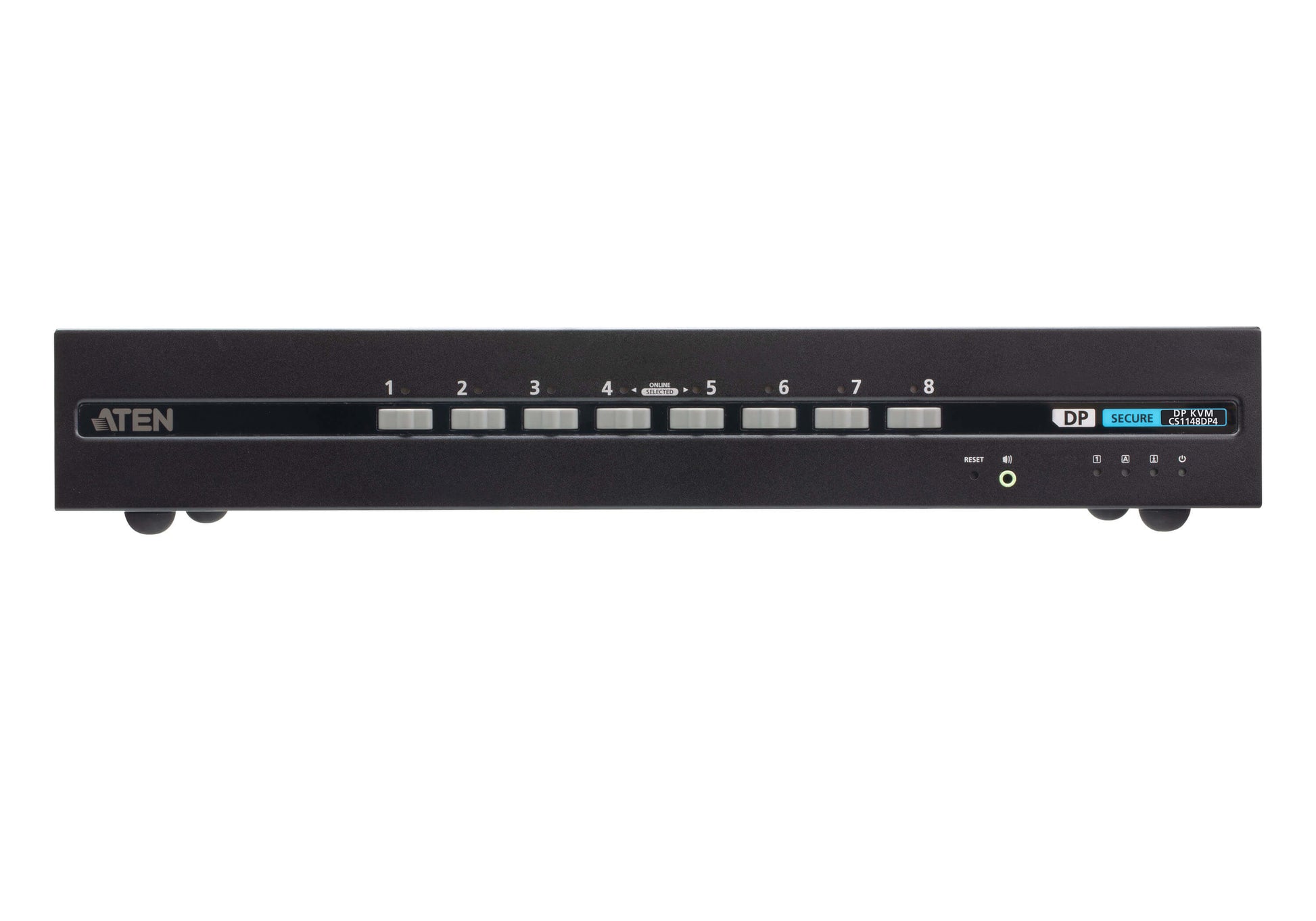

ATEN CS1148DP4 KVM switch Rack mounting Black
ATEN CS1148DP4 KVM switch Rack mounting Black
SKU: CS1148DP4
Regular price
$1,203.38 USD
Regular price
Sale price
$1,203.38 USD
MSRP: $1,623.00
ATEN CS1148DP4. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Video bandwidth: 30 Hz. Product color: Black, Housing material: Metal. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Width: 8.07" (204.9 mm), Depth: 17" (432.4 mm), Height: 2.58" (65.5 mm)
Quantity
Couldn't load pickup availability
- Details: ATEN CS1148DP4. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Video bandwidth: 30 Hz. Product color: Black, Housing material: Metal. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Width: 8.07" (204.9 mm), Depth: 17" (432.4 mm), Height: 2.58" (65.5 mm)
- PDF: http://objects.icecat.biz/objects/mmo_99782166_1739498355_31_160517.pdf
- Info: NIAP Common Criteria Compliant|Compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) security requirements|Multi-Layered Security|Always-on chassis intrusion detection – renders the ATEN PSD PP v4.0 Secure KVM Switch series inoperable when physical tampering is detected|Tamper-evident labels – provides visual indication of any attempt to access the ATEN PSD PP v4.0 Secure KVM Switch’s internal components|Non-reprogrammable firmware – prevents reprogramming the ATEN PSD PP v4.0 Secure KVM Switch’s firmware|Restricted peripheral connectivity – non-authorized HIDs (Human Interface Devices), and video are rejected|Port selection via pushbuttons / Remote Port Selector (RPS) 1only to enhance security|LED indicators for peripheral filtering and KVM security status|Strict audio filtration protects against audio leakage|Rugged metal enclosure|Data Channel Isolation and Unidirectional Data Flow|True data path isolation – data cannot be transferred between computers|The ATEN PSD PP v4.0 Secure KVM Switch controls and isolates data flow between console devices and connected computers|Unidirectional data flow between console devices and the selected computer is ensured|Supports analog audio (speaker only) 2|User Data Protection|The ATEN PSD PP v4.0 Secure KVM Switch’s keyboard / mouse data is automatically deleted after transmission and automatically purged when the KVM port focus is switched|Security Management|Supports administrative configuration of keyboard / mouse ports filtering to reject specific USB HID devices|Provides administrative functions for authorized administrators to audit KVM log data|Superior Video Quality|Superior video quality – up to 4K (3840 x 2160 @ 30 Hz) 3|Video DynaSync™ – Exclusive ATEN technology eliminates boot-up display problems and optimizes resolutions when switching among different sources|1. The Remote Port Selector is not supplied in the package and requires a separate purchase.|2. Only analog speaker data input is supported.|3. The DisplayPort Secure KVM Switch series supports console video output resolutions up to 3840 x 2160 @ 30 Hz.
- LED indicators: Yes
- Rack mounting: Yes
- Push button: Yes
- HD type: 4K Ultra HD
- Product color: Black
- Housing material: Metal
- Country of origin: Taiwan
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Storage relative humidity (H-H): 0 - 80%
- Cables included: AC
- Manual: Yes
- Quick installation guide: Yes
- Built-in display: No
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: DisplayPort
- Maximum resolution: 3840 x 2160 pixels
- Video bandwidth: 30 Hz
- RJ-11 ports quantity: 1
- Headphone outputs: 8
- DisplayPorts quantity: 16
- Number of computers controlled: 8
- USB 2.0 Type-B ports quantity: 8
- Audio connections: Yes
- Console ports: 3.5mm headphone, DisplayPort, USB A
- Console USB ports quantity: 2
- Console DisplayPorts ports quantity: 2
- Power consumption (typical): 24.4 W
- AC input frequency: 50 - 60 Hz
- Input voltage: 100 - 240 V
- Input current: 1.5 A
- Power source: AC
- Weight: 7.01 lbs (3.18 kg)
- Width: 8.07" (204.9 mm)
- Height: 2.58" (65.5 mm)
- Depth: 17" (432.4 mm)
