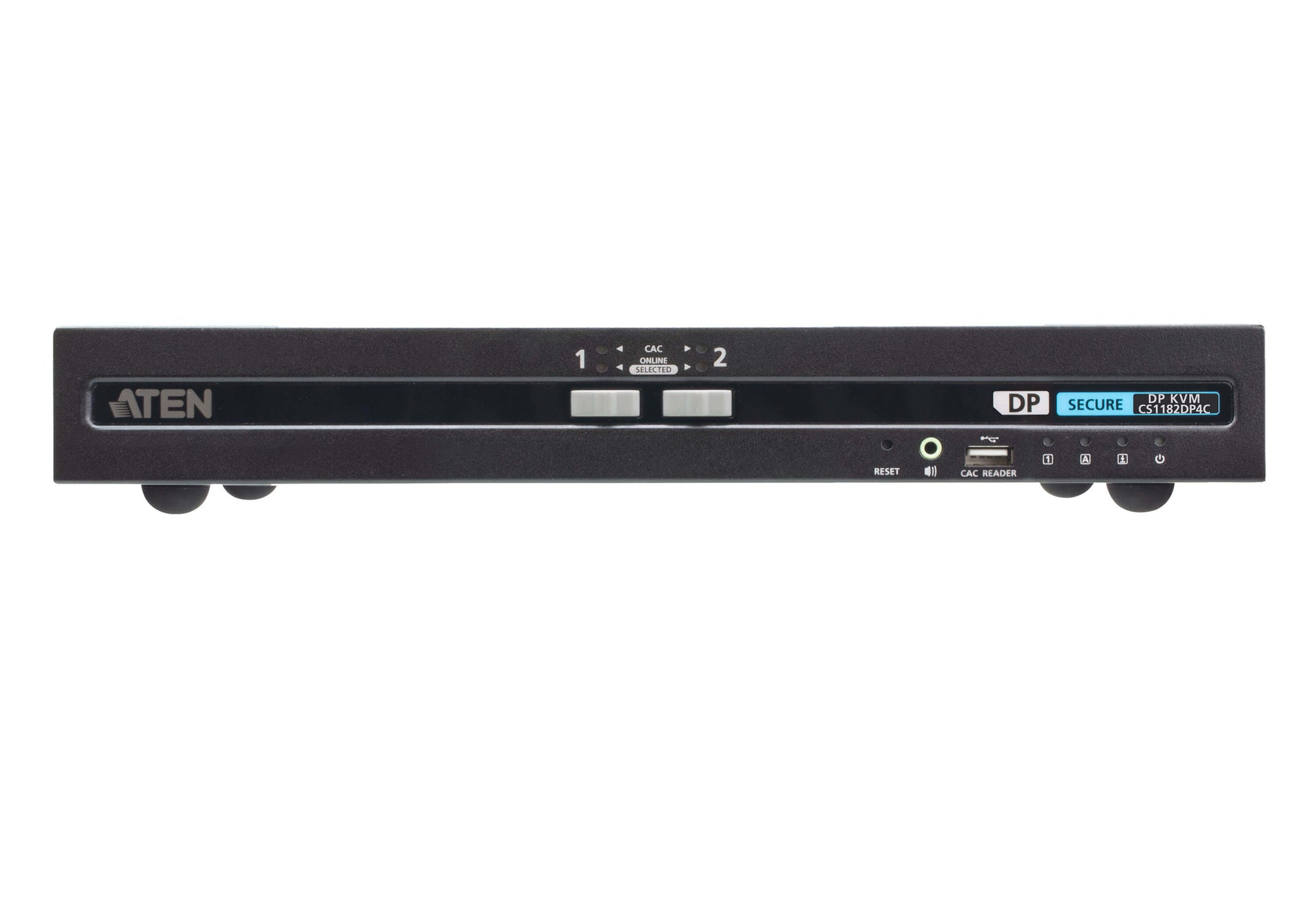

ATEN CS1182DP4C KVM switch Black

ATEN CS1182DP4C KVM switch Black

CS1182DP4C

$424.69 USD
$424.69 USD
Sale Sold out

MSRP: $554.00

ATEN CS1182DP4C. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels. Product color: Black, Housing material: Metal. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Width: 6.45" (163.9 mm), Depth: 13.2" (335 mm), Height: 1.73" (44 mm)
View full details
    • Details: ATEN CS1182DP4C. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels. Product color: Black, Housing material: Metal. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Width: 6.45" (163.9 mm), Depth: 13.2" (335 mm), Height: 1.73" (44 mm)
    • PDF: http://objects.icecat.biz/objects/mmo_99401440_1739498771_0288_311779.pdf
    • Info: NIAP Common Criteria Compliant|Compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) security requirements|Multi-Layered Security|Always-on chassis intrusion detection – renders the ATEN PSD PP v4.0 Secure KVM Switch series inoperable when physical tampering is detected|Tamper-evident labels – provides visual indication of any attempt to access the ATEN PSD PP v4.0 Secure KVM Switch’s internal components|Non-reprogrammable firmware – prevents reprogramming the ATEN PSD PP v4.0 Secure KVM Switch’s firmware|Restricted peripheral connectivity – non-authorized HIDs (Human Interface Devices), video, or authentication device connections are rejected|Port selection via pushbuttons / Remote Port Selector (RPS) 1 only to enhance security|LED indicators for peripheral filtering and KVM security status|Strict audio filtration protects against audio leakage.|Rugged metal enclosure|Data Channel Isolation and Unidirectional Data Flow|True data path isolation – data cannot be transferred between computers|The ATEN PSD PP v4.0 Secure KVM Switch controls and isolates data flow between console devices and connected computers|Unidirectional data flow between console devices and the selected computer is ensured|Supports analog audio (speaker only) 2|User Data Protection|The ATEN PSD PP v4.0 Secure KVM Switch’s keyboard / mouse data is automatically deleted after transmission and automatically purged when the KVM port focus is switched|Security Management|Supports administrative configuration of CAC Port filtering to accept or reject specific USB authentication devices|Supports administrative configuration of keyboard / mouse ports filtering to reject specific USB HID devices|Provides administrative functions for authorized administrators to audit KVM log data|Supports enable / disable CAC function by port|Superior Video Quality|Superior video quality – up to 4K (3840 x 2160 @ 30Hz) 3|Video DynaSync™ –Exclusive ATEN technology eliminates boot-up display problems and optimizes resolutions when switching among different sources|1. The Remote Port Selector is not supplied in the package and requires a separate purchase.|2. Only analog speaker data input is supported.|3. The DisplayPort Secure KVM Switch series supports console video output resolutions up to 3840 x 2160 @ 30 Hz.
    • LED indicators: Yes
    • Rack mounting: No
    • Push button: Yes
    • Wired remote switch: Yes
    • HD type: 4K Ultra HD
    • Product color: Black
    • Housing material: Metal
    • USB hub: Yes
    • Country of origin: Taiwan
    • Operating temperature (T-T): 0 - 50 °C
    • Storage temperature (T-T): -20 - 60 °C
    • Operating relative humidity (H-H): 0 - 80%
    • Cables included: AC
    • Manual: Yes
    • Quick installation guide: Yes
    • Package width: 4.57" (116 mm)
    • Package height: 9.17" (233 mm)
    • Package depth: 21.3" (540 mm)
    • Package weight: 5.6 lbs (2.54 kg)
    • Built-in display: No
    • Keyboard port type: USB
    • Mouse port type: USB
    • Video port type: DisplayPort
    • Maximum resolution: 3840 x 2160 pixels
    • RJ-11 ports quantity: 1
    • Headphone outputs: 2
    • DisplayPorts quantity: 2
    • Number of computers controlled: 2
    • USB 2.0 Type-B ports quantity: 4
    • Audio connections: Yes
    • Console ports: DisplayPort, USB A
    • Console USB ports quantity: 2
    • USB 2.0 Type-A hub ports quantity: 1
    • Power consumption (typical): 6.68 W
    • AC input frequency: 50 - 60 Hz
    • Input voltage: 100 - 240 V
    • Input current: 1 A
    • Power source: AC
    • Weight: 3.88 lbs (1.76 kg)
    • Width: 6.45" (163.9 mm)
    • Height: 1.73" (44 mm)
    • Depth: 13.2" (335 mm)
