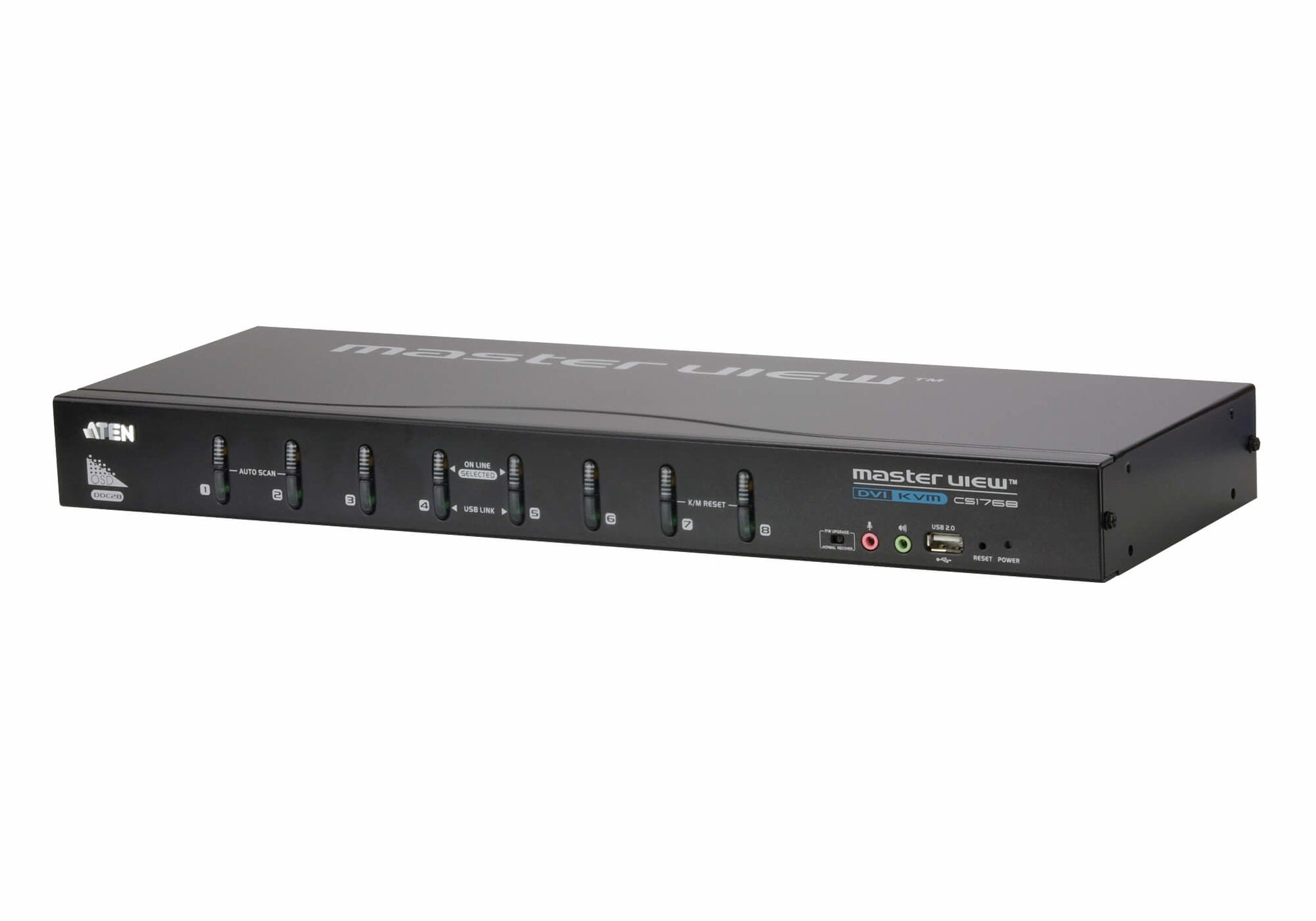

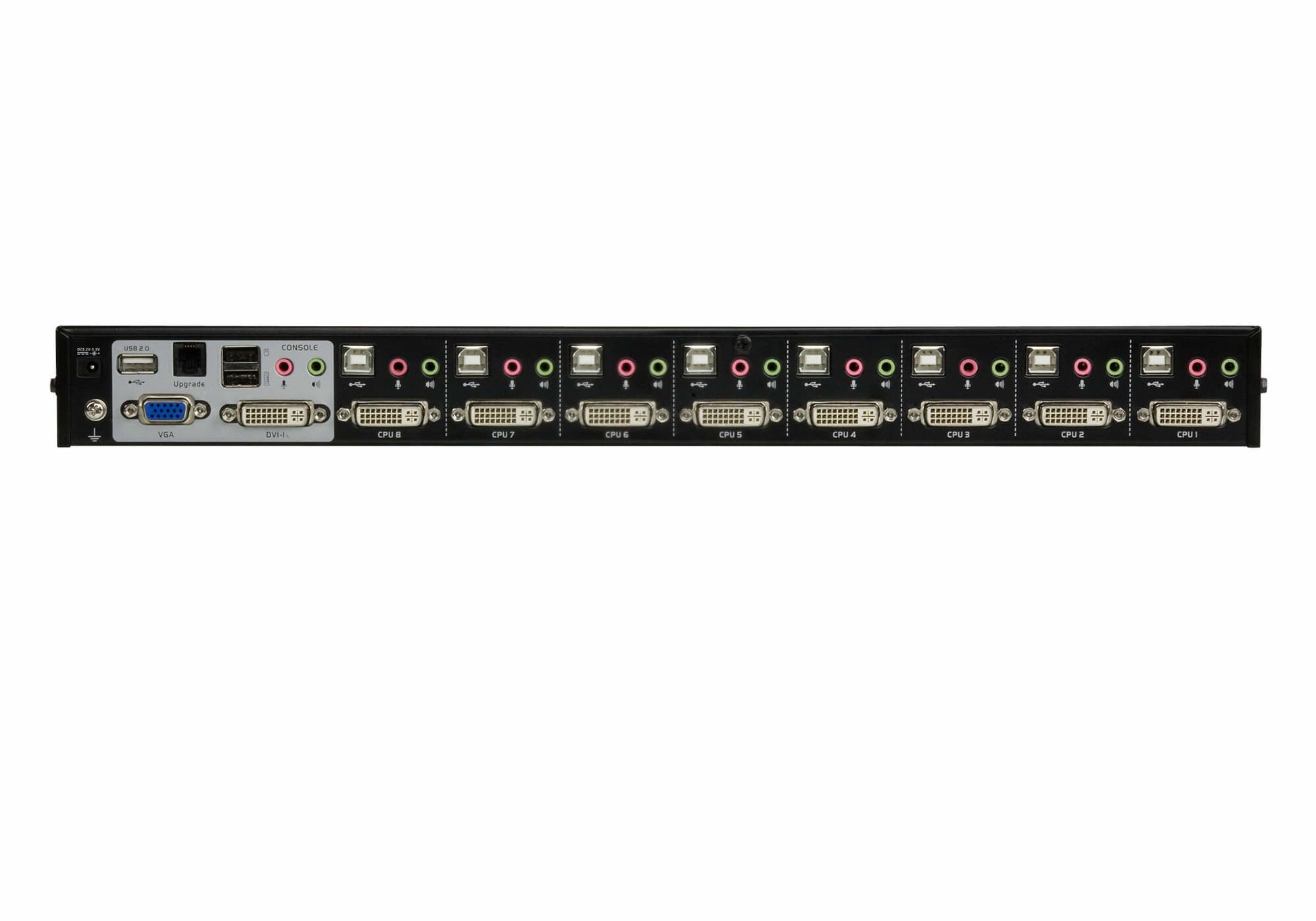

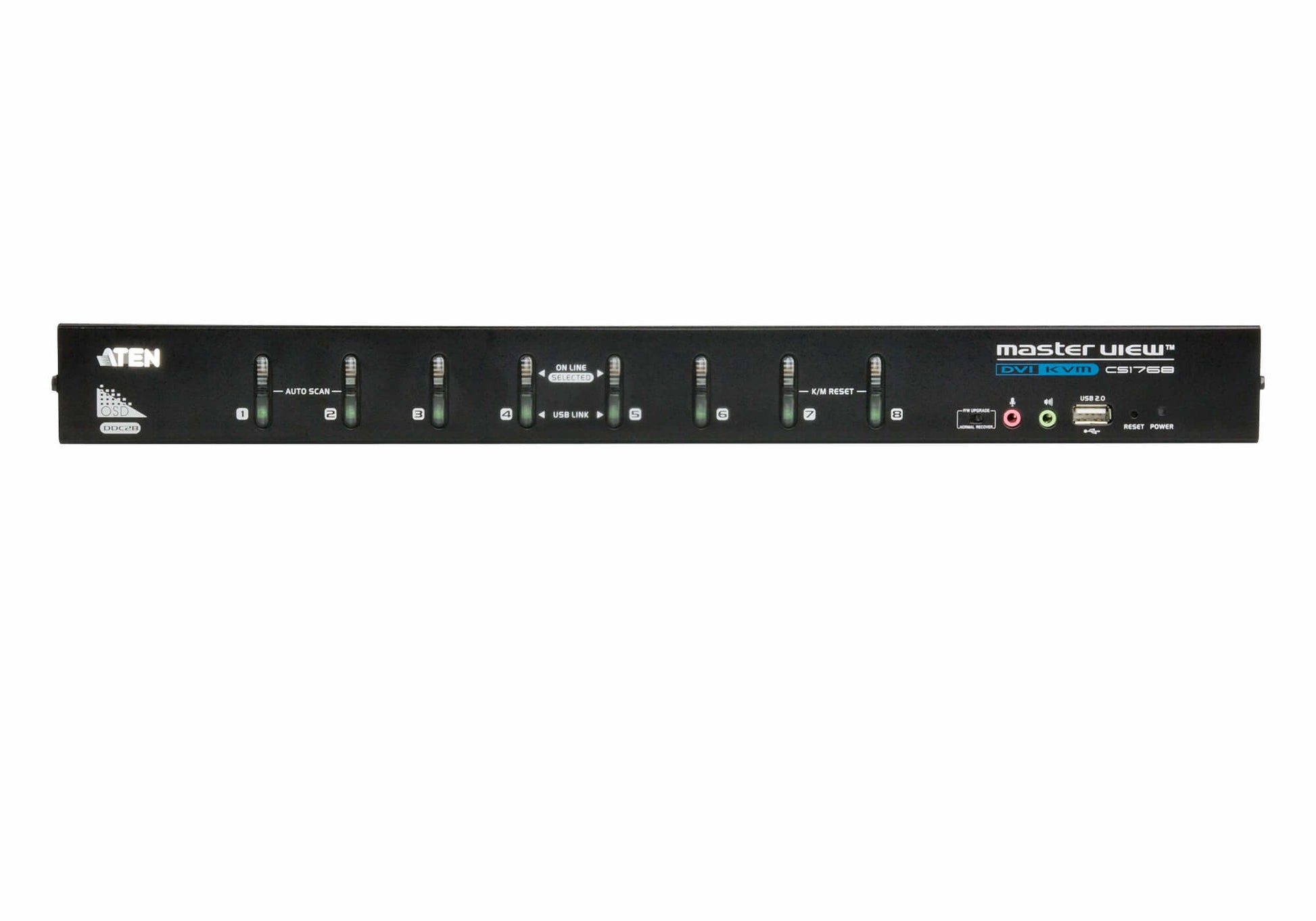

ATEN CS1768 KVM switch Blue

ATEN CS1768 KVM switch Blue

CS1768

$680.49 USD
$680.49 USD
Sale Sold out

MSRP: $934.00

ATEN CS1768. Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-I. Maximum resolution: 2048 x 1536 pixels, Maximum digital resolution: 1920 x 1200 pixels, Maximum analog resolution: 2048 x 1536 pixels. Product color: Blue, Housing material: Metal, Certification: TW I220489, CN ZL 02824593.8, DE 202004004227.4, JP 4558319, JP 4651633, TW 203183, TW I220476, TW.... Power consumption (typical): 3.76 W. Compliance certificates: RoHS
View full details
    • Details: ATEN CS1768. Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-I. Maximum resolution: 2048 x 1536 pixels, Maximum digital resolution: 1920 x 1200 pixels, Maximum analog resolution: 2048 x 1536 pixels. Product color: Blue, Housing material: Metal, Certification: TW I220489, CN ZL 02824593.8, DE 202004004227.4, JP 4558319, JP 4651633, TW 203183, TW I220476, TW.... Power consumption (typical): 3.76 W. Compliance certificates: RoHS
    • PDF: http://objects.icecat.biz/objects/9587949_6836.pdf
    • Info: One USB console controls eight Single Link DVI or VGA computers and two additional USB 2.0 devices|KVM console supports a digital (DVI-D) or an analog (VGA) video output|Computer ports support digital (DVI) and analog (VGA) video inputs* – mixed operation possible|Cascadable to three levels – control up to 512 computers|Multi-Display mode – stack up to four CS1768 units and display video from up to four monitors (dual display / triple display / quad display)|Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)|OSD Backup/Restore function – enables the administrator to back up the switch´s configuration and user profile information|2-port USB 2.0 hub built in|Fully compliant with the USB 2.0 specification|Two-level (Administrator/User) password authorization for enhanced security protection|Multilingual OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian, and French|Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound systems|Console audio ports on front panel for easy access|Multiplatform support – Windows, Linux, Mac, Sun|Supports widescreen resolutions|Superior video quality – 1920 x 1200 (Single Link DVI); 2048 x 1536 (VGA); DDC2B|Independent switching of KVM and USB focus|DVI digital and analog monitor support – fully compliant with the DVI specifications|HDCP compatible|Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports|Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice|Complete keyboard emulation for error-free booting|Mac/Sun keyboard support and emulation**|Multilingual keyboard mapping – supports English (US), English (UK), French, German, Japanese, Korean, Traditional Chinese, and Spanish|Auto Scan Mode for monitoring all computers|Broadcast mode – allows you to send commands from the console to all computers to perform operations simultaneously.|Firmware upgradable|Note:|* A VGA input requires a VGA to DVI adapter or a VGA to DVI KVM cable(2L-7DX2U/2L-7DX3U). This KVM cable is sold separately|** PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboard work only with their own computers
    • Certification: TW I220489, CN ZL 02824593.8, DE 202004004227.4, JP 4558319, JP 4651633, TW 203183, TW I220476, TW I285828, US 6934398, US 6957287, US 7047344, US 7269265, US 7340556, US 7472217
    • RoHS
    • LED indicators: Yes
    • Product color: Blue
    • Housing material: Metal
    • Compatible operating systems: Windows, Linux, Mac, Sun
    • Harmonized System (HS) code: 85176200
    • Operating temperature (T-T): 0 - 50 °C
    • Storage temperature (T-T): -20 - 60 °C
    • Operating relative humidity (H-H): 0 - 80%
    • Connectivity technology: Wired
    • Ports quantity: 8
    • Cables included: KVM
    • Manual: Yes
    • AC adapter included: Yes
    • Quick installation guide: Yes
    • Maximum digital resolution: 1920 x 1200 pixels
    • Keyboard port type: USB
    • Mouse port type: USB
    • Video port type: DVI-I
    • Maximum resolution: 2048 x 1536 pixels
    • Scan interval: 255 s
    • Maximum analog resolution: 2048 x 1536 pixels
    • USB 2.0 ports quantity: 10
    • VGA (D-Sub) ports quantity: 1
    • Headphone outputs: 8
    • Number of computers controlled: 8
    • Number of microphone inputs: 8
    • Power consumption (typical): 3.76 W
    • DVI-I ports quantity: 8
    • Compliance certificates: RoHS
    • Weight: 6.17 lbs (2.8 kg)
    • Width: 6.34" (161.1 mm)
    • Height: 1.73" (44 mm)
    • Depth: 17.2" (437.2 mm)
