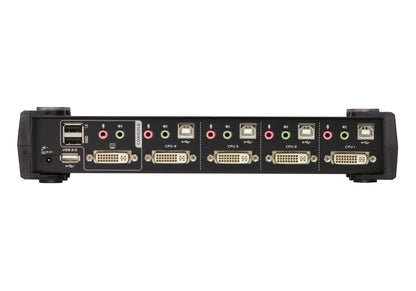

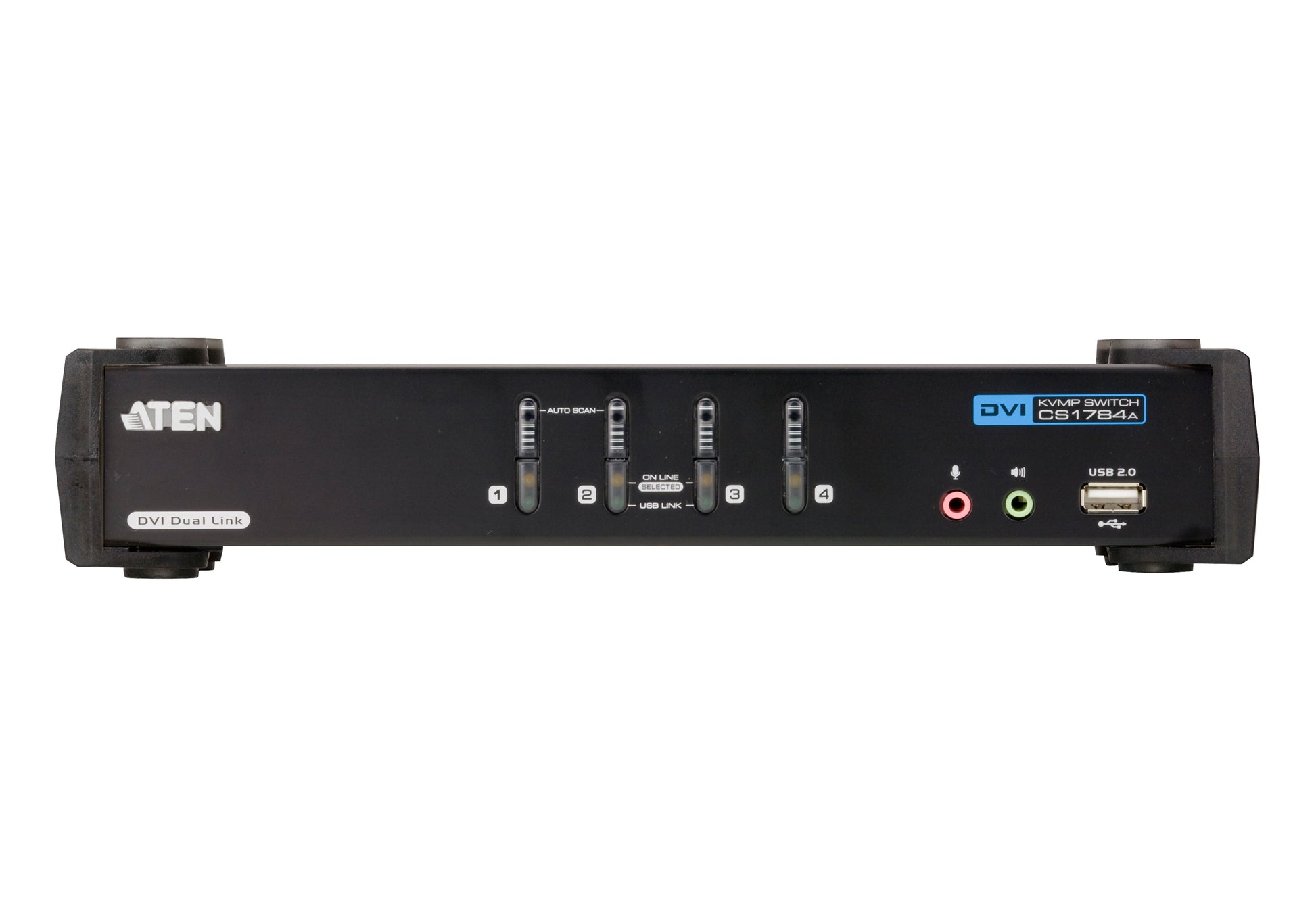

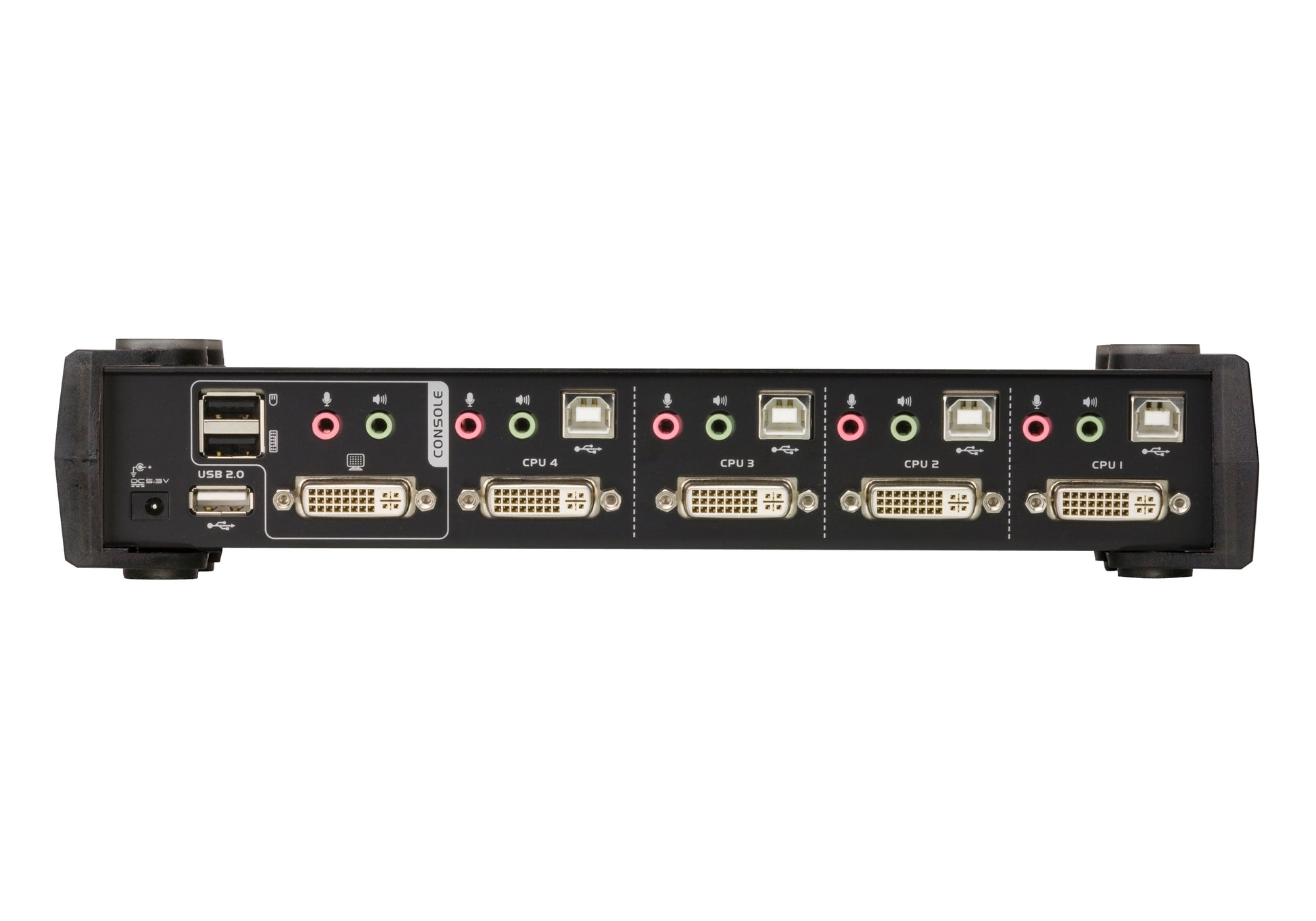

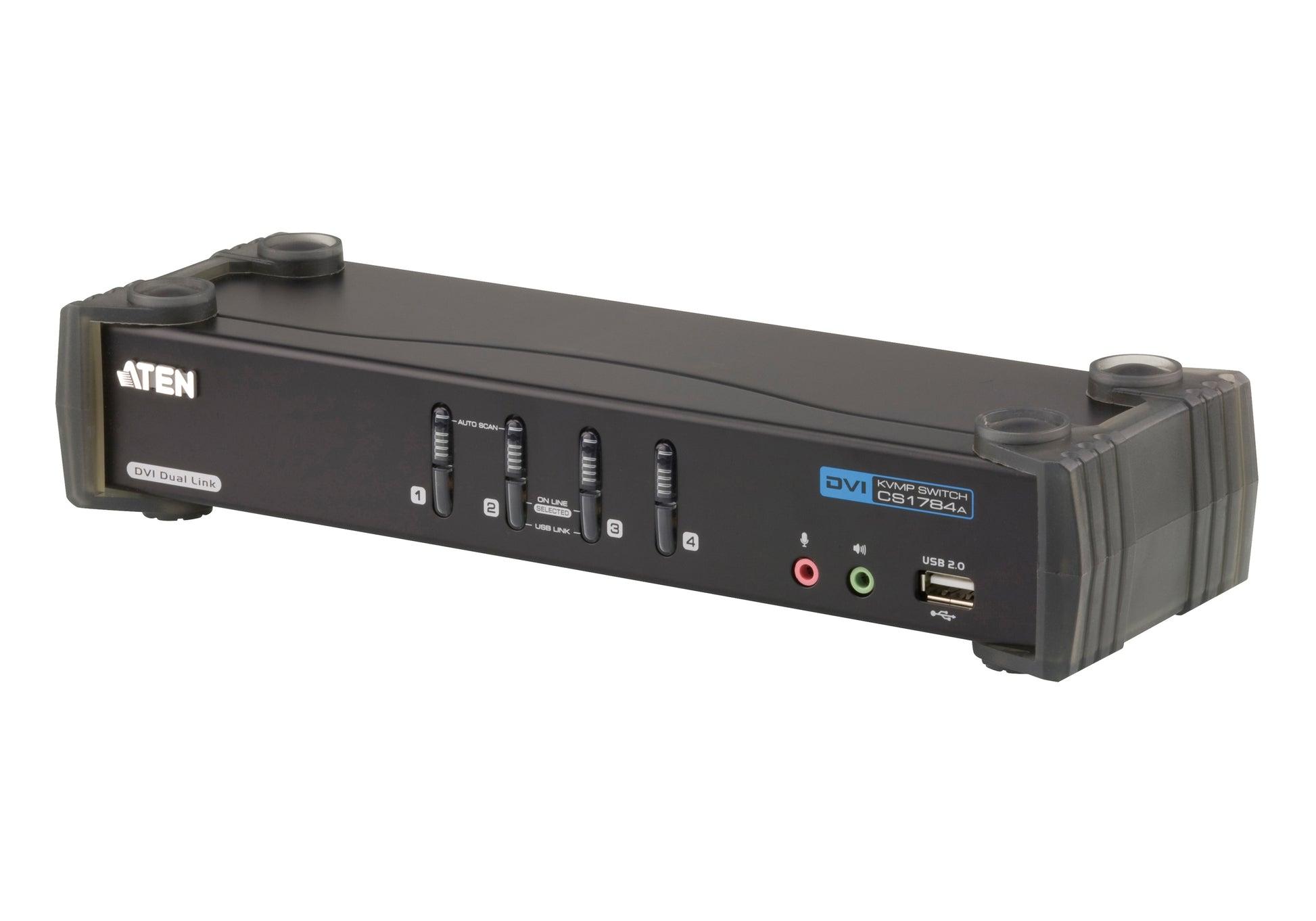

ATEN CS1784A KVM switch Black
ATEN CS1784A KVM switch Black
SKU: CS1784A
Regular price
$485.31 USD
Regular price
Sale price
$485.31 USD
MSRP: $599.00
ATEN CS1784A. Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-I. Maximum resolution: 2560 x 1600 pixels, Scan interval: 1,99 s. Product color: Black, Housing material: Metal. Power source: DC, Input voltage: 5.3 V, Power consumption (typical): 10 W. Compliance certificates: RoHS
Quantity
Couldn't load pickup availability
- Details: ATEN CS1784A. Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-I. Maximum resolution: 2560 x 1600 pixels, Scan interval: 1,99 s. Product color: Black, Housing material: Metal. Power source: DC, Input voltage: 5.3 V, Power consumption (typical): 10 W. Compliance certificates: RoHS
- PDF: http://objects.icecat.biz/objects/mmo_26030908_1509718383_1677_21726.pdf
- Info: 4-port DVI KVMP Switch with USB 2.0 and 2.1 Surround Sound Audio|One USB console controls four computers and two additional USB devices|2-port built in USB 2.0 hub fully compliant with the USB 2.0 specification|Full bass response for high quality 2.1 channel surround sound systems|Computer selection via front panel pushbuttons, hotkeys, and mouse NEW!|Multiplatform support – Windows, Linux, Mac, and Sun*|Independent switching of KVM, USB, and Audio focus|DVI digital and analog monitor support – fully compliant with the DVI specifications|Superior video quality: 1920 x 1200 @ 60Hz (Single Link); 2560 x 1600 @ 60Hz (Dual Link)|nVidia 3D Vision Ready: Works with 120Hz LCD monitors and active shutter glasses to create a 3D environment with maximum resolution of up to 1920 x 1080|HDCP compatible|Support widescreen resolutions|Video DynaSync™ – Exclusive ATEN technology that eliminates boot-up display problems and optimizes resolution when switching between ports|Power on detection – if one of the computers is powered off, the switch will automatically switch to the next powered-on computer NEW!|Console mouse port emulation/bypass feature that supports most mouse drivers and multifunction mice|Console keyboard emulation/bypass feature that supports most gaming / multimedia keyboards NEW!|Complete keyboard emulation for error-free booting|Mac/Sun keyboard support and emulation*|Multilingual keyboard mapping – supports English, Japanese, and French keyboards|Auto Scan Mode for monitoring all computers|Firmware upgradable|* PC keyboard combinations emulate Mac/Sun keyboards|Mac/Sun keyboard work only with their own
- Rack mounting: No
- Push button: Yes
- Product color: Black
- Housing material: Metal
- Hot keys: Yes
- Harmonized System (HS) code: 85176200
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Cables included: KVM
- Manual: Yes
- AC adapter included: Yes
- Firmware upgradeable: Yes
- Built-in display: No
- USB connector type: USB Type-A
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: DVI-I
- Maximum resolution: 2560 x 1600 pixels
- Scan interval: 1,99 s
- Power on detection: Yes
- DC-in jack: Yes
- USB 2.0 ports quantity: 2
- Headphone outputs: 4
- HDCP: Yes
- Number of computers controlled: 4
- Audio connections: Yes
- Console ports: 3.5mm headphone, 3.5mm mic, DVI-I, USB A
- Console USB ports quantity: 3
- Number of microphone inputs: 2
- Power consumption (typical): 10 W
- Input voltage: 5.3 V
- Power source: DC
- DVI-I ports quantity: 5
- Mac operating systems supported: Yes
- Windows operating systems supported: Yes
- Linux operating systems supported: Yes
- Other operating systems supported: Yes
- Compliance certificates: RoHS
- Weight: 32.8 oz (930 g)
- Width: 10.6" (270 mm)
- Height: 2.19" (55.5 mm)
- Depth: 3.46" (88 mm)
