ATEN CS1798 KVM switch Rack mounting Black
ATEN CS1798 KVM switch Rack mounting Black
SKU: CS1798
Regular price
$422.45 USD
Regular price
Sale price
$422.45 USD
MSRP: $522.00
ATEN CS1798. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product color: Black, Rack capacity: 1U, Housing material: Metal. Power source: DC, Input voltage: 5 V, Power consumption (typical): 12 W. Width: 17" (432.4 mm), Depth: 10.1" (257.2 mm), Height: 1.73" (44 mm)
Quantity
Couldn't load pickup availability
- Details: ATEN CS1798. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product color: Black, Rack capacity: 1U, Housing material: Metal. Power source: DC, Input voltage: 5 V, Power consumption (typical): 12 W. Width: 17" (432.4 mm), Depth: 10.1" (257.2 mm), Height: 1.73" (44 mm)
- PDF: http://objects.icecat.biz/objects/mmo_30341377_1509100951_8944_18935.pdf

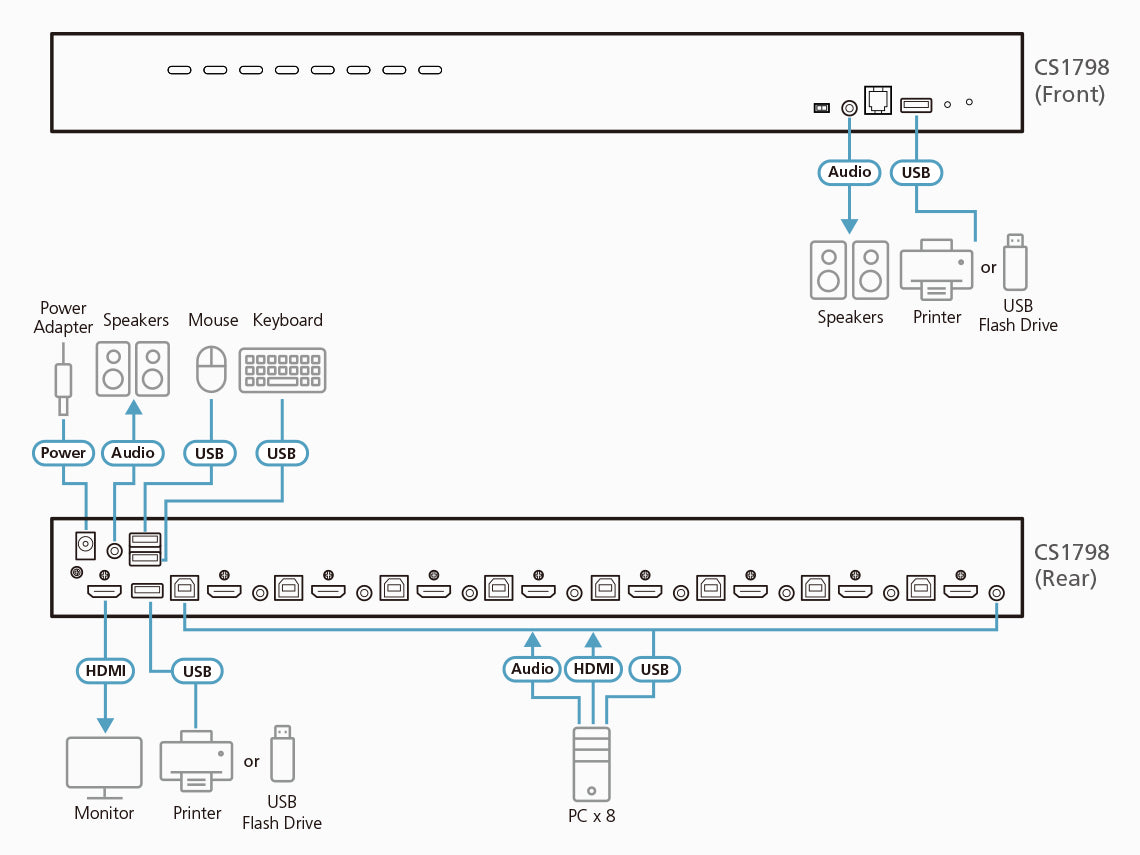

- Info: One USB console controls up to eight HDMI interface computers and two additional USB 2.0 devices|HDMI compatible|Cascadable to three levels–control up to 512 computers1|Multi-Display feature – stack up to eight CS1798 units and display video from up to eight monitors(dual display/triple display/quad display/multi-display)|2-port USB 2.0 hub built in2|Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)|Independent switching of KVM and USB focus|OSD Backup/Restore feature–enables the administrator to back up the switch’s configuration and user profile information|Firmware upgradable|Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports|Superior video quality–supports up to 1080p / 1920 x 1200@60Hz3|Supports widescreen resolutions|Audio enabled–full bass response provides a rich experience for 2.1 channel surround sound systems|Console audio ports on front panel for easy access|Auto Scan Mode for monitoring all computers|HDCP compatible|Multiplatform support–Windows, Linux, Mac, Sun4|Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice|Complete keyboard emulation for error-free booting|Mac/Sun keyboard support and emulation5|Multilingual OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian, and French|Multilingual keyboard mapping – supports English (US), English (UK), German (GER.), German (SWISS), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese, and Simplified Chinese|Supports hot-plugging|Note:|1. CS1798 cascade to CS1798 only.|2. The USB 2.0 hub cannot be accessed through the switch by computers on the second or third level of a cascaded installation.|3. CS1798 supports the resolution up to 1920 x 1080 @ 60 Hz. The resolution of the connected source should be 1920 x 1080 @ 60 Hz or lower in order to avoid compatibility issues.|4. For PC compatible computers. Mac and Sun computers must be compatible with USB connections.|5. PC keyboard combinations emulate Mac / Sun keyboards; Mac / Sun keyboards work only with their own computers.
- LED indicators: Yes
- Rack mounting: Yes
- Push button: Yes
- HD type: WUXGA
- On Screen Display (OSD): Yes
- Product color: Black
- Housing material: Metal
- Keyboard language: Chinese Traditional, English, French, German, Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Swiss, UK English, US English
- Hot keys: Yes
- USB hub: Yes
- Harmonized System (HS) code: 85176200
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Hot-Plug support: Yes
- Cables included: KVM
- AC adapter included: Yes
- Quick installation guide: Yes
- Rack mount kit: Yes
- Firmware upgradeable: Yes
- Built-in display: No
- USB connector type: USB Type-B
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: HDMI
- Maximum resolution: 1920 x 1200 pixels
- Video bandwidth: 60 Hz
- DC-in jack: Yes
- HDMI ports quantity: 9
- Headphone outputs: 8
- HDCP: Yes
- USB version: 2.0
- Number of computers controlled: 512
- Audio connections: Yes
- Console ports: 3.5mm headphone, HDMI, USB B
- Console USB ports quantity: 2
- Power consumption (typical): 12 W
- Input voltage: 5 V
- Power source: DC
- Mac operating systems supported: Yes
- Windows operating systems supported: Yes
- Linux operating systems supported: Yes
- Other operating systems supported: Yes
- Rack capacity: 1U
- Cascadable: Yes
- Weight: 7.69 lbs (3.49 kg)
- Width: 17" (432.4 mm)
- Height: 1.73" (44 mm)
- Depth: 10.1" (257.2 mm)
